NetApp SRA Adapter Shows Error State in SRM VAMI with “The SRA might have configuration issues”

Products

• VMware Live Recovery

Issue/Introduction

Symptoms:

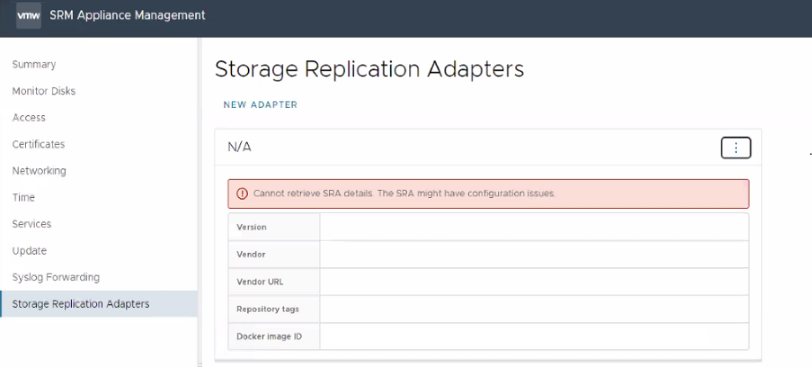

• The NetApp SRA adapter show in an error state in SRM VAMI Page.

• In the vmware-dr.log file error related to: Cannot Load Adapter.

2026-02-23T08:56:40.927+02:00 error vmware-dr[01863] [SRM@6876 sub=Storage opID=f63173eb-54a4-4668-a4d6-9d7f6347efaa-reloadAdapters:971e] queryCapabilities exited with exit code 9
2026-02-23T08:56:40.927+02:00 error vmware-dr[01863] [SRM@6876 sub=Storage opID=f63173eb-54a4-4668-a4d6-9d7f6347efaa-reloadAdapters:971e] Failed to load SRA from 'netapp:10.4'

• Log details from drconfig.log confirms that SRM cannot communicate properly with the NetApp SRA service

2026-02-22T14:22:24.569+02:00 info drconfig[02312] [SRM@6876 sub=DrConfigSRAManager opID=001bf767-56fb-4734-99ad-9ddb922ff82f-getSraImages:61b8:821e] Command queryInfo's stdout:
--> Log_output : output = sra_server_url = https://ip:8443
--> Log_output : output = sra_server_url = https://ip:8443
-->  outputFile =/tmp/sra-output-6-157
--> outputFile =/tmp/sra-output-6-157Log_output : output = sra_server_url = https://ip:8443
-->  outputFile =/tmp/sra-output-6-157
-->  command = queryInfo
--> Log_output : output = sra_server_url = https://ip:8443
-->  outputFile =/tmp/sra-output-6-157
-->  command = queryInfo
-->  otvng_username =administrator
-->
-->  Command queryInfo launched with errors
-->
-->  SRA Server is unable to launch TASK for command queryInfo. Retrying ...Retry count :1
-->  Command queryInfo launched with errors
-->
-->  SRA Server is unable to launch TASK for command queryInfo. Retrying ...Retry count :2
-->  Command queryInfo launched with errors
-->
-->  SRA Server is unable to launch TASK for command queryInfo. Retrying ...Retry count :3
-->  Command queryInfo launched with errors
-->
-->  SRA Server is unable to launch TASK for command queryInfo. Retrying ...Retry count :4
-->  Command queryInfo launched with errors
-->
-->  SRA Server is unable to process TASK for command queryInfo. No more retry .Permanent Error
2026-02-22T14:22:24.569+02:00 error drconfig[02312] [SRM@6876 sub=DrConfigSRAManager opID=001bf767-56fb-4734-99ad-9ddb922ff82f-getSraImages:61b8:821e] queryInfo exited with no response

Environment

• VMware Site Recovery Managr 9.x
• VMware Live Recovery 9.x

Cause

This is a known issue with NetApp ONTAP Tools. As per the NetApp KB, ONTAP Tools Services deployment can fail with error code 05061.

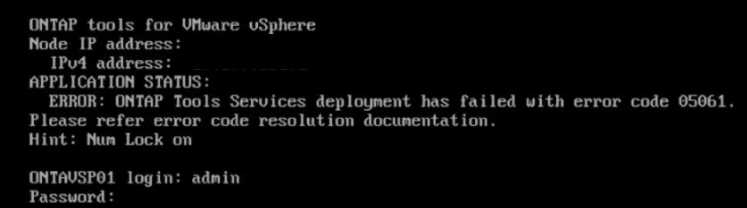

• The ONTAP Tools VM shows an error message.

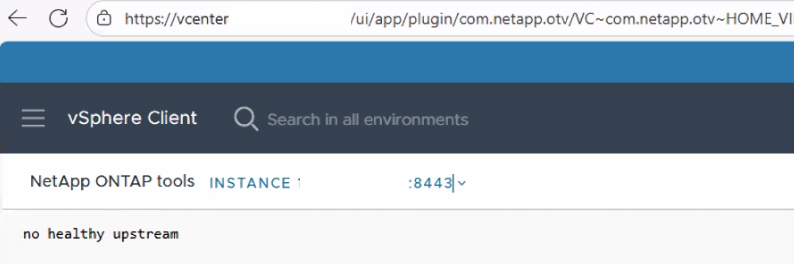

• The vCenter ONTAP plugin shows the message: “no healthy upstream”.

• Because of this issue, the SRA service does not respond to SRM requests.

Resolution

This is a known issue on the NetApp side. Need to contact NetApp Technical Support to fix the ONTAP Tools service issue.
