Unable to delete the User Excluded Groups in Distributed Firewall

Products

• VMware NSX

Issue/Introduction

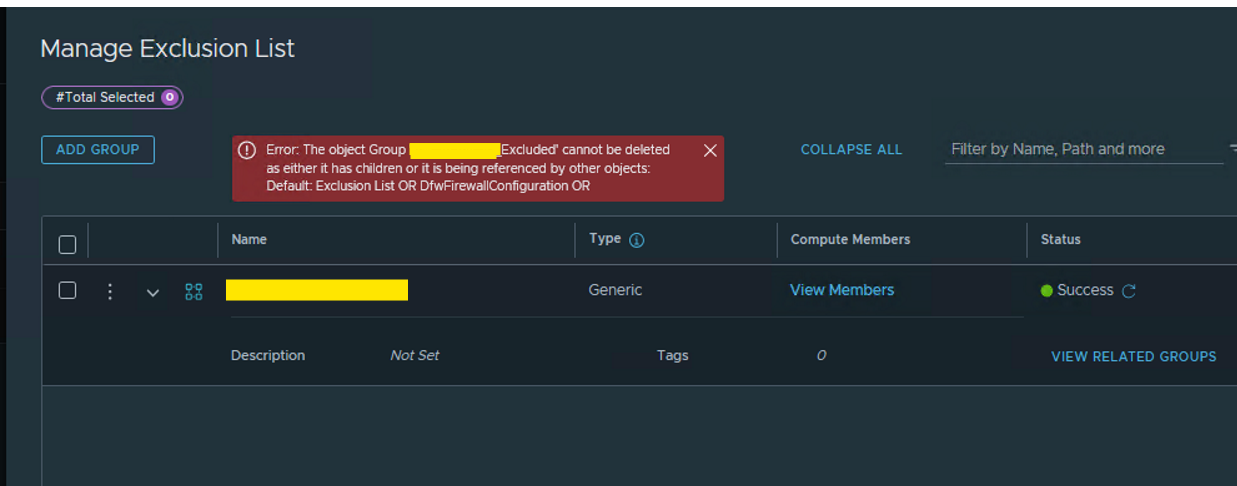

• When attempting to delete a User Excluded Group within the Distributed Firewall (DFW) settings, the operation fails with the error message below

The object Group "<Group_Name>" cannot be deleted as either it has children or it is being referenced by other objects: Default: Exclusion List OR DfwFirewallConfiguration

Environment

VMware NSX

Cause

This issue occurs because the system maintains strict referential integrity. The group cannot be deleted for two primary reasons:

• Active Membership: There are still virtual machines, IP sets, or other members nested within the group.

• System Group Reference: The group is still explicitly linked to the Exclusion List or the global DfwFirewallConfiguration Groups.

Resolution

To successfully remove the User Excluded Groups, follow the steps below.

• Login to the NSX UI as admin -> Security -> Policy Management -> Distributed Firewall

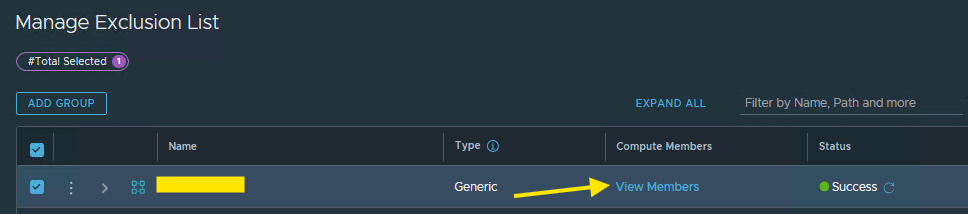

  • Click on Manage Exclusion List -> Select the specific Group -> View Members

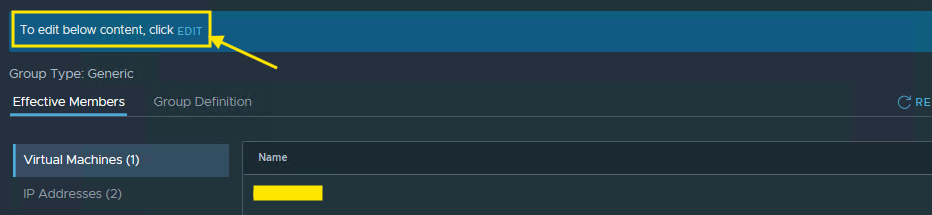

• • Click on Edit.

• • Remove all the members associated with this group by un-checking the specific members depending on the corresponding categories.

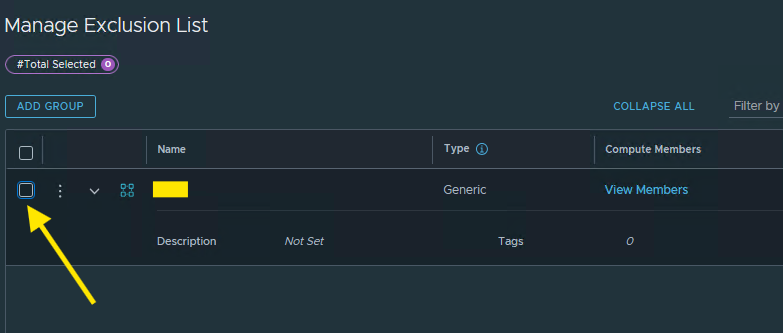

  • Once all the members are removed, simply uncheck the group and Save.
  • The group will now be removed from the Manage Exclusion List.

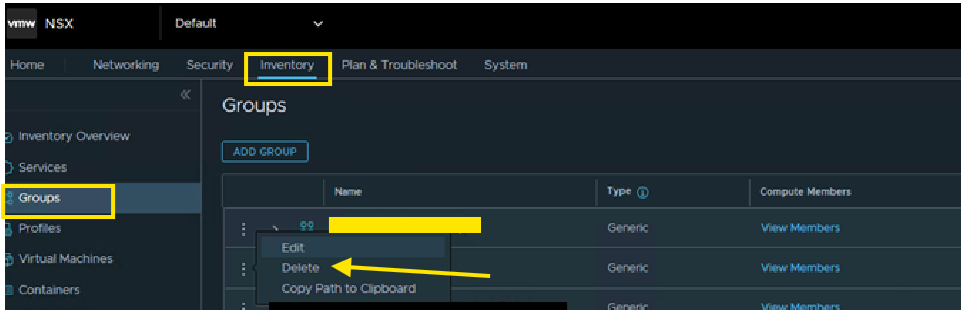

• • Further, to remove the traces of the group from the Global Inventory, go to Inventory Tab -> Groups -> Click on the 3 vertical dots next to the group and Delete
