Online Dell Depot Configuration Fails with Failed to connect to VMware depot with the provided user credentials. Cause: {0}.

Products

• VMware SDDC Manager / VCF Installer

Issue/Introduction

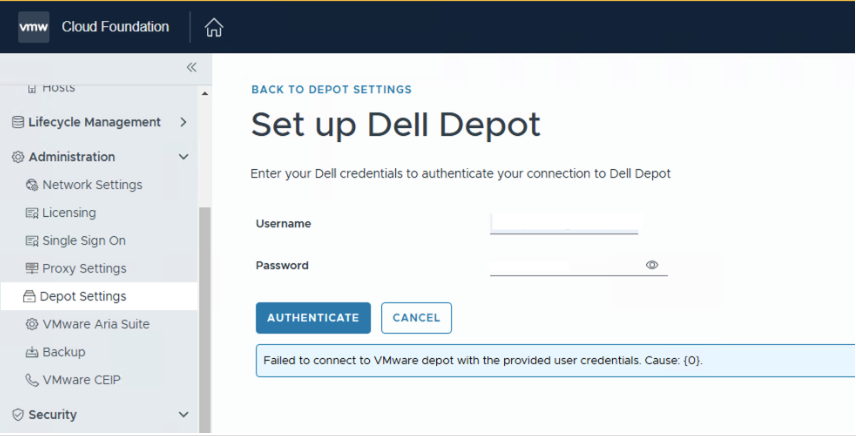

When attempting to configure or sync the Online Dell Depot in VMware Cloud Foundation (VCF) via SDDC Manager, the connection fails. The SDDC UI displays error: "Failed to connect to VMware depot with the provided user credentials. Cause: {0}."

Following are reported in /var/log/vmware/vcf/lcm/lcm-depot.log

YYYY-MM-DDT HH:MM:SS.594+0000 DEBUG [vcf_lcm,########,####] [c.v.e.s.l.b.d.d.DepotBundleDownloadServiceImpl,http-nio-local-exec] Using VxRail NGSSO depot downloader

YYYY-MM-DDT HH:MM:SS.594+0000 DEBUG [vcf_lcm,########,####] [c.v.e.s.l.b.d.d.utils.CookieUtils,http-nio-local-exec] VXRAIL_DEPOT Depot Http Cookies: []

YYYY-MM-DDT HH:MM:SS.252+0000 ERROR [vcf_lcm,########,####] [c.v.e.s.l.s.i.LcmManifestServiceImpl,http-nio-local-exec] Failed to fetch vxrail additional metadata for bundle: [BUNDLE_ID]_VxRail-Composite-Upgrade-Slim-Package.zip java.lang.RuntimeException: Failed to retrieve VCF Release for version: 'X.X.X.X'

YYYY-MM-DDT HH:MM:SS.436+0000 ERROR [vcf_lcm,########,####] [c.v.e.s.l.b.d.d.VxRailNgDepotDownloader,http-nio-local-exec] NGSSO server authentication failed due to error 404

YYYY-MM-DDT HH:MM:SS.436+0000 ERROR [vcf_lcm,########,####] [c.v.e.s.l.b.d.d.VxRailNgDepotDownloader,http-nio-local-exec] Failed to authenticate VxRail depot due to http error 500

YYYY-MM-DDT HH:MM:SS.436+0000 ERROR [vcf_lcm,########,####] [c.v.v.l.r.a.c.v.s.DepotSettingsController,http-nio-local-exec] Update Depot Settings

YYYY-MM-DDT HH:MM:SS.755+0000 ERROR [vcf_lcm,########,####] [c.v.e.s.e.h.LocalizableRuntimeExceptionHandler,http-nio-local-exec] [D7OLN5] VMWARE_DEPOT_CONNECT_FAILURE Failed to connect to VMware depot with the provided user credentials.

com.vmware.evo.sddc.common.core.error.ForbiddenResponseException: Failed to connect to VMware depot with the provided user credentials.

Environment

VMware Cloud Foundation 4.x
VMware Cloud Foundation 5.x
Dell VxRail integration

Cause

The issue is caused by the decommissioning of the legacy Dell NGSSO (Next Generation Single Sign-On) authentication service in January 2026. Current versions of SDDC Manager are hardcoded to use this retired endpoint. Since the endpoint no longer exists, the server returns an HTTP 404 error, leading to an authentication failure.

Resolution

1.VXrail Bundle Preparation

• Download: Search Dell Support for "Upgrade Slim Package for" and download the major bundle.

• Rename: The filename must match the Dell download link exactly (e.g., prefixing with D1JM1_).

• Stage: Move the file to /nfs/vmware/vcf/nfs-mount/bundle/depot/local/bundles.

• Permissions: Set the file to chmod 0755 and chown vcf_lcm:vcf.

2. VVS Upload (SDDC Manager 5.0+)

• Download: Get the latest VVS file from the Dell website.

• SDDC 5.2+: Use the SDDC Manager Developer Center (API Explorer). Search for Compatibility Matrix and use the PUT method with VXRAIL_COMPAT as the source.

• SDDC 5.0 to 5.1.x: Use a cURL command (targeting localhost or the FQDN) to PUT the VVS file to the compatibility-matrices endpoint.

• Prerequisite: Ensure VmwareCompatibilityData.json exists in /nfs/vmware/vcf/nfs-mount/compatibility before uploading.

3. Partner Bundle Metadata

• Download: Retrieve vxrailPartnerBundleMetadata.json (for VCF 5.2.1+) or partnerBundleMetadata.json (for older versions) from the Broadcom portal.

• Stage: Copy the file to /home/vcf (do not place it in the NFS bundle directory).

• Permissions: Apply chown vcf_lcm:vcf and chmod 755 to the metadata file.

• Register: Navigate to the Developer Center API Explorer and use the Bundles POST method.

• Parameters: Provide the local file path and the specific VxRail version identifier (e.g., 8.0.300-28709350) in the request body.

Additional Information

Refer to VxRail Upgrade: Dell Depot Connection Issues for details on Dell Connectivity issues.
