Import VCF Operations fleet management to SDDC Manager fails on subtask "Add vCenter Server and Data Center to VMware Aria Suite Lifecycle"

book

Article ID: 430359

calendar_today

Updated On:

Products

VMware SDDC Manager

Issue/Introduction

Import VCF Operations fleet management to SDDC Manager fails on subtask "Add vCenter Server and Data Center to VMware Aria Suite Lifecycle"

# domainmanager.log

<DATE && TIME> DEBUG [vcf_dm,698aec3d891649ce2314ac8939012374,95e8] [c.v.e.s.r.c.LoggingHttpRequestInterceptor,dm-exec-21]  Request URI: https://<FLEET_NAME>.<domain_name>/lcm/lcops/api/v2/datacenters/DEFAULT_DC/vcenters
Request method: POST
Request body: {"vCenterHost":"<VCSA_NAME>.<domain_name>","vcUsername":"[email protected]","vcPassword":"*****","vCenterName":"<VCSA_NAME>","vcUsedAs":"MANAGEMENT","vcCertificate":"***
**","sddcManagerHostname":"<SDDC MGR FQDN>.<domain_name>"}
Response code: 504 GATEWAY_TIMEOUT
Response headers: [Server:"nginx", Date:"<DATE HERE> GMT", Content-Type:"text/html", Content-Length:"160", Connection:"keep-alive"]
Response body: <html>
<head><title>504 Gateway Time-out</title></head>
<body>
<center><h1>504 Gateway Time-out</h1></center>
<hr><center>nginx</center>
</body>
</html>

<DATE && TIME> ERROR [vcf_dm,698aec3d891649ce2314ac8939012374,95e8] [c.v.e.s.o.model.error.ErrorFactory,dm-exec-21]  [728ALI] VCF_ERROR_INTERNAL_SERVER_ERROR Invocation of prefix '' part of task AddVcAndDcToVrslcm in plugin VrslcmPlugin failed with exception.
com.vmware.evo.sddc.common.core.error.InternalServerErrorException: Invocation of prefix '' part of task AddVcAndDcToVrslcm in plugin VrslcmPlugin failed with exception.
        at com.vmware.evo.sddc.orchestrator.core.ProcessingTaskSubscriber.invokeMethod(ProcessingTaskSubscriber.java:450)
        at com.vmware.evo.sddc.orchestrator.core.ProcessingTaskSubscriber.processTask(ProcessingTaskSubscriber.java:517)
        at com.vmware.evo.sddc.orchestrator.core.ProcessingTaskSubscriber.accept(ProcessingTaskSubscriber.java:128)
        at jdk.internal.reflect.GeneratedMethodAccessor488.invoke(Unknown Source)
        at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.base/java.lang.reflect.Method.invoke(Method.java:569)
        at com.google.common.eventbus.Subscriber.invokeSubscriberMethod(Subscriber.java:85)
        at com.google.common.eventbus.Subscriber.lambda$dispatchEvent$0(Subscriber.java:71)
        at com.vmware.vcf.common.tracing.TraceRunnable.run(TraceRunnable.java:63)
        at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
        at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
        at java.base/java.lang.Thread.run(Thread.java:840)
Caused by: org.springframework.web.client.HttpServerErrorException$GatewayTimeout: 504 Gateway Time-out: "<html><EOL><EOL><head><title>504 Gateway Time-out</title></head><EOL><EOL><body><EOL><EOL><cente
r><h1>504 Gateway Time-out</h1></center><EOL><EOL><hr><center>nginx</center><EOL><EOL></body><EOL><EOL></html><EOL><EOL>"
        at org.springframework.web.client.HttpServerErrorException.create(HttpServerErrorException.java:114)
        at org.springframework.web.client.DefaultResponseErrorHandler.handleError(DefaultResponseErrorHandler.java:186)
        at org.springframework.web.client.DefaultResponseErrorHandler.handleError(DefaultResponseErrorHandler.java:137)
        at org.springframework.web.client.ResponseErrorHandler.handleError(ResponseErrorHandler.java:63)

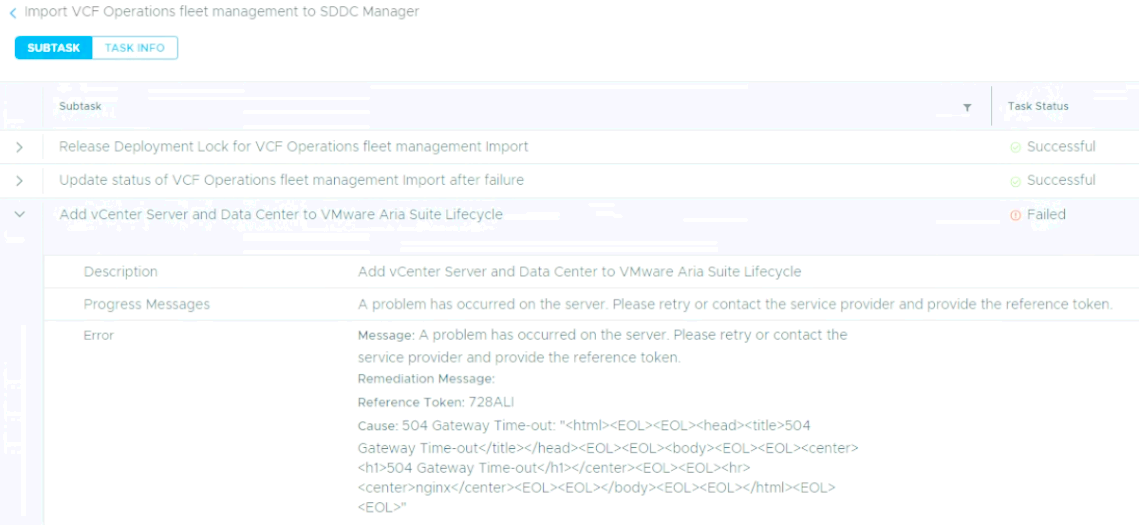

UI print below

Environment

VCF 9.X

Cause

Port connection unavailable

Resolution

Ports 22 and 443 need to be opened between vCenter and Fleet manager.
https://ports.broadcom.com/home/vSphere+VMware-Cloud-Foundation-Operations-Fleet-Manager
