Configuring LDAPS in VCF Automation fails with "Unable to establish SSL connection: java.net.SocketException: Connection reset"

Products

• VCF Automation

Issue/Introduction

From the VCF Automation Provider Portal, navigate to Administration ⇒ Identity Provider  ⇒ LDAP.

or

For Organization specific LDAPS  (configuration, start at the VCF Automation Provider Portal and navigate to Organizations ⇒ Selected Organization... ⇒ Launch Organization.

In the Organization portal go to Administer ⇒ Connections ⇒ Identity Provider ⇒ LDAP.

Either Configure a new LDAPS (LDAP over SSL) Identity Provider or update an existing Identity Provider to use LDAPS .

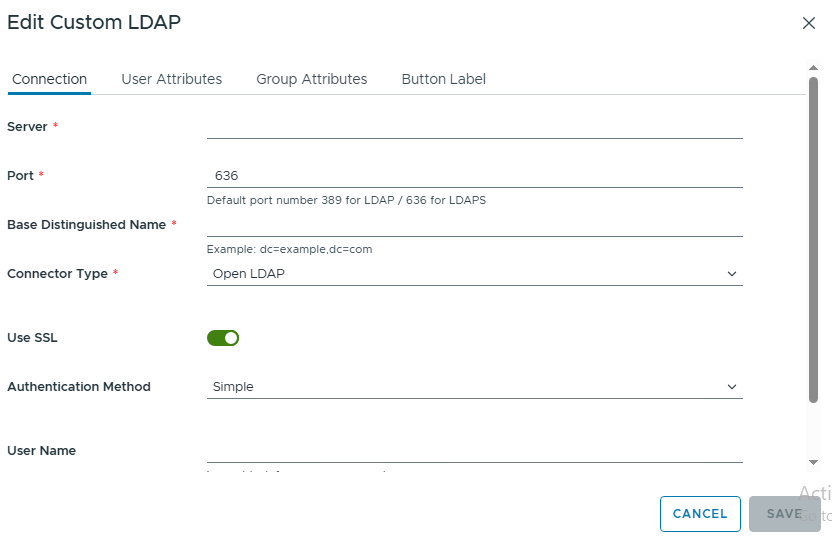

Make sure that "Use SSL" is selected and that the port has been updated to '636':

When you save the Configuration you are presented with errors such as:

Unable to establish SSL connection: java.net.SocketException: Connection reset

or

Unable to establish SSL connection: java.net.SocketException: Connection reset by peer

Environment

VCF Automation 9.0.x

Cause

Mismatch between supported Ciphers and Protocols for VCF Automation and the Active Directory server.



Resolution

The default list of Allowed Ciphers and Protocols is as follows:

TLS_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECD                                                                                                                        HE_ECDSA_WITH_AES_256_CBC_SHA,TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA,TLS_ECDHE_ECD                                                                                                                        SA_WITH_AES_256_CBC_SHA384,TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256,TLS_ECDHE_RSA                                                                                                                        _WITH_AES_256_CBC_SHA384,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256,TLS_ECDHE_RSA_WIT                                                                                                                        H_AES_256_CBC_SHA,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_256_GCM_SH                                                                                                                        A384,TLS_RSA_WITH_AES_128_GCM_SHA256,TLS_RSA_WITH_AES_256_CBC_SHA256,TLS_ECDH_RS                                                                                                                        A_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA                                                                                                                        256,TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA,TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA,TLS_                                                                                                                       ECDH_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA

SSH to a VCF Automation appliance and run the following to enable SSL Handshake Monitoring:

kubectl -n prelude edit deployment tenant-manager-0


spec:
  template:
    spec:
      containers:
      - name: tenant-manager
        env:
        - name: JAVA_TOOL_OPTIONS
          value: "-Djavax.net.debug=ssl:handshake"

Hit "ESC" then type "wq!" and hit "Enter"



Then run the following to disallow old Ciphers:

sudo -i

kubectl -n prelude get configmap tenant-manager-scripts -o yaml | sed '/^    ui\.baseHttpUri=\${HTTP_URI}/a \    ssl.ciphers.disallowed=TLS_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA,TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA,TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384,TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_256_GCM_SHA384,TLS_RSA_WITH_AES_128_GCM_SHA256,TLS_RSA_WITH_AES_256_CBC_SHA256,TLS_ECDH_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA256,TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA,TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA,TLS_ECDH_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA' | kubectl apply -f -


kubectl rollout restart statefulset/tenant-manager -n prelude

This removes weak Ciphers:

TLS_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA,TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA,TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384,TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_256_GCM_SHA384,TLS_RSA_WITH_AES_128_GCM_SHA256,TLS_RSA_WITH_AES_256_CBC_SHA256,TLS_ECDH_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA256,TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA,TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA,TLS_ECDH_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA
