NSX VLAN backed segment is using default teaming policy even when the transport zone has named uplink teaming policy configured

Products

• VMware NSX

Issue/Introduction

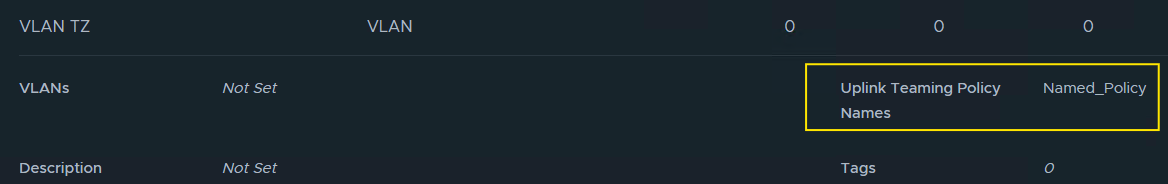

NSX VLAN backed segment is using uplinks from default teaming policy even when the transport zone has named uplink teaming policy configured.

Environment

VMware NSX

Cause

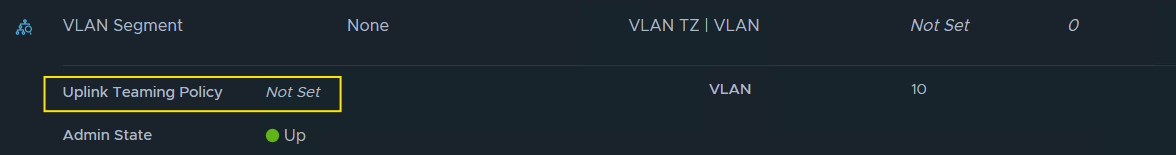

Segment does not have named teaming policy configured.

Resolution

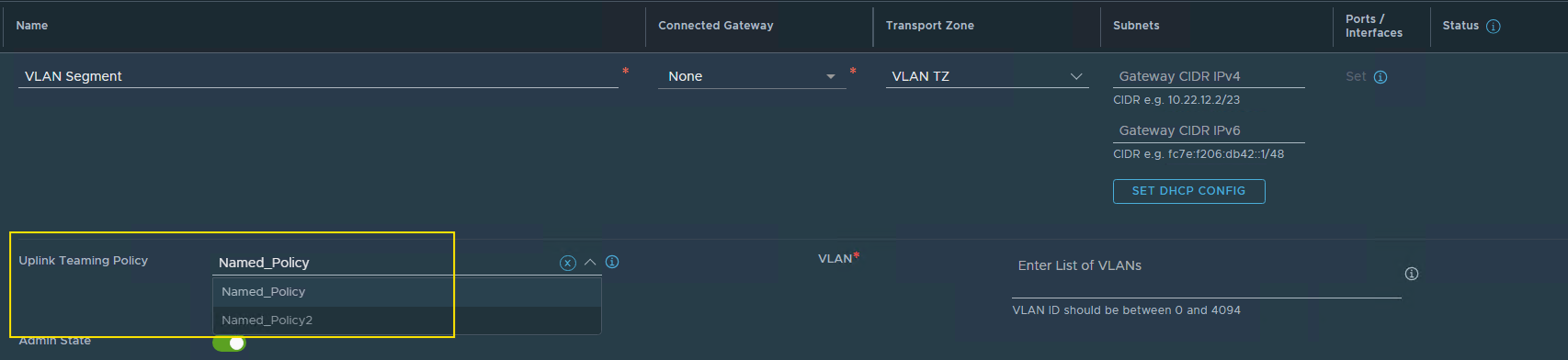

Configure segment with correct policy under 'Uplink Teaming Policy' configuration option.

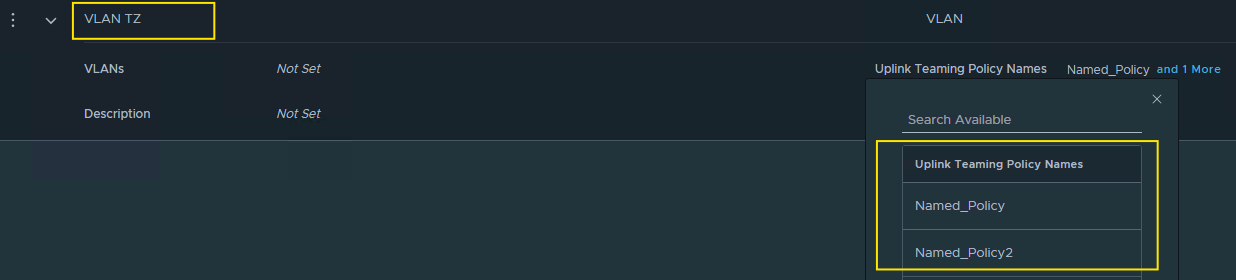

For e.g. if the Transport Zone has two Uplink Teaming Policies, under the segment configuration select the required uplink teaming policy to use the correct uplinks.

Additional Information

Configure Named Teaming Policy

Uplink can be verified from host CLI using either of the following commands,
1. Using nsxdp-cli vswitch instance list

[root@esx:~] nsxdp-cli vswitch instance list

 Client                         PortID          DVPortID                             MAC                  Uplink          VID              VNI
####-1.eth0                    67108885        38051109-####-####-####-401393d004d9 00:50:56:##:##:2a    vmnic0          0                68608

2. Run 'esxtop' and press 'n'.

  PORT-ID  USED-BY                      TEAM-PNIC DNAME              PKTTX/s  MbTX/s   PSZTX    PKTRX/s  MbRX/s   PSZRX %DRPTX %DRPRX
  67108885 558345:####-1.eth0           vmnic0    DvsPortset-0          0.00    0.00    0.00       0.00    0.00    0.00   0.00   0.00
