Accessing Fleet Manager from VCF Operations reports the error "VCF Operations Fleet Management is not Ready"

Products

• VCF Operations/Automation (formerly VMware Aria Suite)

Issue/Introduction

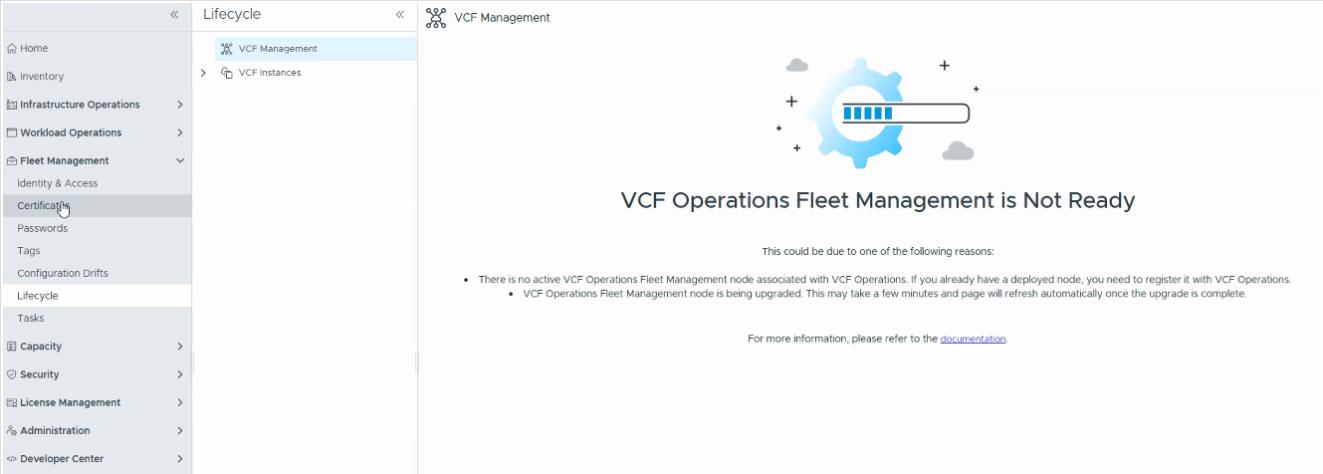

• In the VCF Operations UI, the Fleet Management  >> Lifecyle section displays the following error

"VCF Operations Fleet Management is not Ready"

• Ping and nslookup from VCF Operations to Fleet Manager is successful
• Curl over port 443 from VCF Operations to Fleet Manager fails

curl -v telnet://FleetMgrFQDN_or_IP:443

• Running the following command on Fleet Manager shows all core services running successfully

vrlcm-cli --health-status
bootstrap ------------- SUCCESS
postgres -------------  Running
vrlcm-server ------------- Running
blackstone ------------- Running

• Running the following command shows nginx service has failed

service nginx status

Cause

This issue occurs due to a misconfigured nginx.conf file for Fleet Manager which breaks port 443 service access

This can happen while applying STIGs to the Fleet Manager appliance

Resolution

Verify the /etc/nginx/nginx.conf file on the Fleet Manager looks correct and there are no typos. See sample /etc/nginx/nginx.conf below.

Ensure the nginx service is active and running



Sample /etc/nginx/nginx.conf.

user  root;
worker_processes  auto;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;
# TODO:  http redirection on port 80 has to happen through iptables.

events {
  worker_connections  1024;
}



http {

  upstream vrlcm-server {
    #Multiple server can be added as part of upstream.
    server 127.0.0.1:8080;
  }

  include       mime.types;
  default_type  application/json;
  client_max_body_size 10240M;
  limit_req_zone $binary_remote_addr zone=mylimit:10m rate=50r/s;
  log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                    '$status $body_bytes_sent "$http_referer" '
                    '"$http_user_agent" "$http_x_forwarded_for"';

  #access_log  logs/access.log  main;

  sendfile        on;
  keepalive_timeout  65;
  server_tokens off;

  gzip  on;
  gzip_types text/plain text/css application/json application/x-javascript text/xml application/xml application/xml+rss text/javascript application/vnd.ms-fontobject application/x-font-ttf font/opentype image/svg+xml image/x-icon application/javascript;

  server {
    listen 80;
    server_name lcm-http-server;

    location / {
        rewrite ^(.*) https://$hostname$request_uri;
    }
   }

  server {

    # listen       [::]:80;
    include ssl.conf*;

    server_name   $hostname;

    root /var/lib/vrlcm-ui;

    index index.html index.htm;

    # Uncomment below line for enabling CORS for development
    # add_header Access-Control-Allow-Origin *;

    proxy_pass_header Server;
    proxy_set_header X-Forwarded-By Lcm-Proxy;
    add_header Lcm-API-Version 8.0;

    location /lcm/lcops/api/v2/settings/binaries/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
      proxy_read_timeout 15m;
      proxy_send_timeout 120m;
      client_max_body_size 35G;
      client_body_temp_path /data/temp/;
    }

    location /lcm/lcops/api/settings/vcfmodesettings {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
      proxy_read_timeout 15m;
      proxy_send_timeout 15m;

    }

    location /lcm/lcops/api/v2/findUpgradePath {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
      proxy_read_timeout 20m;
      proxy_send_timeout 20m;

    }

    location /lcm/lcops/api/policy/products {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
      proxy_read_timeout 5m;
      proxy_send_timeout 5m;
    }

    location /lcm/lcops/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
      proxy_max_temp_file_size 100m;
    }

    location /lcm/dbservice/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/shell/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/service-account/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/notification/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/login/vidm {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_set_header        Host            $hostname;
      proxy_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_set_header        X-Forwarded-Proto https;
      proxy_pass http://vrlcm-server;
    }

    location /repo/ {
      proxy_pass http://vrlcm-server;
      proxy_max_temp_file_size 3072m;
      proxy_temp_path /data/temp/;
    }

    location /lcm/authzn/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/bootstrap/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/health/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      error_page 500 501 502 503 504 = @fallback;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/marketplace/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/request/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/locker/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/flex/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/vrcc/api/ {
          limit_req zone=mylimit burst=20 nodelay;
          proxy_pass http://vrlcm-server;
    }

    location /node/ {
      proxy_pass http://vrlcm-server;
    }

    location /command/ {
      proxy_pass http://vrlcm-server;
    }

    location /lcm/crepo/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/crepo/api/content/upload/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_read_timeout 120m;
      proxy_send_timeout 120m;
      client_max_body_size 35G;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/common/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    # Uncomment this for dev setups
    # location /lcm/automata/api/ {
    #   proxy_pass http://vrlcm-server;
    # }

    location /lcm/automata/api/engine/configproperty {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/designer/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/migration/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location /lcm/certificate-management/api/ {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

     location /data/APUAT/ {
      alias /data/APUAT/;
      try_files $uri $uri/ /index.html;
    }

    location /lcm/cms/webhook/ {
      limit_req zone=mylimit burst=100 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location = /lcm/cms/api {
      return 301 "/lcm/cms/api/swagger-ui.html";
    }
    location = /lcm/cms/api/ {
      return 301 "/lcm/cms/api/swagger-ui.html";
    }
    location ~* ^/lcm/cms/api/(?!v1)(.+)$ {
      proxy_set_header Host $host;
      proxy_pass http://127.0.0.1:8083/$1;
    }
    location /lcm/cms/api/v1/ {
      limit_req zone=mylimit burst=100 nodelay;
      proxy_pass http://vrlcm-server;
    }
    location /lcm/cms/ {
      add_header Strict-Transport-Security "max-age=31536000; includeSubDomains";
      add_header X-Frame-Options SAMEORIGIN;
      add_header X-XSS-Protection "1; mode=block";
      add_header X-Content-Type-Options nosniff;
      add_header Content-Security-Policy "frame-ancestors 'self'";
      root /var/lib/vrlcm-ui;
      try_files $uri $uri/ /lcm/cms/index.html;
    }

    location = /api {
      return 301 "/api/swagger-ui.html";
    }

    location = /api/ {
      return 301 "/api/swagger-ui.html";
    }

    location /api/plugins {
      limit_req zone=mylimit burst=20 nodelay;
      proxy_pass http://vrlcm-server;
    }

    location ~* ^/api/(?!plugins)(.+)$ {
      proxy_set_header Host $host;
      proxy_pass http://vrlcm-server/$1$is_args$args;
    }

    location = /lcm/ {
      add_header Strict-Transport-Security "max-age=31536000; includeSubDomains";
      add_header X-Frame-Options SAMEORIGIN;
      add_header X-XSS-Protection "1; mode=block";
      add_header X-Content-Type-Options nosniff;
      add_header Content-Security-Policy "frame-ancestors 'self'";
      return 301 /var/lib/vrlcm-ui/index.html;
    }

    location / {
      add_header Strict-Transport-Security "max-age=31536000; includeSubDomains";
      add_header X-Frame-Options SAMEORIGIN;
      add_header X-XSS-Protection "1; mode=block";
      add_header X-Content-Type-Options nosniff;
      add_header Content-Security-Policy "frame-ancestors 'self'";
      root /var/lib/vrlcm-ui;
      access_log off;
      try_files $uri $uri/ /index.html;
    }

    error_page   500  /50x.html;
    location = /50x.html {
      root   html;
    }

    location @fallback {
      return 200 '{"bootstrap": "UNKNOWN", "postgres": "UNKNOWN", "blackstone": "UNKNOWN", "vrclm-server": "DOWN"}';
    }

  }
}
