NSX edges down and hosts degraded; tunnels down

Products

• VMware NSX

Issue/Introduction

• Host tunnels in Clusters Status showing degraded

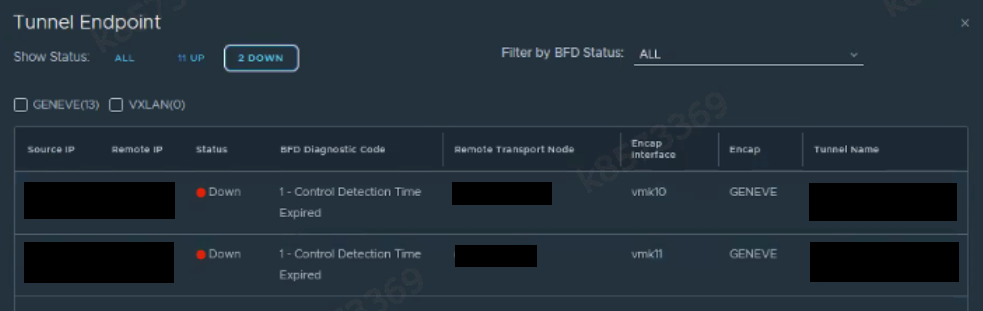

• Tunnel Endpoint status showing Down between source and destination IP on View Details

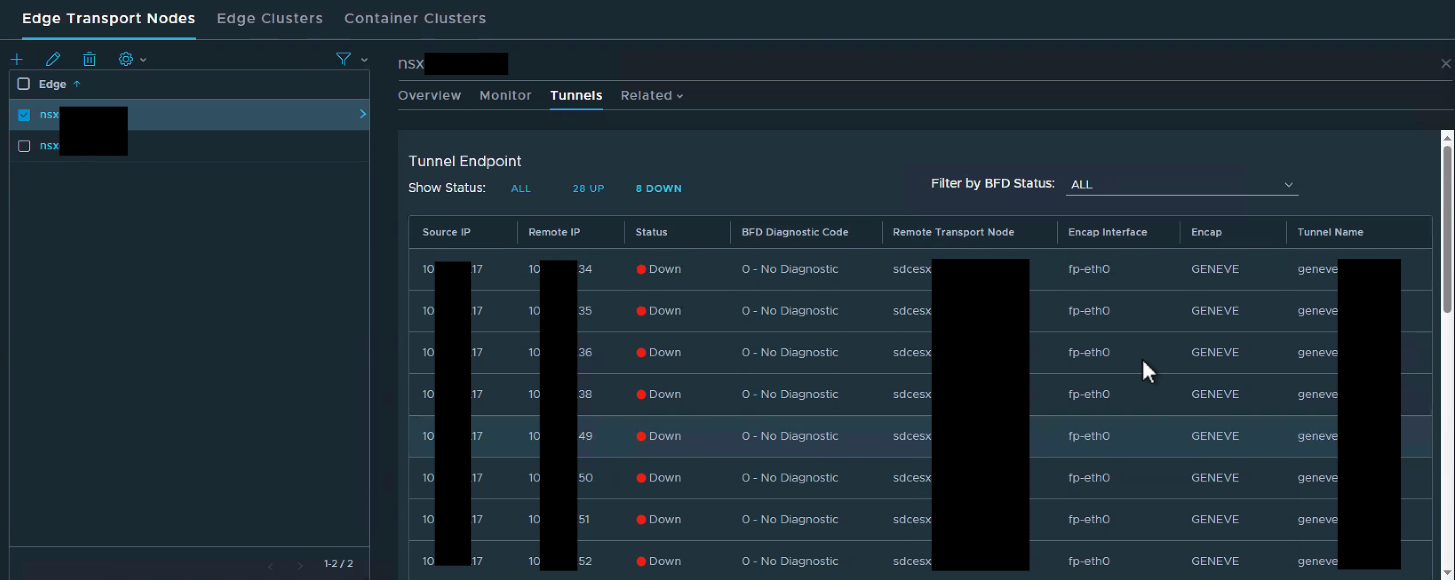

• Tunnels to the NSX Edges are down

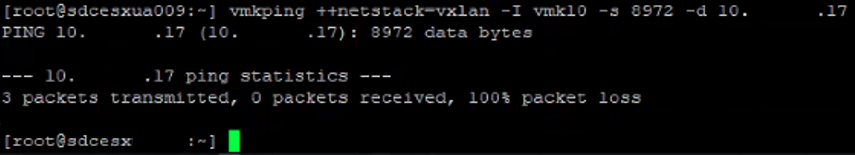

• vmkping from Host Transport Node TEP to Edge Node TEP fails



Environment

• VMware NSX
• vSphere ESXi

Cause

• The VLAN used for the TEP is not trunked in some switchports on the TOR switch

Resolution

• Add the needed VLAN to the trunked list on the switchport facing the host uplinks

Additional Information

Troubleshooting NSX TEP/BFD Tunnels between ESXi hosts and Edges

VLAN configuration on virtual switches, physical switches, and virtual machines

vDS Health Check reports unsupported VLANs for MTU and VLAN
