Druid Exception error is displayed when viewing impacted flows for recommendation

Products

• VMware vDefend Firewall
• VMware vDefend Firewall with Advanced Threat Prevention

Issue/Introduction

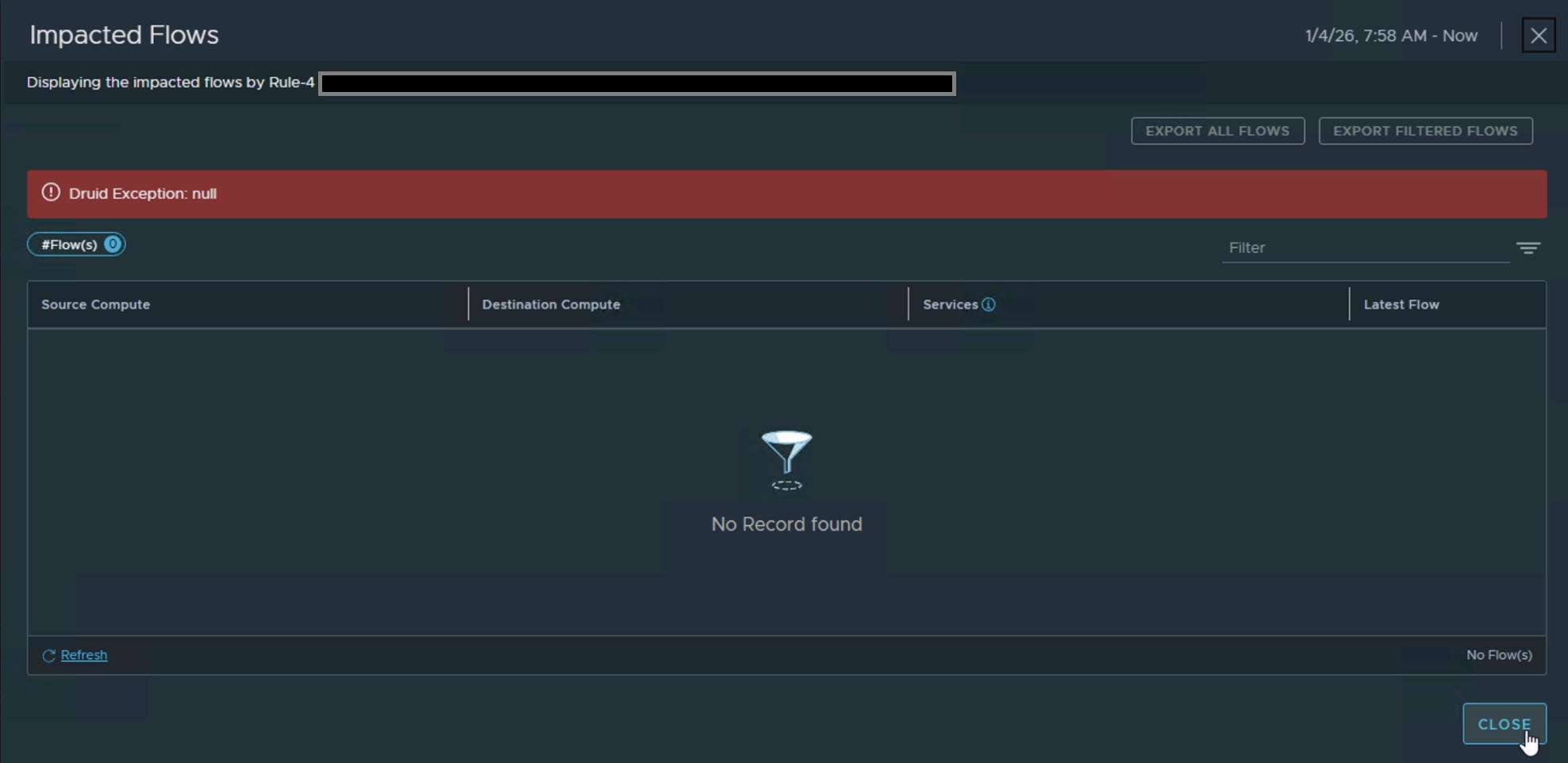

Exception may be thrown on UI while clicking on "View Impacted flow" for an existing rule which was updated by Recommendation. See screenshot below:

Druid Exception: null



Environment

SSP 5.1.1

Cause

The root cause is that Recommendation engine uses an incorrect Druid query filter, which attempts to match a rule path value against a numeric column, to fetch the information of a recommended rule. This returns empty results and causes the subsequent query to fail during JSON deserialization.



Execute the below on SSPI:



ssh sysadmin@SSPI-IP

#show the Druid broker pod:
k -n nsxi-platform get pod | grep druid-broker

#show the log of Druid broker pod:
k logs -f druid-broker-xxxxx-xxxx

Look for Errors message in the Druid logs as below:

org.apache.druid.query.QueryException: Cannot deserialize value of type `java.lang.String` from Null value (token `JsonToken.VALUE_NULL`)



Resolution

NOTE: This issue is fixed in SSP 5.1.1

Workaround:

Navigate to Policy Recommendations Page → Select the Recommendation and go to view recommendation page → update a property of the modified rule (like display name) temporarily and save it → click on "view impacted flow".



Steps:

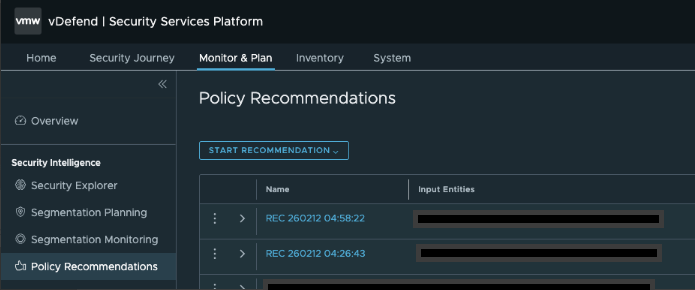

1. Navigate to Policy Recommendations page.

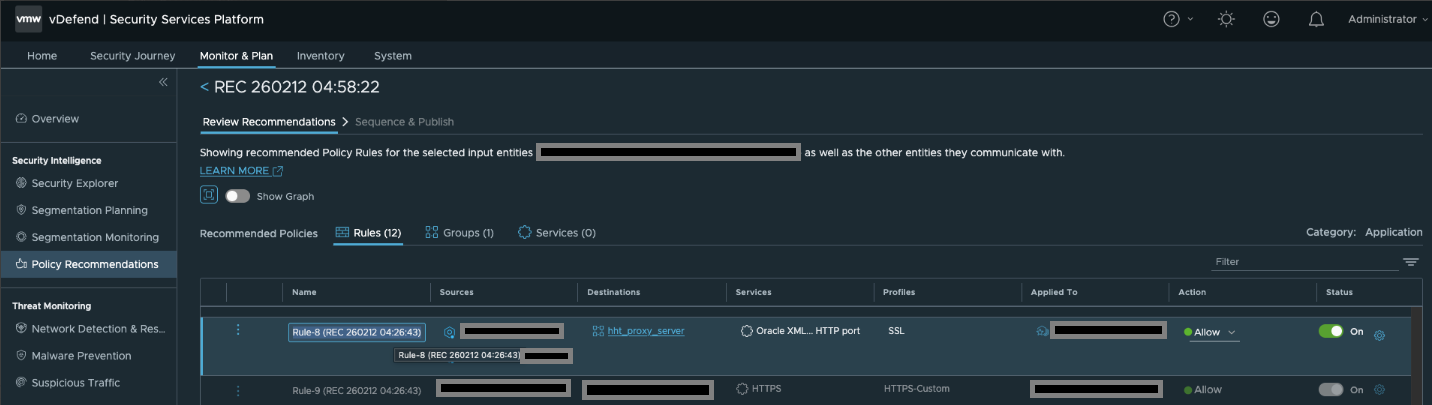

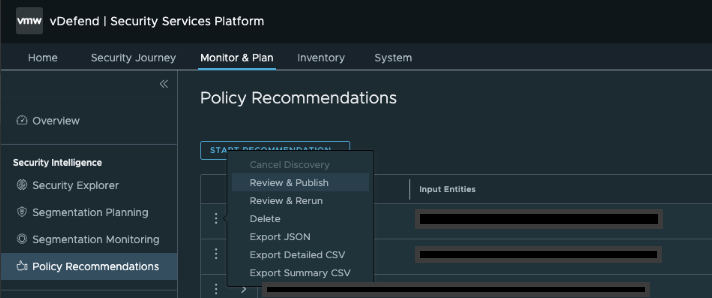

2. Go to the View Recommendation page, click the three dots icon of the Recommendation then select Review & Publish.



3. Modify the Rule name and Save the changes.  Click the name of the rule, then it is editable.



4. Click view impacted flow again to see the flows.
