How to view IP Discovery methods for an NSX Segment or DVPG
Article ID: 429430
Updated On:
Products
Issue/Introduction
In network security, particularly within the context of NSX, a binding refers to the association of a specific IP address, MAC address, and often a VLAN. These bindings are fundamental for various network functions, including ARP/ND suppression, SpoofGuard, and distributed firewall (DFW) operations.
IP Discovery mechanisms, such as ARP snooping, Neighbor Discovery (ND) snooping, DHCP snooping, and VM Tools, are used to learn and compile these MAC and IP address bindings into a "realized bindings list." Details of each method can be found here.
NOTE: DVPGs only support VM Tools.
Order of Discovery
IP Discovery methods are not applied in a strict order of precedence but rather they work concurrently and complementarily. NSX listens for multiple types of IP-to-MAC binding data at the same time and whichever method provides a valid and verifiable binding first will be used. These results in an implicit preference* based on data reliability and trust level, which NSX uses when multiple sources report different IPs for the same MAC. Below is a general trust hierarchy (from most to least reliable):
- VMware Tools: Most trusted, as it comes directly from the guest OS via hypervisor.
- DHCP Snooping: Trusted because it sees the actual IP assignment from the DHCP server
- ARP Snooping: Less trusted; passive and can be spoofed.
- ND Snooping: Similar trust as ARP, but for IPv6

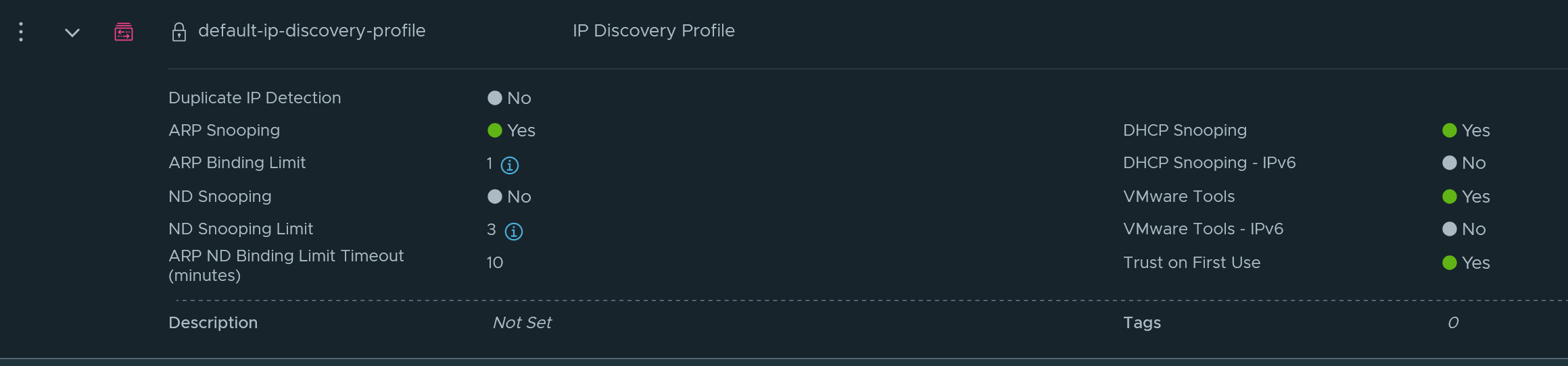

These settings are found under Networking>Segments>Profiles>Segment Profiles
The following section discuss how to display which IP Discovery methods are used for a given VM, whether attached to an NSX segment or DVPG.
Environment
NSX
ESXi
Resolution
NSX UI
The following steps apply to both segments and DVPG
1. Go to Networking>Segments>NSX. Note: DVPGs are located under Networking>Segments>Distributed Port Groups
2. Expand your segment

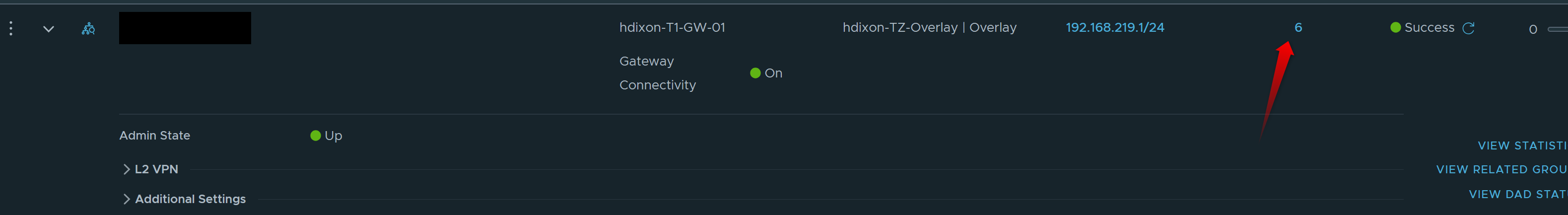

3. Click on the number populated for "Ports/Interfaces". If this value is "0", your VM is not attached.

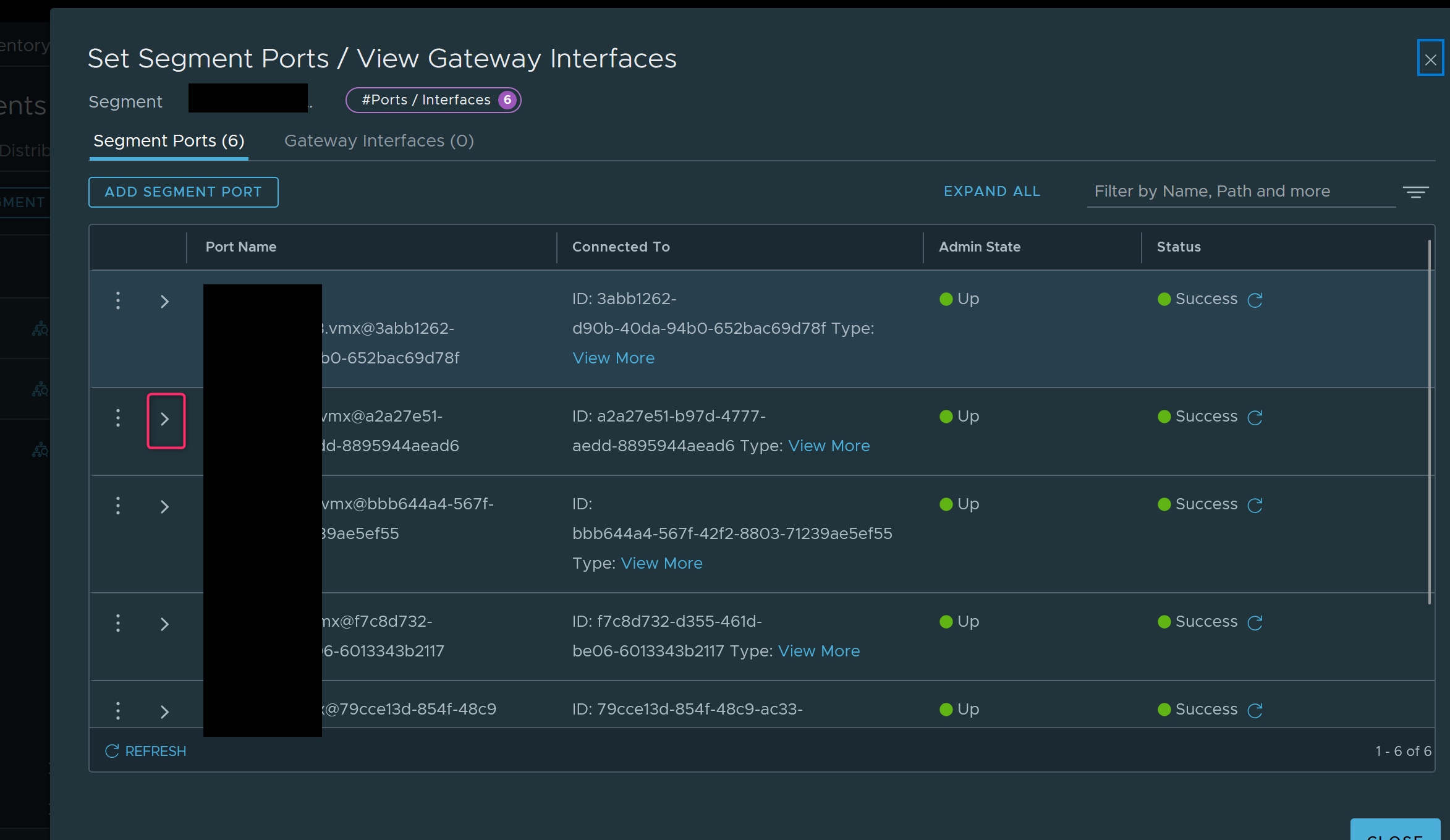

4. Find your VM and expand it

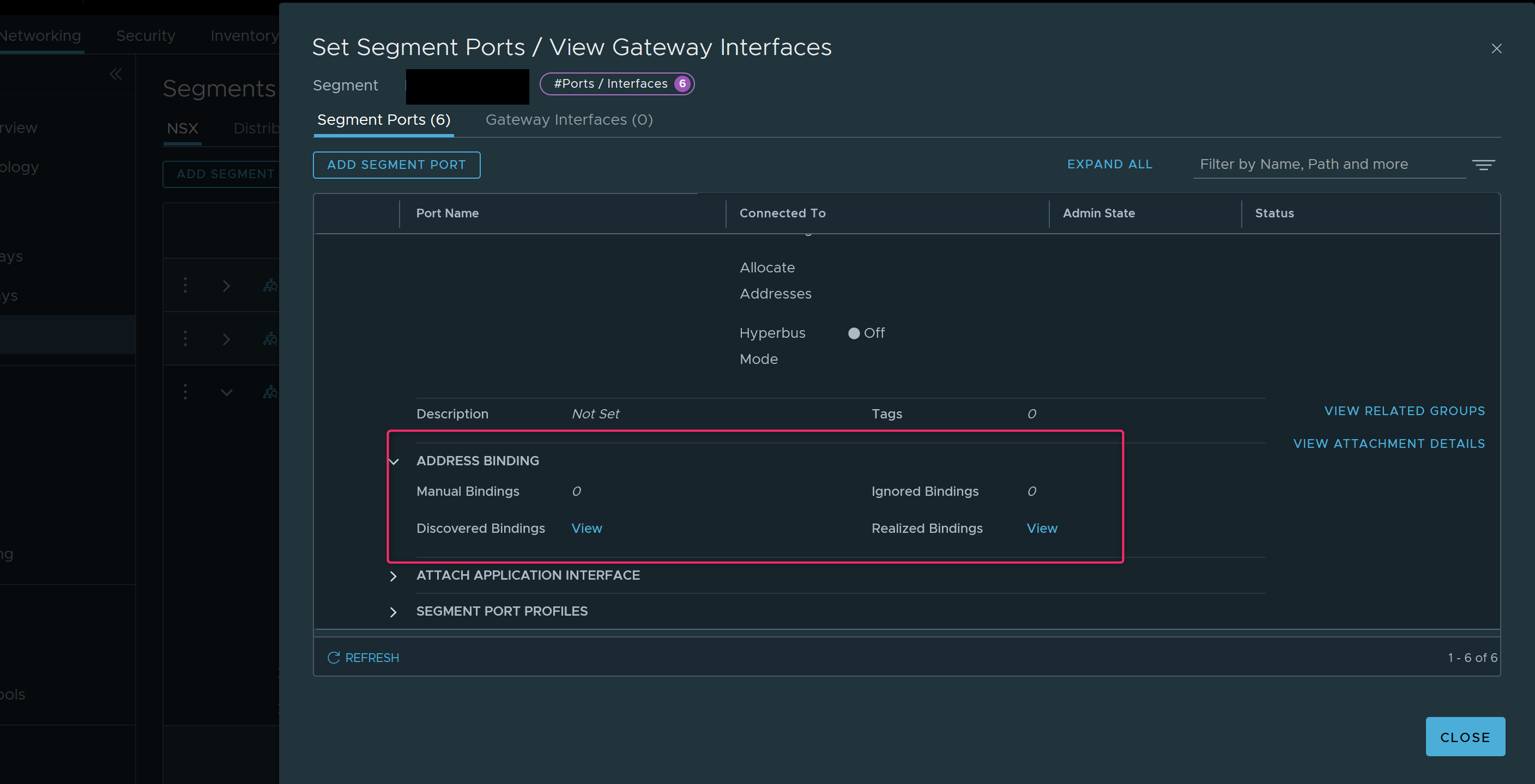

5. Scroll down to the Address Bindings section

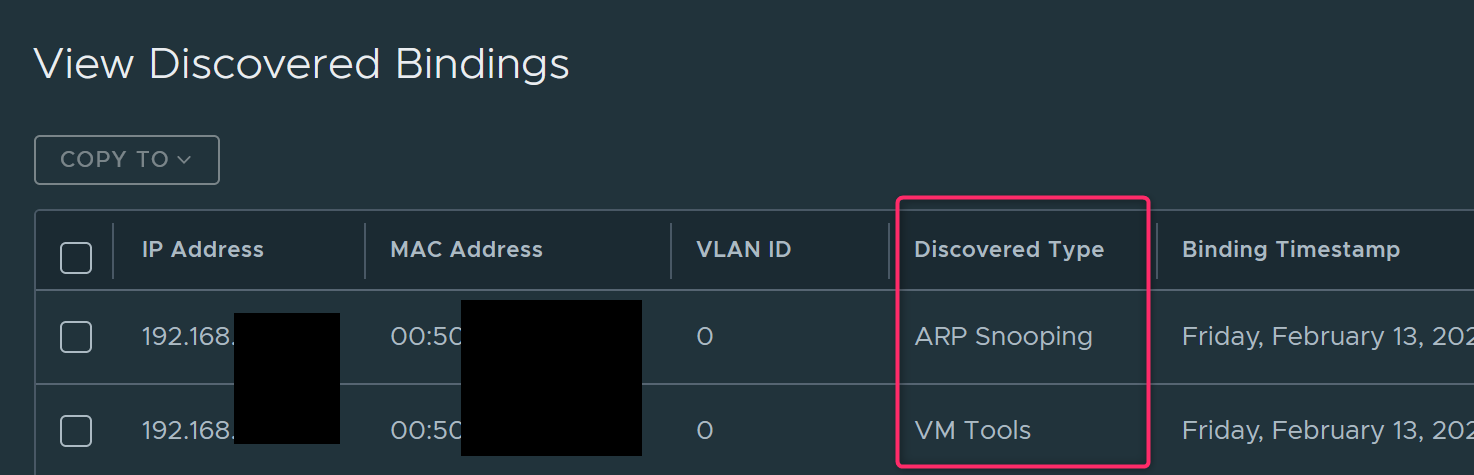

6. Click on Discovered Bindings
Here we find two method types used to discover this VM and bind it to an IP address: ARP Snooping and VM Tools
7. Close this window and click on Realized Bindings
These will be identical but per the order of trust, VM Tools will be used. To display the actual method used, you will need to use the CLI.
ESXi CLI
1. Login as root user
2. Enter nsxdp-cli kcp vif list
Each discovery method is assigned a unique value:
Vmware Tools: 32
DHCP Snooping: 1
ARP Snooping: 2
Example: This VM contains two interfaces; each one was discovered and bound to an IP address using different IP discovery methods
[root@ESXi:~] nsxdp-cli kcp vif list
VIF Count: 2
--------------------
No. VIF ID dvPort ID Switch ID Port ID isVMotion isPrimary snFlag
1 f7c8d732-d355-461d-be06-6013343b2117 07090621-138d-4e00-8d2f-d4a1324fb0a9 50 00 37 7e c9 e5 aa 8b-b4 34 e4 a8 da 2e 25 d0 167772189 0 1 0
MAC Address {
00:50:56:##:##:##
}
Discovered Bindings Count: 2
Discovered Bindings {
1> IPv4 : 192.168.219.51
Mac : 00:50:56:##:##:##
VlanId : 0
DiscoveryMethod : 32
TimeStamp : 1771008330308
2> IPv4 : 192.168.219.51
Mac : 00:50:56:##:##:##
VlanId : 0
DiscoveryMethod : 1
TimeStamp : 1771009376188
}
--------------------
