Issue/Introduction

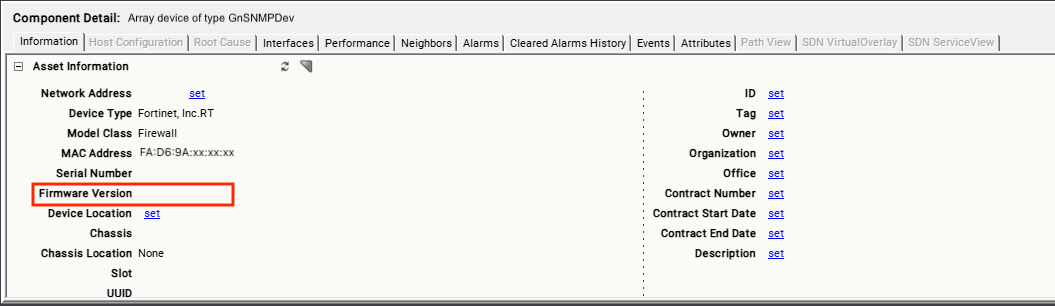

Array Devices not showing firmware value under Asset Information in Spectrum:

Environment

DX NetOps Spectrum all currently supported releases

Cause

The Array device has System OID (SysOID) of 1.3.6.1.4.1.7564.1.0 and is not currently certified in Spectrum. When discovered, it only appears as a Generic device (GnSNMPDev).

So the OID containing the Firmware version is not known to Spectrum and is not mapped to an attribute in NRM_RunningFirmwareAttr, which is used to display the store and display the Firmware value as per:

TechDocs : DX NetOps Spectrum 25.4 : NCM Troubleshooting - NRM_RunningFirmware Attribute Not Populating for Some Device Models

Resolution

Contact the vendor (Array) to identify the OID that contains the Firmware version. Then follow the process outlined in the following KBs to add it to the devices' Model_Type:

KB : Spectrum NRM_RunningFirmware attribute not populating for some device models.

and

KB : Fortigate 200F devices not showing the Firmware version in Spectrum (NOTE: While this is about the Fortigate 200F device, the process is the same for all)
