Configure NCM to Ignore Password Changes in F5 Backups

Products

• Network Observability

Issue/Introduction

Network Configuration Manager (NCM) captures indicate configuration changes occurred on F5 devices, but the differences are solely related to automated password or hash rotation. Specifically, lines containing "auth-password" and "privacy-password" change daily or weekly, triggering false positive change alerts in NCM.

SYMPTOMS:

• NCM reports configuration differences every time a backup runs.

• Comparison views show changes only in password/encryption lines.

• No actual administrative changes were made to the device configuration.

Environment



• DX NetOps Spectrum (Network Configuration Manager)

• F5 Load Balancers

• SSH Backup communication



Cause

The differences are solely related to automated password or hash rotation

Resolution

PREREQUISITES:

• Access to OneClick Console.

• NCM privileges to edit Global Sync Task or device family settings.



STEPS:

1. IDENTIFY THE REGEX MASKS

   Use the following Regular Expressions (Regex) to identify and ignore the changing lines.

   Auth (Plain): ^\s*auth-password\s+.*

   Auth (Encrypted): ^\s*auth-password-encrypted\s+.*

   Privacy (Plain): ^\s*privacy-password\s+.*

   Privacy (Encrypted): ^\s*privacy-password-encrypted\s+.*



2. APPLY MASKS IN NCM

   Apply these masks to the specific device family or global sync task configuration.

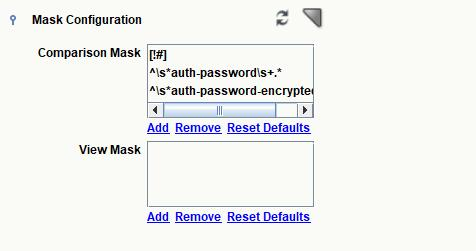

   Path: NCM Configuration > Comparison Masks

   Add the four regex patterns listed in Step 1.





   EXPECTED: NCM accepts the patterns without error. NOTE: Ensure no leading or trailing spaces are added unless part of the regex.



3. VERIFY CONFIGURATION

   Trigger a new capture or wait for the next scheduled backup.

   EXPECTED: The "auth" and "privacy" password lines are ignored during comparison, and NCM no longer flags these rotations as configuration changes.
