VCF Operations cluster first initialization hangs

Products

• VCF Operations
• VCF Operations/Automation (formerly VMware Aria Suite)

Issue/Introduction

The initialization/configuration of VCF Operations cluster can hang during the NTP configuration phase. This issue can occur during very first cluster initialization/configuration.

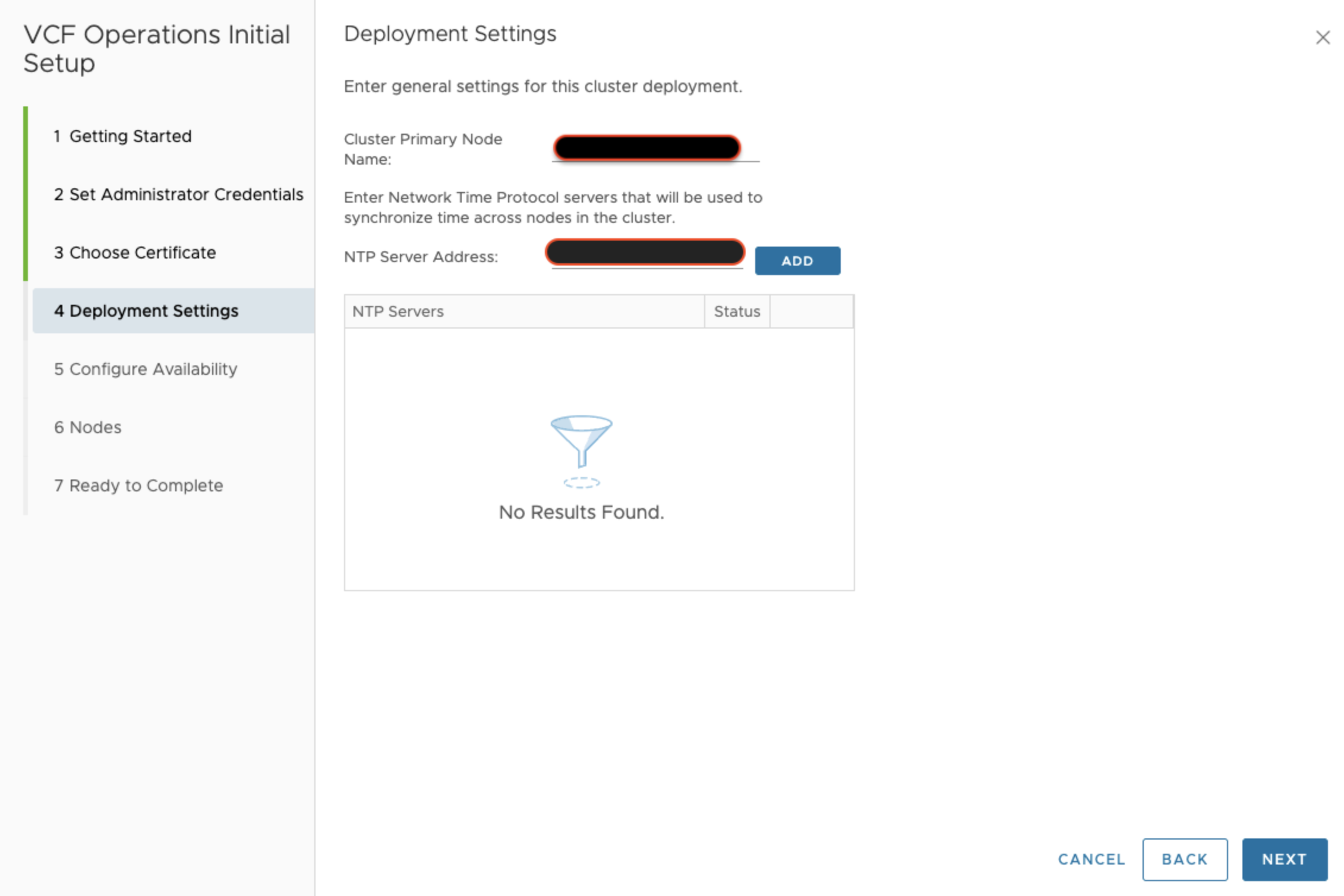

The configuration can be performed through either:

• Admin UI

• REST API endpoint: https://<Primary-IP>/casa/cluster
  {
    "master": {
      "name": "###",
      "address": "###.###.###.###",
      "thumbprint": "##:##:##"
    },
    "admin_password": "#####",
    "ntp_servers": ["##.##.##"],
    "init": true,
    "dry-run": false,
    "enable-ca": false
  }

To verify if the NTP process has hung, SSH to the VCF Operations primary node and run:

ps aux | grep ntp

If the output shows the following processes, the NTP synchronization has hung:

root <PID_#1> /usr/bin/sudo -n /usr/lib/vmware-python-3/bin/python /usr/lib/vmware-casa/bin/ntp_update.py
root <PID_#2> /usr/lib/vmware-python-3/bin/python /usr/lib/vmware-casa/bin/ntp_update.py
root <PID_#3> /usr/bin/ntpd -nNgq

Environment

VCF Operations 9.x

Aria Operations 8.18.x

Cause

The time synchronization process (/usr/bin/ntpd -nNgq) hangs indefinitely when it attempts to synchronize with an unresponsive external NTP server IP address

Resolution

1. SSH into VCF Operations primary node as root
2. Run ps aux | grep ntp
3. Identify the PID of
   root <PID_#3> /usr/bin/ntpd -nNgq
4. Run kill -9 <PID_#3>
5. The initialization phase should now progress
