Certificate validation fails during Depot setup in VMware Cloud Foundation Fleet Management when using a Proxy

Products

• VCF Operations

Issue/Introduction

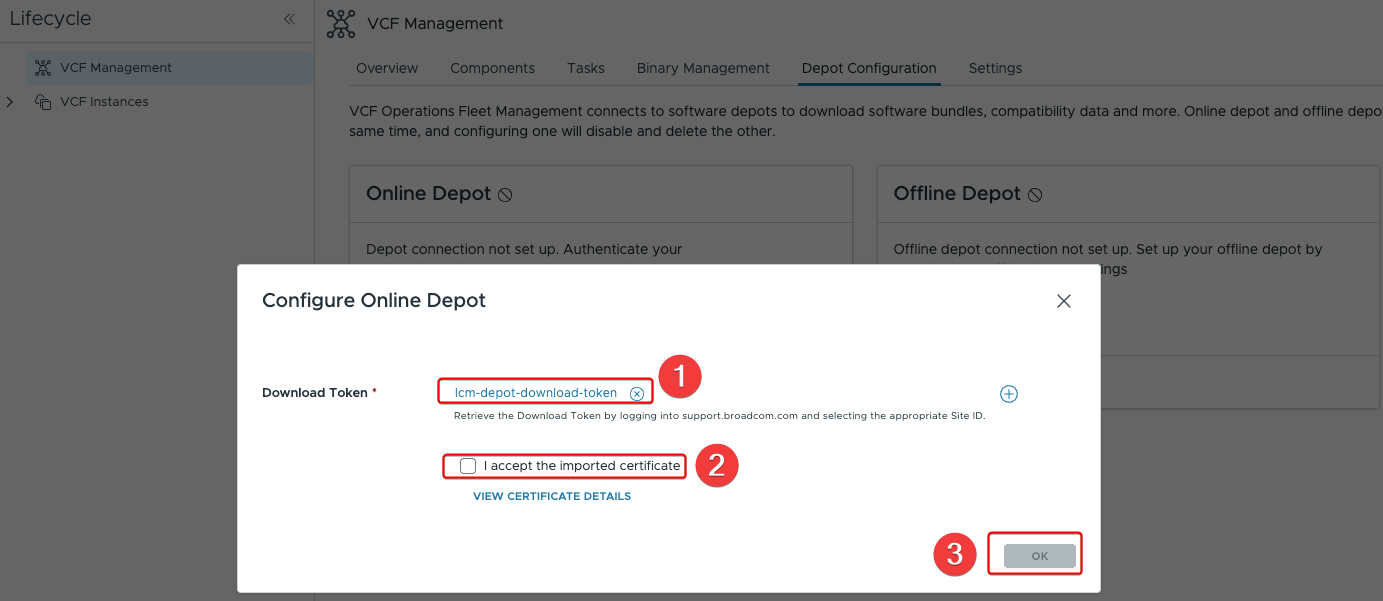

When configuring a Depot in VCF Fleet Management in an environment where a proxy server is in use, the following behaviors are observed:

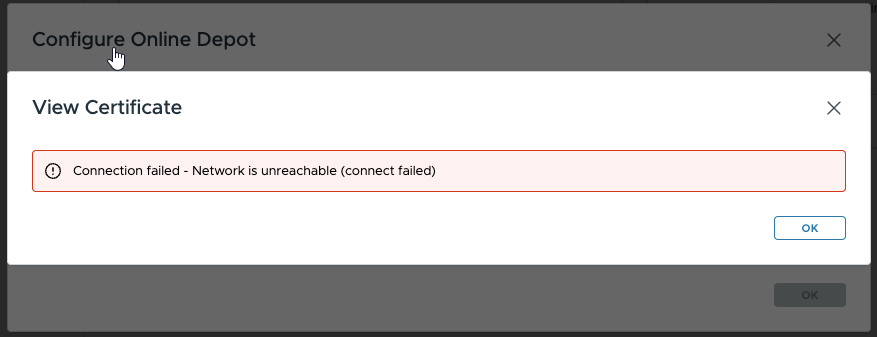

- Clicking “View Certificate Details” results in a validation error. " Connection failed - Network is unreachable (connect failed) "
- The error message persists in the user interface even after the depot is fully active.
- Despite the validation error, the depot is able to successfully connect, and product binary downloads complete without issues.
- The /var/log/vrlcm/vmware_vrlcm.log file displays a network connectivity error when the certificate check is triggered:

INFO vrlcm[1241] [http-nio-8080-exec-6] [c.v.v.l.l.c.CertificateManagementController]  -- Request received to get certificate from https://dl.broadcom.com
INFO vrlcm[1241] [http-nio-8080-exec-6] [c.v.v.l.l.s.CertificateManagementService]  -- Fetching certificate from https://dl.broadcom.com
INFO vrlcm[1241] [http-nio-8080-exec-6] [c.v.v.l.u.CertificateUtil]  -- Endpoint : https://dl.broadcom.com
ERROR vrlcm[1241] [http-nio-8080-exec-6] [c.v.v.l.u.CertificateUtil]  -- IOException occurred - Network is unreachable (connect failed)

Environment

VCF Operations 9.0.x
VCF Fleet Management 9.0.x

Cause

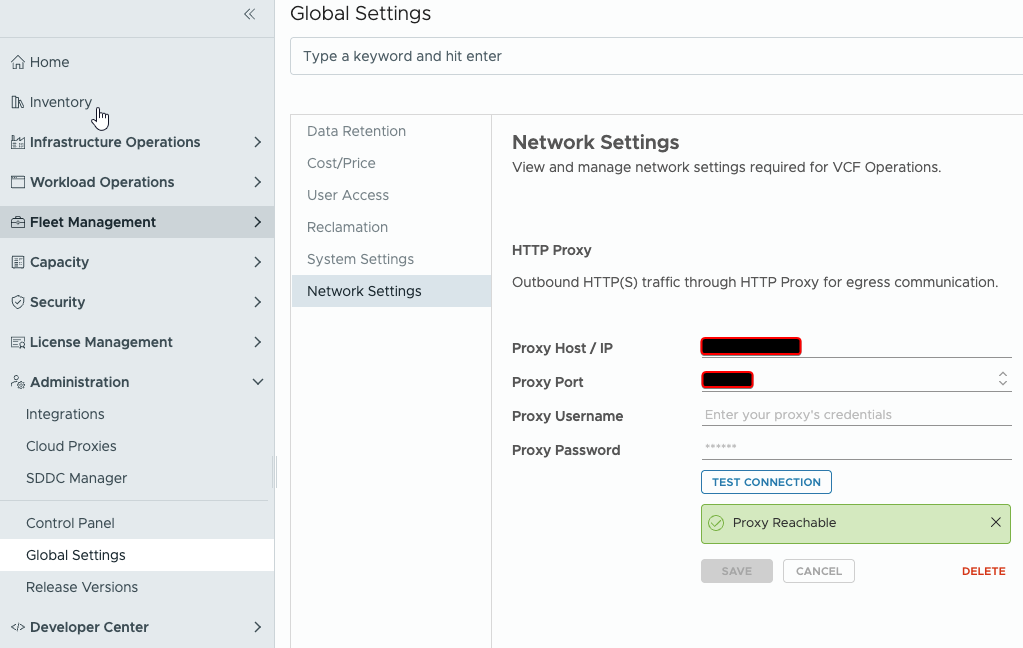

The issue is caused by the component responsible for retrieving certificate details (CertificateUtil) attempting to connect directly to the depot endpoint https://dl.broadcom.com without applying the configured system proxy settings. However, the actual file download service does correctly utilize the proxy configuration. This results in a "False Positive" scenario where the certificate validation fails due to the missing proxy route, but the functional task of downloading content succeeds.

Resolution

Since this is a validation-only error and does not affect the functionality of the product, no action is required if the depot downloads are completing successfully.

However, to resolve the error message or allow the "View Certificate Details" feature to function, you can implement the following workaround:

Whitelist the Depot FQDN: Update your network firewall or gateway rules to whitelist the depot Fully Qualified Domain Name dl.broadcom.com. This allows VCF Fleet Management to reach the endpoint directly, bypassing the need for the proxy during the certificate validation check.

Additional Information

Connect to an Online Depot for VCF Operations fleet management
