Edge Disk Usage Very High on / partition affecting Control Plane connectivity and DHCP services.
Article ID: 427787
Updated On:
Products
Issue/Introduction

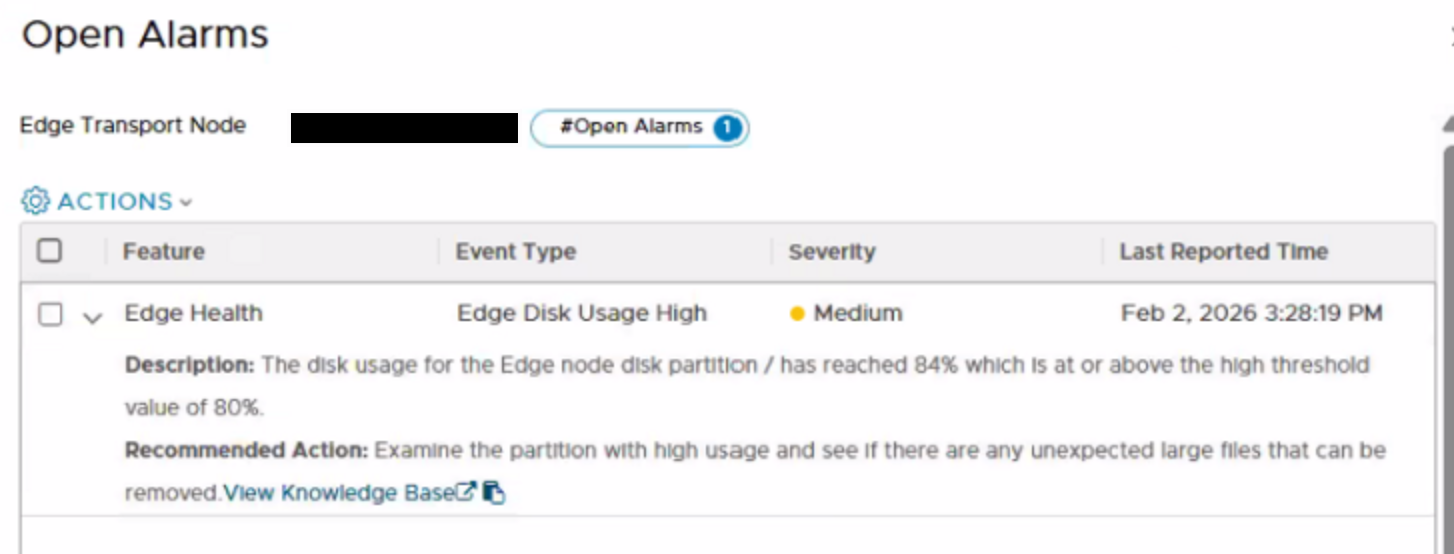

Edge Health Alarm : Edge Disk Usage Very High
The disk usage for the Edge node disk partition / has reached 84% which is at or above the very high threshold value of 80%
An NSX Edge Node reports a critical health alarm indicating high disk utilization on the /root partition (/dev/sda3). In this scenario, utilization exceeding 80% resulted in the following symptoms:
Failure of VMs to obtain DHCP IP addresses.
Disruption of Central Control Plane (CCP) connectivity.
Tunnels remaining in a "Down" state even after attempting Maintenance Mode cycles.
Coincident issues with VCD–NSX communication due to certificate mismatches.
Environment
VMware NSX
Cause
The issue was driven by two primary factors:
Disk Space Exhaustion: The /root partition reached 84% utilization due to large, unrotated files in the /journal and syslog directories. An attempt to move these files was unsuccessful, leading to a "filled bin" scenario within the partition.
Known Version Bug: NSX version 4.2.1 is impacted by a known JDK-related issue that can prevent services from recovering gracefully after disk space is reclaimed or management communication is interrupted.
VCD Communication Break: A renewed VCD certificate failed to apply to one of the four VCD cells, breaking the underlying management sync between VCD and NSX.
Resolution
1. Restore VCD-NSX Management Sync
Ensure the renewed VCD certificate is applied consistently across all VCD cells.
Reconnect VCD to NSX via the VCD Service Provider Admin portal to validate credential/certificate handshake.
2. Clear Edge Node Disk Space
Log in to the affected NSX Edge Node CLI as root.
Identify large files in the /journal and /var/log directories.
Action: Move unrotated journal and syslog files to a temporary test directory or off-box storage to reduce /dev/sda3 utilization below the 80% threshold.
Verify cleanup with df -h.
3. Address JDK Issue (NSX 4.2.1)
If disk cleanup does not immediately restore tunnel or DHCP status:
Perform a rolling reboot of the NSX Manager cluster (one manager at a time).
This clears the JDK-related hang-up and forces a fresh reconciliation of the Edge nodes.
4. Post-Reboot Validation
Edge Sharding Behavior: During the rolling reboot, an Edge node may briefly report a "Failed" state. This is expected behavior as the Edge attempts to "shard" (re-establish a heartbeat) to a different available Manager in the cluster. Communication restores automatically once the Managers are stable.
Verify that VMs are successfully receiving DHCP IP addresses and that ICMP connectivity (Ping) is restored.
