VLSR plugin is not accessible from vCenter after converging to 9.0.5 - No healthy upstream

Products

• VMware Live Recovery

Issue/Introduction

You witness plugin issues after converging vSphere Replication & VMware Live Site Recovery to VMware Live Recovery Appliance

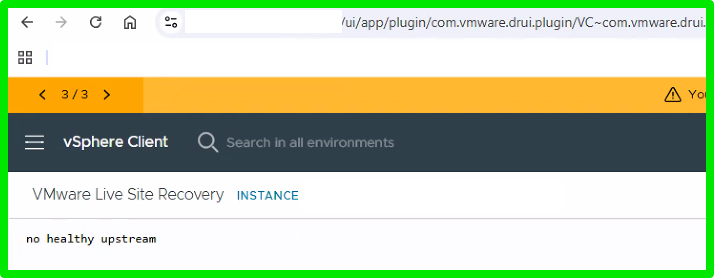

1. VMware Live Site Recovery Plugin displays no healthy upstream in vCenter

2. VMware Live Site Recovery Plugin displays Not accessible in vCenter

Environment

VMware Live Recovery Appliance 9.x

Cause

vCenter is not trusting the VLR Appliance SSL certificate because the certificate is generated using a short name.

vsphere_client_virgo.log:

[2026-01-22T15:44:43.379-05:00] [ERROR] -nio-127.0.0.1-5090-exec-955 70211828 151225 200264 com.vmware.vise.mvc.controllers.PluginServiceController          A general error occurred while retrieving plugin (com.vmware.drui.plugin:9.0.5.0.25100392:-209761344) dynamic extensions info from the plugin server (/plugins/com.vmware.drui.plugin~9.0.5.0.25100392~1563937642/vlr.broadcom.com-443/drplugin/rest/dynamic-items/vm/summary). org.spring
framework.web.client.UnknownHttpStatusCodeException: 526 Invalid SSL Certificate: "-----BEGIN CERTIFICATE-----<EOL>MIIDr....Gp3g==<EOL>-----END CERTIFICATE-----<EOL>"
        at org.springframework.web.client.DefaultResponseErrorHandler.handleError(DefaultResponseErrorHandler.java:120)
        at org.springframework.web.client.ResponseErrorHandler.handleError(ResponseErrorHandler.java:63)
        at org.springframework.web.client.RestTemplate.handleResponse(RestTemplate.java:825)
        at org.springframework.web.client.RestTemplate.doExecute(RestTemplate.java:783)
        at org.springframework.web.client.RestTemplate.execute(RestTemplate.java:757)
        at org.springframework.web.client.RestTemplate.postForObject(RestTemplate.java:465)
        at com.vmware.vise.plugin.filter.impl.PluginDynamicExtensionFilteringServiceImpl.pluginServerDynamicUriFiltering(PluginDynamicExtensionFilteringServiceImpl.java:189)

Resolution

1. Change the VMware Live Recovery Appliance Certificate from short name to FQDN

2. Reconfigure the VMware Live Recovery Appliance

3. Reconfigure the Connection Between Sites
