Error: "Time out waiting for host to join NSX Manager" at 48% during NSX host preparation.

Products

• VMware NSX

Issue/Introduction

When attempting to configure or redeploy VMware NSX on ESXi hosts, the installation fails consistently at 48%.

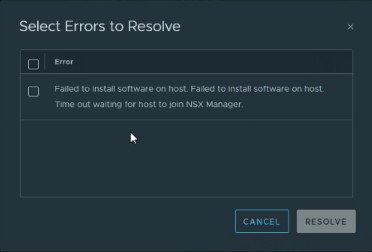

• In the NSX Manager UI, we see the error:
  "Failed to install software on host. Failed to install software on host. Time out waiting for host to join NSX Manager."



• Removing the host from the cluster and re-adding it results in the same failure at 48%, even if the NSX status initially shows "Not Configured."


• From nsxapi.log you see the installation progress percentage before the failure:
  FN Operation: INSTALL. Host: #####-####-####-####-######## current progress percentage: 48, stateDescription: deployment.progress.fn.registering_host

• Attempts to manually push the certificate to the Transport Node fail with: "Push certificate failed: 'Failure invoking NSX manager API to push certificate. 500:None'".


• In the affected ESXi host's Support Bundle from /var/run/log/nsx-syslog.log, we see "join management-plane" task fails with errors indicating connectivity (Connection timed out) or trust issues (No APH UUID found in CheckTrusted RPC response).

  NSX 2100175 - [nsx@6876 comp="nsx-esx" subcomp="nsxsfhc" tid="#####" level="WARNING"] Command nsxcli -c "join management-plane <nsx-t_manager.domain>  thumbprint ####################################   token **********  node-uuid ######-####-####-####-############  validate-manager-cert  " failed with return-code 4 (% Node registration failed: 'NSX Manager API certificate is not valid: curl_wrapper: (7) No APH UUID found in CheckTrusted RPC response' )

Environment

VMware NSX

Cause

The root cause is the presence of stale NSX VIBs or, residual certificate states on the ESXi host from a previous deployment.

Even if the NSX Manager UI reports the host as "Not Configured" the underlying VIBs may still be installed or partially corrupt. These stale components cause a trust mismatch (indicated by the SSL and APH UUID errors), preventing the host from successfully joining the Management Plane during the re-preparation process.

Resolution

Completely Uninstall NSX from a Managed Host in a vSphere Cluster and then re-prepare the host for NSX.
