Unable to extend the VM hard disk space on vSAN cluster with error :"Resource temporarily unavailable"

Products

• VMware vSAN

Issue/Introduction

Symptoms:

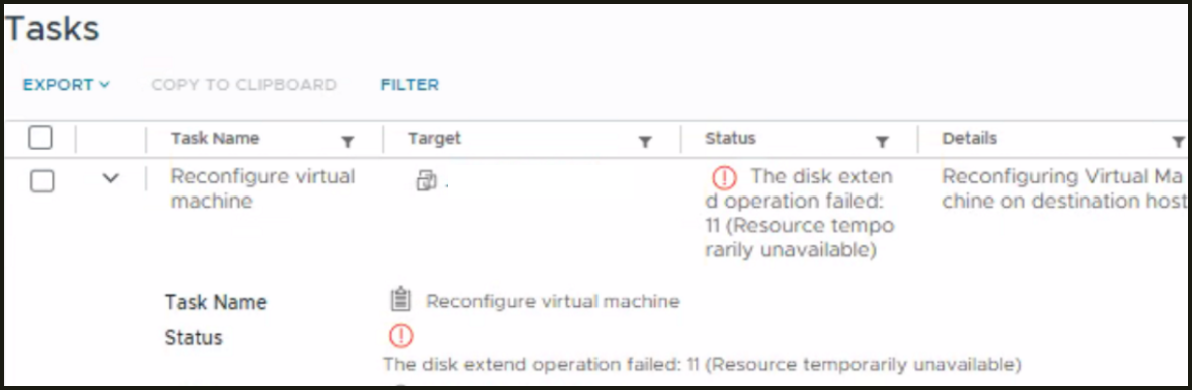

• Unable to expand the VM hard disk with below error on vCenter UI," Virtual Machine > Monitor > Tasks"

Reconfigure virtual machine ####

Navigates to Virtual machine The disk extend operation failed: 11 (Resource temporarily unavailable)

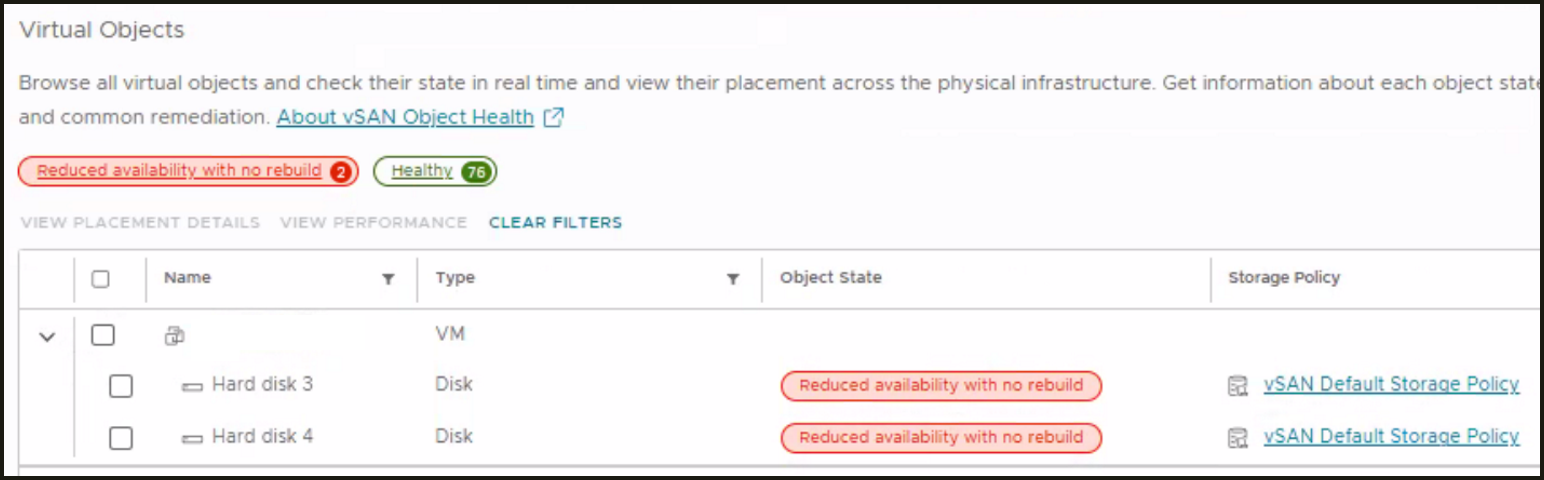

• Virtual objects on "vSAN cluster > Monitor > Virtual objects" reports VM objects in reduced availability.

Environment

VMware vSAN 8.x

Cause

This issue is caused due to cache disk failure on the ESXi host.



• /var/run/vmkernel.log shows disk in unhealthy state.

2025-10-23T00:45:43.235Z Wa(180) vmkwarning: cpu54:2098419)WARNING: PLOG: PLOGPropagateErrorInt:4920: vSAN device #########-####-####-####-############ is unhealthy.
2025-10-23T00:45:43.235Z In(182) vmkernel: cpu66:2098917)LSOM: LSOMLogDiskEvent:8418: Disk Event unhealthy for SSD  #########-####-####-####-############  (naa.#########################)



•  Components part of this disk are in Absent state.

[root@#####:/vmfs/volumes/#########-####-####-####-############ ] localcli storage core device smart get -d naa.#######################
Parameter                 Value              Threshold  Worst  Raw
------------------------  -----------------  ---------  -----  ---
Health Status             IMPENDING FAILURE  N/A        N/A    N/A
Media Wearout Indicator   0                  100        N/A    N/A
Write Error Count         0                  N/A        N/A    N/A
Read Error Count          0                  N/A        N/A    N/A
Power Cycle Count         0                  N/A        N/A    N/A
Reallocated Sector Count  0                  N/A        N/A    N/A
Drive Temperature         31                 N/A        N/A    N/A
Write Sectors TOT Count   5567650739382      N/A        N/A    N/A
Read Sectors TOT Count    1507073059310      N/A        N/A    N/A
Program Fail Count        0                  N/A        N/A    N/A
Erase Fail Count          0                  N/A        N/A    N/A

Resolution

Engage hardware vendor to further investigate and replace the disk.

Retry with VM hard disk expansion once hardware issues are fixed and when all objects are back healthy.
