ESXi Advanced System Settings mapping to vSphere Configuration Profiles configurations

Products

• VMware vCenter Server
• VMware vSphere ESXi

Issue/Introduction

In the vCenter UI, when you select an ESXi host and navigate to Configure tab → System→ Advanced System Settings, the Advanced system settings are represented as key value pairs, with the Key identifying the name of the configuration on the host. However, the key names do not necessarily have an exact match with the configuration representation in vSphere Configuration Profiles.

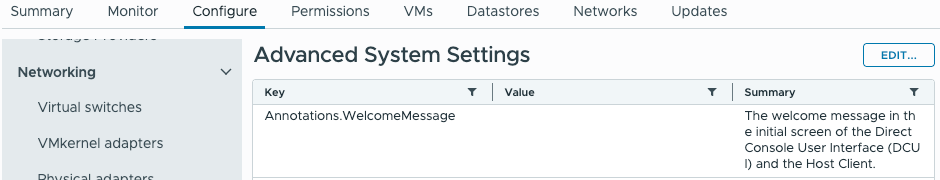

For example, in the ESXi Advanced Settings UI, welcome message for an ESXi host is represented as Annotations.WelcomeMessage

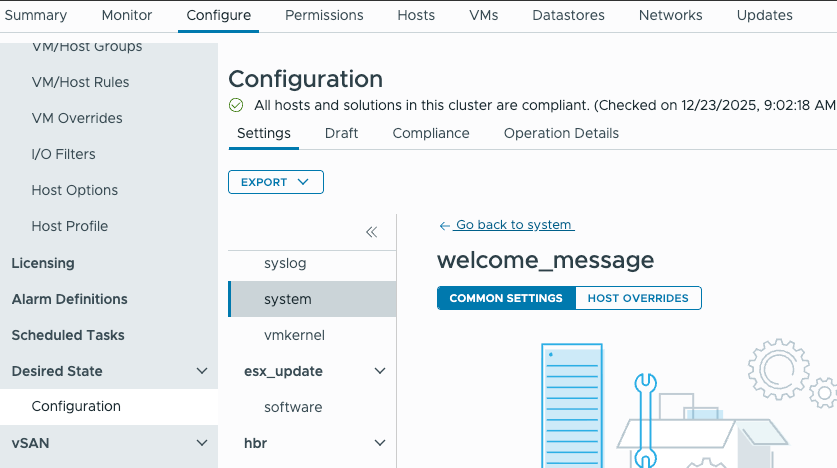

While in vSphere Configuration Profiles UI, the same setting is present under esx → system → welcome_message.

Environment

VMware VCF 9.x

VMware vCenter Server 9.x

Cause

This document provides a comprehensive mapping that links the ESXi advanced system settings names to their equivalent configurations within vSphere Configuration Profiles to ensure consistency and clarity during configuration management.

Resolution

Advanced System Settings map (ESXi 9.0 U1 and vCenter 9.0 U1)



	Key	Name	VCP Component	VCP Group	VCP Key	VCP property
1	Annotations.WelcomeMessage	The welcome message in the initial screen of the Direct Console User Interface (DCUI) and the Host Client.	esx	system	welcome_message	message
2	CBRC.DCacheMemReserved	Memory consumed by CBRC Data Cache (in MB)	esx	advanced_options	CBRC	D_cache_mem_reserved
3	CBRC.Enable	Enable Content Based Read Cache	NA	NA	NA	NA
4	COW.COWMaxHeapSizeMB	Maximum size (in MB) to which the COW heap is allowed to grow	esx	advanced_options	COW	COW_max_heap_size_MB
5	COW.COWMaxREPageCacheszMB	Maximum size (in MB) of VMFSSparse metadata cache size before cache eviction kicks in	esx	advanced_options	COW	COW_max_repage_cache_size_MB
6	COW.COWMinREPageCacheszMB	Minimum size (in MB) of VMFSSparse metadata cache size. Valid when cache eviction is enabled.	esx	advanced_options	COW	COW_min_repage_cache_size_MB
7	COW.COWREPageCacheEviction	VMFSSparse metadata cache eviction: 0 - disabled, 1 enabled	esx	advanced_options	COW	COW_repage_cache_eviction
8	Config.Defaults.host.TAAworkaround	Enable mitigation of TSX Asynchronous Abort (CVE-2019-11135).	NA	NA	NA	NA
9	Config.Defaults.monitor.if_pschange_mc_workaround	Enable workaround for Machine Check Error on Page Size Change (CVE-2018-12207).	NA	NA	NA	NA
10	Config.Defaults.security.host.ruissl	Require SSL to be used when communicating with the host over port 902.	NA	NA	NA	NA
11	Config.Defaults.vGPU.consolidation	Assignment policy to place shared passthru graphics VMs on same physical GPU until full.	NA	NA	NA	NA
12	Config.Etc.issue	Messages that are displayed prior to an SSH or local shell login.	esx	system	etcIssue	issue
13	Config.Etc.motd	Messages that are displayed following an SSH or local shell login.	esx	system	etcMotd	motd
14	Config.GlobalSettings.guest.commands.sharedPolicyRefCount	Reference count to enable guest operations.	NA	NA	NA	NA
15	Config.HostAgent.distributedTracing	Logging level for the loggers related to distributed tracing services.	esx	services	hostd	distributed_tracing
16	Config.HostAgent.level[Hbrsvc].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[Hbrsvc].log_level)
17	Config.HostAgent.level[Hostsvc].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[Hostsvc].log_level)
18	Config.HostAgent.level[Nfcsvc].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[Nfcsvc].log_level)
19	Config.HostAgent.level[Proxysvc].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[Proxysvc].log_level)
20	Config.HostAgent.level[Snmpsvc].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[Snmpsvc].log_level)
21	Config.HostAgent.level[Statssvc].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[Statssvc].log_level)
22	Config.HostAgent.level[VMCPS].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[VMCPS].log_level)
23	Config.HostAgent.level[VapiLog].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[VapiLog].log_level)
24	Config.HostAgent.level[Vcsvc].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[Vcsvc].log_level)
25	Config.HostAgent.level[Vimsvc].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[Vimsvc].log_level)
26	Config.HostAgent.level[Vmsvc].logLevel	Logging level for the loggers related to this HostdD subsystem.	esx	services	hostd	level_list.[Vmsvc].log_level)
27	Config.HostAgent.log.level	Controls the global log level.	esx	services	hostd	log.level
28	Config.HostAgent.plugins.hostsvc.esxAdminsGroup	Active Directory group name that is automatically granted administrator privileges on the ESX. NOTE: Changing the group name does not remove the permissions of the previous group.	esx	services	hostd	plugins.hostsvc.esx_admins_group
29	Config.HostAgent.plugins.hostsvc.esxAdminsGroupAutoAdd	Controls whether the group specified by 'esxAdminsGroup' is automatically granted administrator permission. NOTE: Changing this to false does not remove any permissions already granted to the group.	esx	services	hostd	plugins.hostsvc.esx_admins_group_auto_add
30	Config.HostAgent.plugins.solo.disableRemoteEsxcli	Enables or disables remote execution of esxcli commands.	esx	services	hostd	plugins.solo.disable_remote_esxcli
31	Config.HostAgent.plugins.solo.enableMob	Enables or disables the Debug Managed Object Browser for the ESXi host.	esx	services	hostd	plugins.solo.enable_mob
32	Config.HostAgent.plugins.solo.loglevels.module[disklib].level	Logging level for the disklib library.	esx	services	hostd	plugins.solo.loglevels.module_list[disklib].level
33	Config.HostAgent.plugins.solo.loglevels.module[snapshot].level	Logging level for the snapshot library.	esx	services	hostd	plugins.solo.loglevels.module_list[snapshot].level
34	Config.HostAgent.plugins.solo.webServer.enableWebscriptLauncher	Controls the availability of webscript launcher page.	esx	services	hostd	plugins.solo.web_server.enable_webscript_launcher
35	Config.HostAgent.plugins.vimsvc.authValidateInterval	Number of minutes between each validation of all known users and groups - set to zero to disable validation.	esx	services	hostd	plugins.vimsvc.auth_validate_interval
36	Config.HostAgent.plugins.vimsvc.disableHostProfileApi	Enables or disables Host Profile pyEngine APIs. Restart host agent service (hostd) to adopt new value.	esx	services	hostd	plugins.vimsvc.disable_host_profile_api
37	Config.HostAgent.plugins.vimsvc.enableUtf8Filter	Enable UTF-8 validation of VIM API responses.	esx	services	hostd	plugins.vimsvc.enable_utf8_filter
38	Config.HostAgent.plugins.vimsvc.httpNfcLeaseTimeout	Number of seconds until an HTTP NFC lease times out due to inactivity. Applies to new leases only.	esx	services	hostd	plugins.vimsvc.http_nfc_lease_timeout
39	Config.HostAgent.plugins.vimsvc.userSearch.maxResults	Maximum number of users and groups to display in the Add Permissions dialog - set to zero to disable the limit.	esx	services	hostd	plugins.vimsvc.user_search.max_results
40	Config.HostAgent.plugins.vimsvc.userSearch.maxTimeSeconds	Number of seconds to wait for a search for users and groups to return results - set to zero to disable the timeout.	esx	services	hostd	plugins.vimsvc.user_search.max_time_seconds
41	Config.HostAgent.plugins.vmsvc.allowForensicSnapshots	A flag that allows snapshots to be taken that may not be restorable.	esx	services	hostd	plugins.vmsvc.allow_forensic_snapshots
42	Config.HostAgent.plugins.vmsvc.blockDiskRemoveIfSnapshot	A flag that blocks all virtual disk remove operations on VMs that have snapshots.	esx	services	hostd	plugins.vmsvc.block_disk_remove_if_snapshot
43	Config.HostAgent.plugins.vmsvc.blockSnapshotRemoveIfDiskShared	A flag that blocks deletion of a snapshot if any snapshot disk is in a shared state.	esx	services	hostd	plugins.vmsvc.block_snapshot_remove_if_disk_shared
44	Config.HostAgent.plugins.vmsvc.enforceMaxRegisteredVms	Enables enforcing the limitation on the number of registered virtual machines in the inventory.	esx	services	hostd	plugins.vmsvc.enforce_max_registered_vms
45	Config.HostAgent.plugins.vmsvc.filterExtraConfigHotEdit	Filter out extraConfig keys being modified that are not on a pre-defined list of allowed keys when a virtual machine is powered on.	esx	services	hostd	plugins.vmsvc.filter_extra_config_hot_edit
46	Config.HostAgent.plugins.vmsvc.guestWatchdogTimeout	Number of seconds to wait for the Guest OS to shutdown.	esx	services	hostd	plugins.vmsvc.guest_watchdog_timeout
47	Config.HostAgent.plugins.vmsvc.productLockerWatchInterval	Interval between checks for whether the product locker files are changed, in seconds. Set to -1 to disable checks.	esx	services	hostd	plugins.vmsvc.product_locker_watch_interval
48	Config.HostAgent.plugins.vmsvc.vsanVmRefreshRetryInterval	Number of seconds to wait for retrying vSAN VM refresh, option value '0' means disabling retry logic.	esx	services	hostd	plugins.vmsvc.vsan_vm_refresh_retry_interval
49	Config.HostAgent.ssl.keyStore.allowAny	Allow any certificates to be added to the host CA store. Disables CA checks.	esx	services	hostd	ssl.key_store.allow_any
50	Config.HostAgent.ssl.keyStore.allowSelfSigned	Allow non-CA self-signed certificates to be added to the host CA store.	esx	services	hostd	ssl.key_store.allow_any
51	Config.HostAgent.ssl.keyStore.discardLeaf	Discard leaf certificates when adding to CA store. Leaf certificates in a CA store are generally a misconfiguration.	esx	services	hostd	ssl.key_store.discard_leaf
52	Config.HostAgent.ssl.minPrivateKeyLength	The minimum length in bits to be used when generating a new host private key.	esx	services	hostd	ssl.min_private_key_length
53	Config.HostAgent.ticketing.thumbprintTypes	Hash algorithms with which to generate host thumbprints, specified as a comma-separated list. Options are sha1, sha256. If no hash is specified, all hashes that are considered secure are enabled.	esx	services	hostd	ticketing.thumbprint_types
54	Config.HostAgent.vmacore.soap.maxSessionCount	Maximum number of authenticated VIM API sessions at any given time - set to zero to disable limit.	esx	services	hostd	vmacore.soap.max_session_count
55	Config.HostAgent.vmacore.soap.sessionTimeout	Number of minutes until a VIM API session times out due to inactivity - set to zero to disable timeout. Applies to new sessions only.	esx	services	hostd	vmacore.soap.session_timeout
56	Cpu.AllowWideVsmp	Allow VMs with more VCPUs than host PCPUs, 0 to disable	esx	advanced_options	cpu	allow_wide_vsmp
57	Cpu.BoundLagQuanta	Number of global quanta before bound lag	esx	advanced_options	cpu	bound_lag_quanta
58	Cpu.CommRateThreshold	threshold for inter-sched-context rate above which the contexts are considered to be related (in num/sec)	esx	advanced_options	cpu	comm_rate_threshold
59	Cpu.CoschedCostartThreshold	costart threshold in usec, costart threshold should be less than costopThreshold	esx	advanced_options	cpu	cosched_costart_threshold
60	Cpu.CoschedCostopThreshold	maximum skew between vcpus in usec, 0 to disable	esx	advanced_options	cpu	cosched_costop_threshold
61	Cpu.CoschedCrossCall	0: disable cosched on crosscall; 1: enable cosched on crosscall	esx	advanced_options	cpu	cosched_cross_call
62	Cpu.CoschedHandoffLLC	0: handoff by switching pcpu; 1: handoff to LLC if possible	esx	advanced_options	cpu	cosched_handoff_LLC
63	Cpu.CoschedHandoffSkip	only skip handoff if ready time is smaller than this threshold, in usec, 0 to allow skip always	esx	advanced_options	cpu	cosched_handoff_skip
64	Cpu.CoschedPollUsec	interval between coscheduling skew checks, in usec	esx	advanced_options	cpu	cosched_poll_usec
65	Cpu.CreditAgePeriod	Period in milliseconds	esx	advanced_options	cpu	credit_age_period
66	Cpu.FairnessRebalancePcpus	max number of PCPUs to be considered when doing fairness rebalance, 0 to disable	esx	advanced_options	cpu	fairness_rebalance_pcpus
67	Cpu.HTRebalancePeriod	average milliseconds between opportunities for a pcpu to migrate vcpus from within a core	esx	advanced_options	cpu	HT_rebalance_period
68	Cpu.HTStolenAgeThreshold	the amount of htStolen time a vcpu can keep without being aged (in seconds)	esx	advanced_options	cpu	HT_stolen_age_threshold
69	Cpu.HTWholeCoreThreshold	a vcpu with vtime falling behind by this threshold (in ms) is eligible to use the whole core (HT only), 0 to disable (may violate resource settings)	esx	advanced_options	cpu	HT_whole_core_threshold
70	Cpu.HostRebalancePeriod	average milliseconds between opportunities for a pcpu to migrate vcpus from within the whole system, 0 to disable	esx	advanced_options	cpu	host_rebalance_period
71	Cpu.L2RebalancePeriod	average milliseconds between opportunities for a pcpu to migrate vcpus from within the shared L2 cache, 0 to disable	esx	advanced_options	cpu	l2_rebalance_period
72	Cpu.L3RebalancePeriod	average milliseconds between opportunities for a pcpu to migrate vcpus from within the shared L3 cache, 0 to disable	esx	advanced_options	cpu	l3_rebalance_period
73	Cpu.LimitEnforcementThreshold	Only allows low-vtime children ro run when a group/VM's vtimeLimit is smaller than the global virtual time by less than this threshold (in ms), 0 to disable	esx	advanced_options	cpu	limit_enforcement_threshold
74	Cpu.MaxSampleRateLg	Sampling system services at most (2^MaxSampleRateLg) times a second	esx	advanced_options	cpu	max_sample_rate_lg
75	Cpu.NonTimerWakeupRate	Disable P state if the running vcpu's non-timer wakeup rate is higher than this threshold, 0 to disable	esx	advanced_options	cpu	non_timer_wakeup_rate
76	Cpu.PackageRebalancePeriod	average milliseconds between opportunities for a pcpu to migrate vcpus from within a package, 0 to disable	esx	advanced_options	cpu	package_rebalance_period
77	Cpu.PcpuMigrateIdlePcpus	max number of PCPUs to be considered when doing pcpu idle rebalance, 0 to disable	esx	advanced_options	cpu	pcpu_migrate_idle_pcpus
78	Cpu.Quantum	Quantum in milliseconds	esx	advanced_options	cpu	quantum
79	Cpu.UseMwait	use MWAIT vs. HLT in the idle loop; 0: use HLT, 1: use MWAIT if possible, 2: choose by cpu type	esx	advanced_options	cpu	use_mwait
80	Cpu.VMAdmitCheckPerVcpuMin	Perform additional admission control check that per virtual CPU virtual machine minimum does not exceed the speed of a single physical CPU	esx	advanced_options	cpu	VM_admit_check_per_vcpu_min
81	Cpu.WakeupMigrateIdlePcpus	max number of PCPUs to be considered when doing wakeup idle rebalance, 0 to disable	esx	advanced_options	cpu	wakeup_migrate_idle_pcpus
82	DCUI.Access	One or more comma-separated local users which are granted unconditional access to DCUI, even if they don't have administrator role on the host. Users without a password cannot be added to this list.	esx	authorization	dcui_access	users
83	DataMover.HardwareAcceleratedInit	Enable hardware accelerated VMFS data initialization (requires compliant hardware)	esx	advanced_options	data_mover	hardware_accelerated_init
84	DataMover.HardwareAcceleratedMove	Enable hardware accelerated VMFS data movement (requires compliant hardware)	esx	advanced_options	data_mover	hardware_accelerated_move
85	DataMover.MaxHeapSize	Maximum size of the heap in MB used for data movement	esx	advanced_options	data_mover	max_heap_size
86	Digest.AlgoType	Digest Crypto Hash Type (1=SHA-1, 2=SHA-256).	esx	advanced_options	digest	algo_type
87	Digest.BlockSize	Blocksize in the original VMDK to compute crypto hash codes. In pages of 4K size. Value needs to be power of 2.	esx	advanced_options	digest	block_size
88	Digest.CollisionEnabled	Enable collision detection (0=disabled, 1=enabled)	esx	advanced_options	digest	collision_enabled
89	DirentryCache.MaxDentryPerObj	Maximum directory entries cached per directory	esx	advanced_options	direntry_cache	max_dentry_per_obj
90	Disk.AllowUsbClaimedAsSSD	Permit claim rules to mark USB disks as SSD	esx	advanced_options	disk	allow_usb_claimed_as_SSD
91	Disk.ApdTokenRetryCount	APD Token Retry Count	esx	advanced_options	disk	apd_token_retry_count
92	Disk.AutoremoveOnPDL	Autoremove paths to a disk that is in PDL (Permanent Device Loss)	esx	advanced_options	disk	autoremove_on_PDL
93	Disk.BandwidthCap	cap on disk bandwidth (KB/s) usage	esx	advanced_options	disk	bandwidth_cap
94	Disk.DelayOnBusy	Delay in milliseconds for completion of commands with a BUSY status	esx	advanced_options	disk	delay_on_busy
95	Disk.DeviceEnableIOLatencyMsgs	Enable or disable storage latency-related error messages from PSA	esx	advanced_options	disk	device_enable_IO_latency_msgs
96	Disk.DeviceReclaimTime	The number of seconds between device re-claim attempts	esx	advanced_options	disk	device_reclaim_time
97	Disk.Disable4knSSD	Disable use of 4kn SSDs	esx	advanced_options	disk	disable_4kn_SSD
98	Disk.DiskDelayPDLHelper	Delay PDL helper in secs	esx	advanced_options	disk	disk_delay_PDL_helper
99	Disk.DiskMaxIOSize	Max Disk READ/WRITE I/O size before splitting (in KB)	esx	advanced_options	disk	disk_max_IO_size
100	Disk.DiskReservationThreshold	Time window within which refcounted reservations on a device are permitted (in msec)	esx	advanced_options	disk	disk_reservation_threshold
101	Disk.DiskRetryPeriod	Retry period in milliseconds for a command with retry status	esx	advanced_options	disk	disk_retry_period
102	Disk.DumpMaxRetries	Max number of I/O retries during disk dump	esx	advanced_options	disk	dump_max_retries
103	Disk.DumpPollDelay	Number of microseconds to wait between polls during a disk dump.	esx	advanced_options	disk	dump_poll_delay
104	Disk.DumpPollMaxRetries	Max number of device poll retries during disk dump	esx	advanced_options	disk	dump_poll_max_retries
105	Disk.EnableNaviReg	Enable automatic NaviAgent registration with EMC CLARiiON and Invista	esx	advanced_options	disk	enable_navi_reg
106	Disk.FailDiskRegistration	Fail device registration if disk has only standby paths and supports only implicit asymmetric logical unit access.	esx	advanced_options	disk	fail_disk_registration
107	Disk.FastPathRestoreInterval	Time interval (in msec) to monitor the IO latency to evaluate eligibility for fast-path in PSA.	esx	advanced_options	disk	fast_path_restore_interval
108	Disk.IdleCredit	Amount of idle credit that a virtual machine can gain for I/O requests	esx	advanced_options	disk	idle_credit
109	Disk.MaxLUN	Only SCSI LUNs with LUN ID values below this value will be scanned	esx	advanced_options	disk	max_LUN
110	Disk.MaxNumIOIntervals	Maximum number of IO intervals per device that can be stored in order to detect overlapping IOs to 4Kn disks	esx	advanced_options	disk	max_num_IO_intervals
111	Disk.MaxResetLatency	Delay in milliseconds before logging warnings and spawning new reset worlds if a reset is overdue or taking too long	esx	advanced_options	disk	max_reset_latency
112	Disk.NmpMaxCmdExtension	Increase the maximum number of commands to be processed at once in NMP	esx	advanced_options	disk	nmp_max_cmd_extension
113	Disk.PVSCSIEnablePreemption	Enable PVSCSI Preemption.	esx	advanced_options	disk	PVSCSI_enable_preemption
114	Disk.PathEvalTime	The number of seconds between FC path evaluations	esx	advanced_options	disk	path_eval_time
115	Disk.PreventVMFSOverwrite	Prevent overwriting VMFS partitions	esx	advanced_options	disk	prevent_VMFS_overwrite
116	Disk.QFullSampleSize	I/O samples to monitor for detecting non-transient queue full condition. Should be nonzero to enable queue depth throttling.	esx	advanced_options	disk	qfull_sample_size
117	Disk.QFullThreshold	BUSY or QFULL threshold, upon which LUN queue depth will be throttled. Should be <= QFullSampleSize if throttling is enabled.	esx	advanced_options	disk	qfull_threshold
118	Disk.ReqCallThreshold	Threshold in number of pending requests before calling into vmkernel to process the requests	esx	advanced_options	disk	req_call_threshold
119	Disk.ResetLatency	Delay in milliseconds between reset thread wakeups	esx	advanced_options	disk	reset_latency
120	Disk.ResetMaxRetries	Maximum number of bus reset retries. Set to 0 for no limit.	esx	advanced_options	disk	reset_max_retries
121	Disk.ResetOverdueLogPeriod	Delay in seconds between logs of overdue reset	esx	advanced_options	disk	reset_overdue_log_period
122	Disk.ResetPeriod	Delay in seconds between bus resets retries	esx	advanced_options	disk	reset_period
123	Disk.ResetThreadExpires	Life in seconds of an inactive reset handle thread	esx	advanced_options	disk	reset_thread_expires
124	Disk.ResetThreadMax	Maximum number of reset handler threads	esx	advanced_options	disk	reset_thread_max
125	Disk.ResetThreadMin	Minimum number of reset handler threads	esx	advanced_options	disk	reset_thread_min
126	Disk.RetryUnitAttention	Retry all SCSI commands that return a unit attention error	esx	advanced_options	disk	retry_unit_attention
127	Disk.ReturnCCForNoSpace	Return CC 0x7/0x27/0x7 in the event where a backing datastore has run out of space as opposed to posting a monitor event to halt the VM	esx	advanced_options	disk	return_CC_for_no_space
128	Disk.SchedCostUnit	IO Scheduler block size for accounting	esx	advanced_options	disk	sched_cost_unit
129	Disk.SchedQCleanupInterval	Time interval (in secs) to cleanup per device unused schedQ list (default = 5 minutes).	esx	advanced_options	disk	schedq_cleanup_interval
130	Disk.SchedQControlSeqReqs	Number of consecutive requests from a virtual machine required to raise the outstanding commands to maximum	esx	advanced_options	disk	schedq_control_seq_reqs
131	Disk.SchedQControlVMSwitches	Number of switches between commands issued by different virtual machines required to reduce outstanding commands to CONFIG_DISK_CIF	esx	advanced_options	disk	schedq_control_VM_switches
132	Disk.SchedQPriorityPercentage	Percentage of priority commands to serve from priority queue	esx	advanced_options	disk	schedq_priority_percentage
133	Disk.SchedQuantum	Number of consecutive requests from one world	esx	advanced_options	disk	sched_quantum
134	Disk.SchedReservationBurst	Permit I/O bursts in mclock scheduler with reservations.	esx	advanced_options	disk	sched_reservation_burst
135	Disk.SchedulerWithReservation	Disk I/O scheduler (0:default 1:mclock)	esx	advanced_options	disk	scheduler_with_reservation
136	Disk.SectorMaxDiff	Distance in sectors at which the disk BW schedules affinity stops	esx	advanced_options	disk	sector_max_diff
137	Disk.SharesHigh	Shares for high disk priority	esx	advanced_options	disk	shares_high
138	Disk.SharesLow	Shares for low disk priority	esx	advanced_options	disk	shares_low
139	Disk.SharesNormal	Shares for normal disk priority	esx	advanced_options	disk	shares_normal
140	Disk.SkipResetNoCIF	Do not send Device/Virt RESET if No Cmds in Flight	esx	advanced_options	disk	skip_reset_no_CIF
141	Disk.SllThrottleTime	Time (in msecs) I/Os to SLLs will be throttled in the event of a TASK_SET_FULL being received.	esx	advanced_options	disk	sll_throttle_time
142	Disk.SupportSparseLUN	Support for sparse LUNs if set to one	esx	advanced_options	disk	support_sparse_LUN
143	Disk.ThroughputCap	Cap on disk throughput (IO/s) usage	esx	advanced_options	disk	throughput_cap
144	Disk.UseDeviceReset	Use device reset (instead of bus reset) to reset a SCSI device	esx	advanced_options	disk	use_device_reset
145	Disk.UseIoPool	A bitmask: 0x1 - adapter submission pool, 0x2 - device completion pool, 0x4 - device queueing pool.	esx	advanced_options	disk	use_io_pool
146	Disk.UseLunReset	Use LUN reset (instead of device.bus reset) to reset a SCSI device	esx	advanced_options	disk	use_lun_reset
147	Disk.UseReportLUN	Use the REPORT LUN command to increase scanning speed for devices	esx	advanced_options	disk	use_report_LUN
148	Disk.VNVMEWriteZerosLimit	VNVME WriteZeros max limit in KiloBytes. The Value must be multiple of 4KB. 0 means no limit enforced.	esx	advanced_options	disk	VNVME_write_zeros_limit
149	Disk.VSCSICoalesceCount	Frequency with which the coalesce callback is called.	esx	advanced_options	disk	VSCSI_coalesce_count
150	Disk.VSCSIDisableNvmeRetry	Disable vNVME Retries in VSCSI.	esx	advanced_options	disk	VSCSI_disable_nvme_retry
151	Disk.VSCSIHaltPollInterval	When vCPU halt we poll VSCSI vHBAs for work, but at most do so this often. Time is in microseconds.	esx	advanced_options	disk	VSCSI_halt_poll_interval
152	Disk.VSCSIMaxTransLen	Max transfer length in blocks for VSCSI	esx	advanced_options	disk	VSCSI_max_trans_len
153	Disk.VSCSIOptimalTransLen	Optimal transfer length in blocks for VSCSI	esx	advanced_options	disk	VSCSI_optimal_trans_len
154	Disk.VSCSIPollPeriod	Time in microseconds between VSCSI polls.	esx	advanced_options	disk	VSCSI_poll_period
155	Disk.VSCSIResvCmdRetryInSecs	Time (in secs) to retry on transient errors for Reservation commands for MSCS CAB configs.	esx	advanced_options	disk	VSCSI_resv_cmd_retry_in_secs
156	Disk.VSCSIWriteSameBurstSize	Max number of split IOs per write same request.	esx	advanced_options	disk	VSCSI_write_same_burst_size
157	FSS.FSSLightWeightProbe	Enable light-weight efficient probe of ESX supported datastores	esx	advanced_options	FSS	FSS_light_weight_probe
158	FT.BindToVmknic	Bind the FT socket to a specific vmknic	esx	advanced_options	FT	bind_to_vmknic
159	FT.FTCptConcurrentSend	Send non-diff pages in parallel with diffing rather than after	esx	advanced_options	FT	FT_cpt_concurrent_send
160	FT.FTCptDelayCheckpoint	Delay checkpoint if no network packet waiting	esx	advanced_options	FT	FT_cpt_delay_checkpoint
161	FT.FTCptDiffCap	Max percent pages via diffs (EXPERIMENTAL, failover will not work if not 100)	esx	advanced_options	FT	FT_cpt_diff_cap
162	FT.FTCptDiffThreads	Number of threads for diffing pages	esx	advanced_options	FT	FT_cpt_diff_threads
163	FT.FTCptDisableFailover	Disable failovers (testing only)	esx	advanced_options	FT	FT_cpt_disable_failover
164	FT.FTCptDiskWriteTimeout	Time in milliseconds for backup site to wait for a disk I/O to complete	esx	advanced_options	FT	FT_cpt_disk_write_timeout
165	FT.FTCptDontDelayPkts	Do not delay network packets - for testing only	esx	advanced_options	FT	FT_cpt_dont_delay_pkts
166	FT.FTCptDontSendPages	Do not send over modified pages - for testing only	esx	advanced_options	FT	FT_cpt_dont_send_pages
167	FT.FTCptEpochList	List of potential epochs to try in order of increasing value	esx	advanced_options	FT	FT_cpt_epoch_list
168	FT.FTCptEpochSample	Single epoch sampling time in ms	esx	advanced_options	FT	FT_cpt_epoch_sample
169	FT.FTCptEpochWait	Wait in ms after epoch sampling	esx	advanced_options	FT	FT_cpt_epoch_wait
170	FT.FTCptIORetryExtraInterval	Extra sleep interval (in ms) between retries on disk I/O error	esx	advanced_options	FT	FT_cpt_IO_retry_extra_interval
171	FT.FTCptIORetryInterval	Sleep interval (in ms) between retries on disk I/O error	esx	advanced_options	FT	FT_cpt_IO_retry_interval
172	FT.FTCptIORetryTimes	Maximum retries on disk I/O error	esx	advanced_options	FT	FT_cpt_IO_retry_times
173	FT.FTCptLogTimeout	Time in milliseconds to wait for FT log entries (read or write)	esx	advanced_options	FT	FT_cpt_log_timeout
174	FT.FTCptMaxPktsDelay	Max number of packets in the delayed queue before forcing a checkpoint	esx	advanced_options	FT	FT_cpt_max_pkts_delay
175	FT.FTCptMinInterval	Time in milliseconds to wait between two forced checkpoints	esx	advanced_options	FT	FT_cpt_min_interval
176	FT.FTCptNetDelayNoCpt	Delay to impose on virtual machine network output in ms	esx	advanced_options	FT	FT_cpt_net_delay_no_cpt
177	FT.FTCptNumConnections	# of data connections to use for page sending	esx	advanced_options	FT	FT_cpt_num_connections
178	FT.FTCptNumaIndex	Index dirty pages by NUMA node. Workers will use the index to prefer local work.	esx	advanced_options	FT	FT_cpt_numa_index
179	FT.FTCptPagePolicy	Page placement policy for side data. < 2^16: Use a specific node mask, 0x10000: Put pages anywhere, 0x10001: Match nodes with virtual machine, 0x10002: Avoid matching nodes with virtual machine	esx	advanced_options	FT	FT_cpt_page_policy
180	FT.FTCptPoweroff	Power off the Primary VM after the next checkpoint	esx	advanced_options	FT	FT_cpt_poweroff
181	FT.FTCptRcvBufSize	TCP receive buffer size for the backup	esx	advanced_options	FT	FT_cpt_rcv_buf_size
182	FT.FTCptSndBufSize	TCP send buffer size for the Primary VM	esx	advanced_options	FT	FT_cpt_snd_buf_size
183	FT.FTCptStartTimeout	Time in milliseconds for backup site to wait for data for the next checkpoint	esx	advanced_options	FT	FT_cpt_start_timeout
184	FT.FTCptStatsInterval	Time in milliseconds between stat printing	esx	advanced_options	FT	FT_cpt_stats_interval
185	FT.FTCptThreadPolicy	Policy for placing helper threads. < 2^16: Use a fixed NUMA node mask, 0x10000: Put threads anywhere, 0x10001: Match threads to a dynamic node index	esx	advanced_options	FT	FT_cpt_thread_policy
186	FT.FTCptVcpuMinUsage	VCPU usage in percentage below which the VM will be considered for forced checkpoint	esx	advanced_options	FT	FT_cpt_vcpu_min_usage
187	FT.FTCptWaitOnSocket	Wait when socket is empty	esx	advanced_options	FT	FT_cpt_wait_on_socket
188	FT.Vmknic	Vmknic for FT vmkernel VNIC	esx	advanced_options	FT	vmknic
189	HBR.ChecksumIoSize	Size in blocks of a checksum read I/O	esx	advanced_options	HBR	checksum_io_size
190	HBR.ChecksumMaxIo	Maximum number of I/O chunks read in parallel for checksum	esx	advanced_options	HBR	checksum_max_io
191	HBR.ChecksumPerSlice	Maximum number of I/O chunks we read in each slice for checksum	esx	advanced_options	HBR	checksum_per_slice
192	HBR.ChecksumRegionSize	Size in blocks of one checksum region, corresponding to one network request	esx	advanced_options	HBR	checksum_region_size
193	HBR.ChecksumUseAllocInfo	Use disk allocation info to help speed up the checksum process	esx	advanced_options	HBR	checksum_use_alloc_info
194	HBR.ChecksumUseChecksumInfo	Use disk checksum info to help speed up transfering valid blocks of data.	esx	advanced_options	HBR	checksum_use_checksum_info
195	HBR.ChecksumZoneSize	Size in regions of one checksum zone for which allocation information will be cached	esx	advanced_options	HBR	checksum_zone_size
196	HBR.CopySnapDiskMaxExtentCount	Number of extents for a single snapshot disk that can be copied in parallel	esx	advanced_options	HBR	copy_snap_disk_max_extent_count
197	HBR.CopySnapFidHashBuckets	Number of hash buckets to use to track the snapshot disks open to copy to demand log.	esx	advanced_options	HBR	copy_snap_fid_hash_buckets
198	HBR.DemandlogCompletedHashBuckets	Number of hash buckets to use to track extents that have been written to the demand log.	esx	advanced_options	HBR	demandlog_completed_hash_buckets
199	HBR.DemandlogExtentHashBuckets	Number of hash buckets to use to track extents that haven't been read.	esx	advanced_options	HBR	demandlog_extent_hash_buckets
200	HBR.DemandlogIoTimeoutSecs	Timeout for IOs for demand log operations.	esx	advanced_options	HBR	demandlog_io_timeout_secs
201	HBR.DemandlogReadRetries	Number of times to retry an internal read (for the demand log) before aborting the delta.	esx	advanced_options	HBR	demandlog_read_retries
202	HBR.DemandlogRetryDelayMs	Delay in milliseconds for retrying a demand log write.	esx	advanced_options	HBR	demandlog_retry_delay_ms
203	HBR.DemandlogTransferIoSize	Size in blocks of a demandlog transfer read I/O	esx	advanced_options	HBR	demandlog_transfer_io_size
204	HBR.DemandlogTransferMaxCompletion	Maximum number of demandlog chunks that are allowed in completion phase per disk	esx	advanced_options	HBR	demandlog_transfer_max_completion
205	HBR.DemandlogTransferMaxIo	Maximum number of demandlog transfer I/O chunks issued in parallel	esx	advanced_options	HBR	demandlog_transfer_max_io
206	HBR.DemandlogTransferMaxNetwork	Maximum number of demandlog chunks transferred in parallel	esx	advanced_options	HBR	demandlog_transfer_max_network
207	HBR.DemandlogTransferPerSlice	Maximum number of demandlog chunks issued per slice	esx	advanced_options	HBR	demandlog_transfer_per_slice
208	HBR.DemandlogWriteRetries	Number of times to retry a demand log write before aborting the delta.	esx	advanced_options	HBR	demandlog_write_retries
209	HBR.DisconnectedEventDelayMs	Time to wait (while attempting reconnection) before posting a 'no connection to VR server' event	esx	advanced_options	HBR	disconnected_event_delay_ms
210	HBR.ErrThrottleChecksumIO	Throttle Checksum I/O errors.	esx	advanced_options	HBR	err_throttle_checksum_IO
211	HBR.ErrThrottleDceRead	Throttle DCE Read errors.	esx	advanced_options	HBR	err_throttle_dce_read
212	HBR.HbrBitmapAllocTimeoutMS	A timeout in MS for how long we will wait to allocate a bitmap	esx	advanced_options	HBR	hbr_bitmap_alloc_timeout_MS
213	HBR.HbrBitmapVMMaxStorageGB	An estimation of the maximum storage allocated per VM in gigabytes	esx	advanced_options	HBR	hbr_bitmap_VM_max_storage_GB
214	HBR.HbrDemandLogIOPerVM	Number of concurrent demand log copies per VM	esx	advanced_options	HBR	hbr_demand_log_IO_per_VM
215	HBR.HbrLowerExtentBreakGB	Disks with capacity between the min extent break and this number of gigabytes will have the lower extent size.	esx	advanced_options	HBR	hbr_lower_extent_break_GB
216	HBR.HbrLowerExtentSizeKB	Lower extent size used for disks in kilobytes.	esx	advanced_options	HBR	hbr_lower_extent_size_KB
217	HBR.HbrMaxExtentSizeKB	Maximum extent size in kilobytes. Used for disks with capacity over the upper extent break.	esx	advanced_options	HBR	hbr_max_extent_size_KB
218	HBR.HbrMaxGuestXferWhileDeltaMB	Maximum single SCSI command transfer size (in megabytes) that will be tolerated while a delta is taking place.	esx	advanced_options	HBR	hbr_max_guest_xfer_while_delta_MB
219	HBR.HbrMaxUnmapExtents	Maximum expected number of extents for SCSI UNMAP commands.	esx	advanced_options	HBR	hbr_max_unmap_extents
220	HBR.HbrMaxUnmapsInFlight	Maximum expected number of SCSI UNMAP commands in flight on a single disk.	esx	advanced_options	HBR	hbr_max_unmaps_in_flight
221	HBR.HbrMaxUpdateSizeKB	Maximum size of a single network update in kilobytes.	esx	advanced_options	HBR	hbr_max_update_size_KB
222	HBR.HbrMinExtentBreakGB	Disks with capacity under this number of gigabytes will have the min extent size.	esx	advanced_options	HBR	hbr_min_extent_break_GB
223	HBR.HbrMinExtentSizeKB	Minimum extent size used for disks in kilobytes.	esx	advanced_options	HBR	hbr_min_extent_size_KB
224	HBR.HbrOptimizeFullSync	Skip transfer of changed blocks during full sync to avoid sending them twice between the full sync and the subsequent delta.	esx	advanced_options	HBR	hbr_optimize_full_sync
225	HBR.HbrResourceHeapPerVMSizeKB	The additional amount of memory in KB per VM to add to the resource heap size	esx	advanced_options	HBR	hbr_resource_heap_per_VM_size_KB
226	HBR.HbrResourceHeapSizeMB	A base value in MB for the size of the resource heap	esx	advanced_options	HBR	hbr_resource_heap_size_MB
227	HBR.HbrResourceHeapUtilization	Expected usable percentage of the resource heap (minus overheads, fragmentation)	esx	advanced_options	HBR	hbr_resource_heap_utilization
228	HBR.HbrResourceMaxCompletionContexts	The maximum number of resource contexts allowed in completion phase for all VMs.	esx	advanced_options	HBR	hbr_resource_max_completion_contexts
229	HBR.HbrResourceMaxDiskContexts	The maximum number of resource contexts allowed in disk phase for all VMs.	esx	advanced_options	HBR	hbr_resource_max_disk_contexts
230	HBR.HbrRuntimeHeapMaxBaseMB	A base value in MB for the maximum size of the runtime heap	esx	advanced_options	HBR	hbr_runtime_heap_max_base_MB
231	HBR.HbrRuntimeHeapMinBaseMB	A base value in MB for the minimum size of the runtime heap	esx	advanced_options	HBR	hbr_runtime_heap_min_base_MB
232	HBR.HbrStaticHeapMaxBaseMB	A base value in MB for the maximum size of the static heap	esx	advanced_options	HBR	hbr_static_heap_max_base_MB
233	HBR.HbrStaticHeapMinBaseMB	A base value in MB for the minimum size of the static heap	esx	advanced_options	HBR	hbr_static_heap_min_base_MB
234	HBR.HbrThrottleGenericErrResetTime	Time in MS between the last logged generic HBR error and the throttle reset.	esx	advanced_options	HBR	hbr_throttle_generic_err_reset_time
235	HBR.HbrUpperExtentBreakGB	Disks with capacity between the lower extent break and this number of gigabytes will have the upper extent size.	esx	advanced_options	HBR	hbr_upper_extent_break_GB
236	HBR.HbrUpperExtentSizeKB	Upper extent size used for disks in kilobytes.	esx	advanced_options	HBR	hbr_upper_extent_size_KB
237	HBR.HelperQueueMaxRequests	Maximum number of helper requests the helper queue can support	esx	advanced_options	HBR	helper_queue_max_requests
238	HBR.HelperQueueMaxWorlds	Maximum number of world processing helper queue requests	esx	advanced_options	HBR	helper_queue_max_worlds
239	HBR.LocalReadIoTimeoutSecs	Timeout for IOs for dce local reads.	esx	advanced_options	HBR	local_read_io_timeout_secs
240	HBR.MigrateFlushTimerSecs	Time between attempts to flush the state to the persistent file during migration.	esx	advanced_options	HBR	migrate_flush_timer_secs
241	HBR.NetworkUseCubic	Use the cubic TCP congestion algorithm for HBR sockets	esx	advanced_options	HBR	network_use_cubic
242	HBR.NetworkerRecvHashBuckets	Number of hash buckets to use to track commands waiting to receive a response.	esx	advanced_options	HBR	networker_recv_hash_buckets
243	HBR.OpportunisticBlockListSize	Number of blocks to keep around in a LRU list for opportunistic replication	esx	advanced_options	HBR	opportunistic_block_list_size
244	HBR.ProgressReportIntervalMs	Interval between per-disk progress updates to hostd	esx	advanced_options	HBR	progress_report_interval_ms
245	HBR.PsfIoTimeoutSecs	Timeout for IOs for persistent state file/demand log metadata.	esx	advanced_options	HBR	psf_io_timeout_secs
246	HBR.ReconnectFailureDelaySecs	Additional delay in seconds added per reconnection failure for a session	esx	advanced_options	HBR	reconnect_failure_delay_secs
247	HBR.ReconnectMaxDelaySecs	Maximum delay in seconds between reconnection attempts for a session	esx	advanced_options	HBR	reconnect_max_delay_secs
248	HBR.ResourceServerHashBuckets	Number of hash buckets to use to track remote HBR servers.	esx	advanced_options	HBR	resource_server_hash_buckets
249	HBR.RetryMaxDelaySecs	Maximum server request retry delay in seconds (for non-fatal errors)	esx	advanced_options	HBR	retry_max_delay_secs
250	HBR.RetryMinDelaySecs	Minimum server request retry delay in seconds (for non-fatal errors)	esx	advanced_options	HBR	retry_min_delay_secs
251	HBR.SyncTransferRetrySleepSecs	Time in seconds to wait after a failure before retrying a sync operation.	esx	advanced_options	HBR	sync_transfer_retry_sleep_secs
252	HBR.TransferDiskMaxCompletion	Maximum number of blocks that are allowed in the completion phase per disk	esx	advanced_options	HBR	transfer_disk_max_completion
253	HBR.TransferDiskMaxIo	Maximum number of blocks that will be read in parallel	esx	advanced_options	HBR	transfer_disk_max_io
254	HBR.TransferDiskMaxNetwork	Maximum number of blocks that will be transferred in parallel	esx	advanced_options	HBR	transfer_disk_max_network
255	HBR.TransferDiskPerSlice	Maximum number of blocks that will be read in each slice	esx	advanced_options	HBR	transfer_disk_per_slice
256	HBR.TransferFileExtentSize	Chunk size for config file transfers	esx	advanced_options	HBR	transfer_file_extent_size
257	HBR.TransferMaxContExtents	Maximum number of contiguous extents that will be coalesced into a single update	esx	advanced_options	HBR	transfer_max_cont_extents
258	HBR.UnmapOptimization	Use optimizations for SCSI Unmap.	esx	advanced_options	HBR	unmap_optimization
259	HBR.WireChecksum	Use wire checksums	esx	advanced_options	HBR	wire_checksum
260	HBR.XferBitmapCheckIntervalSecs	Time in seconds to wait before checking the transfer bitmap for availability of dirty blocks.	esx	advanced_options	HBR	xfer_bitmap_check_interval_secs
261	Hpp.HppPReservationCmdRetryTime	Time (in secs) to retry on transient errors for Persistent reservation commands for MSCS CAB configs	esx	advanced_options	hpp	hpp_p_reservation_cmd_retry_time
262	ISCSI.CloseIscsiConnOnTaskMgmtFailure	Close iSCSI connection on task management failure	esx	advanced_options	ISCSI	close_iscsi_conn_on_task_mgmt_failure
263	ISCSI.MaxIoSizeKB	The maximum I/O size of Software iSCSI in KB. Requires rebooting the host.	esx	advanced_options	ISCSI	max_io_size_KB
264	ISCSI.SocketRcvBufLenKB	Socket receive buffer length in KB for iSCSI connections	esx	advanced_options	ISCSI	socket_rcv_buf_len_KB
265	ISCSI.SocketSndBufLenKB	Socket send buffer length in KB for iSCSI connections	esx	advanced_options	ISCSI	socket_snd_buf_len_KB
266	Irq.BestVcpuRouting	IRQ best virtual CPU routing	esx	advanced_options	irq	best_vcpu_routing
267	Irq.IRQActionAffinityWeight	relative weight for action-vcpu affinity	esx	advanced_options	irq	IRQ_action_affinity_weight
268	Irq.IRQAvoidExclusive	Avoid placing interrupts on physical CPUs with exclusive affinity set.	esx	advanced_options	irq	IRQ_avoid_exclusive
269	Irq.IRQBHConflictWeight	relative weight for irq/BH conflict	esx	advanced_options	irq	IRQ_BH_conflict_weight
270	Irq.IRQRebalancePeriod	Time in milliseconds between attempts to rebalance interrupts	esx	advanced_options	irq	IRQ_rebalance_period
271	Irq.IRQVcpuConflictWeight	relative weight for irq/vcpu conflict	esx	advanced_options	irq	IRQ_vcpu_conflict_weight
272	LPage.LPageAlwaysTryForNPT	Enable always try to alloc large page for NPT	esx	advanced_options	lpage	L_page_always_try_for_NPT
273	LPage.LPageDefragEnable	Enable large page defragmentation	esx	advanced_options	lpage	L_page_defrag_enable
274	LPage.LPageMarkLowNodes	Enable marking of nodes with low large pages free	esx	advanced_options	lpage	L_page_mark_low_nodes
275	LPage.MaxSharedPages	Maximum number of shared pages in a 2MB region that may be broken to back the region with a large page	esx	advanced_options	lpage	max_shared_pages
276	LPage.MaxSwappedPagesInitVal	Initial value for maximum number of swapped pages in a 2MB region that may be read to back the region with a large page	esx	advanced_options	lpage	max_swapped_pages_init_val
277	LPage.freePagesThresholdForRemote	Maximum number of free small pages on local nodes to allow remote lpages	esx	advanced_options	lpage	free_pages_threshold_for_remote
278	LSOM.enableLargeWb	Enable support for large write buffer for new disk groups	vsan	advanced_options	LSOM	enable_large_wb
279	LoadESX.generateLiveDump	Create a live dump if a Quick Boot attempt fails.	esx	advanced_options	loadESX	generate_live_dump
280	Mem.AllocGuestLargePage	Enable large page backing of guest memory	esx	advanced_options	mem	alloc_guest_large_page
281	Mem.CtlMaxPercent	Vmmemctl limit as percentage of virtual machine maximum size	esx	advanced_options	mem	ctl_max_percent
282	Mem.IdleTax	Idle memory tax rate	esx	advanced_options	mem	idle_tax
283	Mem.IdleTaxType	idle tax type. 0=flat, 1=variable	esx	advanced_options	mem	idle_tax_type
284	Mem.MemCBTBitmapMaxAlloc	Maximum memory in MB to allocate for CBT bitmaps.	esx	advanced_options	mem	mem_CBT_bitmap_max_alloc
285	Mem.MemDefragClientsPerDir	Clients that are allowed to defrags per directory.	esx	advanced_options	mem	mem_defrag_clients_per_dir
286	Mem.MemEagerZero	Zero out userworld and guest memory pages immediately after free	esx	advanced_options	mem	mem_eager_zero
287	Mem.MemMaxResvThreshold	Max memory reservartion threshold used for indicating health state	esx	advanced_options	mem	mem_max_resv_threshold
288	Mem.MemMinFreePct	Percentage of host memory to reserve for accelerating memory allocations when free memory is low, 0 for automatic	esx	advanced_options	mem	mem_min_free_pct
289	Mem.MemZipEnable	Enable the memory compression cache	esx	advanced_options	mem	mem_zip_enable
290	Mem.MemZipMaxAllocPct	Sets the maximum size for the compression cache as a percentage of allocated VM memory size	esx	advanced_options	mem	mem_zip_max_alloc_pct
291	Mem.MemZipMaxPct	Sets the maximum target size for the compression cache as a percentage of VM size	esx	advanced_options	mem	mem_zip_max_pct
292	Mem.SampleActivePctMin	lower bound for sampled active memory	esx	advanced_options	mem	sample_active_pct_min
293	Mem.SampleDirtiedPctMin	lower bound for sampled active dirtied memory	esx	advanced_options	mem	sample_dirtied_pct_min
294	Mem.ShareCOSBufSize	Specify number of MPNs to be used by COW P2M buffer	esx	advanced_options	mem	share_COS_buf_size
295	Mem.ShareForceSalting	PShare salting lets you limit the transparent page sharing only between a set of VMs. PShare salting is controlled by the VMX sched.mem.pshare.salt option. The PShare salting option has three states: 0 - no salting or isolation between VMs; 1 - VMs that have the sched.mem.pshare.salt option set are able to share memory with VMs with the same salt; 2 - VMs that do not have the sched.mem.pshare.salt option set cannot share memory with any other VM, page sharing is possible only inside the VM. If the sched.mem.pshare.salt is present but empty, the VM gets its own unique salt.	esx	advanced_options	mem	share_force_salting
296	Mem.ShareRateMax	per-VM upper limit on pshare scan rate in pages/sec. (0 to disable)	esx	advanced_options	mem	share_rate_max
297	Mem.ShareScanGHz	max page scan rate in MB/sec per GHz of host CPU, 0 to disable	esx	advanced_options	mem	share_scan_GHz
298	Mem.ShareScanTime	desired time in minutes to scan entire VM	esx	advanced_options	mem	share_scan_time
299	Mem.VMOverheadGrowthLimit	Default limit (in MB) on VM overhead memory growth. Valid values are 0 to maximum memory supported, and 0xffffffff which means "unlimited".	esx	advanced_options	mem	VM_overhead_growth_limit
300	Migrate.BindToVmknic	Bind the vMotion socket to a specific vmknic. 0 for never, 1 to bind only with FT, 2 to bind with FT or for multi-vmknic support, 3 to always bind	esx	advanced_options	migrate	bind_to_vmknic
301	Migrate.CptCacheMaxSizeMB	Maximum checkpoint cache size in MB	esx	advanced_options	migrate	cpt_cache_max_size_MB
302	Migrate.DebugChecksumMismatch	Debug checksum mismatch.	esx	advanced_options	migrate	debug_checksum_mismatch
303	Migrate.DetectZeroPages	Whether vMotion should detect zero pages during page transmission	esx	advanced_options	migrate	detect_zero_pages
304	Migrate.Enabled	Enable hot migration support	esx	advanced_options	migrate	enabled
305	Migrate.GetPageSysAlertThresholdMS	Threshold in milliseconds for the source host to prepare a page for transmission above which a SysAlert is triggered	esx	advanced_options	migrate	get_page_sys_alert_threshold_MS
306	Migrate.LowBandwidthSysAlertThreshold	Threshold in KB/s for VMotion bandwidth below which a SysAlert is triggered	esx	advanced_options	migrate	low_bandwidth_sys_alert_threshold
307	Migrate.LowMemWaitSysAlertThresholdMS	Threshold in milliseconds for the dest host to leave the low-memory state above which a SysAlert is triggered	esx	advanced_options	migrate	low_mem_wait_sys_alert_threshold_MS
308	Migrate.MigrateBitmapEncodingType	Encoding type for changed bitmap transfer	esx	advanced_options	migrate	migrate_bitmap_encoding_type
309	Migrate.MigrateCpuMinPctDefault	Desired default shared CPU reservation (in %) for VMotions	esx	advanced_options	migrate	migrate_cpu_min_pct_default
310	Migrate.MigrateCpuPctPerGb	Desired per Gbit shared CPU reservation (in %) for VMotions	esx	advanced_options	migrate	migrate_cpu_pct_per_gb
311	Migrate.MigrateCpuSharesHighPriority	CPU shares for a high priority VMotion	esx	advanced_options	migrate	migrate_cpu_shares_high_priority
312	Migrate.MigrateCpuSharesRegular	CPU shares for a regular VMotion	esx	advanced_options	migrate	migrate_cpu_shares_regular
313	Migrate.MigrateStreamHelperBwUtilMax	Maximum network bandwidth (Mbps) that each stream helper can saturate	esx	advanced_options	migrate	migrate_stream_helper_bw_util_max
314	Migrate.MonActionWaitPanicThresholdMS	Threshold in milliseconds for the monitor to process a pre-copy action after which a Panic is triggered	esx	advanced_options	migrate	mon_action_wait_panic_threshold_MS
315	Migrate.MonActionWaitSysAlertThresholdMS	Threshold in milliseconds for the monitor to process a pre-copy action after which a SysAlert is triggered	esx	advanced_options	migrate	mon_action_wait_sys_alert_threshold_MS
316	Migrate.NetExpectedLineRateMBps	Expected network throughput, in MBps, for bandwidth-delay calculation	esx	advanced_options	migrate	net_expected_line_rate_mbps
317	Migrate.NetLatencyModeThreshold	Lowest possible round-trip time, in ms, before vMotion must operate in latency-aware mode.	esx	advanced_options	migrate	net_latency_mode_threshold
318	Migrate.NetTimeout	Timeout in seconds for migration network operations	esx	advanced_options	migrate	net_timeout
319	Migrate.NfcNetTimeout	Time-out in seconds for NFC migration network operations	esx	advanced_options	migrate	nfc_net_timeout
320	Migrate.OutstandingReadKBMax	Maximum socket-backed mbuf bytes vMotion will allow to be outstanding while drained concurrently with reads, 0 for unlimited	esx	advanced_options	migrate	outstanding_read_KB_max
321	Migrate.PanicOnChecksumMismatch	1 for world panic, 2 for vmkernel panic	esx	advanced_options	migrate	panic_on_checksum_mismatch
322	Migrate.PanicOnLongMonActionWait	1 for world panic, 2 for vmkernel panic	esx	advanced_options	migrate	panic_on_long_mon_action_wait
323	Migrate.PreCopyCountDelay	Delay preCopy next action every n action posts	esx	advanced_options	migrate	pre_copy_count_delay
324	Migrate.PreCopyMinProgressPerc	Minimum allowed transmit to dirty page ratio per pre-copy iteration	esx	advanced_options	migrate	pre_copy_min_progress_perc
325	Migrate.PreCopyPagesPerSend	Maximum number of pages to send per precopy transmit	esx	advanced_options	migrate	pre_copy_pages_per_send
326	Migrate.PreCopySwitchoverTimeGoal	Goal time in milliseconds to send changed pages after pre-copy completes	esx	advanced_options	migrate	pre_copy_switchover_time_goal
327	Migrate.PreallocLPages	Attempt to prealloc destination pages via large page allocation	esx	advanced_options	migrate	prealloc_lpages
328	Migrate.ProhibitInstantClone	Prohibit instant clone from a VM	esx	advanced_options	migrate	prohibit_instant_clone
329	Migrate.RcvBufSize	TCP receive buffer size for the destination	esx	advanced_options	migrate	rcv_buf_size
330	Migrate.SdpsDynamicDelaySec	Delay, in seconds, between polling when considering enabling SDPS in the first preCopy iteration.	esx	advanced_options	migrate	sdps_dynamic_delay_sec
331	Migrate.SdpsEnabled	Stuns VMotion source in small increments during precopy, 0=disabled, 1=always enabled, 2=dynamic	esx	advanced_options	migrate	sdps_enabled
332	Migrate.SdpsTargetRate	Percent by which transmit should be made to exceed dirty	esx	advanced_options	migrate	sdps_target_rate
333	Migrate.SndBufSize	TCP send buffer size for the source	esx	advanced_options	migrate	snd_buf_size
334	Migrate.TcpTsoDeferTx	Use TCP tso defer optimization for transmit	esx	advanced_options	migrate	tcp_tso_defer_tx
335	Migrate.TryToUseDefaultHeap	Attempt use the default migration heap when beginning new migrations	esx	advanced_options	migrate	try_to_use_default_heap
336	Migrate.VASpaceReserveCount	Number of migrations to reserve virtual address space for at module load time	esx	advanced_options	migrate	VA_space_reserve_count
337	Migrate.VASpaceReserveSize	Megabytes of virtual address space to reserve per migration at module load time	esx	advanced_options	migrate	VA_space_reserve_size
338	Migrate.VMotionEncryptionOffload	Allow vMotion encryption offload	esx	advanced_options	migrate	vmotion_encryption_offload
339	Migrate.VMotionLatencySensitivity	Make vMotion helper worlds latency sensitive, avoid transmit delays.	esx	advanced_options	migrate	vmotion_latency_sensitivity
340	Migrate.VMotionMaxStreamHelpers	Maximum number of helpers to allocate for VMotion streams when using Autoscale	esx	advanced_options	migrate	vmotion_max_stream_helpers
341	Migrate.VMotionPreCopyAllowSwapIns	Allow pages to be swapped in during vMotion memory precopy. 0=Swapins disabled, 1=Swapins enabled only for memory tiering hosts, 2=Swapins always enabled for all hosts	esx	advanced_options	migrate	vmotion_precopy_allow_swapins
342	Migrate.VMotionResolveSwapType	Attempt to resolve swap type during VMotion initialization	esx	advanced_options	migrate	vmotion_resolve_swap_type
343	Migrate.VMotionStreamHelpers	Number of helpers to allocate for VMotion streams, 0 to dynamically allocate atleast one per stream IP	esx	advanced_options	migrate	vmotion_stream_helpers
344	Migrate.Vmknic	vmknic for vMotion vmkernel VNIC	esx	advanced_options	migrate	vmknic
345	Misc.APDHandlingEnable	Enable Storage APD Handling.	esx	advanced_options	misc	APD_handling_enable
346	Misc.APDTimeout	Number of seconds a device can be in APD before failing User World I/O.	esx	advanced_options	misc	APD_timeout
347	Misc.BHTimeout	Time-out for bottom-half handlers in milliseconds	esx	advanced_options	misc	BH_timeout
348	Misc.BlueScreenTimeout	Time-out in seconds. Set to 0 for no time-out.	esx	advanced_options	misc	blue_screen_timeout
349	Misc.ConsolePort	Name of serial port to use for visor console (COM1, COM2)	esx	advanced_options	misc	console_port
350	Misc.DebugLogToSerial	Send vmkernel LOG messages to the serial port	esx	advanced_options	misc	debug_log_to_serial
351	Misc.DebugShellPort	Name of serial port to use for debug shell (COM1, COM2)	esx	advanced_options	misc	debug_shell_port
352	Misc.DefaultHardwareVersion	Default virtual machine compatibility	esx	advanced_options	misc	default_hardware_version
353	Misc.DegradedPathEvalTime	Evaluation time (in secs) for paths to mark the path as degraded	esx	advanced_options	misc	degraded_path_eval_time
354	Misc.DegradedPathReEvalInterval	Re-evaluation interval (in secs) for the degraded paths	esx	advanced_options	misc	degraded_path_re_eval_interval
355	Misc.DeviceStatsDisablePlugins	Disables DeviceStats plugin functionality for all plugins	esx	advanced_options	misc	device_stats_disable_plugins
356	Misc.DumpAllKlmData	Dump KLM data for all VMs.	esx	advanced_options	misc	dump_all_klm_data
357	Misc.EHVAllowDebugging	Allow a SEV/TDX guest to enable the debug policy.	esx	advanced_options	misc	EHV_allow_debugging
358	Misc.EnableNVMeCopyCmd	Enable support for NVMe Copy command	esx	advanced_options	misc	enable_NV_me_copy_cmd
359	Misc.GDBPort	Name of serial port to use for GDB debugging (COM1, COM2)	esx	advanced_options	misc	GDB_port
360	Misc.GuestLibAllowHostInfo	Allow guest to read host-level metrics	esx	advanced_options	misc	guest_lib_allow_host_info
361	Misc.HeapMgrGuardPages	Number of guard pages to insert between heap VA regions	esx	advanced_options	misc	heap_mgr_guard_pages
362	Misc.HeapPanicDestroyNonEmpty	Panic when a non-empty heap gets destroyed	esx	advanced_options	misc	heap_panic_destroy_non_empty
363	Misc.HeartbeatInterval	Interval in msec to check CPU lockups	esx	advanced_options	misc	heartbeat_interval
364	Misc.HeartbeatPanicIpiCount	Number of IPIs sent to target pcpu prior to invoking NMI PSOD	esx	advanced_options	misc	heartbeat_panic_ipi_count
365	Misc.HeartbeatPanicTimeout	Interval in seconds after which to panic if no heartbeats received	esx	advanced_options	misc	heartbeat_panic_timeout
366	Misc.HeartbeatTimeout	Time-out for sending NMI to the locked CPU	esx	advanced_options	misc	heartbeat_timeout
367	Misc.HordeEnabled	Enables horde mode	esx	advanced_options	misc	horde_enabled
368	Misc.HostName	Host name	esx	advanced_options	misc	host_name
369	Misc.HppDegradedPathThresholdPer	Percentage threshold of transient errors to mark path as degraded	esx	advanced_options	misc	hpp_degraded_path_threshold_per
370	Misc.HppManageDegradedPaths	Choose paths with less errors for I/Os during transient issues on HPP claimed paths	esx	advanced_options	misc	hpp_manage_degraded_paths
371	Misc.HwclockPeriodicSync	Sync the hardware clock periodically to match the current system time	esx	advanced_options	misc	hwclock_periodic_sync
372	Misc.HyperClockAllowSystemTimeAux	Allow auxiliary input to system time HyperClock	esx	advanced_options	misc	hyper_clock_allow_system_time_aux
373	Misc.IoFilterWatchdogTimeout	Timeout for the I/O filter watchdog in seconds. 0 means the watchdog is disabled. 120 seconds is the minimum timeout value.	esx	advanced_options	misc	io_filter_watchdog_timeout
374	Misc.LogDumpShutdownTimeout	The maximum amount of time during shutdown that the kernel logger will spend dumping logs from the log buffer	esx	advanced_options	misc	log_dump_shutdown_timeout
375	Misc.LogPort	Name of serial port to use for logging (COM1, COM2)	esx	advanced_options	misc	log_port
376	Misc.LogTimestampUptime	Use uptime rather than UTC for vmkernel log	esx	advanced_options	misc	log_timestamp_uptime
377	Misc.LogToSerial	Send VMkernel log messages to the serial port	esx	advanced_options	misc	log_to_serial
378	Misc.LogWldPrefix	Include running world on every log statement	esx	advanced_options	misc	log_wld_prefix
379	Misc.MCEMonitorInterval	Interval[0 - 0x7fffffff ms] to poll for Machine Check Errors(0=never)	esx	advanced_options	misc	MCE_monitor_interval
380	Misc.MaximumHardwareVersion	Maximum virtual machine compatibility	esx	advanced_options	misc	maximum_hardware_version
381	Misc.MinimalPanic	Do not attempt core dump after purple screen	esx	advanced_options	misc	minimal_panic
382	Misc.NMILint1IntAction	Override how a hardware generated NMI is handled: 0=default (panic, unless changed by boot-time option), 1=enter debugger, 2=panic, 3=log and ignore (not recommended), 4=log and ignore if undiagnosed	esx	advanced_options	misc	NMI_lint1_int_action
383	Misc.NmpDegradedPathThresholdPer	Percentage threshold of transient errors to mark path as degraded	esx	advanced_options	misc	nmp_degraded_path_threshold_per
384	Misc.NmpManageDegradedPaths	Choose paths with less errors for I/Os during transient issues on NMP claimed paths	esx	advanced_options	misc	nmp_manage_degraded_paths
385	Misc.PSPDeactivateFlakyPath	Deactivate flaky path if IOs are failing with HOST ERROR	esx	advanced_options	misc	PSP_deactivate_flaky_path
386	Misc.PanicLogToSerial	Send Panic log messages to the serial port	esx	advanced_options	misc	panic_log_to_serial
387	Misc.PowerButton	Action to take on a momentary press of the soft power button (0=ignore, 1=request graceful system shutdown and power-off)	esx	advanced_options	misc	power_button
388	Misc.PowerOffEnable	Action to take on system power-off request (0=halt only, 1=power off)	esx	advanced_options	misc	power_off_enable
389	Misc.PreferredHostName	Preferred Host name	esx	advanced_options	misc	preferred_host_name
390	Misc.RebootMethod	Preferred reboot method (any, psci, acpi, rcr_hard, kb, ps2, uefi, or rcr_power)	esx	advanced_options	misc	reboot_method
391	Misc.SIOControlFlag1	Storage I/O Control Internal Flag	esx	advanced_options	misc	SIO_control_flag1
392	Misc.SIOControlFlag2	Storage I/O Control Internal Flag	esx	advanced_options	misc	SIO_control_flag2
393	Misc.SIOControlLoglevel	Storage I/O Control Log Level	esx	advanced_options	misc	SIO_control_loglevel
394	Misc.SIOControlOptions	Storage I/O Control Options	esx	advanced_options	misc	SIO_control_options
395	Misc.ScreenSaverDelay	Delay in minutes before screensaver kicks in	esx	advanced_options	misc	screen_saver_delay
396	Misc.ShaperStatsEnabled	Enable stats in shaper module	esx	advanced_options	misc	shaper_stats_enabled
397	Misc.ShellPort	Name of serial port to use for visor shell (COM1, COM2)	esx	advanced_options	misc	shell_port
398	Misc.TestNativeFCPaeCapable	native_fc test module is pae capable	esx	advanced_options	misc	test_native_FC_pae_capable
399	Misc.TimerTolerance	Default timer lateness tolerance in microseconds	esx	advanced_options	misc	timer_tolerance
400	Misc.VmfsUnmapThrottle	Enable throttling of unmap commands on devices having VMFS datastore	esx	advanced_options	misc	vmfs_unmap_throttle
401	Misc.forceBPB	Force use of BPB.	esx	advanced_options	misc	force_BPB
402	Misc.forceMPTI	Force use of Monitor Page Table Isolation.	esx	advanced_options	misc	force_MPTI
403	Misc.vmknvmeCwYield	Yield every n command in NVMe completion world	esx	advanced_options	misc	vmknvme_cw_yield
404	Misc.vmmDisableL1DFlush	Disable L1D flush on VM entry	esx	advanced_options	misc	vmm_disable_l1d_flush
405	Misc.vmmDisableL1DFlushAMD	Disable L1D flush on VM entry for AMD	esx	advanced_options	misc	vmm_disable_l1d_flush_AMD
406	Misc.vsanWitnessLicensed	Indicates whether vSAN witness license is enabled	esx	advanced_options	misc	vsan_witness_licensed
407	Misc.vsanWitnessVirtualAppliance	Indicates a vSAN witness host running in a Virtual Appliance. VM services (create/register/power on) are blocked	esx	advanced_options	misc	vsan_witness_virtual_appliance
408	Misc.DsNsMgrTimeout	Timeout for DatastoreNamespaceManager operations in milliseconds	NA	NA	NA	NA
409	Misc.HostAgentUpdateLevel	The update level of Host Agent.	NA	NA	NA	NA
410	Misc.MetadataUpdateTimeoutMsec	Timeout for VM MetadataManager operations in milliseconds	NA	NA	NA	NA
411	NFS.ApdStartCount	Number of sequential heartbeat failures after which APD start event is triggered	esx	advanced_options	NFSv3	apd_start_count
412	NFS.DiskFileLockUpdateFreq	Time (in seconds) between updates to a disk lock file	esx	advanced_options	NFSv3	diskfile_lock_update_freq
413	NFS.HeartbeatDelta	Time in seconds since the last successful update before a heartbeat is sent	esx	advanced_options	NFSv3	heartbeat_delta
414	NFS.HeartbeatFrequency	Time in seconds between heartbeats	esx	advanced_options	NFSv3	heartbeat_frequency
415	NFS.HeartbeatMaxFailures	Number of sequential failures before a volume is marked down	esx	advanced_options	NFSv3	heartbeat_max_failures
416	NFS.HeartbeatTimeout	Time in seconds before an outstanding heartbeat is stopped	esx	advanced_options	NFSv3	heartbeat_timeout
417	NFS.LockBreakTimeout	Time (in seconds) to wait to check for expired races when breaking lock	esx	advanced_options	NFSv3	lock_break_timeout
418	NFS.LockRenewMaxFailureNumber	Number of update failures before a disk file lock is declared stale	esx	advanced_options	NFSv3	lock_renew_max_failure_number
419	NFS.LockSWMRTimeout	Time (in seconds) to wait to check for expired races when acquiring SWMR lock	esx	advanced_options	NFSv3	lock_SWMR_timeout
420	NFS.LockSharedTimeout	Time (in seconds) to wait to check for expired races when sharing (read) lock	esx	advanced_options	NFSv3	lock_shared_timeout
421	NFS.LockUpdateTimeout	Time (in seconds) before we abort an outstanding lock update	esx	advanced_options	NFSv3	lock_update_timeout
422	NFS.MaxQueueDepth	Maximum per-Volume queue depth	esx	advanced_options	NFSv3	max_queue_depth
423	NFS.MaxVolumes	Maximum number of mounted NFS v3 volumes	esx	advanced_options	NFSv3	max_volumes
424	NFS.MountTimeout	Mount timeout in seconds	esx	advanced_options	NFSv3	mount_timeout
425	NFS.NFSMaxOutstandingIOs	Maximum number of NFSv3 outstanding IOs on the host	esx	advanced_options	NFSv3	NFS_max_outstanding_IOs
426	NFS.ReceiveBufferSize	Default size of socket receive buffer (KB)	esx	advanced_options	NFSv3	receive_buffer_size
427	NFS.SendBufferSize	Default size of socket send buffer (KB)	esx	advanced_options	NFSv3	send_buffer_size
428	NFS.SyncRetries	Number of retries before synchronous IO fails (10 seconds per retry)	esx	advanced_options	NFSv3	sync_retries
429	NFS.VolumeRemountFrequency	Time in seconds before attempting to remount a volume	esx	advanced_options	NFSv3	volume_remount_frequency
430	NFS41.EOSDelay	Request EOS safety delay in seconds	esx	advanced_options	NFSv41	EOS_delay
431	NFS41.IOTaskRetry	Synchronous I/O task number of retries	esx	advanced_options	NFSv41	IO_task_retry
432	NFS41.MaxQueueDepth	Maximum per-Volume queue depth	esx	advanced_options	NFSv41	max_queue_depth
433	NFS41.MaxRead	Maximum read transfer size in bytes (use the smaller of this value and the server advertised value)	esx	advanced_options	NFSv41	max_read
434	NFS41.MaxVolumes	Maximum number of mounted NFS v4.1 volumes	esx	advanced_options	NFSv41	max_volumes
435	NFS41.MaxWrite	Maximum write transfer size in bytes (use the smaller of this value and the server advertised value)	esx	advanced_options	NFSv41	max_write
436	NFS41.MountTimeout	Mount timeout in seconds	esx	advanced_options	NFSv41	mount_timeout
437	NFS41.RecvBufSize	Socket receive buffer size in kilobytes (using default if set to zero)	esx	advanced_options	NFSv41	recv_buf_size
438	NFS41.SendBufSize	Socket send buffer size in kilobytes (using default if set to zero)	esx	advanced_options	NFSv41	send_buf_size
439	Net.AdvertisementDuration	duration of RARP advertisements	esx	advanced_options	net	advertisement_duration
440	Net.AllowPT	Whether to enable UPT/NPA	esx	advanced_options	net	allow_PT
441	Net.BMCNetworkEnable	Enable BMC Network for Redfish	esx	advanced_options	net	BMC_network_enable
442	Net.BlockGuestBPDU	Block guest sourced BPDU frames	esx	advanced_options	net	block_guest_BPDU
443	Net.CoalesceDefaultOn	Dynamic coalescing on by default	esx	advanced_options	net	coalesce_default_on
444	Net.CoalesceFavorNoVmmVmkTx	Favor disabling all vmm->vmk tx transitions; boost its score by factor of this/64.	esx	advanced_options	net	coalesce_favor_no_vmm_vmk_tx
445	Net.CoalesceFineTimeoutCPU	Set which CPU the fine timer will run on	esx	advanced_options	net	coalesce_fine_timeout_CPU
446	Net.CoalesceFineTxTimeout	set the fine coalesce timeout in microseconds	esx	advanced_options	net	coalesce_fine_tx_timeout
447	Net.CoalesceFlexMrq	Whether to dynamically switch on/off multiRxQCalib.	esx	advanced_options	net	coalesce_flex_mrq
448	Net.CoalesceLowRxRate	No Rx coalescing calibration when the number of pkts Rx per timeout is lower than this number.	esx	advanced_options	net	coalesce_low_rx_rate
449	Net.CoalesceLowTxRate	No tx coalescing calibration when the number of pkts tx per timeout is lower than this number.	esx	advanced_options	net	coalesce_low_tx_rate
450	Net.CoalesceMatchedQs	Whether to use matched TxRxQ-pairs mode when applicable.	esx	advanced_options	net	coalesce_matched_qs
451	Net.CoalesceMrqLt	Whether to set a RxQ's coalesce to zero based on per-RxQ Low Traffic.	esx	advanced_options	net	coalesce_mrq_lt
452	Net.CoalesceMrqMetricAllowTxOnly	Whether to allow's individual RxQ's perf metric to be tx pkt cnt only; if not, it will be tx + rx, or rx only.	esx	advanced_options	net	coalesce_mrq_metric_allow_tx_only
453	Net.CoalesceMrqMetricRxOnly	Whether to force individual RxQ's perf metric to be rx pkt cnt only.	esx	advanced_options	net	coalesce_mrq_metric_rx_only
454	Net.CoalesceMrqOverallStop	Whether to use overall performance to stop RxQ Calib.	esx	advanced_options	net	coalesce_mrq_overall_stop
455	Net.CoalesceMrqRatioMetric	Whether Tx perf score is attributed to RxQ according to rxPktCnt ratio.	esx	advanced_options	net	coalesce_mrq_ratio_metric
456	Net.CoalesceMrqTriggerReCalib	Whether to let individual RxQ's perf change trigger re-calib.	esx	advanced_options	net	coalesce_mrq_trigger_re_calib
457	Net.CoalesceMultiRxQCalib	When not in matched TxRxQ-pairs mode, whether to uses separate RxQ Calib.	esx	advanced_options	net	coalesce_multi_rxq_calib
458	Net.CoalesceNoVmmVmkTx	Whether to try disable all vmm->vmk tx transitions.	esx	advanced_options	net	coalesce_no_vmm_vmk_tx
459	Net.CoalesceParams	Set parameters for the default virtual NIC coalescing scheme.	esx	advanced_options	net	coalesce_params
460	Net.CoalesceRBCRate	Target event rate for RateBasedCoalescing	esx	advanced_options	net	coalesce_RBC_rate
461	Net.CoalesceRxLtStopCalib	Whether Rx Low Traffic stops Rx calibration.	esx	advanced_options	net	coalesce_rx_lt_stop_calib
462	Net.CoalesceRxQDepthCap	Cap of Rx coalescing size.	esx	advanced_options	net	coalesce_rxq_depth_cap
463	Net.CoalesceScheme	Set the default virtual NIC coalescing scheme.	esx	advanced_options	net	coalesce_scheme
464	Net.CoalesceTimeoutType	set the coalesce timeout type: fine(1 ms by default) or coarse (4 ms by default)	esx	advanced_options	net	coalesce_timeout_type
465	Net.CoalesceTxAlwaysPoll	Whether always poll Tx at coalesce timeout handler.	esx	advanced_options	net	coalesce_tx_always_poll
466	Net.CoalesceTxQDepthCap	Cap of Tx coalescing size.	esx	advanced_options	net	coalesce_txq_depth_cap
467	Net.CoalesceTxTimeout	Set the coalesce time-out in microseconds	esx	advanced_options	net	coalesce_tx_timeout
468	Net.DCBEnable	Enable DCB for FCoE	esx	advanced_options	net	DCB_enable
469	Net.DVFilterBindIpAddress	DVFilter internal communication endpoint	esx	advanced_options	net	DV_filter_bind_ip_address
470	Net.DVFilterPriorityRdLockEnable	Use priority locking in dvfilter to read lock portsets	esx	advanced_options	net	DV_filter_priority_rd_lock_enable
471	Net.DVSLargeHeapMBPerGB	Maximum MB of dvsLargeHeap memory to be allocated per GB of physical memory	esx	advanced_options	net	DVS_large_heap_MB_per_GB
472	Net.DVSLargeHeapMaxSize	Max size for the dvsLargeHeap	esx	advanced_options	net	DVS_large_heap_max_size
473	Net.DontOffloadInnerIPv6	Don't offload inner IPv6 CSO/TSO packets to physical NICs	esx	advanced_options	net	dont_offload_inner_IPv6
474	Net.E1000IntrCoalesce	Whether to enable interrupt coalescing for e1000 vNIC.	esx	advanced_options	net	e1000_intr_coalesce
475	Net.E1000TxCopySize	e1000 tx less than or equal to this will be fully copied with no need for completion.	esx	advanced_options	net	e1000_tx_copy_size
476	Net.E1000TxZeroCopy	Use tx zero copy for non-tso packets for e1000.	esx	advanced_options	net	e1000_tx_zero_copy
477	Net.EnableDMASgCons	When non-zero, enable the DMA SG constraints support in uplink layer	esx	advanced_options	net	enable_DMA_sg_cons
478	Net.EnableOuterCsum	Enable uplink layer outer checksumming	esx	advanced_options	net	enable_outer_csum
479	Net.EnsEnableDatapathHotswap	Enable datapath during in-place upgrade hotswap.	esx	advanced_options	net	ens_enable_datapath_hotswap
480	Net.EnsMbufpoolMaxMBPerGB	Maximum MB of the ENS slab memory to be allocated per GB of physical memory	esx	advanced_options	net	ens_mbufpool_max_MB_per_GB
481	Net.EnsMbufpoolMinMBPerGB	Minimum MB of the ENS slab memory to be allocated per GB of physical memory	esx	advanced_options	net	ens_mbufpool_min_MB_per_GB
482	Net.EtherswitchAllowFastPath	Allow Etherswitch fast path	esx	advanced_options	net	etherswitch_allow_fast_path
483	Net.EtherswitchHashSize	Number of ports on the etherswitch x 2^N is the size of the hash table for looking up MACs	esx	advanced_options	net	etherswitch_hash_size
484	Net.EtherswitchHeapMax	The maximum size (in Megabytes) to which the etherswitch heap can grow. (REQUIRES REBOOT!)	esx	advanced_options	net	etherswitch_heap_max
485	Net.EtherswitchNumPerPCPUDispatchData	The dispatch data number in the etherswitch per-pCPU dispatch data cache. (REQUIRES REBOOT!)	esx	advanced_options	net	etherswitch_num_per_PCPU_dispatch_data
486	Net.FollowHardwareMac	If set to 1, the management interface MAC address will update whenever the hardware MAC address changes.	esx	advanced_options	net	follow_hardware_mac
487	Net.GuestIPHack	Enable guest arp inspection IOChain to get IP	esx	advanced_options	net	guest_IP_hack
488	Net.GuestTxCopyBreak	Transmits smaller than this will be copied rather than mapped	esx	advanced_options	net	guest_tx_copy_break
489	Net.IGMPQueries	Number of IGMP Queries to send during after VMotion/Teaming failover	esx	advanced_options	net	IGMP_queries
490	Net.IGMPQueryInterval	Interval(in seconds) for IGMP/MLD general query in multicast snooping	esx	advanced_options	net	IGMP_query_interval
491	Net.IGMPRouterIP	Router IP Address for IGMP (generally not necessary to set this)	esx	advanced_options	net	IGMP_router_IP
492	Net.IGMPV3MaxSrcIPNum	Max per-group srouce IP number for IGMP V3	esx	advanced_options	net	IGMP_v3_max_src_IP_num
493	Net.IGMPVersion	IGMP Version (2 or 3)	esx	advanced_options	net	IGMP_version
494	Net.LACPActorSystemPriority	The value of LACP system priority	esx	advanced_options	net	LACP_actor_system_priority
495	Net.LACPEnableIndividualPort	Allow to set lag status down when all member link status is down	esx	advanced_options	net	LACP_enable_individual_port
496	Net.LRODefBackoffPeriod	After adaptive LRO decided not to do LRO, how many intervals to wait before trying again.	esx	advanced_options	net	LRO_def_backoff_period
497	Net.LRODefMaxLength	LRO default max length	esx	advanced_options	net	LRO_def_max_length
498	Net.LRODefThreshold	After this # packets, evaluate whether to continue SW LRO	esx	advanced_options	net	LRO_def_threshold
499	Net.LRODefUseRatioDenom	If SW LRO reduce pkt count to be smaller than ratio, continue to do LRO. Denominator of ratio.	esx	advanced_options	net	LRO_def_use_ratio_denom
500	Net.LRODefUseRatioNumer	If SW LRO reduce pkt count to be smaller than ratio, continue to do LRO. Numerator of ratio.	esx	advanced_options	net	LRO_def_use_ratio_numer
501	Net.LinkFlappingThreshold	Max number of link down events per minute before considering a link unstable (0 to deactivate)	esx	advanced_options	net	link_flapping_threshold
502	Net.LinkStatePollTimeout	Link State poll timer period in milliseconds.	esx	advanced_options	net	link_state_poll_timeout
503	Net.MLDRouterIP	Router IPv6 Address for MLD (generally not necessary to set this)	esx	advanced_options	net	MLD_router_IP
504	Net.MLDV2MaxSrcIPNum	Max per-group srouce IP number for MLD V2	esx	advanced_options	net	MLD_v2_max_src_IP_num
505	Net.MLDVersion	MLD Version (1 or 2)	esx	advanced_options	net	MLD_version
506	Net.MaxBeaconVlans	maximum number of VLANs to probe with beacons.	esx	advanced_options	net	max_beacon_vlans
507	Net.MaxBeaconsAtOnce	Maximum number of beacons to send in one beacon cycle	esx	advanced_options	net	max_beacons_at_once
508	Net.MaxGlobalRxQueueCount	Global max length of rx queues for all virtual ports on a ESX host that support queueing	esx	advanced_options	net	max_global_rx_queue_count
509	Net.MaxNetifTxQueueLen	Maximum length of the Tx queue for the physical NICs	esx	advanced_options	net	max_netif_tx_queue_len
510	Net.MaxPageInQueueLen	Maximum number of paging requests to queue for guest DMA	esx	advanced_options	net	max_page_in_queue_len
511	Net.MaxPktRxListQueue	Maximum packet we can queue in rxList	esx	advanced_options	net	max_pkt_rx_list_queue
512	Net.MaxPortRxQueueLen	Maximum length of the rx queue for virtual ports whose clients support queuing	esx	advanced_options	net	max_port_rx_queue_len
513	Net.MinEtherLen	Minimum size ethernet frame to transmit	esx	advanced_options	net	min_ether_len
514	Net.NcpLlcSap	beacon/color NCP messages created with this SAP (DSAP/SSAP)	esx	advanced_options	net	ncp_llc_sap
515	Net.NetBHRxStormThreshold	Declare Rx Storm after this number of consecutive rx pkt drops during queuing in NetBH rxList.	esx	advanced_options	net	net_BH_rx_storm_threshold
516	Net.NetDebugRARPTimerInter	RARP timer will be triggered at this interval.	esx	advanced_options	net	net_debug_RARP_timer_inter
517	Net.NetDeferTxCompletion	Whether to defer tx completion to tx world. 1 for Try Completion. 2 For Always (Only in MQ Tx World case).	esx	advanced_options	net	net_defer_tx_completion
518	Net.NetDeferTxCompletionNonPerQ	Whether to defer tx completion to tx world when ctxPerDev = '1' or '2'. 1) for Try Completion. 2) For Always.	esx	advanced_options	net	net_defer_tx_completion_non_perq
519	Net.NetDiscUpdateIntrvl	Set interval (in milliseconds) of networking discovery to update the VLAN information	esx	advanced_options	net	net_disc_update_intrvl
520	Net.NetEnableSwCsumForLro	Whether enable software checksum for LRO	esx	advanced_options	net	net_enable_sw_csum_for_lro
521	Net.NetEsxfwPassOutboundGRE	Whether outbound GRE traffic is passed by ESXi firewall	esx	advanced_options	net	net_esxfw_pass_outbound_GRE
522	Net.NetInStressTest	If set to 1, suppress certain logs to avoid log spew.	esx	advanced_options	net	net_in_stress_test
523	Net.NetLatencyAwareness	Whether to check virtual machine's latency settings or not for vmxnet2/3	esx	advanced_options	net	net_latency_awareness
524	Net.NetMaxRarpsPerInterval	Max number of RARPs dispatched per timer callback.	esx	advanced_options	net	net_max_rarps_per_interval
525	Net.NetNetqNumaIOCpuPinThreshold	CPU threshold for pinning device queues in NUMA I/O	esx	advanced_options	net	net_netq_numa_IO_cpu_pin_threshold
526	Net.NetNetqRxRebalRSSLoadThresholdPerc	Threshold percentage to rebalance RSS(Receive Side Scaling) queue	esx	advanced_options	net	net_netq_rx_rebal_RSS_load_threshold_perc
527	Net.NetNetqTxPackKpps	Max TX queue load (in thousand packet per second) to allow packing on the corresponding RX queue	esx	advanced_options	net	net_netq_tx_pack_kpps
528	Net.NetNetqTxUnpackKpps	Threshold (in thousand packet per second) for TX queue load to trigger unpacking of the corresponding RX queue	esx	advanced_options	net	net_netq_tx_unpack_kpps
529	Net.NetNiocAllowOverCommit	Whether allow NIOC overcommit when a vNIC is in connected state for DVS	esx	advanced_options	net	net_nioc_allow_over_commit
530	Net.NetPTMgrWakeupInterval	How often the PTMgr will wakeup and trigger the UPT mode switch in second.	esx	advanced_options	net	net_PT_mgr_wakeup_interval
531	Net.NetPktAllocTries	Number of attempts for allocating packet within the page	esx	advanced_options	net	net_pkt_alloc_tries
532	Net.NetPktSlabFreePercentThreshold	Percent of free network memory pool, below which an event is reported.	esx	advanced_options	net	net_pkt_slab_free_percent_threshold
533	Net.NetPollDispatchBudget	Number of virtual switch dispatches an uplink Rx packet list can have	esx	advanced_options	net	net_poll_dispatch_budget
534	Net.NetPollSplitRxThres	Threshold of datapath port amount to start splitting uplink Rx packet list	esx	advanced_options	net	net_poll_split_rx_thres
535	Net.NetPortFlushIterLimit	when input is serialized, this bounds the number of times a thread flushes the deferred list.	esx	advanced_options	net	net_port_flush_iter_limit
536	Net.NetPortFlushPktLimit	when input is serialized, this bounds the number of pkts a thread flushes from the deferred list.	esx	advanced_options	net	net_port_flush_pkt_limit
537	Net.NetPortTrackTxRace	if enabled(1), collect statistics on potential tx race between concurrent threads.	esx	advanced_options	net	net_port_track_tx_race
538	Net.NetRCFAllowBPF	Allow to run BPF code in RCF	esx	advanced_options	net	net_RCF_allow_BPF
539	Net.NetRCFInsnType	The instruction type of bytecode in RCF	esx	advanced_options	net	net_RCF_insn_type
540	Net.NetRmDistMacFilter	Activate/Deactivate the MAC filter on distributed NetRM	esx	advanced_options	net	net_rm_dist_mac_filter
541	Net.NetRmDistSamplingRate	Sampling rate on distributed NetRM	esx	advanced_options	net	net_rm_dist_sampling_rate
542	Net.NetRxCopyInTx	Whether to enable rx copy in tx worldlet/world.	esx	advanced_options	net	net_rx_copy_in_tx
543	Net.NetSchedCoalesceTxUsecs	Maximum number of microseconds the device can delay tx completions	esx	advanced_options	net	net_sched_coalesce_tx_usecs
544	Net.NetSchedDefaultResPoolSharesPct	Percent share given to unclassified traffic	esx	advanced_options	net	net_sched_default_res_pool_shares_pct
545	Net.NetSchedDefaultSchedName	Default networking packet scheduler	esx	advanced_options	net	net_sched_default_sched_name
546	Net.NetSchedECNEnabled	Enable net scheduler to send congestion notification to switch ports.	esx	advanced_options	net	net_sched_ECN_enabled
547	Net.NetSchedECNThreshold	Percentage queue utilization at which net scheduler will start sending congestion notifications to switch ports.	esx	advanced_options	net	net_sched_ECN_threshold
548	Net.NetSchedHClkLeafQueueDepthPkt	Minimum number of packets each HClk leaf node can hold	esx	advanced_options	net	net_sched_hclk_leaf_queue_depth_pkt
549	Net.NetSchedHClkMQ	Enable multiple hardware queue for hclk netsched. (0 is off. 1 and 2 means MQ enabled. With 1, user specifies the number of queues, while 2 is dynamic based on link speed.)	esx	advanced_options	net	net_sched_hclk_MQ
550	Net.NetSchedHClkMaxHwQueue	Maximum number hardware queue that HClock can use. Only used when NetSchedHClkMQ is 1.	esx	advanced_options	net	net_sched_hclk_max_hw_queue
551	Net.NetSchedHClkVnicMQ	Enable multiple VNIC queue for hardware send queue selection	esx	advanced_options	net	net_sched_hclk_vnic_MQ
552	Net.NetSchedHeapMaxSizeMB	Size of the netsched subsystem heap in MB	esx	advanced_options	net	net_sched_heap_max_size_MB
553	Net.NetSchedInFlightMaxBytesDefault	Number of bytes fed to the nic for nics with a normal (1Gbps) linkspeed	esx	advanced_options	net	net_sched_in_flight_max_bytes_default
554	Net.NetSchedInFlightMaxBytesInsane	Number of bytes fed to the nic for nics that don't support tx completion coalescing	esx	advanced_options	net	net_sched_in_flight_max_bytes_insane
555	Net.NetSchedMaxPktSend	Maximum number of packets that we can send to the driver at a time	esx	advanced_options	net	net_sched_max_pkt_send
556	Net.NetSchedQoSSchedName	Default networking packet scheduler for QoS	esx	advanced_options	net	net_sched_qos_sched_name
557	Net.NetSchedSpareBasedShares	Enable shares scheduling only on spare bandwidth. Don't bill while doing reservation scheduling	esx	advanced_options	net	net_sched_spare_based_shares
558	Net.NetSendRARPOnPortEnablement	Ensure one RARP is sent immediately when a port is enabled	esx	advanced_options	net	net_send_RARP_on_port_enablement
559	Net.NetShaperQueuePerL3L4Flow	Enable queuing per L3/L4 flow hashing	esx	advanced_options	net	net_shaper_queue_per_l3_l4_flow
560	Net.NetShaperQueueSizeMax	Maximum shaper queue size	esx	advanced_options	net	net_shaper_queue_size_max
561	Net.NetShaperQueueSizeMin	Minimum shaper queue size	esx	advanced_options	net	net_shaper_queue_size_min
562	Net.NetSplitRxMode	Whether to enable automatic splitRxMode	esx	advanced_options	net	net_split_rx_mode
563	Net.NetTraceEnable	Enable virtual network tracing	esx	advanced_options	net	net_trace_enable
564	Net.NetTuneHostMode	Tuning mode for networking	esx	advanced_options	net	net_tune_host_mode
565	Net.NetTuneInterval	Tuning interval in seconds	esx	advanced_options	net	net_tune_interval
566	Net.NetTuneThreshold	Threshold for activating a tuned mode	esx	advanced_options	net	net_tune_threshold
567	Net.NetTxDontClusterSize	Transmits smaller than this will not be subject to clustering.coalescing	esx	advanced_options	net	net_tx_dont_cluster_size
568	Net.NetTxStaticRelation	Whether the world should have a static relation to the VM VCPU	esx	advanced_options	net	net_tx_static_relation
569	Net.NetVMTxType	World for asynchronous Tx for net devices. 1 for one tx context per vNIC. 2 for one tx context per VM	esx	advanced_options	net	net_VM_tx_type
570	Net.NetpollSwLRO	Whether to perform SW LRO on pkts in netPoll	esx	advanced_options	net	netpoll_sw_LRO
571	Net.NoLocalCSum	Do not checksum local tx.rx frames	esx	advanced_options	net	no_local_csum
572	Net.NotifySwitch	Broadcasts an arp request on net handle enable	esx	advanced_options	net	notify_switch
573	Net.PTSwitchingTimeout	Timeout (in ms) when asking the VMX/guest to switch in/out of passthru	esx	advanced_options	net	PT_switching_timeout
574	Net.PVRDMAVmknic	Vmknic for PVRDMA	esx	advanced_options	net	PVRDMA_vmknic
575	Net.PktAgingListQuantumSize	Quantum size for PktAgingList expressed in power of 2	esx	advanced_options	net	pkt_aging_list_quantum_size
576	Net.PktagingDropPolicy	Dropping policy for vmxnet3 rx burst queue. 1 for PKTAGING_TAIL_DROP. 2 for PKTAGING_RED	esx	advanced_options	net	pktaging_drop_policy
577	Net.PortDisableTimeout	Maximum time to wait for ports to complete I/O before disabling	esx	advanced_options	net	port_disable_timeout
578	Net.PortsetLockModel	The lock model version of a portset	esx	advanced_options	net	portset_lock_model
579	Net.ProvisioningVmknics	vmknics used by NFC for provisioning operations.	esx	advanced_options	net	provisioning_vmknics
580	Net.ReversePathFwdCheck	Block the multicast/broadcast packets that come back from physical switches in a teamed environment	esx	advanced_options	net	reverse_path_fwd_check
581	Net.ReversePathFwdCheckPromisc	Block duplicate packet in a teamed environment when the virtual switch is set to Promiscuous mode.	esx	advanced_options	net	reverse_path_fwd_check_promisc
582	Net.SendIGMPReportToUplink	Enable sending IGMP report to uplink	esx	advanced_options	net	send_IGMP_report_to_uplink
583	Net.TcpipAutoScaleRcvBufSize	Max tcp socket Receive buffer size to scale with auto tuning	esx	advanced_options	net	tcpip_auto_scale_rcv_buf_size
584	Net.TcpipAutoScaleSndBufSize	Max tcp socket Send buffer size to scale with auto tuning	esx	advanced_options	net	tcpip_auto_scale_snd_buf_size
585	Net.TcpipCopySmallTx	Copy and tx complete small packets for tcp tx	esx	advanced_options	net	tcpip_copy_small_tx
586	Net.TcpipDefLROEnabled	LRO enabled for TCP/IP	esx	advanced_options	net	tcpip_def_LRO_enabled
587	Net.TcpipDefLROMaxLength	LRO default max length for TCP/IP	esx	advanced_options	net	tcpip_def_LRO_max_length
588	Net.TcpipDgramRateLimiting	Enable Tx rate limiting for UDP sockets	esx	advanced_options	net	tcpip_dgram_rate_limiting
589	Net.TcpipEnableABC	Enable Appropriate Byte Counting for TCP (RFC 3465)	esx	advanced_options	net	tcpip_enable_ABC
590	Net.TcpipEnableFlowtable	Enable route caching through the use of flowtable	esx	advanced_options	net	tcpip_enable_flowtable
591	Net.TcpipEnableSendScaling	Enable Send-Side Scaling (requires RSS)	esx	advanced_options	net	tcpip_enable_send_scaling
592	Net.TcpipEnsMultipleRxContexts	Use multiple ENS contexts for vmknic RX processing	esx	advanced_options	net	tcpip_ens_multiple_rx_contexts
593	Net.TcpipEnsNetQRSS	Request NetQ RSS for vmknics.	esx	advanced_options	net	tcpip_ens_netqrss
594	Net.TcpipHWLRONoDelayAck	Delayed ack timer not armed for Hardware LRO (socket option needs to be set in addition).	esx	advanced_options	net	tcpip_HWLRO_no_delay_ack
595	Net.TcpipHeapMax	Max megabytes the tcpip module heap can grow to. (REQUIRES REBOOT!)	esx	advanced_options	net	tcpip_heap_max
596	Net.TcpipHeapSize	Size of the TCP/IP module heap in megabytes (requires reboot)	esx	advanced_options	net	tcpip_heap_size
597	Net.TcpipIGMPDefaultVersion	Default version of IGMP, in the absence of a querier	esx	advanced_options	net	tcpip_IGMP_default_version
598	Net.TcpipIGMPRejoinInterval	Delay in seconds between automatic IGMP rejoins when no querier is present	esx	advanced_options	net	tcpip_IGMP_rejoin_interval
599	Net.TcpipLODispatchQueueMaxLen	Max # of pkts queued into the per-protocol queue used for dispatching loopback traffic (REQUIRES REBOOT!)	esx	advanced_options	net	tcpip_LO_dispatch_queue_max_len
600	Net.TcpipLRONoDelayAck	Delayed ack timer not armed for LRO	esx	advanced_options	net	tcpip_LRO_no_delay_ack
601	Net.TcpipLogPackets	Turns on packet logging for a vmknic on debug builds, in a circular & in-memory buffer (Takes effect during vmknic creation time)	esx	advanced_options	net	tcpip_log_packets
602	Net.TcpipLogPacketsCount	Number of packets to log in the in-memory logger. 24570 packets take up about 1.2 MB, and Tx & Rx use separate buffers. (Takes effect during vmknic creation time)	esx	advanced_options	net	tcpip_log_packets_count
603	Net.TcpipMaxNetstackInstances	The maximum number of TCP/IP stack instances that can exist concurrently. If you increase this number, you must also increase the TcpipHeapSize by about 2.5 MB per instance. Requires rebooting the host.	esx	advanced_options	net	tcpip_max_netstack_instances
604	Net.TcpipNoBcopyRx	Avoid bcopy in tcp rx	esx	advanced_options	net	tcpip_no_bcopy_rx
605	Net.TcpipPendPktSocketFreeTimeout	Time Delay in seconds, for freeing UDP sockets that have pending packets for Tx completion	esx	advanced_options	net	tcpip_pend_pkt_socket_free_timeout
606	Net.TcpipRxDispatchQueueMaxLen	Max # of pkts queued into a tcpip vmknic by an execution context (applied when vmknic is created)	esx	advanced_options	net	tcpip_rx_dispatch_queue_max_len
607	Net.TcpipRxDispatchQueues	Max # of dispatch queues used for RX. 0 for autotuning based on PCPU count. For low memory systems, this should be minimum value(REQUIRES REBOOT!)	esx	advanced_options	net	tcpip_rx_dispatch_queues
608	Net.TcpipRxDispatchQuota	Max # of pkts dispatched into the tcpip stack by an execution context	esx	advanced_options	net	tcpip_rx_dispatch_quota
609	Net.TcpipTxDispatchQuota	Max # of pkts dispatched from the tcpip stack by an execution context	esx	advanced_options	net	tcpip_tx_dispatch_quota
610	Net.TcpipTxqBackoffTimeoutMs	Duration (in milli seconds) for which backoff is effective when the tx queue has reached the NET_TCPIP_TXQ_MAX_USAGE_THRESHOLD	esx	advanced_options	net	tcpip_txq_backoff_timeout_ms
611	Net.TcpipTxqMaxUsageThreshold	Tx queue usage threshold in percent at which to start throttling	esx	advanced_options	net	tcpip_txq_max_usage_threshold
612	Net.TeamPolicyUpDelay	Delay (ms) before considering an `uplink up' event relevant	esx	advanced_options	net	team_policy_up_delay
613	Net.TeamingIgnoreShotgun	Ignore the shotgun capability in Teaming	esx	advanced_options	net	teaming_ignore_shotgun
614	Net.TeamingNUMAAware	Enable the NUMA awareness in Teaming	esx	advanced_options	net	teaming_NUMA_aware
615	Net.TrafficFilterIpAddress	Alternate DVFilter internal communication endpoint	esx	advanced_options	net	traffic_filter_ip_address
616	Net.TsoDumpPkt	detailed dump of every <n> pkts	esx	advanced_options	net	tso_dump_pkt
617	Net.UplinkAbortDisconnectTimeout	Timeout (ms) waiting for pending calls to finish when disconnecting.	esx	advanced_options	net	uplink_abort_disconnect_timeout
618	Net.UplinkKillAsyncTimeout	Timeout (ms) waiting for async when world is killed.	esx	advanced_options	net	uplink_kill_async_timeout
619	Net.UplinkTSOSplit	Enable uplink layer convert TSO packets to CSO ones on pNIC not supporting TSO but supporting CSO	esx	advanced_options	net	uplink_TSO_split
620	Net.UplinkTxQueuesDispEnabled	Enables dispatching of port traffic on multiple tx queues	esx	advanced_options	net	uplink_tx_queues_disp_enabled
621	Net.UseHwCsumForIPv6Csum	When non-zero, use pNIC HW_CSUM, if available, as IPv6 csum offload	esx	advanced_options	net	use_hw_csum_for_IPv6_csum
622	Net.UseHwIPv6Csum	When non-zero, use pNIC HW IPv6 csum offload if available	esx	advanced_options	net	use_hwi_pv6_csum
623	Net.UseHwTSO	When non-zero, use pNIC HW TSO offload if available	esx	advanced_options	net	use_hw_TSO
624	Net.UseHwTSO6	When non-zero, use pNIC HW IPv6 TSO offload if available	esx	advanced_options	net	use_hw_TSO6
625	Net.UseLegacyProc	Enable or disable populating legacy entries in /proc/vmware/net	esx	advanced_options	net	use_legacy_proc
626	Net.UseProc	Populate /proc/vmware/net	esx	advanced_options	net	use_proc
627	Net.VLANMTUCheckMode	Set the unicast/broadcast checking mode in VLAN MTU check	esx	advanced_options	net	VLAN_MTU_check_mode
628	Net.VmklnxLROEnabled	LRO enabled in vmklinux	esx	advanced_options	net	vmklnx_LRO_enabled
629	Net.VmklnxLROMaxAggr	LRO max aggr in vmklinux	esx	advanced_options	net	vmklnx_LRO_max_aggr
630	Net.VmknicDoLroSplit	whether for vmknic LRO avoids aggregating all pkts into a single (> 2 ms) large pkt.	esx	advanced_options	net	vmknic_do_lro_split
631	Net.VmknicLroSplitBnd	when VmknicDoLroSplit is non-zero, while pktList is larger than this number, lroSplit is not done.	esx	advanced_options	net	vmknic_lro_split_bnd
632	Net.Vmxnet2HwLRO	Whether to perform HW LRO on pkts going to a LPD capable vmxnet2	esx	advanced_options	net	vmxnet2_hw_LRO
633	Net.Vmxnet2PinRxBuf	Pin RX buffers for vmxnet2 clients (windows guest only)	esx	advanced_options	net	vmxnet2_pin_rx_buf
634	Net.Vmxnet2SwLRO	Whether to perform SW LRO on pkts going to a LPD capable vmxnet2	esx	advanced_options	net	vmxnet2_sw_LRO
635	Net.Vmxnet3AllowTruncation	Allow truncated packets to be delivered to the guest	esx	advanced_options	net	vmxnet3_allow_truncation
636	Net.Vmxnet3CopyTrailer	Copy additional bytes of pkt not included in the total length field of ip header	esx	advanced_options	net	vmxnet3_copy_trailer
637	Net.Vmxnet3ESPRSSAllowed	Allow RSS for IPSEC (ESP) over IPv4 if requested by guest/vmx.	esx	advanced_options	net	vmxnet3_ESP_RSS_allowed
638	Net.Vmxnet3EnsRxMultipleContexts	Use multiple ENS contexts for vnic RX processing. 0 relies on vmx option, 1 for globally enable, 2 for globally disable.	esx	advanced_options	net	vmxnet3_ens_rx_multiple_contexts
639	Net.Vmxnet3HwLRO	Whether to enable HW LRO on pkts going to a LPD capable vmxnet3	esx	advanced_options	net	vmxnet3_hw_LRO
640	Net.Vmxnet3MaxPendingRxBurst	max # packets to drain from Burst Queue per call	esx	advanced_options	net	vmxnet3_max_pending_rx_burst
641	Net.Vmxnet3MaxRxBurstQueueLength	Maximum length of burst queue allowed when configured via vmx option	esx	advanced_options	net	vmxnet3_max_rx_burst_queue_length
642	Net.Vmxnet3NonTsoPacketGtMtuAllowed	Allow non-TSO/LRO packets greater than vNic MTU	esx	advanced_options	net	vmxnet3_non_tso_packet_gt_mtu_allowed
643	Net.Vmxnet3PageInBound	max # pageIn requests to handle per helper call for vmxnet3.	esx	advanced_options	net	vmxnet3_page_in_bound
644	Net.Vmxnet3RSSHashCache	Enable RSS hash cache.	esx	advanced_options	net	vmxnet3_RSS_hash_cache
645	Net.Vmxnet3RxBurstQueueEnableThreshold	Maximum number of entries allowed in Rx ring buffer after which vmxnet3 Rx burst queuing will be disabled in vNIC backend	esx	advanced_options	net	vmxnet3_rx_burst_queue_enable_threshold
646	Net.Vmxnet3RxBurstQueueLimit	Maximum number of packets allowed to be queued in vmxnet3 vNIC backend in rx path	esx	advanced_options	net	vmxnet3_rx_burst_queue_limit
647	Net.Vmxnet3RxPollBound	max # pkts to receive per timeout for vmxnet3.	esx	advanced_options	net	vmxnet3_rx_poll_bound
648	Net.Vmxnet3RxQueueBound	Rx max queue size beyond which packets are dropped for vmxnet3.	esx	advanced_options	net	vmxnet3_rx_queue_bound
649	Net.Vmxnet3SetRSSHash	While using multiqueue delivery, set RSS hash while delivering the packet to the guest.	esx	advanced_options	net	vmxnet3_set_RSS_hash
650	Net.Vmxnet3SwLRO	Whether to perform SW LRO on pkts going to a LPD capable vmxnet3	esx	advanced_options	net	vmxnet3_sw_LRO
651	Net.Vmxnet3UDPRSSAllowed	Allow RSS for UDP over IPv4/IPv6 if requested by guest/vmx. May result in out-of-order packets for IP fragments.	esx	advanced_options	net	vmxnet3_UDP_RSS_allowed
652	Net.Vmxnet3WinIntrHints	whether intr hints are used for Windows vmxnet3.	esx	advanced_options	net	vmxnet3_win_intr_hints
653	Net.Vmxnet3usePNICHash	Reuse pnic computed RSS hash.	esx	advanced_options	net	vmxnet3_use_PNIC_hash
654	Net.VmxnetBiDirNeedsTsoTx	Need to see Tso Tx to qualify for tsoSplit bidirectional traffic condition.	esx	advanced_options	net	vmxnet_bi_dir_needs_tso_tx
655	Net.VmxnetBiDirNoTsoSplit	For bidirectional traffic, don't do tsoSplit.	esx	advanced_options	net	vmxnet_bi_dir_no_tso_split
656	Net.VmxnetCopyTxRunLimit	non-Win vmxnet2/3 tx will have at most so many fully copied tx's in a row (65536 and larger means never).	esx	advanced_options	net	vmxnet_copy_tx_run_limit
657	Net.VmxnetDoLroSplit	whether for vmxnet LRO avoids aggregating all pkts into a single (> 2 mss) large pkt.	esx	advanced_options	net	vmxnet_do_lro_split
658	Net.VmxnetDoTsoSplit	whether to split TSO pkts before LPD; 1: halved; 3: VmxnetTsoSplitSize; 2: hybrid.	esx	advanced_options	net	vmxnet_do_tso_split
659	Net.VmxnetLROBackoffPeriod	After adaptive LRO decided not to do LRO, how many intervals to wait before trying again.	esx	advanced_options	net	vmxnet_LRO_backoff_period
660	Net.VmxnetLROMaxLength	LRO default max length for TCP/IP	esx	advanced_options	net	vmxnet_LRO_max_length
661	Net.VmxnetLROThreshold	After this # packets, evaluate whether to continue SW LRO	esx	advanced_options	net	vmxnet_LRO_threshold
662	Net.VmxnetLROUseRatioDenom	If SW LRO reduce pkt count to be smaller than ratio, continue to do LRO. Denominator of ratio.	esx	advanced_options	net	vmxnet_LRO_use_ratio_denom
663	Net.VmxnetLROUseRatioNumer	If SW LRO reduce pkt count to be smaller than ratio, continue to do LRO. Numerator of ratio.	esx	advanced_options	net	vmxnet_LRO_use_ratio_numer
664	Net.VmxnetLroSplitBnd	when VmxnetDoLroSplit is non-zero, while pktList is larger than this number, lroSplit is not done.	esx	advanced_options	net	vmxnet_lro_split_bnd
665	Net.VmxnetPromDisableLro	Whether to disable SW LRO when vNIC goes into promiscuous mode.	esx	advanced_options	net	vmxnet_prom_disable_lro
666	Net.VmxnetSwLROSL	Whether to use ShortLived for vmxnet SW LRO	esx	advanced_options	net	vmxnet_sw_LROSL
667	Net.VmxnetTsoSplitBnd	when VmxnetDoTsoSplit is 1 or 2, use targetSize as the tsoSplit threshold if the overall pkt list already has this number of pkts.	esx	advanced_options	net	vmxnet_tso_split_bnd
668	Net.VmxnetTsoSplitSize	split (byte) size; only used if DoTsoSplit >= 2.	esx	advanced_options	net	vmxnet_tso_split_size
669	Net.VmxnetTxCopySize	vmxnet tx <= than this will be fully copied with no need for completion.	esx	advanced_options	net	vmxnet_tx_copy_size
670	Net.VmxnetWinCopyTxRunLimit	Win vmxnet2/3 tx will have at most so many fully copied tx's in a row (65536 and larger means never).	esx	advanced_options	net	vmxnet_win_copy_tx_run_limit
671	Net.VmxnetWinUDPTxFullCopy	whether Windows vmxnet UDP tx is fullCopy.	esx	advanced_options	net	vmxnet_win_UDP_tx_full_copy
672	Net.vNicNumDeferredReset	max # normalPkts per poll.	esx	advanced_options	net	v_nic_num_deferred_reset
673	Net.vNicTxPollBound	max # normalPkts per poll.	esx	advanced_options	net	v_nic_tx_poll_bound
674	Net.vmxnetThroughputWeight	How far to favor throughput in vmxnet behavior.	esx	advanced_options	net	vmxnet_throughput_weight
675	Net.IOControlPnicOptOut	List of physical NICs to opt out of network I/O control	x	x	x	x
676	Nmp.NmpPReservationCmdRetryTime	Time (in secs) to retry on transient errors for Persistent reservation commands for MSCS CAB configs	esx	advanced_options	nmp	nmp_p_reservation_cmd_retry_time
677	Nmp.NmpSatpAluaCmdRetryTime	Time (in secs) to retry on transient errors	esx	advanced_options	nmp	nmp_satp_alua_cmd_retry_time
678	Nmp.NmpSatpAluaTransRetryTime	Time (in secs) to wait for ALUA transition to complete when target reports ALUA transitioning state	esx	advanced_options	nmp	nmp_satp_alua_trans_retry_time
679	Numa.CoreCapRatioPct	The capacity of a core in percent. When exceeded, locality migration is rejected. Set to 0 to disable this check	esx	advanced_options	numa	core_cap_ratio_pct
680	Numa.CostopSkewAdjust	way to handle costop skew, 0:do nothing, 1:interleave vcpus among clients, 2:allow vcpus on all nodes	esx	advanced_options	numa	costop_skew_adjust
681	Numa.DeviceAffinity	1: ESXi will automatically attempt to place a virtual machine on NUMA nodes where its configured passthrough devices reside, 0: default virtual machine placement behavior	esx	advanced_options	numa	device_affinity
682	Numa.FollowCoresPerSocket	1: if the vNUMA topology should strickly follow core-per-socket config, 0: to remove the restriction	esx	advanced_options	numa	follow_cores_per_socket
683	Numa.LTermFairnessInterval	duration of long term fairness interval in terms of NUMA rebalance period, 0 indicates that long term fairness is disabled	esx	advanced_options	numa	L_term_fairness_interval
684	Numa.LTermMigImbalThreshold	imbalance in long term owed, in percentage, required to trigger migration for long term fairness	esx	advanced_options	numa	lterm_mig_imbal_threshold
685	Numa.LargeInterleave	Always use large page interleaving; 0 to disable.	esx	advanced_options	numa	large_interleave
686	Numa.LocalityWeightActionAffinity	Benefit of improving action affinity by 1.	esx	advanced_options	numa	locality_weight_action_affinity
687	Numa.LocalityWeightMem	Benefit of improving memory locality by 1 pct.	esx	advanced_options	numa	locality_weight_mem
688	Numa.MigImbalanceThreshold	Minimum percent load imbalance between nodes to trigger migration	esx	advanced_options	numa	mig_imbalance_threshold
689	Numa.MigPreventLTermThresh	long term owed for a VM, in percentage, above which NUMA migration and swaps are disabled for that VM	esx	advanced_options	numa	mig_prevent_lterm_thresh
690	Numa.MigThrashThreshold	Maximum post-migration load imbalance as a percentage of pre-migration imbalance to prevent thrashing	esx	advanced_options	numa	mig_thrash_threshold
691	Numa.MigThreshold	Minimum percent load balance improvement to allow single migration.swap	esx	advanced_options	numa	mig_threshold
692	Numa.MonMigEnable	Allow NUMASched monitor migrations. Set to 1 to enable; set to 0 to disable.	esx	advanced_options	numa	mon_mig_enable
693	Numa.PageMigEnable	Permit NUMASched to manipulate page migration. Set to 1 to enable; set to 0 to disable.	esx	advanced_options	numa	page_mig_enable
694	Numa.PageMigLinearRun	page migration candidates for linear scan, 0 to disable	esx	advanced_options	numa	page_mig_linear_run
695	Numa.PageMigRandomRun	page migration candidates for random scan, 0 to disable	esx	advanced_options	numa	page_mig_random_run
696	Numa.PageMigRateMax	max page migration rate	esx	advanced_options	numa	page_mig_rate_max
697	Numa.PreferHT	Prefer using HyperThreads on the same NUMA node over full cores on multiple nodes; 0 to disable.	esx	advanced_options	numa	prefer_HT
698	Numa.RebalanceCoresNode	Minimum number of cores per node required to enable NUMA rebalancer	esx	advanced_options	numa	rebalance_cores_node
699	Numa.RebalanceCoresTotal	Minimum number of total host cores required to enable NUMA rebalancer	esx	advanced_options	numa	rebalance_cores_total
700	Numa.RebalanceEnable	Enable or disable NUMA scheduler rebalancer	esx	advanced_options	numa	rebalance_enable
701	Numa.RebalancePeriod	Frequency of NUMA node rebalancing in milliseconds	esx	advanced_options	numa	rebalance_period
702	Numa.SwapConsiderPeriod	time between reconsidering a client for swap, in units of NUMA rebalance period	esx	advanced_options	numa	swap_consider_period
703	Numa.SwapInterval	frequency of NUMA node swap rebalancing, in units of NUMA rebalance period	esx	advanced_options	numa	swap_interval
704	Numa.SwapLoadEnable	Enable or disable virtual machine swaps across nodes to balance CPU load	esx	advanced_options	numa	swap_load_enable
705	Numa.SwapLocalityEnable	Enable or disable virtual machine swaps across nodes to improve memory locality	esx	advanced_options	numa	swap_locality_enable
706	Numa.SwapMigrateOnly	frequency of NUMA VM migration only considerations, in units of NUMA rebalance period, 0 to disable pure migrations	esx	advanced_options	numa	swap_migrate_only
707	OSData.configuredLocation	The configured location of the OSData partition.	x	x	x	x
708	Power.CStateMaxLatency	In Custom policy, avoid a C-state whose latency is larger than this value (us)	esx	advanced_options	power	cstate_max_latency
709	Power.CStatePredictionCoef	In Custom policy, predict non-timer wakeup with error probability p, where CStatePredictionCoef = -ln(1 - p) * (1 << 20)	esx	advanced_options	power	cstate_prediction_coef
710	Power.CStateResidencyCoef	In Custom policy, avoid a C-state whose latency * CStateResidencyCoef > predicted residence time	esx	advanced_options	power	cstate_residency_coef
711	Power.CpuPolicy	Host power management policy: High Performance, Balanced, Low Power, or Custom	esx	advanced_options	power	cpu_policy
712	Power.MaxCpuLoad	In Custom policy, CPU utilization threshold below which CPU frequency can be dynamically adjusted. This parameter is not used when CPPC is enabled.	esx	advanced_options	power	max_cpu_load
713	Power.MaxFreqPct	In Custom policy, do not use P-states faster than the given percentage of full CPU speed, rounded up to the next available P-state	esx	advanced_options	power	max_freq_pct
714	Power.MinFreqPct	In Custom policy, do not use P-states slower than the given percentage of full CPU speed	esx	advanced_options	power	min_freq_pct
715	Power.PerfBias	In Custom policy, Performance Energy Bias Hint, where 0-15 directly specifies preference on a scale where 0=MaxPerf and 15=MinPower, while 16-18 chooses an automatically determined value from a preset policy: 16=Low Power, 17=Balanced, 18=High Performance	esx	advanced_options	power	perf_bias
716	Power.PerfBiasEnable	Use Performance Energy Bias Hint	esx	advanced_options	power	perf_bias_enable
717	Power.TimerHz	In Custom policy, dynamic power management timer sampling rate for ACPI P-states. When CPPC is enabled, used only for debugging.	esx	advanced_options	power	timer_hz
718	Power.UseCStates	In Custom policy, use ACPI C-states when processor is idle	esx	advanced_options	power	use_cstates
719	Power.UsePStates	In Custom policy, use ACPI P-states or CPPC to save power when processor is busy	esx	advanced_options	power	use_pstates
720	RdmFilter.HbaIsShared	Allow local disks to be RDM candidates for Virtual Machines	esx	services	hostd	plugins.solo.rdmfilter.hba_is_shared
721	ScratchConfig.ConfiguredScratchLocation	The directory configured to be used for scratch space. Changes will take effect on next reboot.	esx	storage	scratch_location	path
722	ScratchConfig.CurrentScratchLocation	The directory currently being used for scratch space.	x	x	x	x
723	Scsi.ChangeQErrSetting	Change the QErr value of devices to 0x0.	esx	advanced_options	scsi	change_qerr_setting
724	Scsi.CompareLUNNumber	Consider LUN number when determining LUN identity.	esx	advanced_options	scsi	compare_LUN_number
725	Scsi.EnableCmdSanityCheck	Enable Scsi command basic sanity checks. This option can crash the system if Scsi Command signature mismatches	esx	advanced_options	scsi	enable_cmd_sanity_check
726	Scsi.ExtendAPDCondition	Trigger APD condition when paths are in unavailable states	esx	advanced_options	scsi	extend_APD_condition
727	Scsi.FailVMIOonAPD	Fast fail virtual machine I/Os on APD Timeout.	esx	advanced_options	scsi	fail_VM_IO_on_APD
728	Scsi.LogCmdErrors	Log SCSI Device command errors.	esx	advanced_options	scsi	log_cmd_errors
729	Scsi.LogCmdRCErrorsFreq	Number of consecutive RC errors to be seen before logging SCSI Device command.	esx	advanced_options	scsi	log_cmd_RC_errors_freq
730	Scsi.LogMPCmdErrors	Log SCSI Multi-path plugin command errors.	esx	advanced_options	scsi	log_MP_cmd_errors
731	Scsi.LogScsiAborts	Log SCSI abort errors and success.	esx	advanced_options	scsi	log_scsi_aborts
732	Scsi.LunCleanupInterval	Timeout for purging stale LUNs. Any LUN which was seen more than the configured number of days ago, will be deleted by the daily cleanup operation	esx	advanced_options	scsi	lun_cleanup_interval
733	Scsi.MaxReserveBacktrace	Log a backtrace if caller exceeds SCSI_MAX_RESERVE_TIME or SCSI_MAX_RESERVE_TOTALTIME (debug only)	esx	advanced_options	scsi	max_reserve_backtrace
734	Scsi.MaxReserveTime	Maximum time (in milliseconds) a system-initiated reservation is normally held	esx	advanced_options	scsi	max_reserve_time
735	Scsi.MaxReserveTotalTime	Maximum time (in msecs) a system-initiated reservation normally takes from issue to release (debug only)	esx	advanced_options	scsi	max_reserve_total_time
736	Scsi.NvmeAdjustLocalNSQDepth	Allow dividing the controller queue depth among the namespaces behind the controller for NVMe Local devices.	esx	advanced_options	scsi	nvme_adjust_local_NS_Qdepth
737	Scsi.NvmeLogVerbose	Enable verbose logging for NVMe devices. This is a bitwise value and can be combined. 1 = Log every command, 2 = Log ANA log page, 4 = Log ANA log page namespace list, 8 = Verbose logging	esx	advanced_options	scsi	nvme_log_verbose
738	Scsi.NvmeMaxUnmapBlockDescriptorCount	Set maximum deallocate (unmap) descriptor count limit	esx	advanced_options	scsi	nvme_max_unmap_block_descriptor_count
739	Scsi.NvmeMaxUnmapBlockDescriptorLbaCount	Set maximum deallocate (unmap) lba limit per descriptor	esx	advanced_options	scsi	nvme_max_unmap_block_descriptor_lba_count
740	Scsi.NvmeMaxUnmapLbaCount	Set maximum deallocate (unmap) size limit (in blocks)	esx	advanced_options	scsi	nvme_max_unmap_lba_count
741	Scsi.NvmeMaxWriteZeroLbaCount	Set maximum write zero lba limit	esx	advanced_options	scsi	nvme_max_write_zero_lba_count
742	Scsi.PassthroughLocking	SCSI passthrough locking	esx	advanced_options	scsi	passthrough_locking
743	Scsi.PcpusPerCompletionWorld	Allocate number of storage adapter completion worlds based on pcpus per world across NUMA nodes.	esx	advanced_options	scsi	pcpus_per_completion_world
744	Scsi.ReserveBacktrace	Log a backtrace for all Reserve/Release pairs (debug only)	esx	advanced_options	scsi	reserve_backtrace
745	Scsi.SCSIBlockUnsupportedOpcodesAndPages	Enable or disable blocking unsupported SCSI opcodes and vpd/mode pages	esx	advanced_options	scsi	SCSI_block_unsupported_opcodes_and_pages
746	Scsi.SCSIEnableDescToFixedConv	Enable or disable conversion of descriptor format sense to fixed for older plugins	esx	advanced_options	scsi	SCSI_enable_desc_to_fixed_conv
747	Scsi.SCSIEnableDeviceLatencyHistogram	Enable or disable updation of device latency histograms	esx	advanced_options	scsi	SCSI_enable_device_latency_histogram
748	Scsi.SCSIStrictSPCVersionChecksForPEs	Only LUNs with version >= SCSI_ANSI_SCSI3_SPC4 can be PEs	esx	advanced_options	scsi	SCSI_strict_SPC_version_checks_for_PEs
749	Scsi.SCSITimeout_ReabortTime	Delay (in milliseconds) after a stop due to time-out before the stop is re-issued	esx	advanced_options	scsi	SCSI_timeout_reabort_time
750	Scsi.SCSITimeout_ScanTime	Time (in milliseconds) to sleep between checking for timed-out asynchronous I/O	esx	advanced_options	scsi	SCSI_timeout_scan_time
751	Scsi.SCSIioTraceBufSizeMB	Logchannel buffer size for per device IO tracing in MB	esx	advanced_options	scsi	SCSI_io_trace_buf_size_MB
752	Scsi.ScanOnDriverLoad	Scan new SCSI buses on device driver load	esx	advanced_options	scsi	scan_on_driver_load
753	Scsi.ScanSync	Force LU scanning operations to be synchronous if set.	esx	advanced_options	scsi	scan_sync
754	Scsi.ScsiAllowDeviceSpinup	Allow device spin up, if device is in spun down state.	esx	advanced_options	scsi	scsi_allow_device_spinup
755	Scsi.ScsiPathSplitUseSimpleCloneBuffer	Use simple clone buffers to split IOs at path layer whenever possible.	esx	advanced_options	scsi	scsi_path_split_use_simple_clone_buffer
756	Scsi.ScsiRestartStalledQueueLatency	Delay in ms before restarting a stalled queue	esx	advanced_options	scsi	scsi_restart_stalled_queue_latency
757	Scsi.ScsiTMHardTimeout	Timeout in milliseconds before signalling upper layers of wedged I/O (0 = Signalling disabled).	esx	advanced_options	scsi	scsi_TM_hard_timeout
758	Scsi.ScsiUseVPDXCopyInfo	Use Scsi VPD query for XCopy Info.	esx	advanced_options	scsi	scsi_use_VPDX_copy_info
759	Scsi.ScsiVVolPESNRO	Default schedNumReqOutstanding value for a PE LUN.	esx	advanced_options	scsi	scsi_vvol_PE_SNRO
760	Scsi.TimeoutTMThreadExpires	Life in seconds of timeout task mgmt handler thread	esx	advanced_options	scsi	timeout_TM_thread_expires
761	Scsi.TimeoutTMThreadLatency	Delay in ms before waking up new task mgmt thread	esx	advanced_options	scsi	timeout_TM_thread_latency
762	Scsi.TimeoutTMThreadMax	Max number of timeout task-mgmt handler threads	esx	advanced_options	scsi	timeout_TM_thread_max
763	Scsi.TimeoutTMThreadMin	Min number of timeout task-mgmt handler threads	esx	advanced_options	scsi	timeout_TM_thread_min
764	Scsi.TimeoutTMThreadRetry	Delay in milliseconds before retrying taskmgmt which failed or for which the I/O did not complete	esx	advanced_options	scsi	timeout_TM_thread_retry
765	Scsi.TransFailLogPct	Percent of Transient failures seen on Scsi Device that will be logged.	esx	advanced_options	scsi	trans_fail_log_pct
766	Scsi.UseAdaptiveRetries	Use adaptive retries for transient errors.	esx	advanced_options	scsi	use_adaptive_retries
767	Security.AccountLockFailures	Maximum allowed failed login attempts before locking out a user's account. Zero disables account locking.	esx	security	settings	account_lock_failures
768	Security.AccountUnlockTime	Duration in seconds to lock out a user's account after exceeding the maximum allowed failed login attempts.	esx	security	settings	account_unlock_time
769	Security.DefaultShellAccess	The default value of the 'shellAccess' field if it is not specified explicitly while creating a new user account, when the caller has shell access.	esx	security	settings	default_shell_access
770	Security.PasswordHistory	Number of passwords to remember for each user. Zero disables password history.	esx	security	settings	password_history
771	Security.PasswordMaxDays	Maximum number of days between password changes. Affects all existing and new users.	esx	security	settings	password_max_days
772	Security.PasswordQualityControl	Raw options for pam_passwdqc PAM module. This value is used as is in PAM's configuration file, so use with caution. This setting is in effect only if PasswordQualityControlPwquality is set to the string 'UNUSED'.	esx	security	settings	password_quality_control
773	Security.PasswordQualityControlPwquality	Raw options for pam_pwquality PAM module. This value is used as is in PAM's configuration file, so use with caution. The setting replaces and shadows the PasswordQualityControl setting unless it is set to the string 'UNUSED'.	esx	security	settings	password_quality_control
774	Security.SshSessionLimit	Maximum number of SSH sessions for all users except user 'root'.	esx	security	settings	ssh_session_limit
775	SunRPC.MaxConnPerIP	Max number of TCP/IP connection per IP	esx	advanced_options	sunRPC	max_conn_per_IP
776	SunRPC.SendLowat	Send buffer lowat (%)	esx	advanced_options	sunRPC	send_lowat
777	SunRPC.SetNoDelayedAck	Set socket option to disable TCP delayed acknowledgements (Use this option under guidance of VMware support. Requires Remount)	esx	advanced_options	sunRPC	set_no_delayed_ack
778	SunRPC.WorldAffinity	TX Affinity: 0 - Disabled, 1 - Issuing world, 2 - Exact RX world, 3 - Loose RX world	esx	advanced_options	sunRPC	world_affinity
779	SvMotion.SvMotionAvgDisksPerVM	Initial Storage vMotion Heap Size is proportional to this setting	esx	advanced_options	svmotion	svmotion_avg_disks_per_VM
780	Syslog.global.auditRecord.remoteEnable	Enable transmitting audit records to remote hosts.	esx	syslog	audit_record_settings	prevent_record_dropping
781	Syslog.global.auditRecord.storageCapacity	Audit record storage capacity (in MiB).	esx	syslog	audit_record_settings	local_storage_dir_capacity
782	Syslog.global.auditRecord.storageDirectory	Audit record storage directory.	esx	syslog	audit_record_settings	local_storage_dir
783	Syslog.global.auditRecord.storageEnable	Enable audit record storage.	esx	syslog	audit_record_settings	enable_local_audit_record_storage
784	Syslog.global.certificate.checkCRL	Enable checking the revocation status of all the certificates in an SSL certificate chain.	esx	syslog	global_settings	remote_logging.crl_check
785	Syslog.global.certificate.checkSSLCerts	Enforce checking of SSL certificates when transmitting messages to remote hosts.	esx	syslog	global_settings	remote_logging.check_ssl_certs
786	Syslog.global.certificate.strictX509Compliance	Enable strict compliance with X.509.	esx	syslog	global_settings	remote_logging.x509_strict
787	Syslog.global.defaultRotate	Number of older log files to keep.	esx	syslog	global_settings	rotations
788	Syslog.global.defaultSize	Size of each log file before switching to a new one (in KiB).	esx	syslog	global_settings	rotation_size_in_kb
789	Syslog.global.droppedMsgs.fileRotate	Number of older dropped message log files to keep.	esx	syslog	global_settings	drop_log_rotate
790	Syslog.global.droppedMsgs.fileSize	Size of each dropped message log file before switching to a new one (in KiB).	esx	syslog	global_settings	drop_log_size
791	Syslog.global.logCheckSSLCerts	DEPRECATED - use Syslog.global.certificate.checkSSLCerts. Enforce checking of SSL certificates when transmitting messages to remote hosts.	NA	NA	NA	NA
792	Syslog.global.logDir	Datastore path of the directory to output logs to. Example: [datastoreName]/logdir	esx	syslog	global_settings	log_dir
793	Syslog.global.logDirUnique	Enable placing log files in a unique subdirectory of logdir, based on hostname.	esx	syslog	global_settings	log_dir_unique
794	Syslog.global.logFilters	Double vertical bar (||) separated list of log filters. The format of a log filter is: numLogs | ident | logRegexp. 'numLogs' sets the maximum number of log entries for the specified log messages. After reaching this number, the specified log messages are filtered and ignored. 'ident' specifies one or more system components to apply the filter to the log messages that these components generate. 'logRegexp' specifies a case-sensitive phrase with Python regular expression syntax to filter the log messages by their content.	esx	syslog	logfilters	filters
795	Syslog.global.logFiltersEnable	Enable the use of log filters.	esx	syslog	logfilters	enable
796	Syslog.global.logHost	Comma (,) separated list of remote hosts to transmit messages to. Format is: proto://hostname|ipv4|'['ipv6']'[:port][?formatter=value[&framing=value]]. Protocol must be one of (tcp|udp|ssl). If a port is not provided, ssl and tcp will use 1514; udp will use 514. Formatter must be one of (RFC_3164|RFC_5424). Framing must be one of (octet_counting|non_transparent). The default formatter is RFC 3164; the default framing is non_transparent.	esx	syslog	global_settings	remote_logging.log_host
797	Syslog.global.logLevel	Log filtering level. This should only be changed when troubleshooting an issue with the syslog daemon. Values may be 'debug' (most detailed level), 'info' (default detail level), 'warning' (only warnings or errors), or 'error' (only errors).	esx	syslog	global_settings	log_level
798	Syslog.global.msgQueueDropMark	The message queue drop mark (as a percentage).	esx	syslog	global_settings	queue_drop_mark
799	Syslog.global.remoteHost.connectRetryDelay	Delay before retrying to connect to a remote host after a connection attempt has failed (in seconds).	esx	syslog	global_settings	remote_logging.retry_timeout
800	Syslog.global.remoteHost.maxMsgLen	Maximum remote host transmission length (in bytes) when using the TCP and TLS (SSL) protocols. Messages longer than this will be truncated.	esx	syslog	global_settings	remote_host_max_msg_len
801	Syslog.global.vsanBacking	Allow the logging and audit record storage directories to be placed on a VSAN. WARNING! Enabling this parameter may cause ESXi to hang.	esx	syslog	global_settings	vsan_backing
802	Syslog.loggers.LogEFI.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[LogEFI].rotations
803	Syslog.loggers.LogEFI.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[LogEFI].rotation_size_in_kb
804	Syslog.loggers.Xorg.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[Xorg].rotations
805	Syslog.loggers.Xorg.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[Xorg].rotation_size_in_kb
806	Syslog.loggers.apiForwarder.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[apiForwarder].rotations
807	Syslog.loggers.apiForwarder.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[apiForwarder].rotation_size_in_kb
808	Syslog.loggers.attestd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[attestd].rotations
809	Syslog.loggers.attestd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[attestd].rotation_size_in_kb
810	Syslog.loggers.auth.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[auth].rotations
811	Syslog.loggers.auth.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[auth].rotation_size_in_kb
812	Syslog.loggers.catalog.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[catalog].rotations
813	Syslog.loggers.catalog.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[catalog].rotation_size_in_kb
814	Syslog.loggers.clomd-whatif.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[clomd-whatif].rotations
815	Syslog.loggers.clomd-whatif.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[clomd-whatif].rotation_size_in_kb
816	Syslog.loggers.clomd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[clomd].rotations
817	Syslog.loggers.clomd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[clomd].rotation_size_in_kb
818	Syslog.loggers.clusterAgent.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[clusterAgent].rotations
819	Syslog.loggers.clusterAgent.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[clusterAgent].rotation_size_in_kb
820	Syslog.loggers.cmmdsTimeMachine.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[cmmdsTimeMachine].rotations
821	Syslog.loggers.cmmdsTimeMachine.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[cmmdsTimeMachine].rotation_size_in_kb
822	Syslog.loggers.cmmdsTimeMachineDump.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[cmmdsTimeMachineDump].rotations
823	Syslog.loggers.cmmdsTimeMachineDump.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[cmmdsTimeMachineDump].rotation_size_in_kb
824	Syslog.loggers.cmmdsd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[cmmdsd].rotations
825	Syslog.loggers.cmmdsd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[cmmdsd].rotation_size_in_kb
826	Syslog.loggers.crx-cli.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[crx-cli].rotations
827	Syslog.loggers.crx-cli.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[crx-cli].rotation_size_in_kb
828	Syslog.loggers.dfwpktlogs.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[dfwpktlogs].rotations
829	Syslog.loggers.dfwpktlogs.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[dfwpktlogs].rotation_size_in_kb
830	Syslog.loggers.dhclient.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[dhclient].rotations
831	Syslog.loggers.dhclient.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[dhclient].rotation_size_in_kb
832	Syslog.loggers.dkvsd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[dkvsd].rotations
833	Syslog.loggers.dkvsd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[dkvsd].rotations
834	Syslog.loggers.dlbaccslogs.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[dlbaccslogs].rotations
835	Syslog.loggers.dlbaccslogs.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[dlbaccslogs].rotation_size_in_kb
836	Syslog.loggers.dpd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[dpd].rotations
837	Syslog.loggers.dpd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[dpd].rotation_size_in_kb
838	Syslog.loggers.edr-daemon.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[edr-daemon].rotations
839	Syslog.loggers.edr-daemon.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[edr-daemon].rotations
840	Syslog.loggers.entropyd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[entropyd].rotations
841	Syslog.loggers.entropyd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[entropyd].rotation_size_in_kb
842	Syslog.loggers.envoy-access.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[envoy-access].rotations
843	Syslog.loggers.envoy-access.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[envoy-access].rotation_size_in_kb
844	Syslog.loggers.envoy.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[envoy].rotations
845	Syslog.loggers.envoy.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[envoy].rotation_size_in_kb
846	Syslog.loggers.epd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[epd].rotations
847	Syslog.loggers.epd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[epd].rotation_size_in_kb
848	Syslog.loggers.esxcli.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[esxcli].rotations
849	Syslog.loggers.esxcli.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[esxcli].rotation_size_in_kb
850	Syslog.loggers.esxgdpd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[esxgdpd].rotations
851	Syslog.loggers.esxgdpd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[esxgdpd].rotation_size_in_kb
852	Syslog.loggers.esxioCommd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[esxioCommd].rotations
853	Syslog.loggers.esxioCommd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[esxioCommd].rotation_size_in_kb
854	Syslog.loggers.esxtokend.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[esxtokend].rotations
855	Syslog.loggers.esxtokend.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[esxtokend].rotation_size_in_kb
856	Syslog.loggers.esxupdate.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[esxupdate].rotations
857	Syslog.loggers.esxupdate.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[esxupdate].rotation_size_in_kb
858	Syslog.loggers.etcd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[etcd].rotations
859	Syslog.loggers.etcd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[etcd].rotation_size_in_kb
860	Syslog.loggers.fdm.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[fdm].rotations
861	Syslog.loggers.fdm.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[fdm].rotation_size_in_kb
862	Syslog.loggers.gstored.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[gstored].rotations
863	Syslog.loggers.gstored.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[gstored].rotation_size_in_kb
864	Syslog.loggers.hbrsrv.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[hbrsrv].rotations
865	Syslog.loggers.hbrsrv.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[hbrsrv].rotation_size_in_kb
866	Syslog.loggers.healthd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[healthd].rotations
867	Syslog.loggers.healthd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[healthd].rotation_size_in_kb
868	Syslog.loggers.healthdPlugins.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[healthdPlugins].rotations
869	Syslog.loggers.healthdPlugins.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[healthdPlugins].rotation_size_in_kb
870	Syslog.loggers.hostd-probe.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[hostd-probe].rotations
871	Syslog.loggers.hostd-probe.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[hostd-probe].rotation_size_in_kb
872	Syslog.loggers.hostd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[hostd].rotations
873	Syslog.loggers.hostd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[hostd].rotation_size_in_kb
874	Syslog.loggers.hostdCgiServer.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[hostdCgiServer].rotations
875	Syslog.loggers.hostdCgiServer.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[hostdCgiServer].rotation_size_in_kb
876	Syslog.loggers.hostprofiletrace.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[hostprofiletrace].rotations
877	Syslog.loggers.hostprofiletrace.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[hostprofiletrace].rotation_size_in_kb
878	Syslog.loggers.infravisor.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[infravisor].rotations
879	Syslog.loggers.infravisor.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[infravisor].rotation_size_in_kb
880	Syslog.loggers.iofiltervpd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[iofiltervpd].rotations
881	Syslog.loggers.iofiltervpd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[iofiltervpd].rotation_size_in_kb
882	Syslog.loggers.ioinsight.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[ioinsight].rotations
883	Syslog.loggers.ioinsight.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[ioinsight].rotation_size_in_kb
884	Syslog.loggers.keypersist.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[keypersist].rotations
885	Syslog.loggers.keypersist.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[keypersist].rotation_size_in_kb
886	Syslog.loggers.kmxa.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[kmxa].rotations
887	Syslog.loggers.kmxa.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[kmxa].rotation_size_in_kb
888	Syslog.loggers.kmxd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[kmxd].rotations
889	Syslog.loggers.kmxd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[kmxd].rotation_size_in_kb
890	Syslog.loggers.lacp.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[lacp].rotations
891	Syslog.loggers.lacp.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[lacp].rotation_size_in_kb
892	Syslog.loggers.lifecycle.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[lifecycle].rotations
893	Syslog.loggers.lifecycle.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[lifecycle].rotation_size_in_kb
894	Syslog.loggers.loadESX.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[loadESX].rotations
895	Syslog.loggers.loadESX.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[loadESX].rotation_size_in_kb
896	Syslog.loggers.localcli.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[localcli].rotations
897	Syslog.loggers.localcli.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[localcli].rotation_size_in_kb
898	Syslog.loggers.metald.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[metald].rotations
899	Syslog.loggers.metald.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[metald].rotation_size_in_kb
900	Syslog.loggers.netsnmpd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[netsnmpd].rotations
901	Syslog.loggers.netsnmpd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[netsnmpd].rotations
902	Syslog.loggers.nfcd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[nfcd].rotations
903	Syslog.loggers.nfcd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[nfcd].rotation_size_in_kb
904	Syslog.loggers.nsx-idps-events.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[nsx-idps-events].rotations
905	Syslog.loggers.nsx-idps-events.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[nsx-idps-events].rotation_size_in_kb
906	Syslog.loggers.nsx-syslog.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[nsx-syslog].rotations
907	Syslog.loggers.nsx-syslog.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[nsx-syslog].rotation_size_in_kb
908	Syslog.loggers.nsxaVim.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[nsxaVim].rotations
909	Syslog.loggers.nsxaVim.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[nsxaVim].rotation_size_in_kb
910	Syslog.loggers.nsxdavim.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[nsxdavim].rotations
911	Syslog.loggers.nsxdavim.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[nsxdavim].rotation_size_in_kb
912	Syslog.loggers.nvmeauth.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[nvmeauth].rotations
913	Syslog.loggers.nvmeauth.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[nvmeauth].rotations
914	Syslog.loggers.opslldpvim.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[opslldpvim].rotations
915	Syslog.loggers.opslldpvim.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[opslldpvim].rotation_size_in_kb
916	Syslog.loggers.osfsd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[osfsd].rotations
917	Syslog.loggers.osfsd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[osfsd].rotation_size_in_kb
918	Syslog.loggers.rhttpproxy.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[rhttpproxy].rotations
919	Syslog.loggers.rhttpproxy.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[rhttpproxy].rotation_size_in_kb
920	Syslog.loggers.sandboxd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[sandboxd].rotations
921	Syslog.loggers.sandboxd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[sandboxd].rotation_size_in_kb
922	Syslog.loggers.sdrsInjector.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[sdrsInjector].rotations
923	Syslog.loggers.sdrsInjector.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[sdrsInjector].rotation_size_in_kb
924	Syslog.loggers.sensord.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[sensord].rotations
925	Syslog.loggers.sensord.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[sensord].rotation_size_in_kb
926	Syslog.loggers.settingsd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[settingsd].rotations
927	Syslog.loggers.settingsd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[settingsd].rotation_size_in_kb
928	Syslog.loggers.shell.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[shell].rotations
929	Syslog.loggers.shell.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[shell].rotation_size_in_kb
930	Syslog.loggers.sockrelay.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[sockrelay].rotations
931	Syslog.loggers.sockrelay.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[sockrelay].rotation_size_in_kb
932	Syslog.loggers.spherelet.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[spherelet].rotations
933	Syslog.loggers.spherelet.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[spherelet].rotation_size_in_kb
934	Syslog.loggers.storageRM.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[storageRM].rotations
935	Syslog.loggers.storageRM.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[storageRM].rotation_size_in_kb
936	Syslog.loggers.swapobjd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[swapobjd].rotations
937	Syslog.loggers.swapobjd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[swapobjd].rotation_size_in_kb
938	Syslog.loggers.syslog.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[syslog].rotations
939	Syslog.loggers.syslog.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[syslog].rotation_size_in_kb
940	Syslog.loggers.trx.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[trx].rotations
941	Syslog.loggers.trx.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[trx].rotation_size_in_kb
942	Syslog.loggers.upgrade-service-events.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[upgrade-service-events].rotations
943	Syslog.loggers.upgrade-service-events.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[upgrade-service-events].rotations
944	Syslog.loggers.usb.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[usb].rotations
945	Syslog.loggers.usb.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[usb].rotation_size_in_kb
946	Syslog.loggers.vbossd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vbossd].rotations
947	Syslog.loggers.vbossd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vbossd].rotations
948	Syslog.loggers.vdfs-proxy.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vdfs-proxy].rotations
949	Syslog.loggers.vdfs-proxy.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vdfs-proxy].rotation_size_in_kb
950	Syslog.loggers.vdfs-server.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vdfs-server].rotations
951	Syslog.loggers.vdfs-server.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vdfs-server].rotation_size_in_kb
952	Syslog.loggers.vds-vsipioctl.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vds-vsipioctl].rotations
953	Syslog.loggers.vds-vsipioctl.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vds-vsipioctl].rotation_size_in_kb
954	Syslog.loggers.vdtc.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vdtc].rotations
955	Syslog.loggers.vdtc.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vdtc].rotation_size_in_kb
956	Syslog.loggers.vitd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vitd].rotations
957	Syslog.loggers.vitd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vitd].rotation_size_in_kb
958	Syslog.loggers.vltd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vltd].rotations
959	Syslog.loggers.vltd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vltd].rotation_size_in_kb
960	Syslog.loggers.vmauthd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vmauthd].rotations
961	Syslog.loggers.vmauthd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vmauthd].rotation_size_in_kb
962	Syslog.loggers.vmkdevmgr.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vmkdevmgr].rotations
963	Syslog.loggers.vmkdevmgr.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vmkdevmgr].rotation_size_in_kb
964	Syslog.loggers.vmkernel.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vmkernel].rotations
965	Syslog.loggers.vmkernel.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vmkernel].rotation_size_in_kb
966	Syslog.loggers.vmkeventd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vmkeventd].rotations
967	Syslog.loggers.vmkeventd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vmkeventd].rotation_size_in_kb
968	Syslog.loggers.vmkmemstats.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vmkmemstats].rotations
969	Syslog.loggers.vmkmemstats.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vmkmemstats].rotation_size_in_kb
970	Syslog.loggers.vmksummary.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vmksummary].rotations
971	Syslog.loggers.vmksummary.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vmksummary].rotation_size_in_kb
972	Syslog.loggers.vmkwarning.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vmkwarning].rotations
973	Syslog.loggers.vmkwarning.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vmkwarning].rotation_size_in_kb
974	Syslog.loggers.vobd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vobd].rotations
975	Syslog.loggers.vobd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vobd].rotation_size_in_kb
976	Syslog.loggers.voma.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[voma].rotations
977	Syslog.loggers.voma.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[voma].rotations
978	Syslog.loggers.vprobe.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vprobe].rotations
979	Syslog.loggers.vprobe.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vprobe].rotation_size_in_kb
980	Syslog.loggers.vpxa.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vpxa].rotations
981	Syslog.loggers.vpxa.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vpxa].rotation_size_in_kb
982	Syslog.loggers.vsanEsxcli.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsanEsxcli].rotations
983	Syslog.loggers.vsanEsxcli.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsanEsxcli].rotation_size_in_kb
984	Syslog.loggers.vsananalyticsevents.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsananalyticsevents].rotations
985	Syslog.loggers.vsananalyticsevents.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsananalyticsevents].rotation_size_in_kb
986	Syslog.loggers.vsandevicemonitord.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsandevicemonitord].rotations
987	Syslog.loggers.vsandevicemonitord.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsandevicemonitord].rotation_size_in_kb
988	Syslog.loggers.vsanesxcmd.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsanesxcmd].rotations
989	Syslog.loggers.vsanesxcmd.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsanesxcmd].rotation_size_in_kb
990	Syslog.loggers.vsanfs.configdump.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsanfs.configdump].rotations
991	Syslog.loggers.vsanfs.configdump.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsanfs.configdump].rotation_size_in_kb
992	Syslog.loggers.vsanfs.mgmt.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsanfs.mgmt].rotations
993	Syslog.loggers.vsanfs.mgmt.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsanfs.mgmt].rotation_size_in_kb
994	Syslog.loggers.vsanfs.monitor.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsanfs.monitor].rotations
995	Syslog.loggers.vsanfs.monitor.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsanfs.monitor].rotation_size_in_kb
996	Syslog.loggers.vsanfs.vdfsop.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsanfs.vdfsop].rotations
997	Syslog.loggers.vsanfs.vdfsop.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsanfs.vdfsop].rotation_size_in_kb
998	Syslog.loggers.vsanmgmt.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsanmgmt].rotations
999	Syslog.loggers.vsanmgmt.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsanmgmt].rotation_size_in_kb
1000	Syslog.loggers.vsansystem.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsansystem].rotations
1001	Syslog.loggers.vsansystem.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsansystem].rotation_size_in_kb
1002	Syslog.loggers.vsantraceUrgent.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsantraceUrgent].rotations
1003	Syslog.loggers.vsantraceUrgent.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsantraceUrgent].rotation_size_in_kb
1004	Syslog.loggers.vsantraced.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsantraced].rotations
1005	Syslog.loggers.vsantraced.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsantraced].rotation_size_in_kb
1006	Syslog.loggers.vsantraced2.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vsantraced2].rotations
1007	Syslog.loggers.vsantraced2.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vsantraced2].rotations
1008	Syslog.loggers.vvold.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[vvold].rotations
1009	Syslog.loggers.vvold.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[vvold].rotation_size_in_kb
1010	Syslog.loggers.watchdog.rotate	Number of older log files to keep for this logger.	esx	syslog	logger_settings	[watchdog].rotations
1011	Syslog.loggers.watchdog.size	Size of each log file before switching to another for this logger (in KiB).	esx	syslog	logger_settings	[watchdog].rotation_size_in_kb
1012	USB.arbitratorAutoStartDisabled	Disable automatic start of USB Arbitrator. If set USB passthrough will not be available until USB arbitrator is started at the command line.	esx	advanced_options	USB	arbitrator_auto_start_disabled
1013	USB.devsShared	Enable sharing (aka non-exclusive claiming) of USB devices with specified vendor and model ids. 0x0 is a wild card model which matches all models from the specified vendor. The string must contain colon delimited numeric fields, respectively the vendor_id and product id. If the latter is omitted from the last pair it is assumed to be 0x0.	esx	advanced_options	USB	devs_shared
1014	USB.quirks	Additional USB device quirks to be added to the vmkusb native driver default quirks. Device quirks are software workarounds for hardware errata. String format is <vid>:<pid>:<low rev>:<high rev>:<quirk name>, with colon delimited fields. vid and pid are the \"usb id\" numbers for the USB device vendor and product, respectively (and e.g., 0x0e0f for vendor VMware), and low and high rev are the revisions (inclusive) between which to apply the quirk (e.g., 0 and 0xffff). Quirk name is a string constant starting with UQ_. Contact VMware support for a full list of valid quirk names.	esx	advanced_options	USB	quirks
1015	UserVars.ActiveDirectoryPreferredDomainControllers	Preferred Domain Controllers for Active Directory	esx	advanced_options	user_vars	ActiveDirectoryPreferredDomainControllers
1016	UserVars.ActiveDirectoryVerifyCAMCertificate	Enable or disable verification of SSL certificate for vSphere Authentication Proxy server	esx	advanced_options	user_vars	ActiveDirectoryVerifyCAMCertificate
1017	UserVars.AuditApiCallEnabled	This option controls the emission of the 'api.call' audit event. A reboot is required for this setting to take affect.	esx	advanced_options	user_vars	AuditApiCallEnabled
1018	UserVars.DcuiTimeOut	An idle time in seconds before DCUI is automatically logged out. Setting 0 disables the timeout.	esx	advanced_options	user_vars	DcuiTimeOut
1019	UserVars.ESXiShellInteractiveTimeOut	Idle time before an interactive shell is automatically logged out (in seconds, 0 disables). Takes effect only for newly logged in sessions.	esx	advanced_options	user_vars	ESXiShellInteractiveTimeOut
1020	UserVars.ESXiShellTimeOut	Time before automatically disabling local and remote shell access (in seconds, 0 disables). Takes effect after the services are restarted.	esx	advanced_options	user_vars	ESXiShellTimeOut
1021	UserVars.ESXiVPsAllowedCiphers	ESXi VPs allowed ciphers. List of allowed ciphers to be used by the VPs. Must be in the form accepted by the SSL_CTX_set_cipher_list API.	esx	advanced_options	user_vars	ESXiVPsAllowedCiphers
1022	UserVars.ESXiVPsDisabledProtocols	ESXi VPs disabled protocols (Deprecated). All protocols prior to tlsv1.2 are no longer supported and must remain disabled.	esx	advanced_options	user_vars	ESXiVPsDisabledProtocols
1023	UserVars.EsximageNetRateLimit	Set the maximum rate, in bytes/sec, for downloading VIBs (0=no limit)	esx	advanced_options	user_vars	EsximageNetRateLimit
1024	UserVars.EsximageNetRetries	Set the number of times to retry in case of failure while downloading VIBs	esx	advanced_options	user_vars	EsximageNetRetries
1025	UserVars.EsximageNetTimeout	Set the timeout in seconds for downloading VIBs (0=no timeout)	esx	advanced_options	user_vars	EsximageNetTimeout
1026	UserVars.HardwareHealthIgnoredSensors	List of comma-seperated sensor ID's to ignore for alarm generation.	esx	advanced_options	user_vars	HardwareHealthIgnoredSensors
1027	UserVars.HardwareHealthSyncTime	Interval in minutes for periodic synchronization of hardware sensor state with VC alarm state. Setting 0 disables synchronization.	esx	advanced_options	user_vars	HardwareHealthSyncTime
1028	UserVars.HostClientCEIPOptIn	Whether or not to opt-in for the Customer Experience Improvement Program in Host Client, 0 for ask, 1 for yes, 2 for no	esx	advanced_options	user_vars	HostClientCEIPOptIn
1029	UserVars.HostdStatsstoreRamdiskSize	Explicitly specify size for the ramdisk hostd uses to store stats (in megabytes, 0 default). Takes effect after hostd service is restarted.	esx	advanced_options	user_vars	HostdStatsstoreRamdiskSize
1030	UserVars.ProductLockerLocation	Path to VMware Tools and vSphere Client repository	esx	system	product_locker	path
1031	UserVars.SuppressCoredumpWarning	Do not show warning for disabled or unconfigured coredump target	esx	advanced_options	user_vars	SuppressCoredumpWarning
1032	UserVars.SuppressHyperthreadWarning	Do not show warning for potential security vulnerability due to hyperthreading	esx	advanced_options	user_vars	SuppressHyperthreadWarning
1033	UserVars.SuppressSgxAddPackageWarning	Do not show warning for SGX disabled due to the addition of a CPU package to the host.	esx	advanced_options	user_vars	SuppressSgxAddPackageWarning
1034	UserVars.SuppressSgxDisabledWarning	Do not show warning for SGX disabled due to Intel Errata CFW101.	esx	advanced_options	user_vars	SuppressSgxDisabledWarning
1035	UserVars.SuppressShellWarning	Do not show warning for enabled local and remote shell access	esx	advanced_options	user_vars	SuppressShellWarning
1036	UserVars.ToolsRamdisk	Use VMware Tools repository from /tools ramdisk.	esx	advanced_options	user_vars	ToolsRamdisk
1037	VFLASH.CacheStatsEnable	Vitual Flash Read Cache statistics enable ?	esx	advanced_options	VFLASH	cache_stats_enable
1038	VFLASH.CacheStatsFromVFC	Use cache statistics from virtual Flash Read Cache module ?	esx	advanced_options	VFLASH	cache_stats_from_VFC
1039	VFLASH.MaxCacheFileSizeMB	Maximum file size (in MB) of virtual Flash Read supported	esx	advanced_options	VFLASH	max_cache_file_size_MB
1040	VFLASH.MaxDiskFileSizeGB	Maximum supported disk size (in GB) with virtual Flash Read Cache configuration	esx	advanced_options	VFLASH	max_disk_file_size_GB
1041	VFLASH.MaxHeapSizeMB	Maximum size (in MB) to which the virtual flash heap is allowed to grow	esx	advanced_options	VFLASH	max_heap_size_MB
1042	VFLASH.MaxResourceGBForVmCache	Maximum supported virtual flash resource (in GB) to be allocated for VM caches	esx	services	hostd	plugins.hostsvc.vflash.maxv_flash_resource_GB_for_vm_cache
1043	VFLASH.ResourceUsageThreshold	Threshold (in percentage) of virtual flash resource usage	esx	services	hostd	plugins.hostsvc.vflash.v_flash_resource_usage_threshold
1044	VMFS.UnresolvedVolumeLiveCheck	Enable/disable liveliness check during unresolved volume query.	NA	NA	NA	NA
1045	VMFS3.EnableBlockDelete	Enable VMFS block delete when UNMAP is issued from guest OS	esx	advanced_options	VMFS3	enable_block_delete
1046	VMFS3.FailVolumeOpenIfAPD	Fail VMFS volume open operation if the underlying device is deemed to be under an all-paths-down condition	esx	advanced_options	VMFS3	fail_volume_open_if_APD
1047	VMFS3.GBLAllowMW	Enable support for more than 8 hosts using multi-writer mode locks on virtual-disks	esx	advanced_options	VMFS3	GBL_allow_MW
1048	VMFS3.HardwareAcceleratedLocking	Enable hardware accelerated VMFS locking (requires compliant hardware). Please see http://kb.vmware.com/kb/2094604 before disabling this option	esx	advanced_options	VMFS3	hardware_accelerated_locking
1049	VMFS3.LFBCSlabSizeMaxMB	Maximum size (in MB) to which the VMFS affinity manager cluster cache is allowed to grow.	esx	advanced_options	VMFS3	LFBC_slab_size_max_MB
1050	VMFS3.MaxAddressableSpaceTB	Maximum size of all open files that VMFS cache will support before eviction mechanisms kick in	esx	advanced_options	VMFS3	max_addressable_space_TB
1051	VMFS3.MaxHeapSizeMB	Maximum size (in MB) to which the VMFS heap is allowed to grow	esx	advanced_options	VMFS3	max_heap_size_MB
1052	VMFS3.MaxextendedTxnsUsingfs3Heap	Maximum number of extended transactions for which log space can be allocated from VMFS3 heap when the extendedTxnRegion is full	esx	advanced_options	VMFS3	max_extended_txns_using_fs3_heap
1053	VMFS3.MinAddressableSpaceTB	Minimum size of all open files that VMFS cache will support (guaranteed)	esx	advanced_options	VMFS3	min_addressable_space_TB
1054	VMFS3.OpenWithoutJournal	Open file system when out of space for journal allocation, allowing reads and no meta-data updates	esx	advanced_options	VMFS3	open_without_journal
1055	VMFS3.PBCapMissRatioIntervalSec	Frequency (in seconds) that the Capacity Miss Ratio is computed for the VMFS Pointer Block cache.	esx	advanced_options	VMFS3	PB_cap_miss_ratio_interval_sec
1056	VMFS3.StAtExclLockEnd	Generate Back Trace in FS3_EndIOExclusive	esx	advanced_options	VMFS3	st_at_excl_lock_end
1057	VMFS3.UseATSForHBOnVMFS5	Use ATS for Heartbeat on ATS supported VMFS5 volumes	esx	advanced_options	VMFS3	use_ATS_for_HB_on_VMFS5
1058	VMkernel.Boot.allowCoreDumpOnUsb	Enable/Disable creation of core dump file on USB devices.	esx	vmkernel	options	allow_core_dump_on_usb
1059	VMkernel.Boot.atsSupport	Enable/Disable PCIe Address Translation Services	esx	vmkernel	options	ats_support
1060	VMkernel.Boot.autoCreateDumpFile	If enabled and if no suitable dump partition or dump file exists, create a dump file.	esx	vmkernel	options	auto_create_dump_file
1061	VMkernel.Boot.autoPartition	Enable/Disable auto-partitioning of empty local disks.	esx	vmkernel	options	auto_partition
1062	VMkernel.Boot.autoPartitionCreateUSBCoreDumpPartition	Enable/Disable auto-partitioning of core dump partition for USB boot devices. Requires that autoPartition is set to TRUE as well.	esx	vmkernel	options	auto_partition_create_USB_core_dump_partition
1063	VMkernel.Boot.autoPartitionDiskDumpPartitionSize	Disk dump partition size in MB that gets configured during the auto-partition process.	esx	vmkernel	options	auto_partition_disk_dump_partition_size
1064	VMkernel.Boot.bootDeviceRescanTimeout	Boot device rescan timeout (in minutes).	esx	vmkernel	options	boot_device_rescan_timeout
1065	VMkernel.Boot.busSpeedMayVary	Allow different APIC timer speeds on different CPUs.	esx	vmkernel	options	bus_speed_may_vary
1066	VMkernel.Boot.cacheFlushImmOnAllHalt	Flush caches immediately if all cores sharing LLC halt (AMD only)	esx	vmkernel	options	cache_flush_imm_on_all_halt
1067	VMkernel.Boot.checkCPUIDLimit	Refuse to run on CPUID limited cpus.	esx	vmkernel	options	check_CPUID_limit
1068	VMkernel.Boot.checkPages	Check that free and free-lpage-pool pages are not corrupted.	esx	vmkernel	options	check_pages
1069	VMkernel.Boot.com1_baud	Baud rate for COM1 (0 -> automatic)	esx	vmkernel	options	com1_baud
1070	VMkernel.Boot.com2_baud	Baud rate for COM2 (0 -> automatic)	esx	vmkernel	options	com2_baud
1071	VMkernel.Boot.debugBreak	Break into debugger during vmkernel initialization.	esx	vmkernel	options	debug_break
1072	VMkernel.Boot.debugLogToSerial	0=Serial debug logging off, 1=Serial debug logging on, 2=Defer to config option DebugLogToSerial.	esx	vmkernel	options	debug_log_to_serial
1073	VMkernel.Boot.deviceBindParallel	Enable parallel binding of devices across drivers in the device manager.	esx	vmkernel	options	device_bind_parallel
1074	VMkernel.Boot.disableACSCheck	Bypass ACS capability checks on all PCIE devices	esx	vmkernel	options	disable_ACS_check
1075	VMkernel.Boot.disableCFOH	Disable Cache Flush on Halt	esx	vmkernel	options	disable_CFOH
1076	VMkernel.Boot.disableHwrng	Disable hardware random number generator (RDRAND, RDSEED). Overrides VMkernel.Boot.entropySources.	esx	vmkernel	options	disable_hwrng
1077	VMkernel.Boot.diskDumpSlotSize	Disk dump slot size in MB. 0 = automatically sized, otherwise requested size >= 100 MB.	esx	vmkernel	options	disk_dump_slot_size
1078	VMkernel.Boot.dmaEngineExposeIdentityMapping	Whether to expose whether DMA engines do identity mapping.	esx	vmkernel	options	dma_engine_expose_identity_mapping
1079	VMkernel.Boot.dmaMapperPolicy	DMA mapping policy to use.	esx	vmkernel	options	dma_mapper_policy
1080	VMkernel.Boot.dumpSize	Maximum core dump file size in MB. Used for automatic core dump file creation. 0 = automatically sized.	esx	vmkernel	options	dump_size
1081	VMkernel.Boot.earlyUWDumpEnabled	Enable Userworld Coredumps during boot.	esx	vmkernel	options	early_UW_dump_enabled
1082	VMkernel.Boot.enableACSCheckForRP	Enable ACS capability checks for Root Port	esx	vmkernel	options	enable_ACS_check_for_RP
1083	VMkernel.Boot.enableACSDTP2P	Enable/Disable ACS Direct translated P2P	esx	vmkernel	options	enable_ACSDT_p2p
1084	VMkernel.Boot.enableSMAP	Configures the behavior of Supervisor Mode Access Prevention (SMAP). 0=disabled, 1=enabled (panic on fault), 2=warn on fault.	esx	vmkernel	options	enable_SMAP
1085	VMkernel.Boot.enableSkinit	Enable AMD SKINIT trusted launch if ESXi supports it on this CPU.	esx	vmkernel	options	enable_skinit
1086	VMkernel.Boot.ensMbufPoolMaxMBPerGB	Maximum MB of ENS mbuf pool to be allocated per GB of physical memory. Maximum value for this setting is 512. ENS mbuf pool maximum per system will be at least 656MB.	esx	vmkernel	options	ens_mbuf_pool_max_MB_per_GB
1087	VMkernel.Boot.ensMbufPoolMaxMinMB	Upper limit of ENS mbuf pool minimum per system in MB.	esx	vmkernel	options	ens_mbuf_pool_max_min_MB
1088	VMkernel.Boot.ensMbufPoolMinMBPerGB	Minimum MB of ENS mbuf pool to be allocated per GB of physical memory.	esx	vmkernel	options	ens_mbuf_pool_min_MB_per_GB
1089	VMkernel.Boot.entropySources	Which entropy sources to enable. 0=defaults, otherwise bitmask values: 1=interrupts, 2=RDRAND, 4=RDSEED, 8=entropyd. If RDSEED is supported, the default is FIPS compliance. Otherwise the default is all entropy sources except entropyd.	esx	vmkernel	options	entropy_sources
1090	VMkernel.Boot.execInstalledOnly	Execute only those files that have been installed via a vib package and have not been modified.	esx	vmkernel	options	exec_installed_only
1091	VMkernel.Boot.fakePMemPct	Amount of fake persistent memory (in pct of all volatile memory)	esx	vmkernel	options	fake_pmem_pct
1092	VMkernel.Boot.forceHyperthreadingMitigation	Restrict the simultaneous use of logical processors from the same hyperthreaded core regardless of detected security vulnerabilities.	esx	vmkernel	options	force_hyperthreading_mitigation
1093	VMkernel.Boot.fsCheck	Run filesystem checks on system partitions.	esx	vmkernel	options	fs_check
1094	VMkernel.Boot.gdbPort	gdb port; com1 or com2	esx	vmkernel	options	gdb_port
1095	VMkernel.Boot.heapCheckTimerInterval	Interval in seconds between heap timer checks	esx	vmkernel	options	heap_check_timer_interval
1096	VMkernel.Boot.heapFreePoisonByte	Byte pattern used to poison freed memory	esx	vmkernel	options	heap_free_poison_byte
1097	VMkernel.Boot.heapMetaPoisonByte	Byte pattern used to poison red zones for allocations	esx	vmkernel	options	heap_meta_poison_byte
1098	VMkernel.Boot.heapMetadataProtect	Use poisoned red zones to protect against under/overruns	esx	vmkernel	options	heap_metadata_protect
1099	VMkernel.Boot.heapPoisonFreeMem	Poison free memory to catch use after free bugs	esx	vmkernel	options	heap_poison_free_mem
1100	VMkernel.Boot.heapPoisonPaddingBytes	Number of additional poisoned red zone bytes for allocations	esx	vmkernel	options	heap_poison_padding_bytes
1101	VMkernel.Boot.heapPoisonTimerChecks	Check heap poisoned areas for corruption on regular intervals	esx	vmkernel	options	heap_poison_timer_checks
1102	VMkernel.Boot.hyperthreading	Enable hyperthreading if available.	esx	vmkernel	options	hyperthreading
1103	VMkernel.Boot.hyperthreadingMitigation	Restrict the simultaneous use of logical processors from the same hyperthreaded core as necessary to mitigate a security vulnerability.	esx	vmkernel	options	hyperthreading_mitigation
1104	VMkernel.Boot.hyperthreadingMitigationIntraVM	Restrict the simultaneous use of logical processors from the same hyperthreaded core as necessary to mitigate a security vulnerability within a single VM.	esx	vmkernel	options	hyperthreading_mitigation_intra_VM
1105	VMkernel.Boot.ignoreMsrFaults	Ignore general protection faults as a result of rdmsr and wrmsr instructions	esx	vmkernel	options	ignore_msr_faults
1106	VMkernel.Boot.inputPassthru	Pass HID input devices through to user worlds via character device	esx	vmkernel	options	input_passthru
1107	VMkernel.Boot.intrBalancingEnabled	Indicates if interrupt balancing is enabled.	esx	vmkernel	options	intr_balancing_enabled
1108	VMkernel.Boot.ioAbilityChecks	Enforce checking of whether regions can be DMA mapped.	esx	vmkernel	options	io_ability_checks
1109	VMkernel.Boot.iovDisableIR	Disable Interrupt Remapping in the IOMMU.	esx	vmkernel	options	iov_disable_IR
1110	VMkernel.Boot.iovEnablePostedIntr	Enable support for posted interrupts in the IOMMU.	esx	vmkernel	options	iov_enable_posted_intr
1111	VMkernel.Boot.ipmiEnabled	Enable IPMI	esx	vmkernel	options	ipmi_enabled
1112	VMkernel.Boot.isPerFileSchedModelActive	Enable per file scheduling model on this host	esx	vmkernel	options	is_per_file_sched_model_active
1113	VMkernel.Boot.kbddev	Enable VMkernel char driver interface between host keyboard and Guest	esx	vmkernel	options	kbddev
1114	VMkernel.Boot.leaveWakeGPEsDisabled	Disallow a wake GPE from also being a runtime GPE	esx	vmkernel	options	leave_wake_GPEs_disabled
1115	VMkernel.Boot.logEFILevel	Log level for LogEFI.	esx	vmkernel	options	logEFI_level
1116	VMkernel.Boot.logPort	Serial port to enable for logging; com1 or com2	esx	vmkernel	options	log_port
1117	VMkernel.Boot.maxLogEntries	Size of the kernel log buffer in 256-byte lines. 0=Use default. Min is 1024. Max is 32768.	esx	vmkernel	options	max_log_entries
1118	VMkernel.Boot.maxPCPUS	Number of PCPUs vmkernel should use.	esx	vmkernel	options	max_PCPUS
1119	VMkernel.Boot.maxPCPUsNUMAInterleaving	Enable NUMA-node interleaving of enabled PCPUs.	esx	vmkernel	options	max_PCPUs_NUMA_interleaving
1120	VMkernel.Boot.maxVMs	Max number of VMs VMKernel should support. 0 == determine at runtime	esx	vmkernel	options	max_VMs
1121	VMkernel.Boot.memCheckEveryWord	Check every single word when checking mem.	esx	vmkernel	options	mem_check_every_word
1122	VMkernel.Boot.memLowReservedMB	Amount of low memory (< 4 GB) which gets reserved. 0 == determine at runtime	esx	vmkernel	options	mem_low_reserved_MB
1123	VMkernel.Boot.memmapMaxEarlyPoisonMemMB	Memory that should be poisoned during early initialization.	esx	vmkernel	options	memmap_max_early_poison_mem_MB
1124	VMkernel.Boot.memmapMaxPhysicalMemMB	Maximum physical memory (in MB) addressable by kernel, used to calculate the cut-off MPN, when added to the first valid memory MPN.	esx	vmkernel	options	memmap_max_physical_mem_MB
1125	VMkernel.Boot.memmapMaxRAMMB	Maximum conventional memory (RAM) supported on the system. Additional RAM above this limit will not be used by the system.	esx	vmkernel	options	memmap_max_RAM_MB
1126	VMkernel.Boot.memoryTiering	Enable Memory Tiering	esx	vmkernel	options	memory_tiering
1127	VMkernel.Boot.microcodeUpdate	Update microcode from boot module if available	esx	vmkernel	options	microcode_update
1128	VMkernel.Boot.microcodeUpdateForce	Disable check that microcode update is newer than installed microcode and that both are released versions	esx	vmkernel	options	microcode_update_force
1129	VMkernel.Boot.netCoalesceTimerHdlrPcpu	Pcpu that coalesce timeout handler runs on.	esx	vmkernel	options	net_coalesce_timer_hdlr_pcpu
1130	VMkernel.Boot.netGPHeapMaxMBPerGB	Maximum MB of the general purpose networking heap to be allocated per GB of physical memory.	esx	vmkernel	options	net_GP_heap_max_MB_per_GB
1131	VMkernel.Boot.netMaxPktsToProcess	Maximum number of packets to process in each invocation packet processing routine	esx	vmkernel	options	net_max_pkts_to_process
1132	VMkernel.Boot.netMaxPktsToRelease	Maximum number of packets to release in each invocation packet releasing routine	esx	vmkernel	options	net_max_pkts_to_release
1133	VMkernel.Boot.netNetqueueEnabled	Enable/Disable NetQueue support.	esx	vmkernel	options	net_netqueue_enabled
1134	VMkernel.Boot.netNetqueueEnblSwlroWithPnicHwlro	Enable/Disable SWLRO for PNIC with HWLRO. Requires REBOOT.	esx	vmkernel	options	net_netqueue_enbl_swlro_with_pnic_hwlro
1135	VMkernel.Boot.netNetqueueMaxFiltersPerUplink	Maximum number of netqueue filters for Uplink. Maximum value for this setting is 32768. Requires REBOOT.	esx	vmkernel	options	net_netqueue_max_filters_per_uplink
1136	VMkernel.Boot.netNetqueueMaxLearnedFilters	Maximum number of hostwide netqueue learned filters. Maximum value for this setting is 16384. Requires REBOOT.	esx	vmkernel	options	net_netqueue_max_learned_filters
1137	VMkernel.Boot.netNetqueueMaxStaticFilters	Maximum number of hostwide netqueue static filters. Maximum value for this setting is 16384. Requires REBOOT.	esx	vmkernel	options	net_netqueue_max_static_filters
1138	VMkernel.Boot.netNetqueuePortFeatInheritance	Enable/Disable Inheritance of queue feature of port filter for learned mac filter's. Requires REBOOT.	esx	vmkernel	options	net_netqueue_port_feat_inheritance
1139	VMkernel.Boot.netPagePoolLimitCap	Maximum number of pages period for the packet page pool.	esx	vmkernel	options	net_page_pool_limit_cap
1140	VMkernel.Boot.netPagePoolLimitPerGB	Maximum number of pages for the packet page pool per gigabyte.	esx	vmkernel	options	net_page_pool_limit_per_GB
1141	VMkernel.Boot.netPagePoolResvCap	Maximum number of pages to reserve for the packet page pool.	esx	vmkernel	options	net_page_pool_resv_cap
1142	VMkernel.Boot.netPagePoolResvPerGB	Number of pages to reserve for the packet page pool per gigabyte.	esx	vmkernel	options	net_page_pool_resv_per_GB
1143	VMkernel.Boot.netPktHeapMaxMBPerGB	Maximum MB of low-memory packet heap to be allocated per GB of physical memory. Maximum value for this setting is 512.	esx	vmkernel	options	net_pkt_heap_max_MB_per_GB
1144	VMkernel.Boot.netPktHeapMinMBPerGB	Minimum MB of low-memory packet heap to be allocated per GB of physical memory. Maximum value for this setting is 512.	esx	vmkernel	options	net_pkt_heap_min_MB_per_GB
1145	VMkernel.Boot.netPktJumboSlabMinSize	Minimum size of packet jumbo frame slab in MB	esx	vmkernel	options	net_pkt_jumbo_slab_min_size
1146	VMkernel.Boot.netPktPoolMaxMBPerGB	Maximum MB of networking packet buffer pool to be allocated per GB of physical memory. Maximum value for this setting is 512. Net packet pool maximum per system will be at least 656MB.	esx	vmkernel	options	net_pkt_pool_max_MB_per_GB
1147	VMkernel.Boot.netPktPoolMinMBPerGB	Minimum MB of networking packet buffer pool to be allocated per GB of physical memory (multiple of 24)	esx	vmkernel	options	net_pkt_pool_min_MB_per_GB
1148	VMkernel.Boot.netPreemptionEnabled	Enable/disable preemption support in overall networking area	esx	vmkernel	options	net_preemption_enabled
1149	VMkernel.Boot.nmiAction	Action on hardware generated NMI: 0=default (panic, unless changed by advanced config option), 1=enter debugger, 2=panic, 3=log and ignore (not recommended), 4=log and ignore if undiagnosed	esx	vmkernel	options	nmi_action
1150	VMkernel.Boot.numSpareCoresPerLLC	Number of spare cores reserved at boot time per last-level cache (LLC)	esx	vmkernel	options	num_spare_cores_per_LLC
1151	VMkernel.Boot.numaLatencyRemoteThresholdPct	Maximum measured memory access latency difference (in percent units) between 2 pairs of NUMA nodes for the pairs to be considered equidistant	esx	vmkernel	options	numa_latency_remote_threshold_pct
1152	VMkernel.Boot.overrideDuplicateImageDetection	Override duplicate ESXi image detection	esx	vmkernel	options	override_duplicate_image_detection
1153	VMkernel.Boot.pciBarAllocPolicy	PCI BAR allocation policy; 0=first-fit, 1=smallest-fit, 2=BAR-fit	esx	vmkernel	options	pci_bar_alloc_policy
1154	VMkernel.Boot.pcipDisablePciErrReporting	Disable error reporting for PCI passthru devices.	esx	vmkernel	options	pcip_disable_pci_err_reporting
1155	VMkernel.Boot.poisonMarker	Value used to poison memmap pages	esx	vmkernel	options	poison_marker
1156	VMkernel.Boot.poisonPagePool	Poison memmap pages	esx	vmkernel	options	poison_page_pool
1157	VMkernel.Boot.preventFreePageMapping	Prevent mapping of free pages	esx	vmkernel	options	prevent_free_page_mapping
1158	VMkernel.Boot.rdmaRoceIPBasedGidGeneration	Use the new IP-based GID generation for RoCE.	esx	vmkernel	options	rdma_roce_IP_based_gid_generation
1159	VMkernel.Boot.rdmaUseTeamingPolicy	Use teaming policy for rdma connection.	esx	vmkernel	options	rdma_use_teaming_policy
1160	VMkernel.Boot.rtcEnableEFI	Enable UEFI Runtime Services as real time clock	esx	vmkernel	options	rtc_enable_EFI
1161	VMkernel.Boot.rtcEnableLegacy	Enable legacy CMOS device as real time clock	esx	vmkernel	options	rtc_enable_legacy
1162	VMkernel.Boot.rtcEnableLegacyForce	Enable legacy CMOS device as real time clock even if FADT has the CMOS RTC Not Present flag set	esx	vmkernel	options	rtc_enable_legacy_force
1163	VMkernel.Boot.rtcEnableTAD	Enable ACPI 5.0 Time and Alarm Device as real time clock	esx	vmkernel	options	rtc_enable_TAD
1164	VMkernel.Boot.scrubIgnoredPages	Check pages that were ignored due to vmbIgnoreStartMPN and vmbIgnoreNumMPNs boot options.	esx	vmkernel	options	scrub_ignored_pages
1165	VMkernel.Boot.scrubMemoryAfterModuleLoad	Check all memory after each module load. This causes booting to be very slow.	esx	vmkernel	options	scrub_memory_after_module_load
1166	VMkernel.Boot.serialUntrusted	Disable serial port if UART misbehaves.	esx	vmkernel	options	serial_untrusted
1167	VMkernel.Boot.skipPartitioningSsds	If enabled, skip auto-partitioning of empty local SSDs.	esx	vmkernel	options	skip_partitioning_ssds
1168	VMkernel.Boot.storAdptrMultCplWrldsPerNuma	Pcpu Based multiple adapter completion worlds per Numa	esx	vmkernel	options	stor_adptr_mult_cpl_wrlds_per_numa
1169	VMkernel.Boot.storageEnablePrpAtPsa	Enable NVMe PRP handling in PSA	esx	vmkernel	options	storage_enable_prp_at_psa
1170	VMkernel.Boot.storageHeapMaxSize	Maximum size in bytes of the main storage heap	esx	vmkernel	options	storage_heap_max_size
1171	VMkernel.Boot.storageHeapMinSize	Minimum size in bytes of the main storage heap	esx	vmkernel	options	storage_heap_min_size
1172	VMkernel.Boot.storageMaxDevices	Maximum number of supported SCSI devices	esx	vmkernel	options	storage_max_devices
1173	VMkernel.Boot.storageMaxPaths	Maximum number of supported SCSI paths	esx	vmkernel	options	storage_max_paths
1174	VMkernel.Boot.storageMaxVMsPerDevice	Maximum number of VMs expected to use a given device	esx	vmkernel	options	storage_max_VMs_per_device
1175	VMkernel.Boot.systemStorageFailureMonitoringEnabled	Enable system storage device failure monitoring.	esx	vmkernel	options	system_storage_failure_monitoring_enabled
1176	VMkernel.Boot.terminateVMOnPDL	Terminate virtual machine on permanent loss of storage	esx	vmkernel	options	terminate_VM_on_PDL
1177	VMkernel.Boot.tscSpeedMayVary	Allow different TSC speeds on different CPUs.	esx	vmkernel	options	tsc_speed_may_vary
1178	VMkernel.Boot.tty1Port	TTY1 port; com1, com2 ... to enable	esx	vmkernel	options	tty1_port
1179	VMkernel.Boot.tty2Port	TTY2 port; com1, com2 ... to enable	esx	vmkernel	options	tty2_port
1180	VMkernel.Boot.updateBusIRQ	Allow adding/removing busIRQ information	esx	vmkernel	options	update_bus_IRQ
1181	VMkernel.Boot.useHWP	Use Intel Hardware P-states if available for ESXi power management. If set to FALSE, use legacy P-states if available. This option is supported on Intel Sapphire Rapids onward.	esx	vmkernel	options	use_HWP
1182	VMkernel.Boot.useNUMAInfo	Enable/disable NUMA-ness	esx	vmkernel	options	use_NUMA_info
1183	VMkernel.Boot.useReliableMem	System is aware of reliable memory.	esx	vmkernel	options	use_reliable_mem
1184	VMkernel.Boot.useSLIT	Use NUMA latency information from the SLIT table if available	esx	vmkernel	options	use_SLIT
1185	VMkernel.Boot.vga	Enable/Disable VGA support	esx	vmkernel	options	vga
1186	VMkernel.Boot.visorfsSwap	Enable VisorFS swap if the system matches the required criteria (auto)	esx	vmkernel	options	visorfs_swap
1187	VMkernel.Boot.vmkATKeyboard	Enable VMkernel AT keyboard driver.	esx	vmkernel	options	vmk_AT_keyboard
1188	VMkernel.Boot.vmmrEnable	Enable/Disable vmmr, vmkernel monitoring of x86 host-wide and per-vm stats. 0=Disable, 1=Enable	esx	vmkernel	options	vmmr_enable
1189	VMkernel.Boot.vtdSuperPages	Enable support for VT-d Super Pages (aka 2MB, 1GB large pages); super-page usage is dependent on this option as well as hardware support.	esx	vmkernel	options	vtd_super_pages
1190	VMkernel.Boot.x2ApicPreferred	Use x2APIC if available, even with less than 256 cpus.	esx	vmkernel	options	x2_apic_preferred
1191	VSAN-iSCSI.iscsiPingTimeout	Interval between ping (NOP-Out) requests, in seconds	vsan	advanced_options	VSAN_iSCSI	iscsi_ping_timeout
1192	VSAN.DomBriefIoTraces	Enables a brief set of per-IO DOM traces for debugging	vsan	advanced_options	VSAN	dom_brief_io_traces
1193	VSAN.DomFullIoTraces	Enables the full set of per-IO DOM traces for debugging	vsan	advanced_options	VSAN	dom_full_io_traces
1194	VSAN.DomLongOpTraceMS	Trace ops that take more than the specified value in milliseconds	vsan	advanced_options	VSAN	dom_long_op_trace_MS
1195	VSAN.DomLongOpUrgentTraceMS	Urgent trace ops that take more than the specified value in milliseconds	vsan	advanced_options	VSAN	dom_long_op_urgent_trace_MS
1196	VSAN.ObjectScrubsPerYear	Option to set the scrubbing rate as scrubs-per-year	vsan	advanced_options	VSAN	object_scrubs_per_year
1197	VSAN.ObjectScrubsPerYearBase	Maximum scrubs-per-year of an object for disk group utilization based scrubbing.	vsan	advanced_options	VSAN	object_scrubs_per_year_base
1198	VSAN.RDTChecksumMode	Checksum mode for RDT-level checksum	vsan	advanced_options	VSAN	RDT_checksum_mode
1199	VSAN.TraceEnableCmmds	Enables tracing for vSAN CMMDS and CMMDSResolver components	vsan	advanced_options	VSAN	trace_enable_cmmds
1200	VSAN.TraceEnableDom	Enables tracing for vSAN DOM component	vsan	advanced_options	VSAN	trace_enable_dom
1201	VSAN.TraceEnableDomIo	Enables tracing for vSAN DOMIO component	vsan	advanced_options	VSAN	trace_enable_dom_io
1202	VSAN.TraceEnableRdt	Enables tracing for vSAN RDT component	vsan	advanced_options	VSAN	trace_enable_rdt
1203	VSAN.TraceEnableVsanSparse	Enables tracing for VsanSparse FDS operations	vsan	advanced_options	VSAN	trace_enable_vsan_sparse
1204	VSAN.TraceEnableVsanSparseIO	Enables tracing for VsanSparse I/O operations	vsan	advanced_options	VSAN	trace_enable_vsan_sparse_IO
1205	VSAN.TraceEnableVsanSparseVerbose	Enables tracing for details of VsanSparse I/O operations	vsan	advanced_options	VSAN	trace_enable_vsan_sparse_verbose
1206	VVOL.allowLegacyCiphers	Allow vVOL daemon to use legacy cipher for TLS communication with VASA Provider [Warning: Non-PFS ciphers!]	esx	advanced_options	VVOL	allow_legacy_ciphers
1207	VVOL.vvolConcurrentBatchUnbind	Number of concurrent batch unbind requests	esx	advanced_options	VVOL	vvol_concurrent_batch_unbind
1208	VVOL.vvolMaxRBZRetries	Maximum number of times RBZ is retried during Rebind	esx	advanced_options	VVOL	vvol_max_RBZ_retries
1209	VVOL.vvolSpaceStatsCacheSize	Size of the swap VVOL cache in (must be <= 1024) VVOLD	esx	advanced_options	VVOL	vvol_space_stats_cache_size
1210	VVOL.vvolSwapFilePersist	Disable deletion of swap file on vVol datastore when the VM powers off (1 to disable).	esx	advanced_options	VVOL	vvol_swap_file_persist
1211	VVOL.vvolUnbindBatchSize	Batch size for the Batch unbinding for VVOLs	esx	advanced_options	VVOL	vvol_unbind_batch_size
1212	XvMotion.VMFSOptimizations	Enable VMFS-specific IO optimizations	esx	advanced_options	xvmotion	VMFS_optimizations
