Users are getting "Maximum number of archive layers exceeded" ICAP scanning error page

Products

• CAS-VA
• Content Analysis Software
• ISG Content Analysis

Issue/Introduction

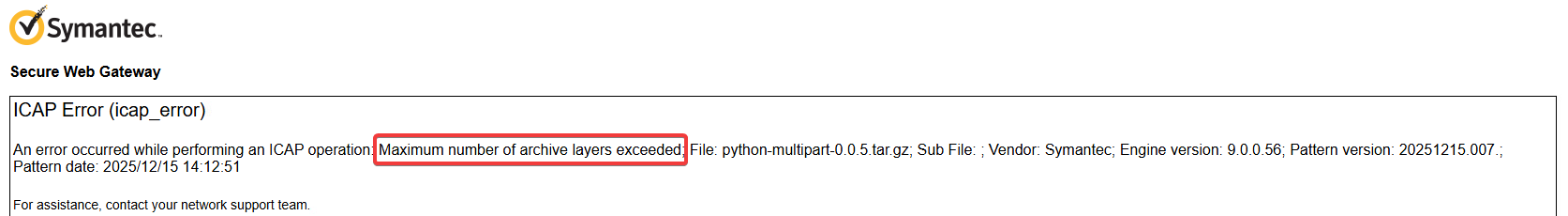

Users report that a file download attempt results in the proxy ICAP error "Maximum number of archive layers exceeded". A sample error page is below:

Environment

- Users access Internet via an Edge SWG appliance

- Edge SWG appliance is set to send HTTP response for scanning to a CAS appliance via ICAP

Cause

Requested file is an archive with number of nested layers/nested archives higher than configured in the CAS AV Scanning Behavior settings. By default CAS allows up to 16 nested layers in archives.

Resolution

There are a few options available:

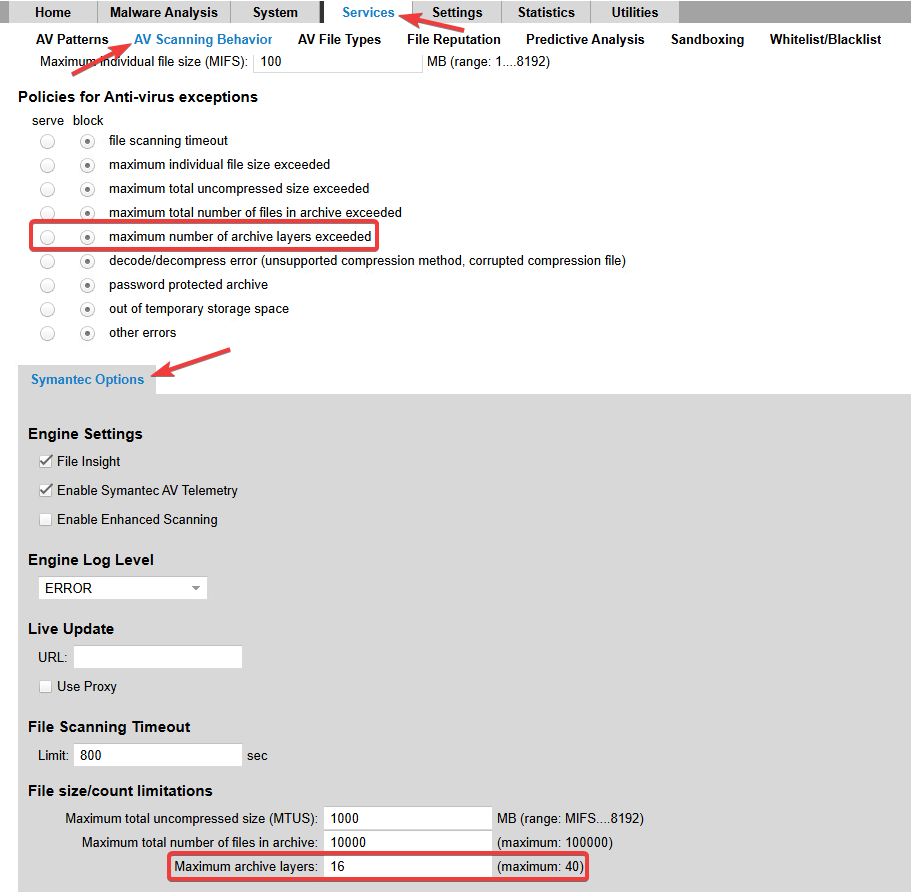

1. Check current Maximum archive layers value in the CAS GUI (Services -> AV Scanning Behavior -> at the bottom if the page under AV engine option tab). By default it is set to 16 and can be increased up to 40 if required.
2. Change policy for AV exceptions action for maximum number of archive layers exceeded exception from block to serve. Note: this will allow any archive with number of archive layers higher than configured to be served unscanned.
3. Exclude file or URL with the error from ICAP response scanning in the Edge SWG policy
