Usage Meter 9.x: "FIPS is not configured correctly on the appliance" displayed in Security tab

Products

• VMware Usage Meter

Issue/Introduction

Symptoms:

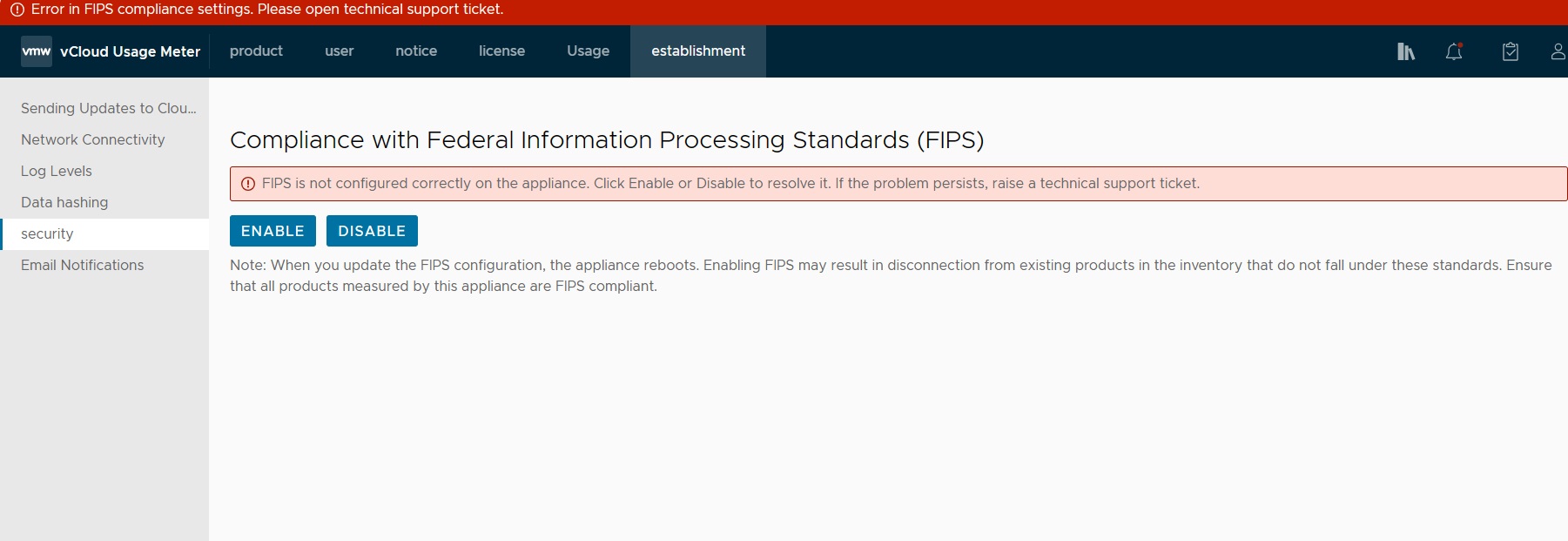

• Following message is displayed on security tab in Usage Meter UI

FIPS is not configured correctly on the appliance. Click Enable or Disable to resolve it. If the problem persists, raise a technical support ticket.

• Clicking "ENABLE" and "DISABLE" does not work
• locale command  shows non-default code like below

root@###### [ /home/usagemeter ]# locale
LANG=ja_JP.utf8
LC_CTYPE="ja_JP.utf8"
LC_NUMERIC="ja_JP.utf8"
LC_TIME="ja_JP.utf8"
LC_COLLATE="ja_JP.utf8"
LC_MONETARY="ja_JP.utf8"
LC_MESSAGES="ja_JP.utf8"
LC_PAPER="ja_JP.utf8"
LC_NAME="ja_JP.utf8"
LC_ADDRESS="ja_JP.utf8"
LC_TELEPHONE="ja_JP.utf8"
LC_MEASUREMENT="ja_JP.utf8"
LC_IDENTIFICATION="ja_JP.utf8"
LC_ALL=

Environment

VCF Usage Meter 9.x

Cause

Changing locale causes the issue. Usage Meter does not support changing locale configuration. See more details in "Changing the locale is not supported in Usage Meter".

Resolution

To workaround the issue, follow the steps below:

1. log in appliance via SSH as usagemeter
2. run following command and confirmed locale configuration is not default settings

locale



3. run following to disable FIPS mode (this command will reboot appliance automatically)

/opt/vmware/cloudusagemetering/scripts/fips-util.sh -fr off



4. log in appliance via SSH as usagemeter

5. backup get-keystore-type.sh file

cp /opt/vmware/cloudusagemetering/scripts/get-keystore-type.sh /opt/vmware/cloudusagemetering/scripts/get-keystore-type.sh.bak



6. vi get-keystore-type.sh and add "export LC_ALL=C" as below

get-keystore-type.sh
---------------------------------
provider="org.bouncycastle.jcajce.provider.BouncyCastleFipsProvider"
provider_details="-providerclass ${provider} -providerpath ${provider_path}"

export LC_ALL=C    /* <<== add this line */

if
---------------------------------

7. save the file by :wq

8. run following command to enable FIPS mode (this command will reboot appliance automatically)

/opt/vmware/cloudusagemetering/scripts/fips-util.sh -fr on
