Determining SSD LED States and Slot Locations on the S620 Appliance

Products

• SSP-S620 PLATFORM

Issue/Introduction

This article explains how to identify SSD LED indicators and slot positions on the S620 appliance for troubleshooting and management.

The S620 appliance utilizes colored SSD LEDs to indicate various drive states. Understanding these indicators and the corresponding slot locations is essential for troubleshooting and hardware management.

Resolution

SSD LED

Off: No Disk

Solid Amber: Disk Offline/Fault

Solid Blue: Disk Present/Powered

Blinking Blue (4Hz): Disk Activity

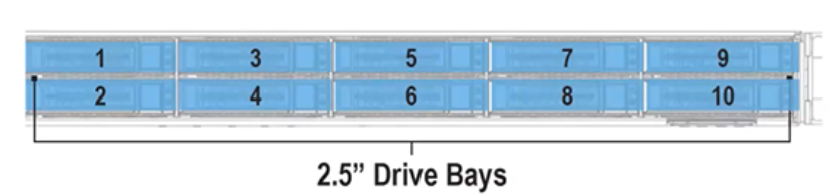

SSD Slot Location
