Issue/Introduction

During installation of OSIM ImageX Windows 11 24H2, canet.exe command executed in oobecustom.cmd is not working.
This command is used to set the administrator password and join the domain.

Environment

Client Automation 14.5 CU7 + Patch 99112377 (Client Automation OSIM Certification 14.5 CU7 - Windows 11 24H2)

Cause

canet.exe (version 14.5.0.227) present in C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst is not compatible with cbbcore.dll and libcapki DLL present in winamd64cbb.caz

Example :

On a Windows 11 24H2 installed, canet.exe returns error
The application was unable to start correctly (0xc000007b)

Resolution

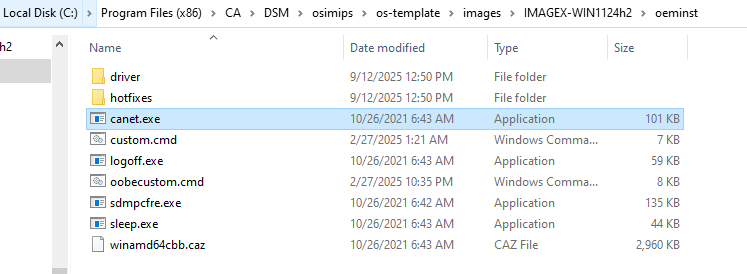

1.  Open a cmd prompt and go in directory C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst
   cd "C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst"


2. Execute following command :
   mkdir cbb\CAPKI5\Windows\x86\32\lib

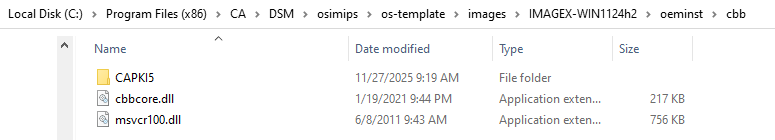

3. In directory "C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst\cbb" copy the file C:\Program Files (x86)\CA\SC\CBB\cbbcore.dll


4. In directory "C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst\cbb" copy the file C:\Program Files (x86)\CA\DSM\bin\msvcr100.dll




5. In directory "C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst\cbb\CAPKI5\Windows\x86\32\lib" copy the 5 libca* files from C:\Program Files (x86)\CA\SC\CAPKI\CAPKI\CAPKI5\Windows\x86\32\lib




6. Rename the file C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst\winamd64cbb.caz as winamd64cbb_old.caz


7. Execute following command :

   sdmpcfre.exe -z cbb winamd64cbb.caz



   A new file winamd64cbb.caz is created




8. Delete the directory C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst\cbb


9. Edit file C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst\oobecustom.cmd
   and update the 2 lines "set CAPKIHOME=" with "set CAPKIHOME=c:\oeminst\cbb

   Example below (2 lines in bold) :


   c:
   cd \oeminst

   rem -- set administrator password
   if not "$OSPasswd$" == "" (
     if not exist cbb .\sdmpcfre -u win86cbb.caz cbb  >> c:\calogfile.txt
     if exist cbb (
       set CAPKIHOME=C:\oeminst\cbb
       cd cbb
       echo set administrator password >> c:\calogfile.txt
       ..\canet administrator "$OSPasswd$" >> c:\calogfile.txt
       echo canet returned %errorlevel% >> c:\calogfile.txt
       cd ..
     )
   )

   rem -- reset autoadminlogon
   echo set autoadminlogon=0 >> c:\calogfile.txt
   reg add "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon" /v AutoAdminLogon /d 0 /f

   rem -- join domain
   if not "$Domain$" == "" (
     if not exist cbb .\sdmpcfre -u win86cbb.caz cbb  >> c:\calogfile.txt
     if exist cbb (
       set CAPKIHOME=C:\oeminst\cbb
       cd cbb
       echo -- join domain
       echo Add system to domain $Domain$ >> c:\calogfile.txt
       ..\canet.exe JoinDomain "$Domain$" "$DomainUser$" "$DomainPasswd$" >> c:\calogfile.txt
       echo canet returned %errorlevel% >> c:\calogfile.txt
       cd ..
     )
   )



10. If an ImageX machine has already been created, the files

    C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst\oobecustom.cmd
    and
    C:\Program Files (x86)\CA\DSM\osimips\os-template\images\IMAGEX-WIN1124h2\oeminst\winamd64cbb.caz

    could be copied into
    C:\Program Files (x86)\CA\DSM\Server\SDBS\var\managedpc\images\<imagename>\<imagename>\oeminst
