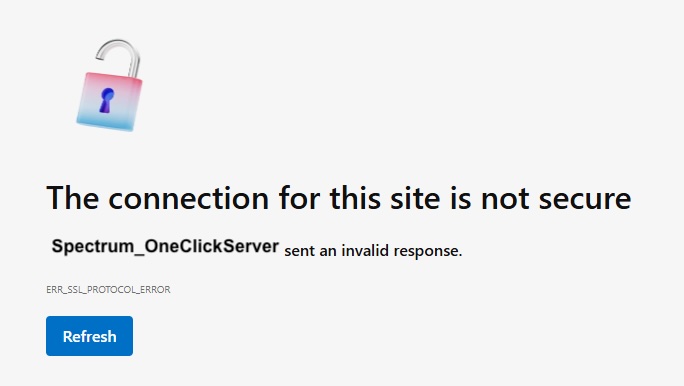

Spectrum OneClick Server Fails To Start After Upgrade By Throwing 'ERR_SSL_PROTOCOL_ERROR'
Article ID: 419805
Updated On:
Products
Issue/Introduction
Stopped Tomcat / Webtomcat, processd, and rebooted, but the error persists:
SSL certificates are still loaded from prior to upgrade. The cert keystore is still at $SPECROOT/custom/keystore/cacerts, and the internal certs are all still loaded in to it.
Environment
DX NetOps Spectrum all currently supported releases
Cause
The following error is shown repeatedly in the OneClick log ($SPECROOT/tomcat/logs/catalina.out or stdout.log in Windows):
2025-11-13 12:21:22,656 [http-nio-8443-exec-24] INFO org.apache.coyote.http11.Http11Processor - Error parsing HTTP request header Note: further occurrences of HTTP request parsing errors will be logged at DEBUG level.java.lang.IllegalArgumentException: Invalid character found in method name [0x160x030x030x010xd80x010x000x010xd40x030x03{0x1a+80xa00xa50xbdD50x19]0xb90xb5Y0xb60x11W0xeaX0xf80x880x160xef0xf7o"0xa2YS0x190xac0xb8 ]. HTTP method names must be tokens.........
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:63) ~[tomcat-util.jar:9.0.110]
at java.lang.Thread.run(Thread.java:840) ~[?:?]
This indicates that Tomcat is running as HTTP not HTTPS when HTTPS is expected.
Resolution
At some point in the upgrade, the server.xml file got overwritten and set to HTTP.
Check it under:
$SPECROOT/tomcat/conf/server.xml
You should see a section with a connector port = 8443 (or non-HTTP 80/8080) that is uncommented such as:
<Connector port="8443" URIEncoding="UTF-8"maxHttpHeaderSize="8192"maxThreads="150" minSpareThreads="25"enableLookups="true"disableUploadTimeout="true" tcpNoDelay="true"acceptCount="100"connectionTimeout="20000" scheme="https"secure="true"SSLEnabled="true" clientAuth="false"sslProtocol="TLS"sslEnabledProtocols="TLSv1.2,TLSv1.3"ciphers="TLS_AES_128_GCM_SHA256, TLS_AES_256_GCM_SHA384, TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384, TLS_DHE_RSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256, TLS_DHE_RSA_WITH_AES_128_GCM_SHA256" keystoreFile="/opt/CA/OneClick/custom/keystore/cacerts" keystorePass="changeit"></Connector>
If it is commented, it'll have the following before and after it:
<!--
...
-->
HTTP connector should be commented, as per:
<!--<Connector port="8080" redirectPort="8443" URIEncoding="UTF-8" maxHttpHeaderSize="8192" maxThreads="150" minSpareThreads="25" enableLookups="true" disableUploadTimeout="true" tcpNoDelay="true" acceptCount="100" connectionTimeout="20000" />-->
