Unable to connect 3rd party application via Citrix

Products

• Cloud Secure Web Gateway - Cloud SWG

Issue/Introduction

Users successfully accessing internet sites via Cloud SWG using proxy forwarding access method.

A subset of users need to connect to 3rd party applications using Citrix.

After logging into Citrix Portal and selecting the applications, a Web based RDP client initialises but fails to connect.

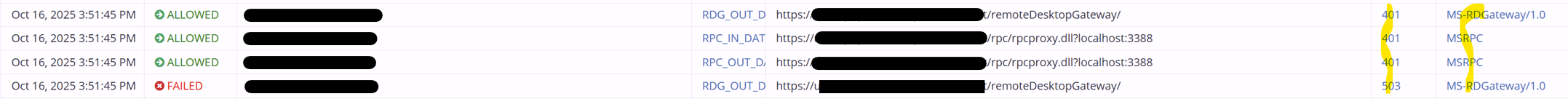

Access logs would indicate authentication (401) and connectivity (503) errors as shown below:



Environment

Cloud SWG.

Proxy Forwarding access method.

Web based RDP Client.

Citrix.

Cause

3rd party issues going through a proxy server.

Resolution

Disable protocol detection for the terminal services domain.

The steps differ depending on whether Cloud SWG is managed via Portal or UPE.

Additional Information

Although the Proxy could intercept and detect the HTTP methods, endpoints and user-agents, the connection never succeeded.

PCAPs confirmed that the connection to the endpoint would succeed but application level handshake must have failed resulting in a generic connectivity error being reported.

Disabled SSL interception to see if this would work, but this did not help.
