Duplicate storage iqns seen on the ESXi hosts

Products

• VMware vSphere ESXi

Issue/Introduction

Symptom:

• Multiple hosts in the environment are reporting 4 paths, however the iqns listed on the devices are duplicates, and in total we have 2 paths.

  Example: iqns are ending with only two different IPs i.e 192.##.3.100 and 192.##.4.100.


  Port binding is configured on the host.



• From the Pure storage interface, we are unable to see all the ports connected to the host.



Environment

VMware vSphere ESXi

Cause

• Array Target iSCSI ports are in a different broadcast domain and IP subnet.


• VMkernel ports used for iSCSI connectivity exist in a different broadcast domain, IP subnet and/or vSwitch.

  Note: Port binding is not supposed to be configured in these kind of environment.



Resolution

• Edit the iSCSI configuration on your host to remove a port binding.

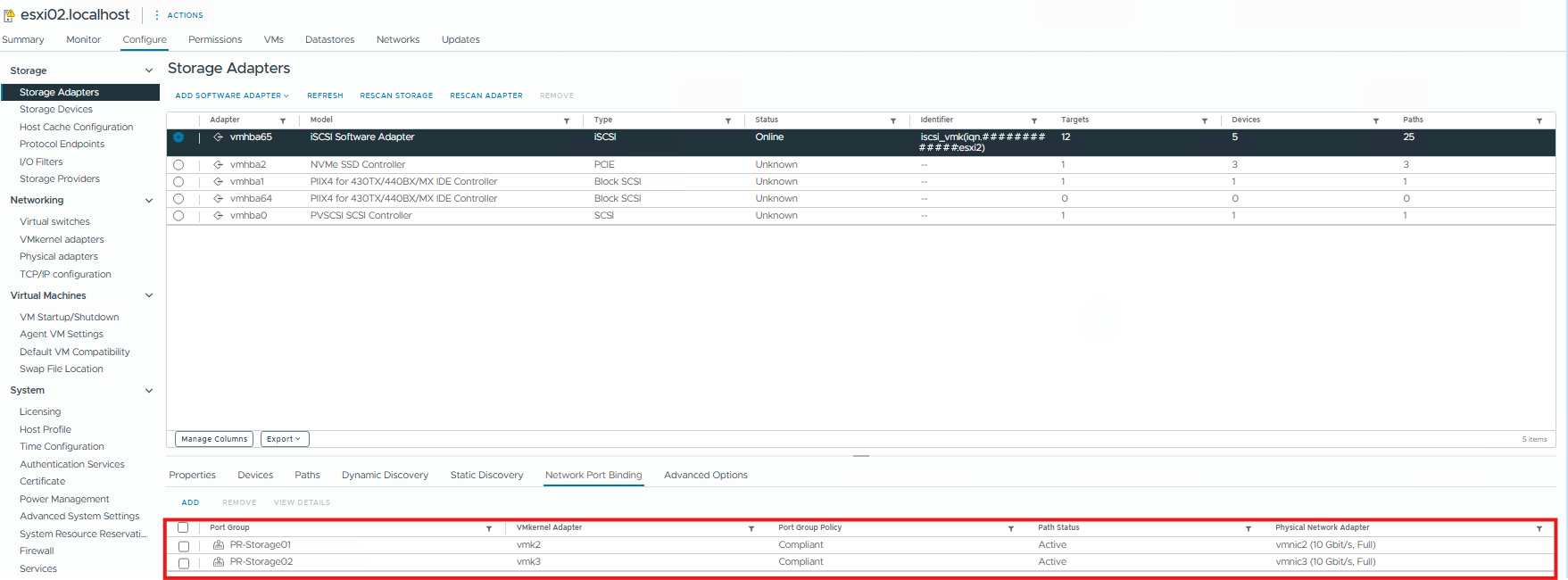

  • Click Storage in the VMware Host Client inventory, click Adapters, and click Configure iSCSI.
  • In the Network port bindings section, select a VMkernel NIC from the list.
  • Click Remove port binding.
  • Click Save configuration.

Example:

• Post removing the Network port bindings configurations, we see below changes on the host after a storage rescan.

  Example: iqns are ending with four different IPs i.e 192.##.3.100, 192.##.3.101, 192.##.4.100 and 192.##.4.101


  On the Pure Storage UI as well, we see that the connectivity to all the ports becomes active.
  :


Additional Information

Considerations for using software iSCSI port binding in ESXi
