Unable to find vSAN triggers to configre alarms on vCenter server for checksum errors
Article ID: 415686
Updated On:
Products
Issue/Introduction
Unable to find below triggers while configuring alarms from vCenter server.
esx.problem.vob.vsan.dom.errorfixed
esx.problem.vob.vsan.dom.unrecoverableerror

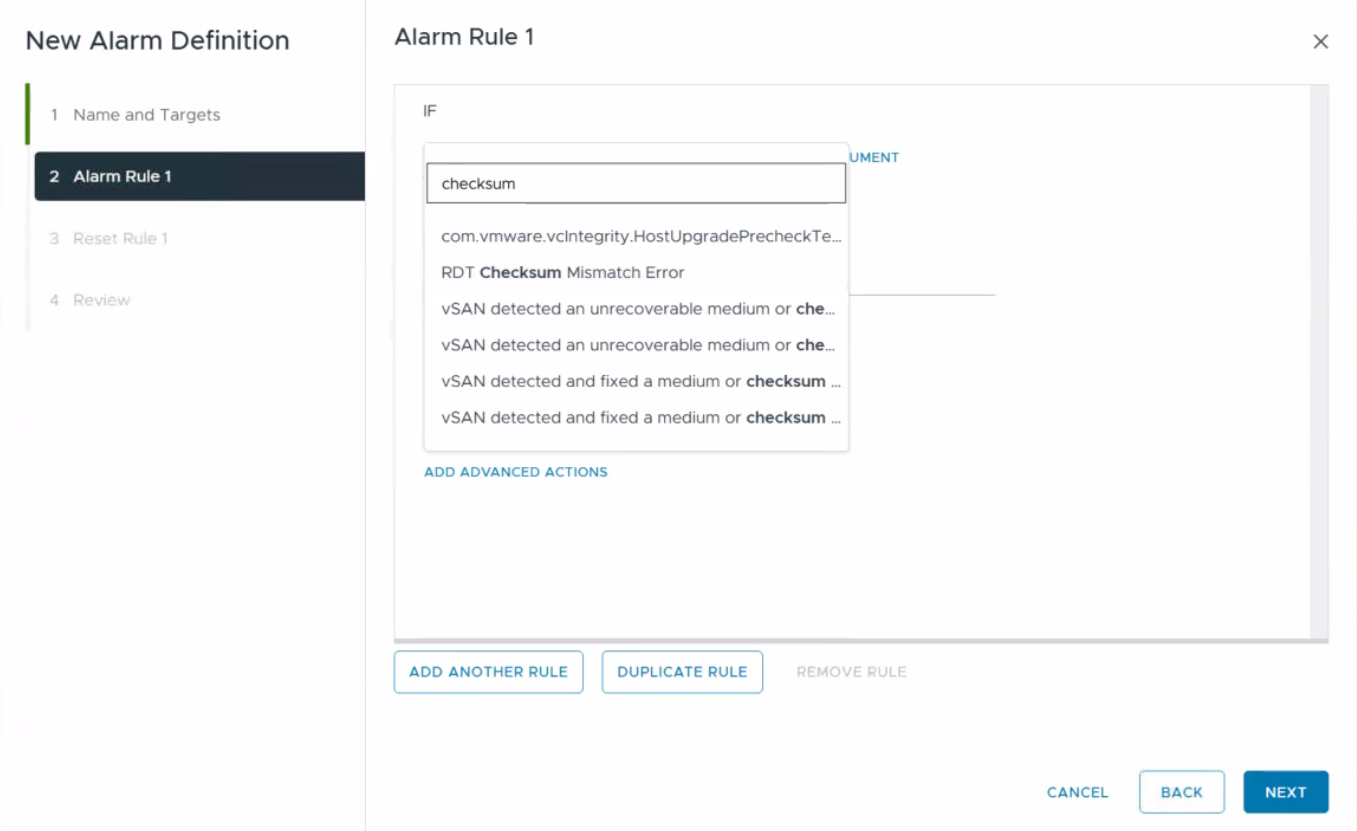

When trying to search, it does not list the trigger:
Environment
VMware vSphere ESXi 8.0
VMware vCenter Server 8.0
Cause
Full format of message has been added to vCenter alarm rule instead of Vmkernel observation (VOB) events.
Resolution
In Alarm trigger,
esx.problem.vob.vsan.dom.errorfixed has a rule name "vSAN detected and fixed a medium or checksum error"
esx.problem.vob.vsan.dom.unrecoverableerror has a rule name "vSAN detected an unrecoverable medium or checksum error"

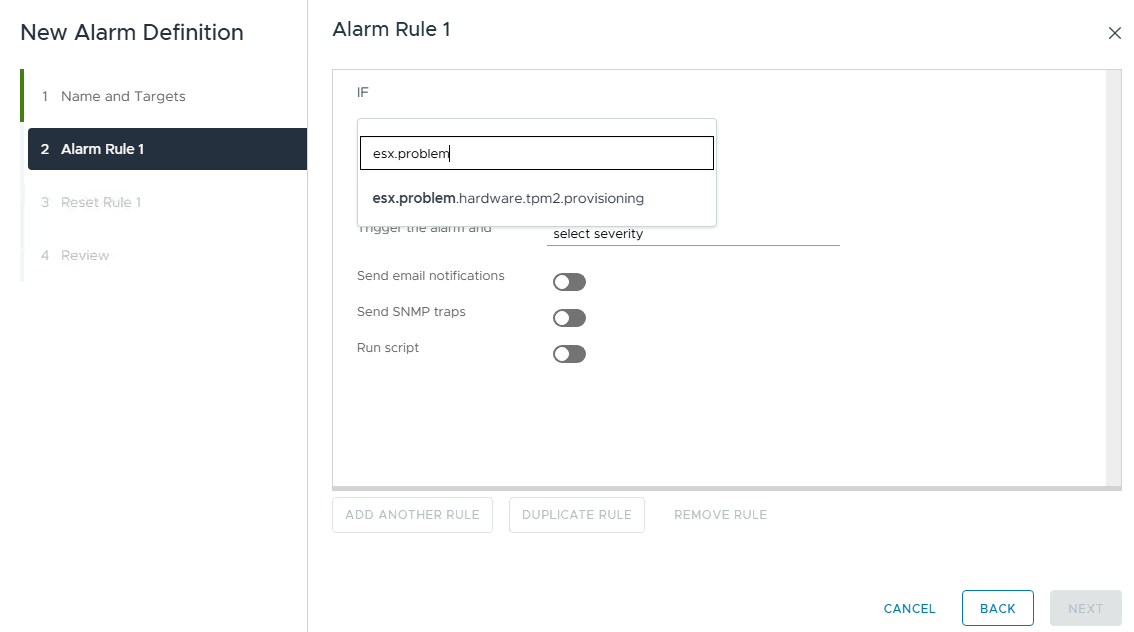

Rule names are not available with esx.problem for the vSAN checksum errors.
Configure the alarm using above triggers and target will be Host, it will be listed as below
