Unable to preform backups on Rubrik

Products

• VMware vSphere ESXi

Issue/Introduction

After deploying a new Rubrik appliance that has multiple subnets and one of the NICs is unable to connect to the host in order to preform a backup on the new distributed port created for this VM

Environment

VMware vSphere ESXI



Cause

Due to misconfigurations on the Rubrik OS on the IP's and also missing VLAN tagging due to which the traffic could not flow

Resolution

Information gathering and troubleshooting from the VMware side

• Get  the following data
  • VM name
  • Network
  • New distributed port
  • Is this Distributed port using a Lag?
  • is this port using a Tag VLAN?

 This is were we can find most of the data related to lag and Vlan Tagging

• Go to network and look at the port in question, either click action and edit setting or right click an edit settings

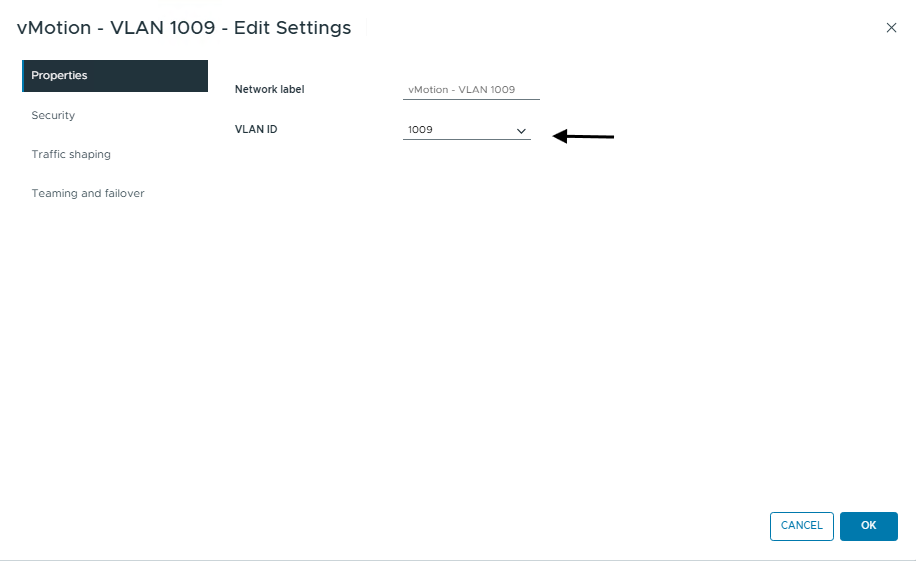

This is for the VLAN

And this is for Teaming and failover

• NOTE: In this scenario we have an issue: The LAG should be the only one active and both uplinks should be at unused uplinks section
  • Configuring a LAG on a vSphere Distributed Switch Port Group when using LACP
• Once we know that this is configured correctly, we can start troubleshooting at the host level if any connectivity issues are still present



Troubleshooting

• Open a Putty session to the host that has this virtual machine
  • ESXTOP ( once in type n for networking)  or also net-stats -I
  • Find which switch port this is using

pktcap-uw --switchport (Enter Switchport ID) --capture VnicTx,VnicRx --ip (Enter destination ip) -o - | tcpdump-uw -enr-

• This packet capture will show if there is traffic coming from this particular VM

If we don't see the traffic in the capture, next step would be to contact Rubrik support for further assistance
