Domain repoint failing from one vCenter to another with the error "Updating registry settings... Failed Repoint failed. Restore from backup"

book

Article ID: 414689

calendar_today

Updated On:

Products

VMware vCenter Server

Issue/Introduction

  • cmsso-util domain-repoint failing with the error: "Updating registry settings... Failed Repoint failed. Restore from backup"
  • The log file /var/log/vmware/cloudvm/cmsso-util.log:

yyyy-mm-ddThh:mm:ss.mssZ INFO cmsso_util validating saml token
yyyy-mm-ddThh:mm:ss.mssZ ERROR cmsso_util Failed to validate sso credentials. Error SoapException:
faultcode: ns0:FailedAuthentication
faultstring: Invalid credentials
faultxml: <?xml version='1.0' encoding='UTF-8'?><S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/"><S:Body><S:Fault xmlns:ns4="http://www.w3.org/2003/05/soap-envelope"><faultcode xmlns:ns0="http://docs.oasis-open.org/ws-sx/ws-trust/200512">ns0:FailedAuthentication</faultcode><faultstring>Invalid c
redentials</faultstring></S:Fault></S:Body></S:Envelope>
yyyy-mm-ddThh:mm:ss.mssZ INFO cmsso_util ESC[91m
Source Platform Services Controller details provided are incorrect. Check the credentialsESC[0m
yyyy-mm-ddThh:mm:ss.mssZ INFO cmsso_util Invalid user input entered.

yyyy-mm-ddThh:mm:ss.mssZ INFO cmsso_util Fetched thumbprint [##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##] for host vcenter.local
yyyy-mm-ddThh:mm:ss.mssZ INFO cmsso_util Fetched thumbprint [##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##] for host vcenter.local
yyyy-mm-ddThh:mm:ss.mssZ INFO cmsso_util Fetched thumbprint [##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##:##] for vcenter.local
yyyy-mm-ddThh:mm:ss.mssZ INFO cmsso_util validating saml token
yyyy-mm-ddThh:mm:ss.mssZ ERROR cmsso_util Failed to validate sso credentials. Error SoapException:
faultcode: ns0:FailedAuthentication
faultstring: Invalid credentials
faultxml: <?xml version='1.0' encoding='UTF-8'?><S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/"><S:Body><S:Fault xmlns:ns4="http://www.w3.org/2003/05/soap-envelope"><faultcode xmlns:ns0="http://docs.oasis-open.org/ws-sx/ws-trust/200512">ns0:FailedAuthentication</faultcode><faultstring>Invalid credentials</faultstring></S:Fault></S:Body></S:Envelope>
yyyy-mm-ddThh:mm:ss.mssZ INFO cmsso_util ESC[91m
Source Platform Services Controller details provided are incorrect. Check the credentialsESC[0m
yyyy-mm-ddThh:mm:ss.mssZ INFO cmsso_util Invalid user input entered.

Cause

Failed authentication attempt due to invalid credentials being supplied while trying to attempt to join the domain using the cmsso-util domain-repoint -m execute --src-emb-admin Administrator --replication-partner-fqdn FQDN_of_destination_node --replication-partner-admin PSC_Admin_of_destination_node --dest-domain-name destination_PSC_domain command

Resolution

Ensure taking a Snapshot for both the Source and Destination vCenter(s) Snapshot Best practices for vCenter Server Virtual Machines

1. Verify the credentials:

Ensure using the [email protected] (or custom domain) credentials for the destination SSO domain.

Manually log in to the destination vCenter Server UI or use the following command to validate: /usr/lib/vmware-vmafd/bin/dir-cli login --login [email protected] --password '<password>'

If the password is expired / forgotten, it can be generated using the following steps:

  • Log in to the SSH using the root credentials

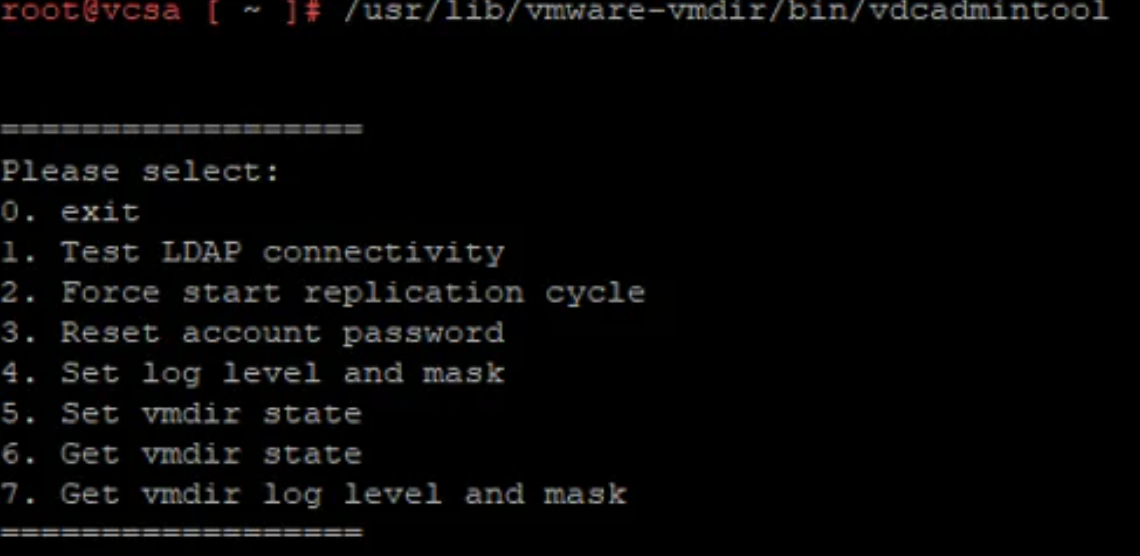

  • Run the command: /usr/lib/vmware-vdir/bin/vdcadmintool
  • Press 3 to reset account password when prompted to, enter the full UPN name: Example: [email protected] which will generate a new password.

2. Check if both Source and Destination are able to resolve the DNS:

nslookup destination_PSC_domain

nslookup source_PSC_domain

3. Run the pre-check mode command:

The pre-check mode fetches the tagging (tags and categories) and authorization (roles and privileges) data from the vCenter Server. Pre-check does not migrate any data, but checks for conflicts between the source and destination vCenter Server.

cmsso-util domain-repoint -m pre-check --src-emb-admin Administrator --replication-partner-fqdn FQDN_of_destination_node --replication-partner-admin PSC_Admin_of_destination_node --dest-domain-name destination_PSC_domain

4. Run the execute command:

In execute mode, the data generated during the pre-check mode is read and imported to the target node. Then, the vCenter Server is repointed to the target domain.

cmsso-util domain-repoint -m execute --src-emb-admin Administrator --replication-partner-fqdn FQDN_of_destination_node --replication-partner-admin PSC_Admin_of_destination_node --dest-domain-name destination_PSC_domain

Post that, the Domain repoint is successful:
