vSAN objects detect as “Reduced Availability” with several components in Absent and Degraded state

Products

• VMware vSAN

Issue/Introduction

Symptoms :

• Navigate to the affected vSAN cluster > Monitor > Virtual objects. One or more vSAN objects display the status as “Reduced Availability”.
• Select one of the affected object. Clicking “View Component Placement” shows one or more components in Absent or Degraded state.



• The output of the below command will confirm that one or more objects are in reduced availability state.
  esxcli vsan debug object health summary get
Health Status                                              Number Of Objects
---------------------------------------------------------  -----------------
remoteAccessible                                                           0
inaccessible                                                               0
reduced-availability-with-no-rebuild                                       1


• Use the following command to verify the health of the affected object. The Health of the affected object will show as "Reduce availability".

  Example:
  esxcli vsan debug object list -u <object UUID>
Object UUID: ########-####-####-####-############
   Version: ##
   Health: reduced-availability-with-no-rebuild
   Owner: #################
   Size: 250.00 GB
   Used: 484.11 GB




Environment

VMware vSAN 6.x
VMware vSAN 7.x
VMware vSAN 8.x

Cause

• The vSAN object contains concat components that need to be merged. The CLOMD attempts to merge these concats, but the operation fails due to insufficient free space on the disks.
• Due to this, subsequent component rebalancing will also fail.

Cause validation:

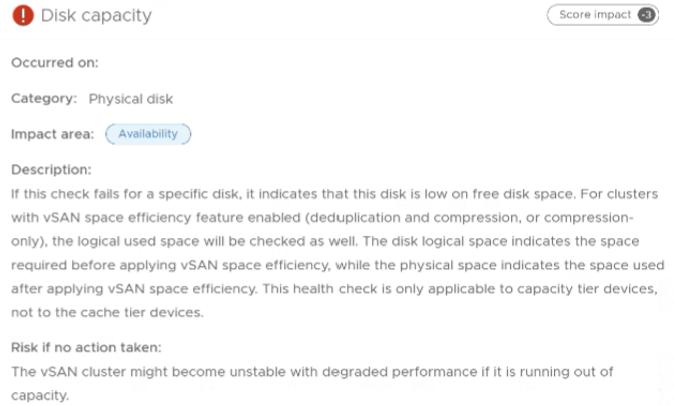

• vSAN Skyline Health displays warnings such as:
  • Storage space”
  • “What if most consumed host fails”



• The /var/run/log/clomd.log file shows concat merge failures with messages indicating that no suitable disks were found due to space constraints.
  YYYY-MM-DDTHH:MM.SSSZ info clomd[2099048] [Originator@6876 opID=1804312345] CLOMProcessWorkItem: Op CONCAT starts:1804312345
YYYY-MM-DDTHH:MM.SSSZ info clomd[2099048] [Originator@6876 opID=1804312345] CLOMReconfigure: Reconfiguring ########-####-####-####-############ workItem type CONCAT
YYYY-MM-DDTHH:MM.SSSZ warning clomd[2099048] [Originator@6876 opID=1804312345] CLOMCreateOneDiskList: Disk dropped due to decomDisks:0 decomNodes:8 maxCompLimit:0 capFull:112 unhealthySSD:0 unhealthyNodes:0 unhealthyDisks:0 ReadCacheResvFailures:0 noMinFreeSpace: 0 Nodes with no disk:0 deltaCreateLimit: 0 numNoMinFreeSpace: 0 numIncompatibleStorageType: 0, numIncompatibleEncryptedDisk: 0 nu
mIncompatibleDedupDisk: 0, numIncompatibleDiskVersion: 0
YYYY-MM-DDTHH:MM.SSSZ error clomd[2099048] [Originator@6876 opID=1804312345] CLOMAssignDisksToConfig: Failed to assign disks: Not found
YYYY-MM-DDTHH:MM.SSSZ error clomd[2099048] [Originator@6876 opID=1804312345] CLOM_ConcatReplace: Failed to assign disks to the new components Not found
YYYY-MM-DDTHH:MM.SSSZ error clomd[2099048] [Originator@6876 opID=1804312345] CLOMCleanupConcat: Failed to cleanup CONCATs: Not found
YYYY-MM-DDTHH:MM.SSSZ warning clomd[2099048] [Originator@6876 opID=1804312345] CLOMReconfigure: WorkItem failed ignoring disk capacity/transient capacity/component limit: Not found.
YYYY-MM-DDTHH:MM.SSSZ info clomd[2099048] [Originator@6876 opID=1804312345] CLOM_PublishResyncBytes: About to fail the workItem(Failure), reset queued resync bytes to 0
YYYY-MM-DDTHH:MM.SSSZ info clomd[2099048] [Originator@6876 opID=1804312345] CLOMProcessWorkItem: Op ends:1804312345


• The var/run/log/clomd.log file also confirms that the component rebalance operations also fail for the same reason.
  YYYY-MM-DDTHH:MM.SSSZ info clomd[2099048] [Originator@6876 opID=1804312346] CLOMProcessWorkItem: Op REACTIVE_REBALANCE starts:1804312346
YYYY-MM-DDTHH:MM.SSSZ info clomd[2099048] [Originator@6876 opID=1804312346] CLOMReconfigure: Reconfiguring ########-####-####-####-############ workItem type REACTIVE_REBALANCE
YYYY-MM-DDTHH:MM.SSSZ info clomd[2099048] [Originator@6876 opID=1804312346] CLOMReplCompPreWorkRebalance: Moving component ########-####-####-####-############ for rebalancing from disk ########-####-####-####-############
YYYY-MM-DDTHH:MM.SSSZ error clomd[2099048] [Originator@6876 opID=1804312346] CLOMBalance_CheckMoveGoodnessV2:  Failed to move comp ########-####-####-####-############:########-####-####-####-############ size: 258525993369 initSD: 0.047563, finSD: 0.126757 srcFF 0.807888 destFF 0.900998
YYYY-MM-DDTHH:MM.SSSZ warning clomd[2099048] [Originator@6876 opID=1804312346] CLOMBalance_CheckMoveGoodnessV2: Unsetting disk assignment!
YYYY-MM-DDTHH:MM.SSSZ error clomd[2099048] [Originator@6876 opID=1804312346] CLOMReplaceComponentsWork: Partial fix supported but failed to find any successful fixes
YYYY-MM-DDTHH:MM.SSSZ error clomd[2099048] [Originator@6876 opID=1804312346] CLOMReplaceComponentsWork: Could not replace components for ########-####-####-####-############: Not found.
YYYY-MM-DDTHH:MM.SSSZ warning clomd[2099048] [Originator@6876 opID=1804312346] CLOMReconfigure: WorkItem failed ignoring disk capacity/transient capacity/component limit: Not found.
YYYY-MM-DDTHH:MM.SSSZ error clomd[2099048] [Originator@6876 opID=1804312346] CLOMReconfigure: exit: obj ########-####-####-####-############ transiantCapGenerated - total: 0, site1: 0, site2: 0, workItem type REACTIVE_REBALANCE configDelay 0 newConfigGenerated 0 status Not found
YYYY-MM-DDTHH:MM.SSSZ info clomd[2099048] [Originator@6876 opID=1804312346] CLOM_PublishResyncBytes: About to fail the workItem(Failure), reset queued resync bytes to 0
YYYY-MM-DDTHH:MM.SSSZ info clomd[2099048] [Originator@6876 opID=1804312346] CLOMProcessWorkItem: Op ends:1804312346

Resolution

Add additional capacity to the vSAN cluster by either,

• Adding new disks to existing disk groups on the hosts.
  or
• Adding new hosts to the cluster.
