SRA command 'discoverDevices' failed. Cannot reach array.Peer array with IO PS####### not found.

Products

• VMware Live Recovery

Issue/Introduction

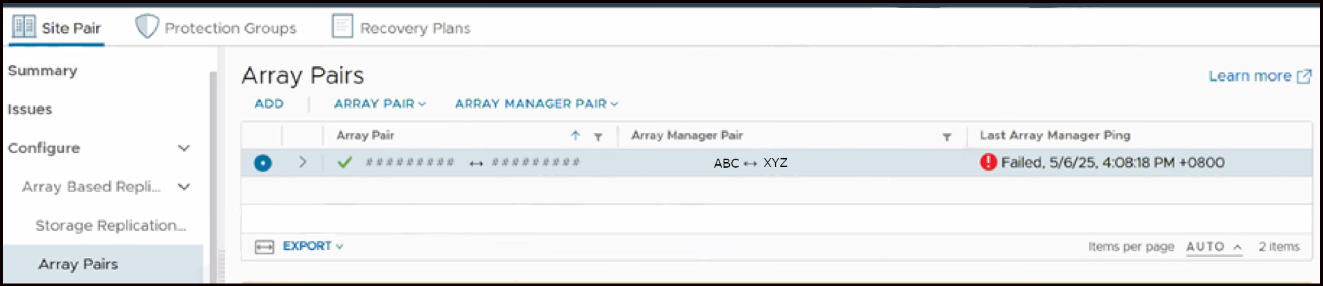

• From Site recovery UI > Site Pair > Array Pairs > " Array Manager ping in failed state" as below:





• Device discovery fails with the error message: "SRA command 'discoverdDevices' failed"



Environment

VMware Live Recovery 9.x

Cause

The issue occurs when SRM fails to discover devices because the peer array with the specified ID is not found which indicates that the array pair between the local and remote arrays is not properly established, resulting in array discovery failure.

Reference:
From SRM, vmware-dr.log shows the error as "SRA command failed: Peer array with ID not found."

2025-09-25T01:58:28.220Z error vmware-dr[2493520] [SRM@6876 sub=RemoteTask.dr.storage.ReplicatedArrayPair.discoverLocalDevices2181 opID=586eadc3-####-####-####-bc2a2f17740f-discoverDevices:ae97 tid=dr.storage.ReplicatedArrayPair.discoverLocalDevices2181.DiscoverLocalDevices] The remote task 'vim.Task:3cd3b915-####-####-####-a7e60886c870:dr.storage.ReplicatedArrayPair.discoverLocalDevices2181' failed:
--> (dr.storage.fault.CommandFailed) {
-->    faultCause = (dr.storage.fault.LocalizableAdapterFault) {
-->       faultCause = (vmodl.MethodFault) null,
-->       faultMessage = <unset>,
-->       code = "70c18a97-####-####-####-c222ebdedaff.1201",
-->       arg = (vim.KeyValue) [
-->          (vim.KeyValue) {
-->             key = "RemotePeer",
-->             value = "PS########62b"

-->          }
-->       ]
-->       msg = "Peer array with id PS########62b not found.
--> Please check that serial number of peer array is correct"
-->    },
-->    faultMessage = <unset>,
-->    commandName = "discoverDevices"
-->    msg = "SRA command 'discoverDevices' failed. Peer array with id PS########62b not found.
--> Please check that serial number of peer array is correct."

Resolution

Engage the Storage Array vendor to establish the pairing between the local and remote arrays.

Additional Information

Please refer to the document from Dell Array level - SRA Command 'discoverDevices' failed
