Powering on VM with vGPU deployed via VCF Automation failed: "VM cannot be admitted to the desired resource pool because this VM has at least one device for which the corresponding DirectPath profile doest not have expandable reservation."

Products

• VCF Automation

Issue/Introduction

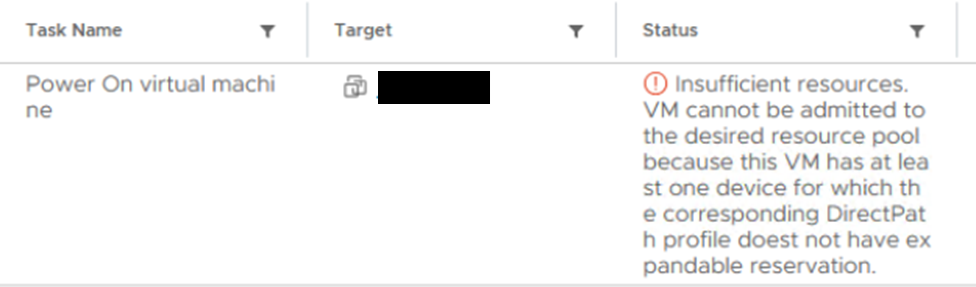

• Powering on VM with vGPU deployed via VCF Automation failed with following error:



  Insufficient resources. VM cannot be admitted to the desired resource pool because this VM has at least one device for which the corresponding DirectPath profile doest not have expandable reservation.






• The vpxd.log contains entries similar to the following:



  YYYY-mm-ddTHH:MM:SS.xxxZ error vpxd[1437406] [Originator@6876 sub=Default opID=vmoperator-<opID>] [VpxLRO] -- ERROR task-5061 -- 528a7905-dc10-22bc-27e8-db4018032c7c(5294fb9d-d946-1cb8-209d-3a0c17628fd9) -- vm-4009 -- vim.VirtualMachine.powerOn: :vim.fault.InsufficientResourcesFault
  --> Result:
  --> (vim.fault.InsufficientResourcesFault) {
  -->    faultCause = (vmodl.MethodFault) null,
  -->    faultMessage = (vmodl.LocalizableMessage) [
  -->       (vmodl.LocalizableMessage) {
  -->          key = "com.vmware.vim.resourcePool.error.DppNotExpandable",
  -->          arg = <unset>,
  -->          message = <unset>
  -->       }
  -->    ]
  -->    msg = ""
  --> }
  --> Args:
  -->
  --> Arg host:
  -->




• A VM using the same GPU created from the vSphere Client can be powered on.



Environment

VCF Automation 9.0

Cause

This issue occurs when the VM class used to create a VM is not reserved.

Steps to Check VM Class Reservation :

1. Connect to vCenter Server via SSH as the root user.
   If you see the prompt "Command>", type shell to access the bash shell.



2. Retrieve the supervisor ID by running:



   dcli com vmware vcenter namespacemanagement supervisors summary list




3. Use the retrieved supervisor ID to check the VM class reservation with this command:



   dcli com vmware vcenter namespacemanagement supervisors zones bindings list --supervisor <supervisor id>

   zones:
     - zone: <zone id>
       marked_for_removal: False
       resource_allocation:
         vm_reservations:  # <--- Check if reservations exist under here



Resolution

VM Class reservation is required to power on a VM with vGPU.

Please refer to the following document for instructions on reserving a VM class:

Configure vGPU-Based VM Classes for AI Workloads for VMware Private AI Foundation with NVIDIA
