Site Recovery UI Displays Pair in Failed State with Timeout Error Connecting to SRM Server

Products

• VMware Live Recovery

Issue/Introduction

Symptoms:

• The Site Recovery UI shows the pair in a failed state with the following error:

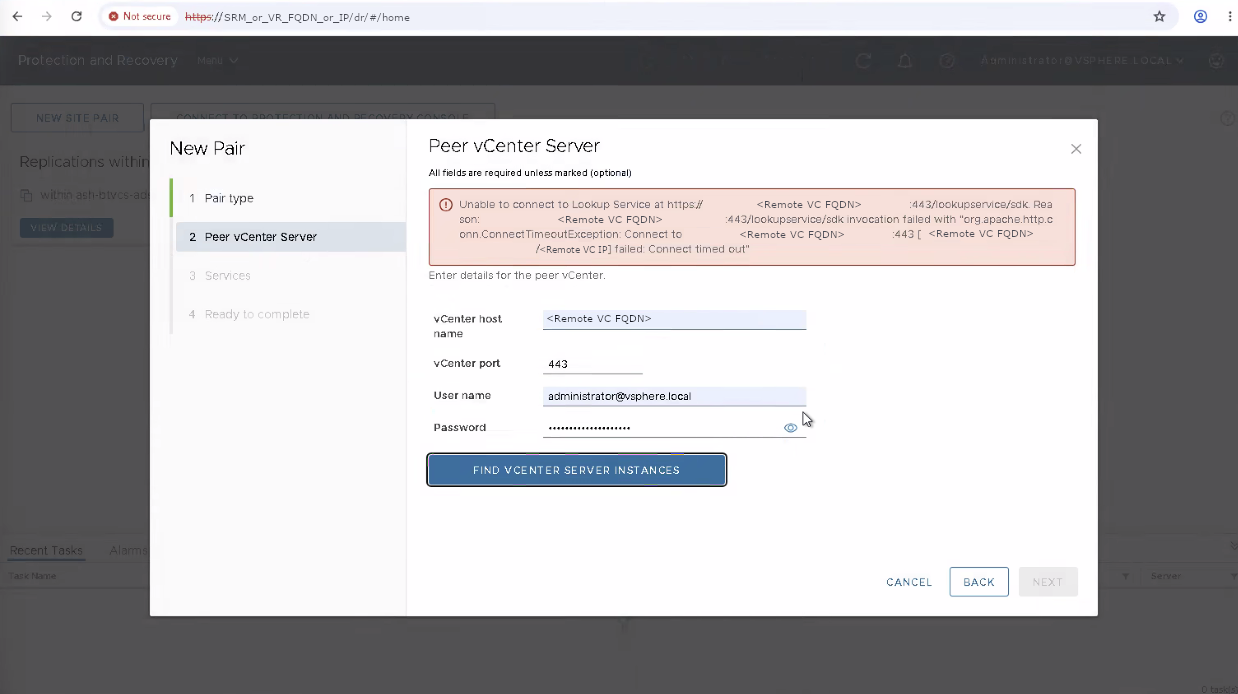

"Unable to connect to Site Recovery Manager Server at https://hostname:443/drserver/vcdr/vmomi/sdk. Reason:java.net.ConnectException: Timeout connecting to [hostname/target_ip:443]"



• Source Site Pair for SRM: shows not connected when checked from vSphere Replication (DR UI).

• Source Site Pair for SRM: shows connected when checked from the SRM UI.

• Source Site Pair for vSphere Replication: shows connected from both SRM and vSphere Replication UI.

• Target Site Pair for both SRM and vSphere Replication: shows connected from both SRM and vSphere Replication UI.

Environment

• VMware vSphere Replication 8.x
• VMware vSphere Replication 9.x
• Site Recovery Manager 8.x
• VMware Live Site Recovery 9.x

Cause

• The Source Site vSphere Replication appliance is unable to establish communication with the Target Site SRM appliance on port 443.


• From the Source vSphere Replication appliance, a port test to the Target SRM appliance on port 443 fails, confirming the port is not open.


• From the Target vSphere Replication appliance to the Source SRM appliance, port 443 is open, which is why the Site Pair for the Target DR UI appears healthy.

Resolution

• Engage the network team to open port 443 from the Source vSphere Replication appliance to the Target SRM appliance.

Additional Information

Refer Services, Ports, and External Interfaces That the vSphere Replication Virtual Appliance Uses for more details.
