Diagnostics for VCF: PSOD Dashboard

Products

• VCF Operations

Issue/Introduction

The PSOD Dashboard is a component of the ESX dashboard report. This feature uses a new esxcli command to capture the most recent PSOD stacktrace along with 20 vmkernel log lines preceding the PSOD.

For reference the esxcli command the host dashboard uses is: “esxcli system health report get -r vmw.PSODCheck”

In addition to the PSOD information and log lines, the PSOD dashboard will also analyze the coredump partition and check for configuration status and free space.

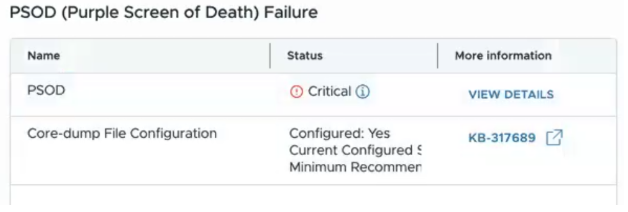

Below is a screenshot of the PSOD section under ESX dashboard.

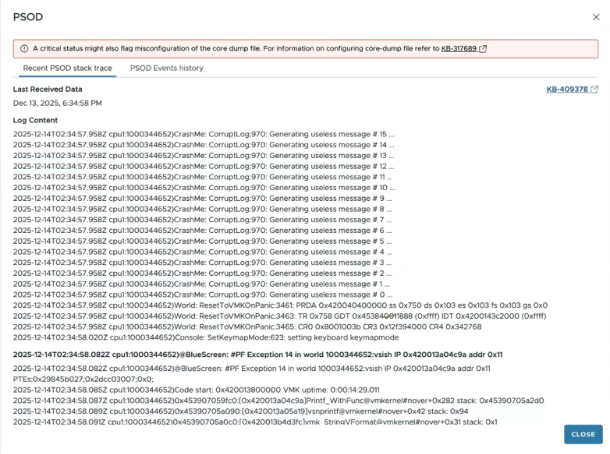

When clicking on “View Details” you will see a breakdown of the most recent PSOD and recent logs.

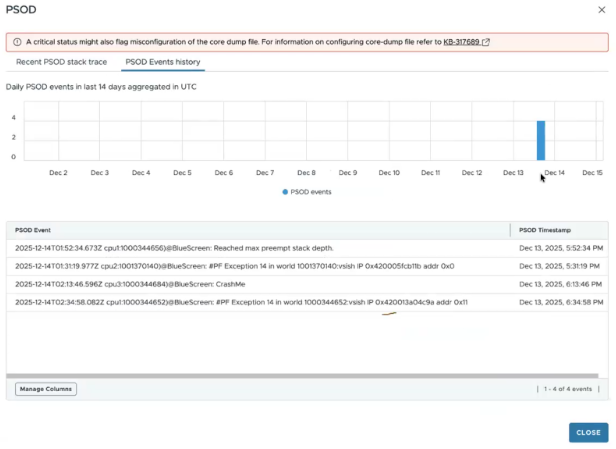

You will also have the ability to see the PSOD event history over the last 14 days.



Environment

VCF Operations

Resolution

This data will help you troubleshoot a PSOD by searching the details of the PSOD stack against the Broadcom knowledge base.

Please reference the following KB for a detailed breakdown of analyzing your PSOD.

Interpreting a host purple diagnostic screen

This data also opens these PSOD stack traces and preceding log lines for Diagnostics Findings.
