CSV export templates missing fields when GUI is set to French - VCF Operations for Networks

Products

• VCF Operations for Networks

Issue/Introduction

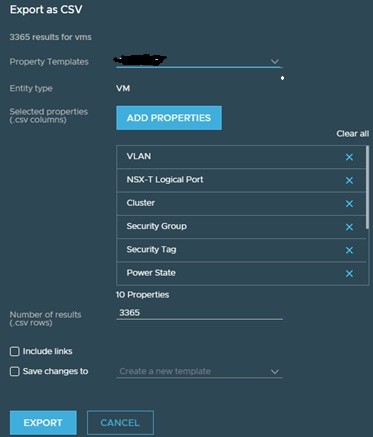

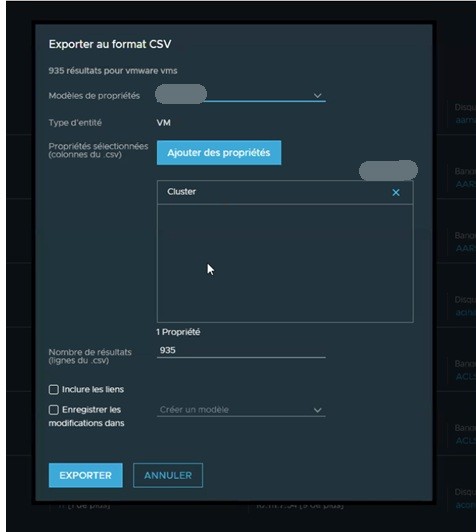

When exporting CSV templates in VCF Operations for Networks, some users may find that the exported file contains only one field instead of the expected multiple fields (e.g., 10 fields). This occurs specifically when the user interface language is set to a non-English language.

• CSV export templates for security groups display incorrectly.
• Instead of 10 fields, only 1 field is extracted in the CSV.
• Tag properties are invisible during the template selection process.

Environment

• VCF Operations for Networks  6.14

Cause

• VCF Operations for Networks 6.14 supports the user interface, help documentation, and customer support exclusively in English. When the interface is accessed in French or other languages, certain functionalities like CSV template extraction may not perform as expected due to localized string mapping limitations. This is a product design limitation.

Resolution

To ensure all fields are correctly extracted in CSV exports, use the English language setting for the product interface.

1. Log in to the VCF Operations for Networks GUI.
2. Navigate to User Settings/Preferences.
3. Change the UI Language to English.
4. Re-attempt the CSV export for the security groups or templates.

For more information on supported configurations, see the Product Documentation.

Fixed in release 6.14 and higher. See Download Broadcom Products and Software to download current releases.



Additional Information

If you require assistance with localized deployments, please refer to Contact Broadcom Support.
