Network Extension Validation Fails Without Error Message in UI

Products

• VMware HCX

Issue/Introduction

• Attempting to extend an overlay segment within a cloud-to-cloud site pairing configuration.

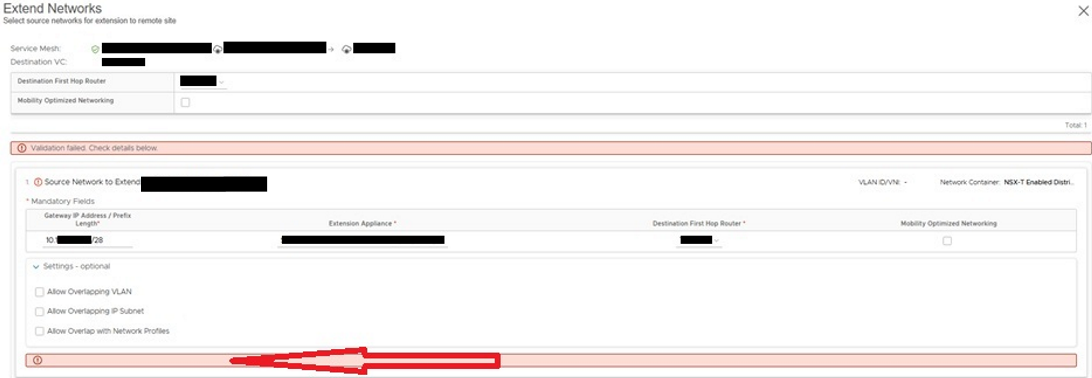

• Network Extension Validation Fails Without Error Message in UI as shown below,

• HCX Manager /common/logs/admin/app.log shows the following error message

YYYY-MM-DD HH:MM:SS.ms UTC [NetworkStretchService_SvcThread-31###, j: 7147###, , TxId: 77906433-###-####-####-8037f0f416f4] WARN  c.v.h.n.util.NetworkExtensionUtils- Unable to find resources from local endpoint
YYYY-MM-DD HH:MM:SS.ms UTC [NetworkStretchService_SvcThread-31###, j: 7147###, , TxId: 77906433-###-####-####-8037f0f416f4] ERROR c.v.h.n.util.NetworkExtensionUtils- Error in validating if VLAN is already extended : {}
java.lang.NullPointerException: null



Environment

VMware HCX

Cause

This issue has been acknowledged as a product defect in HCX 4.11.x versions , specifically affecting cloud-to-cloud site pairing configurations.

Resolution

This issue has been resolved in HCX 9.0 and later releases. It remains unresolved in the 4.11 branch as of now.

Workaround:

• Selecting the "Allow Overlapping VLAN" option during Network Extension validation results in a successful message:

“Validation completed. Submit to proceed.”

• Following this, the network extension can be successfully completed.
