ESXi Hosts fail to install "vmware-hbr-agent.vib"

Products

• VMware vSphere ESXi

Issue/Introduction

Symptoms:

•  Hosts fail to install vmware-hbr-agent vib.

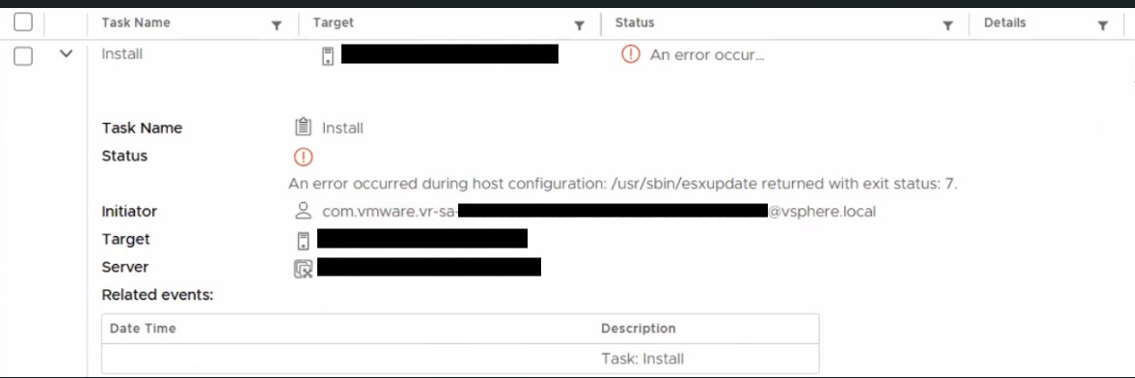

• Following error observed in vSphere Client (every minute):
  "An error occurred during host configuration: /usr/sbin/esxupdate returned with exit status: 7"




• ESXi hosts report the following errors:

  In /var/run/log/esxupdate.log:



  2025-08-02T17:10:10Z Er(11) esxupdate[2169780]: raise Errors.VibDownloadError(url, None, str(e))
  2025-08-02T17:10:10Z Er(11) esxupdate[2169780]: esximage.Errors.VibDownloadError: ('https://VR_FQDN.com:443/vib/vmware-hbr-agent.vib', None, "('https://VR_FQDN.com:443/vib/vmware-hbr-agent.vib', '', '<urlopen error timed out>')")

  2025-08-02T17:12:15Z In(14) esxupdate[2171097]: Opening https://VR_FQDN.com:443/vib/vmware-hbr-agent.vib for download
  2025-08-02T17:12:48Z Wa(12) esxupdate[2171097]: Download failed: <urlopen error timed out>, 4 retry left...
  2025-08-02T17:13:21Z Wa(12) esxupdate[2171097]: Download failed: <urlopen error timed out>, 3 retry left...
  2025-08-02T17:13:54Z Wa(12) esxupdate[2171097]: Download failed: <urlopen error timed out>, 2 retry left...
  2025-08-02T17:14:27Z Wa(12) esxupdate[2171097]: Download failed: <urlopen error timed out>, 1 retry left...



• vCenter has following error confirming host throwing error while installing VIB:

  In /var/log/vmware/vpxd/vpxd.log:



  -- > (vim. fault.PlatformConfigFault) {

  faultCause = (vmodl.MethodFault) null,

  faultMessage = <unset>,

  text = "/usr/sbin/esxupdate returned with exit status: 7"

  msg = "An error occurred during host configuration: /usr/sbin/esxupdate returned with exit status: 7."



Environment

ESXi 8.0

vSphere Replication 9.0.2

Cause

Port 443 needed for ESXi host to download vmware-hbr-agent vib from vSphere Replication Appliance is blocked.

Resolution

1. Blocked port 443 from ESXi host to vSphere Replication Appliance opened on external firewall.


2. Once port connectivity established, vmware-hbr-agent vib install completes.

Additional Information

VMware Ports and Protocols
