Aria Operations for Networks GUI Missing flows and logical port metrics from an interface on a Virtual Machine (VM)

Products

• VCF Operations for Networks

Issue/Introduction

Aria Operations for Networks GUI Missing flows and metrics

1. NSX-T Logical port Metrics for RX Byes and TX Bytes is not seen on Aria Operations for Networks GUI.

   Refer to GUI Screenshots showing the issue







2. Under Account and datasource page on the GUI, we see errors such as below:





3. From collector logs at location /var/log/arking/collector/latest.log following errors and expectations are seen for added datasources:



   2025-07-15T14:46:14.862Z ERROR dataproviders.tasker.Tasker VCENTER_FQDN_Inventory_OpMgr-0 taskCallBackFailure:243 taskCallBackFailure 168: TaskContext{taskType=SCHEDULED, taskIdentifier=com.vnera.dataproviders.core.impl.vmware.vcenter.tasks.VCInventoryPollingAndPartitionTask_VirtualMachine_INVENTORY_Schedule}
   2025-07-15T14:46:16.882Z INFO dataprovider.southbound.AbstractDPHttpsClusterConnectionEntity health-check-start-dp-exec-6 getUnderlyingCurrentConnection:178 Using the default client due to the clientMapSize is zero
   2025-07-15T14:46:16.883Z INFO nsxt.southbound.NSXTHttpConnectionWrapper health-check-start-dp-exec-6 setAuthHeaders:97 token not set for /api/v1/node
   2025-07-15T14:46:16.896Z ERROR dataprovider.utils.HttpUtils health-check-start-dp-exec-6 checkCodeAndThrow:53 Could not get response for /api/v1/node, status 403
   2025-07-15T14:46:16.896Z ERROR dataprovider.utils.HttpUtils health-check-start-dp-exec-6 checkStatusAndThrow:41 API /api/v1/node error response {
     "error_code": 401,
     "error_message": "User is not authorized to perform this operation on the application. Please contact the system administrator to get access.",
     "module_name": "common-services"
   }


   2025-07-15T14:46:26.838Z ERROR dataprovider.utils.HttpUtils health-check-start-dp-exec-6 checkCodeAndThrow:53 Could not get response for /api/v1/node, status 403
   2025-07-15T14:46:26.839Z ERROR dataprovider.utils.HttpUtils health-check-start-dp-exec-6 checkStatusAndThrow:41 API /api/v1/node error response {
     "error_code": 401,
     "error_message": "User is not authorized to perform this operation on the application. Please contact the system administrator to get access.",
     "module_name": "common-services"
   }
   2025-07-15T14:46:26.839Z WARN dataprovider.southbound.AbstractDPHttpsClusterConnectionEntity health-check-start-dp-exec-6 increaseFailedCount:189 Increasing the failure count for https://NSX_T_FQDN:443
   2025-07-15T14:46:26.839Z WARN dataprovider.utils.RetryUtils health-check-start-dp-exec-6 lambda_getNsxtRetryPredicate_0:100 Invalid credentials for remote user. We will retry. Error Msg Could not get response for /api/v1/node, status 403

Environment

Aria Operations for Networks 6.12.0
Aria Operations for Networks 6.12.1
Aria Operations for Networks 6.13.0
Aria Operations for Networks 6.14.0

Cause

From above logs the common error message seen is User is not authorized to perform this operation on the application. Please contact the system administrator to get access.

Above clearly indicates thar both users for VCenter and NSXT used to add datasource did have the right role or privilege.

Resolution

To Resolve this issue, follow the below mentioned steps to revalidate the username with right Role and permissions and revalidate the datasources.

1. Login and Navigate to Aria Operations GUI, Click Settings.


2. Click Account and datasource option, the page loads.


3. For the added datasources, ensure you use username with right Role and permissions and revalidate the datasources.
   You can Refer to documentation: https://techdocs.broadcom.com/us/en/vmware-cis/aria/aria-operations-for-networks/6-14/vrealize-network-insight-ug-4-1-and-later-6-14/adding-a-data-source-in-vrealize-network-insight/supported-vmware-managers/add-vmware-nsx-t-manager.html


4. Validate the datasource with username with right Role and permissions.

5. Check the Option "Enable Netflow/ DFWFIX"


6. Submit the datasource.


7. Post that GUI should not show any errors.

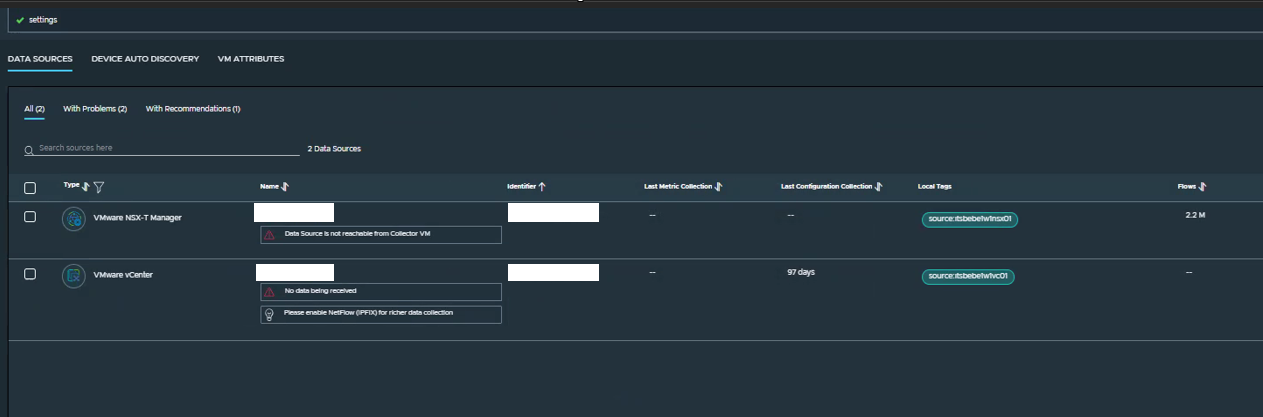

   Refer to below screenshot:




8. Aria Operations for Networks should now show the flows and metric data.
