ESX 9.0 Host HTML client under Storage tab shows "No Data Available"

Products

• VMware vSphere ESXi
• VMware vSphere ESXi 8.0

Issue/Introduction

• Logging on to the ESX Host HTML client in 9.0
  • Under Monitor --> Hardware --> Storage
  • The Page shows "No Data Available" message and does not populate any data


• Below is the screen shot from ESX Host Client Log in

Environment

ESX 9.x

Cause

• CIM Services are no longer available and is Decommissioned in version ESX 9.0 and later

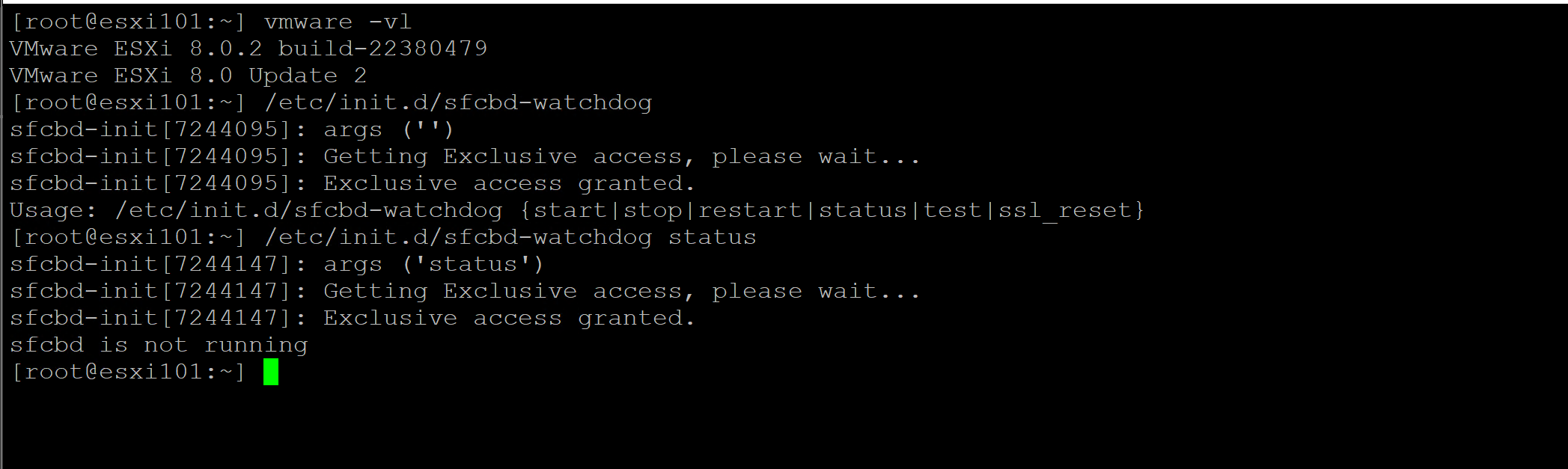

• The Older version of ESXi did have CIM Services / sfcbd Watchdog service available as seen below screenshot for vSphere 8.0 U2



• The ESX 9.0 or later does not have CIM / sfcbd services available and has been decommissioned below is the screenshot reference



• The ESX Host Client fetches the CIM Services directly to populate the Storage Tab
  • Under Monitor --> Hardware --> Storage


• Since the CIM / Sfcbd service is decommissioned, the Storage tab within HTML Client fetches no information and reports "No Data Available" message


Resolution

• This is a Known issue and will be addressed in the future release
• If the replacement solutions are required for existing CIM providers, please reach out to corresponding 3rd party CIM vendor.

Additional Information

Common Information Model (CIM) and Service Location Protocol (SLP) removal VOBs in ESXi 8.0 Update 3
