How to control RCHost Agent registration messages , retry times and Session timeouts via Config Policies.

book

Article ID: 40207

calendar_today

Updated On:

Products

CA Automation Suite for Data Centers - Configuration Automation CA Client Automation - Asset Management CA Client Automation - IT Client Manager CA Client Automation CA Client Automation - Remote Control CA Client Automation - Asset Intelligence CA Client Automation - Desktop Migration Manager CA Client Automation - Patch Manager

Issue/Introduction

Question:

Is there a way or Policy to control RCHost registration messages sent to Domain Manager via RCserver, when a large number of RCHost machines are restarted concurrently?



Answer:

If all the RCHOSTS in your environment startup at the same time, e.g. when all users startup their machines in the morning, the RCSERVER cannot keep up with the registration messages causing them to timeout. The RCHOST then resends the registration message causing a build up in the message queue on the RCSERVER.

Under these circumstances, the following error might be received when attempting to establish a connection:

“Unable to establish a remote control session. The Remote Control Management Server is not available to validate the credentials supplied.“

Retrying after some time you can take control without any problem.

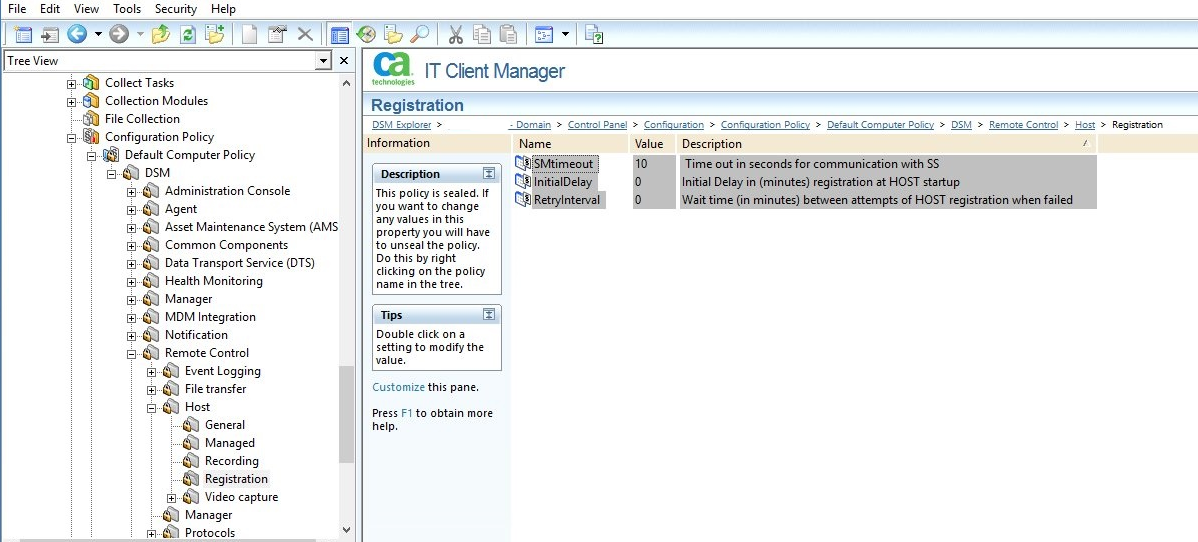

To control and manage this scenario three new RCHost Agent Policies have been introduced:

<Please see attached file for image>


<Please see attached file for image>

<Please see attached file for image>



<Please see attached file for image>

<Please see attached file for image>



InitialDelay: it controls the initial delay in registration i.e. random number of minutes from 0 to configured value, max being 120 mins.

RetryInterval: it affects the Retry interval. Currently it is 1 min, next retry 2 mins, next retry 4 mins till 60 mins reached and there after every 1 hour.

SmTimeout: Session timeout while communication to Server. Currently this is 10 sec. If Server has not responded back within 10 secs, it gets timed out. This is now configurable from 10 seconds (default) to 600 seconds.

Environment

Release: UASIT.99000-12.9-Asset Intelligence
