OC Monitoring Governance devices with current data show as not monitored

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)
• CA Unified Infrastructure Management On-Premise (Nimsoft / UIM)
• CA Unified Infrastructure Management SaaS (Nimsoft / UIM)
• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

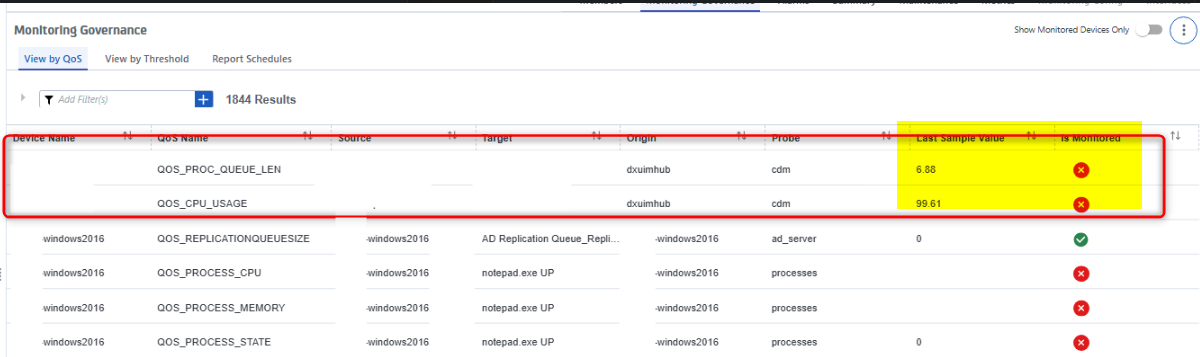

You see some device for which there is current data (last sample value) however the device appears with "is monitored = no".

These objects for which there is current data, should appear in the list when selecting "Show Monitored Devices Only" but they are not. Instead, they show in the full list with an red cross in "Is monitored."



Why is this happening?

Environment

• DX UIM 23.4.3 and later

Cause

If the qos_processor probe is deactivated, it can cause this issue.

The qos_processor probe is needed for QOS Objects to be inserted in the database with a vali "Samplerate" value in the S_QOS_DATA Table. If qos_processor probe is deactivated the samplerate is not registered.

Documentation states:

"If there is a gap in the data collection interval for two consecutive data points plus five minutes for a QoS, then the QoS is tagged as inactive and not monitored. When the QoS data collection starts again the QoS is monitored and is displayed in the report."

In this scenario there is a last sample value, but the UI still tags it as non-active.

Below is the query used by the Monitoring Governance to show the devices:

SELECT ccs.cs_id, ccs.name, monitoring_info.*
  FROM
  CM_COMPUTER_SYSTEM ccs LEFT JOIN
  (
      SELECT
      qd.table_id, d.cs_id as devCsId, qd.r_table,
      qd.qos qosDataQos, qd.source qosDataSource, qd.target qosDataTarget,
      qd.robot qosDataRobot, qd.origin qosDataOrigin, qd.probe qosDataProbe,
      qd.samplerate ,sqs.sampletime, sqs.samplevalue,
      (CASE WHEN (DATEDIFF(second,sqs.sampletime, CURRENT_TIMESTAMP)) <= (2*qd.samplerate + 300) THEN 1 ELSE 0 end) as isMonitored,
      ci.ci_name AS ciName
      FROM CM_DEVICE d  WITH(NOLOCK)
      JOIN CM_CONFIGURATION_ITEM ci  WITH(NOLOCK)  ON ci.dev_id = d.dev_id
      JOIN CM_CONFIGURATION_ITEM_METRIC cim  WITH(NOLOCK)  ON cim.ci_id  = ci.ci_id
      JOIN S_QOS_DATA qd  WITH(NOLOCK)  ON qd.ci_metric_id  = cim.ci_metric_id
      LEFT JOIN S_QOS_SNAPSHOT sqs  WITH(NOLOCK)  ON sqs.table_id = qd.table_id
  ) monitoring_info
  ON ccs.cs_id = monitoring_info.devCsId
  WHERE 1=1
  and ccs.cs_id IN (SELECT cs_id from CM_GROUP_MEMBER)
  and monitoring_info.isMonitored=1
and (  lower(monitoring_info.qosDataSource)  = '<server_name>')
  order by monitoring_info.sampletime desc
  OFFSET 0 ROWS FETCH NEXT 100 ROWS ONLY

This includes a calculation made using the "samplerate".

If the sample rate is NULL it affects the result of this query, hence the device will appear as non-monitored.

Resolution

• Activate the qos_processor probe and ensure it is up and running on the primary hub / DX UIM Server.
