Not able to find the CloudController related metrics in the HW Grafana Explore dashboard

Products

• VMware Tanzu Application Service

Issue/Introduction

The customer would like to check the cloud controller metrics (refer to doc:https://docs.cloudfoundry.org/running/all_metrics.html#cc) in the Healthwatch Grafana Explore dashboard, but no metrics found. Screen-shot as below:



Resolution

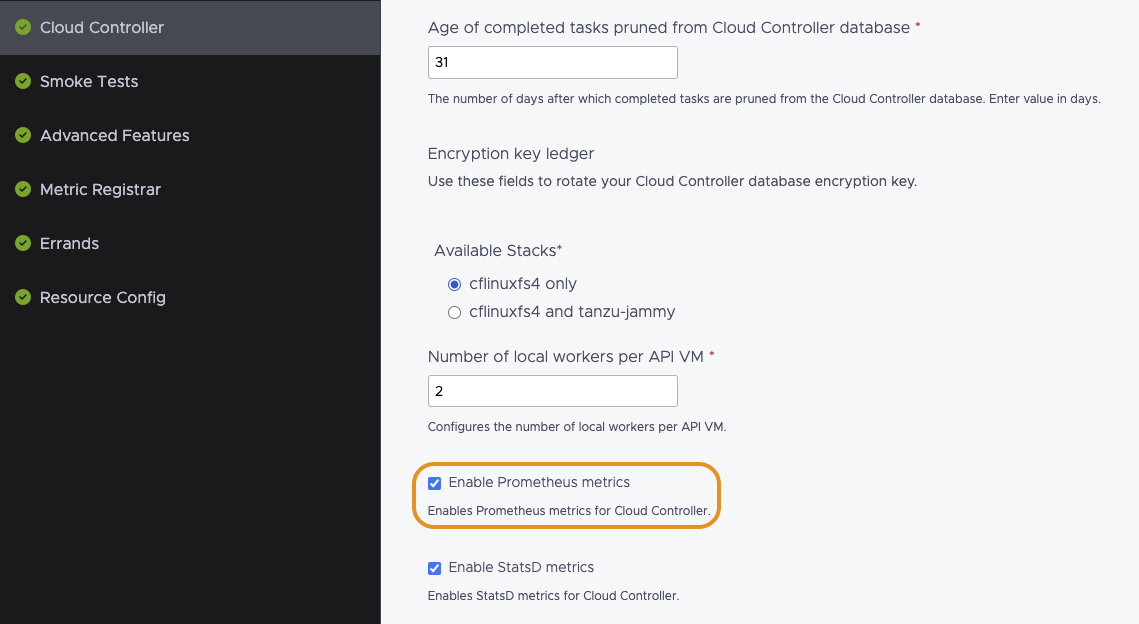

You need to check "Enable Prometheus metrics for Cloud Controller" under TAS tile --> Cloud Controller Tab and Save it. Screen-shot as below -

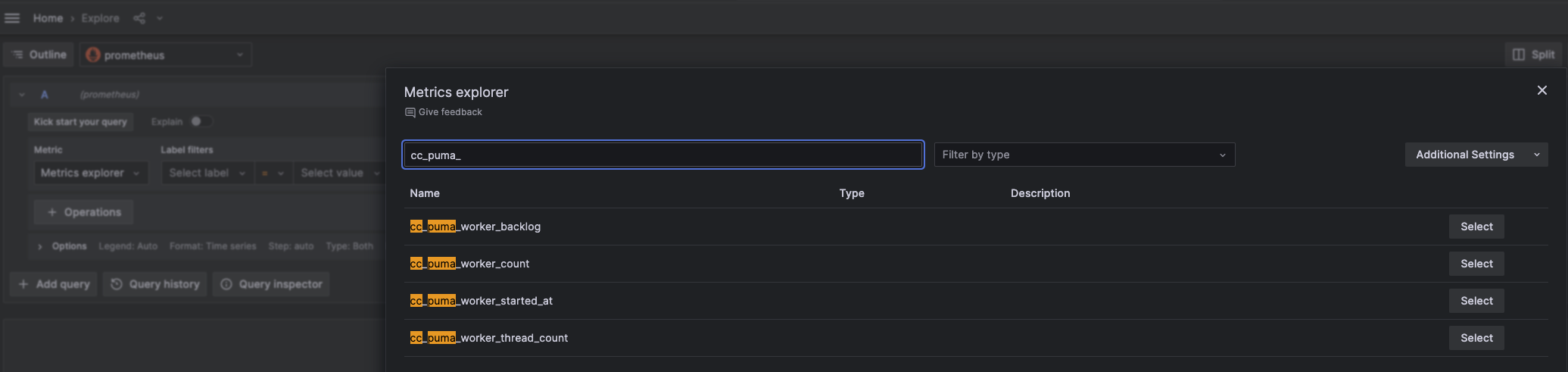

After that, do the Apply Change of TAS tile. Then, you are able to search Cloud Controller related Metrics in the Metric explorer. Screens-shot as blow -
