"Destination Compute Container" shows blank while configuring a VM for migration in the workload mobility wizard.

Products

• VMware HCX

Issue/Introduction

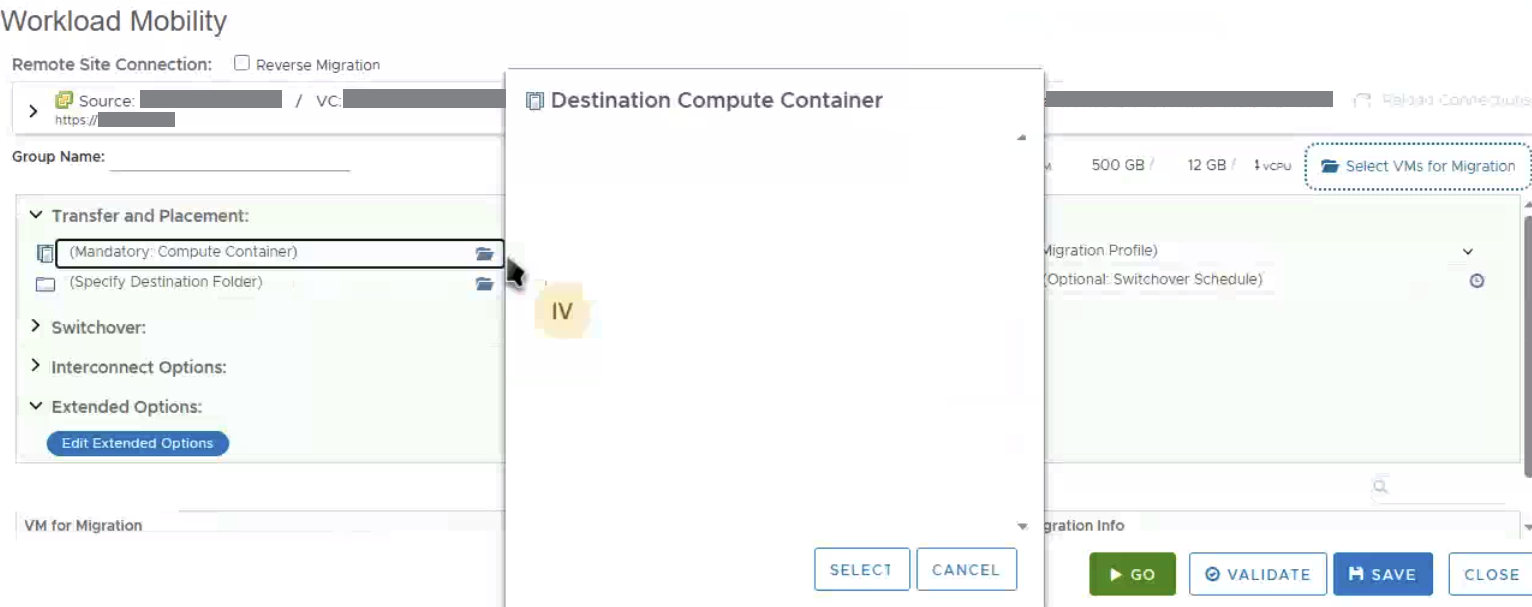

• Destination Compute container shows empty in the migration wizard.


• Following entries would be seen in the /common/logs/admin/web.log

  2025-06-11 09:59:25.618 UTC [https-jsse-nio-127.0.0.1-8443-exec-4, Ent: HybridityAdmin, , TxId: TxId: ########-####-####-####-#########] WARN  c.v.v.h.inventory.InventoryAdapter- Can not collect resources from the cloud: https://##.##.##.## java.lang.Exception: Remote cloud registration record is invalid

Environment

VMware HCX

Cause

• The inventory not being loading is due to the packet loss in the underlay infrastructure between the paired sites.
• Ping test taken between the site-pair (from connector to cloud) confirms the packet drops.

Resolution

The packet loss between the HCX managers (Connector and Cloud) is an physical networking issue. This should be reviewed by the physical networking team.

Additional Information

• Refer https://techdocs.broadcom.com/us/en/vmware-cis/hcx/vmware-hcx/4-10/vmware-hcx-user-guide-4-10/preparing-for-hcx-installations/network-underlay-minimum-requirements.html
