Change Oauth manager to use different port other than the default 8443

Products

• CA API Gateway

Issue/Introduction

User has a route configured to route the request for the Oauth manager to port 443,  but the Oauth manager is default to port 8443.  Can not bring up the Oauth manager.

Environment

ssg 11.x

Cause

The default setting of the Oauth manager port is 8443.

Resolution

By default, the OAuth Toolkit policies are configured to use Port 8443 for HTTPS communication. This includes logging in to the OAuth Manager.

Configure the cluster-wide property 'otk.port' to use an alternative port.



Also, the APIs referencing the default 8443 can be configured directly.

The following APIs both reference the default 8443 port for the

this.app.url.login context variable:

• /oauth/manager/tokens
• /oauth/manager/clients

Perform the same procedure in both APIs.

To configure the API with an alternative port:

• In Policy Manager, open the API.

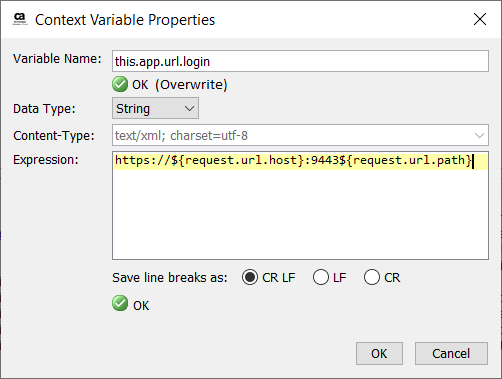

• Search for "8443" and locate the assertion that sets the  this.app.url.logincontext variable.

• Double-click the assertion, edit the port number, and click

  OK

  .

Additional Information

The document reference is here:

https://techdocs.broadcom.com/us/en/ca-enterprise-software/layer7-api-management/api-management-oauth-toolkit/4-6/customizing-the-oauth-toolkit/set-an-alternative-https-port.html
