Unable to see flows on intelligence due to Infra Sync Down
Article ID: 401182
Updated On:
Products
Issue/Introduction
Problem 1: Unable to see flows on intelligence

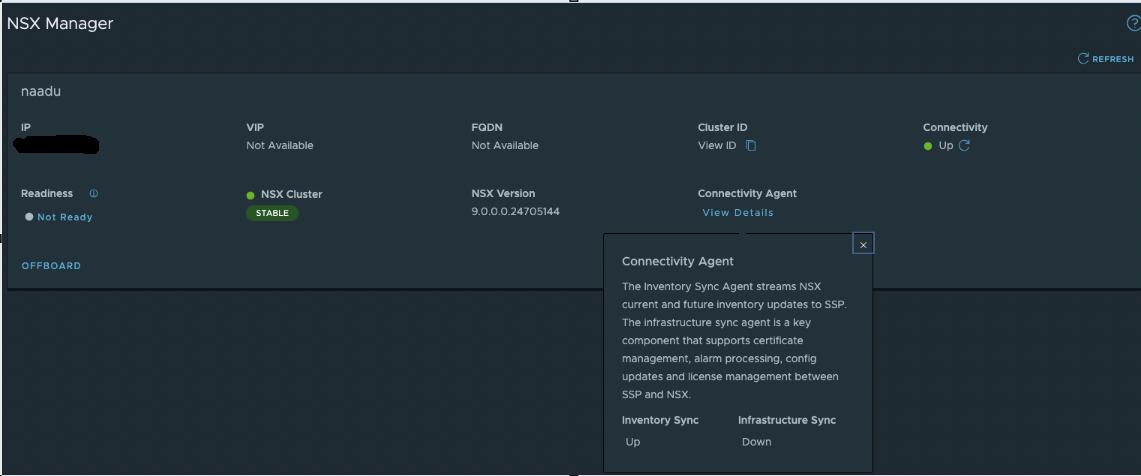

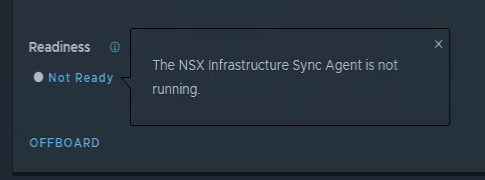

Problem 2: Infrastructure Sync on SSP is DOWN as the full sync/ delta sync has failed
Symptom:
1. Customer will see null pointer exception in NSX proton logs
2022-10-27T18:09:29.766Z INFO CommonAgentDeltaProcessor CommonAgentFullConfigProducerImpl 4152 NAPP [nsx@6876 comp="nsx-manager" level="INFO" s2comp="CommonAgent" subcomp="manager"] Get from Client Table. clientList size 71
2022-10-27T18:09:29.766Z WARN CommonAgentDeltaProcessor CommonAgentDeltaConfigProducerImpl 4152 NAPP [nsx@6876 comp="nsx-manager" level="WARNING" s2comp="CommonAgent" subcomp="manager"] Caught exception in ScheduledExecutorService.
java.lang.NullPointerException: null
at vmware.nsx.napp.CommonAgentProtos$CertificateMsg$Builder.setCertificate(CommonAgentProtos.java:1340) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.utils.DataConverter.buildCertUpdateMessage(DataConverter.java:77) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.utils.DataConverter.buildCertMessage(DataConverter.java:95) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.service.CommonAgentFullConfigProducerImpl.produceCertMsgs(CommonAgentFullConfigProducerImpl.java:178) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.service.CommonAgentFullConfigProducerImpl.produce(CommonAgentFullConfigProducerImpl.java:88) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.service.CommonAgentDeltaConfigProducerImpl.processConfigUpdates(CommonAgentDeltaConfigProducerImpl.java:676) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.service.CommonAgentDeltaConfigProducerImpl.lambda$start$0(CommonAgentDeltaConfigProducerImpl.java:163) ~[?:?]
2025-04-18T11:23:34.899Z WARN CommonAgentDeltaProcessor CommonAgentDeltaConfigProducerImpl 1010408 NAPP [nsx@6876 comp="nsx-manager" level="WARNING" s2comp="CommonAgent" subcomp="manager"] Caught exception in ScheduledExecutorService.
java.lang.NullPointerException: null
at vmware.nsx.napp.CommonAgentProtos$CertificateMsg$Builder.setCertificate(CommonAgentProtos.java:1340) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.utils.DataConverter.buildCertUpdateMessage(DataConverter.java:94) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.service.CommonAgentCertificateChangeListenerImpl.lambda$sendAllCertificates$3(CommonAgentCertificateChangeListenerImpl.java:239) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.service.CommonAgentCertificateChangeListenerImpl.sendAllCertificates(CommonAgentCertificateChangeListenerImpl.java:239) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.service.CommonAgentFullConfigProducerImpl.produceCertMsgs(CommonAgentFullConfigProducerImpl.java:237) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.service.CommonAgentFullConfigProducerImpl.produce(CommonAgentFullConfigProducerImpl.java:130) ~[?:?]
at com.vmware.nsx.management.proton.commonagent.service.CommonAgentDeltaConfigProducerImpl.processConfigUpdates(CommonAgentDeltaConfigProducerImpl.java:762) ~[?:?]
2. Kafka messages from TN are not acknowledged (nsxcli -c get intelligence flow stats ack)
Example:
[root@vxlan-vm-111-24:~] nsxcli -c get intelligence flow stats ack
Tue Dec 24 2024 UTC 06:16:24.893
NSX Intelligence Host Flows Acknowledgement Statistics
--------------------------------------------------------------------------------
host uuid: 546404d0-72ce-4295-8aa4-4278d4715e56
host type: nsx-esx(1)
Topic Total Sent Total Ack'ed Last Sent Last Ack'ed Last Sent Time Last Ack Time
raw_flow 989 988 1 1 06:12:18
Impact: Flows are not reported
Environment
SSP 5.0 / 5.1, NSX Manager 4.2.1.*, NSX Manager 4.2.0.*, NSX Manager 9.0
Cause
NSX Common agent listens for notifications on Client table. Client table can have records without certificate. Common agent was not handling this resulting not able to send messages containing certificates
/var/log/proton/nsxapi.log
Resolution
Please check for failed TNs in NSXT and resolve /delete failed TNs gracefully and see if that solves the issue.
Contact Broadcom Technical Support for Resolution.
Additional Information
If the Symptom mentioned in this KB does not address your issue, refer to the Master KB for NSX Onboarding Issues, which lists all known onboarding scenarios, causes, and troubleshooting methods.
