VMware Live Site Recovery Manager Protected VMs showing warnings due to Network Adapters

Products

• VMware Live Recovery

Issue/Introduction

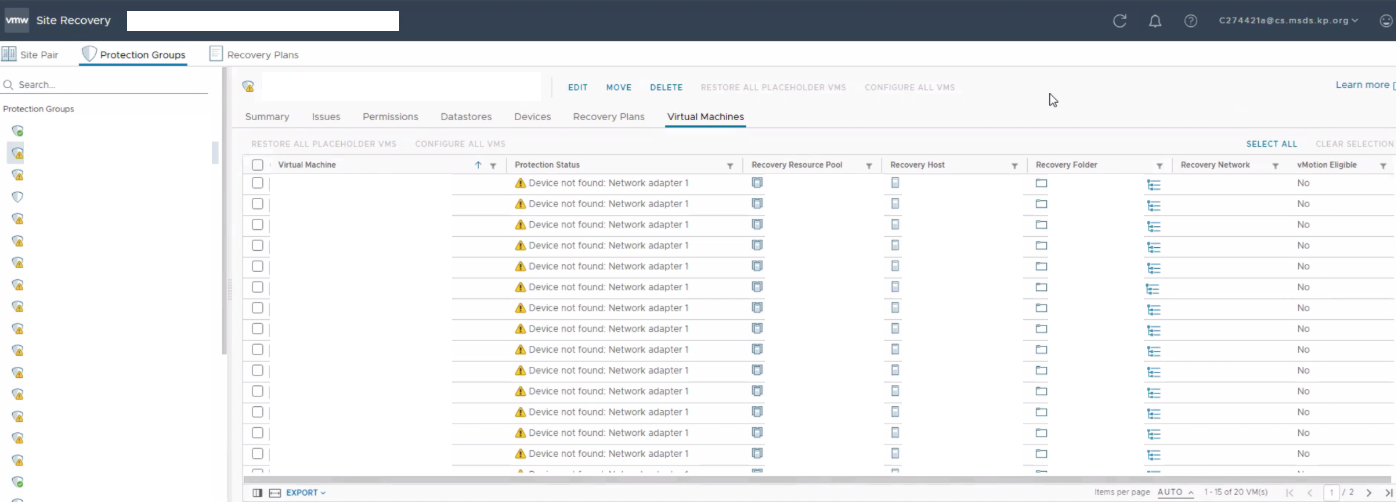

Protection groups in VLSR are showing warnings due to VM showing the following error: Device not found Network adapter 1

Environment

VLSR All versions

Cause

Unconfigured Network Mappings, the VM's in protection groups either need to have the network mappings setup individually or in the network mappings section of VLSR.

To configure these mappings please see:

https://techdocs.broadcom.com/us/en/vmware-cis/live-recovery/live-site-recovery/9-0/how-do-i-protect-my-environment/how-do-i-use-vmware-site-recovery-to-protect-my-environment/select-inventory-mappings.html

Resolution

Create network mappings for the networks or individually per VM.
