Active Directory Integration in Data Center Security Server Advanced Console Version 6.10

Products

• Data Center Security Server Advanced
• Data Center Security Server

Issue/Introduction

Steps to integrate AD (Active Directory) in DCS (Data Center Security Server) 6.10

Environment

DCS 6.10

Resolution

Please configure settings in DCS console as per below format -

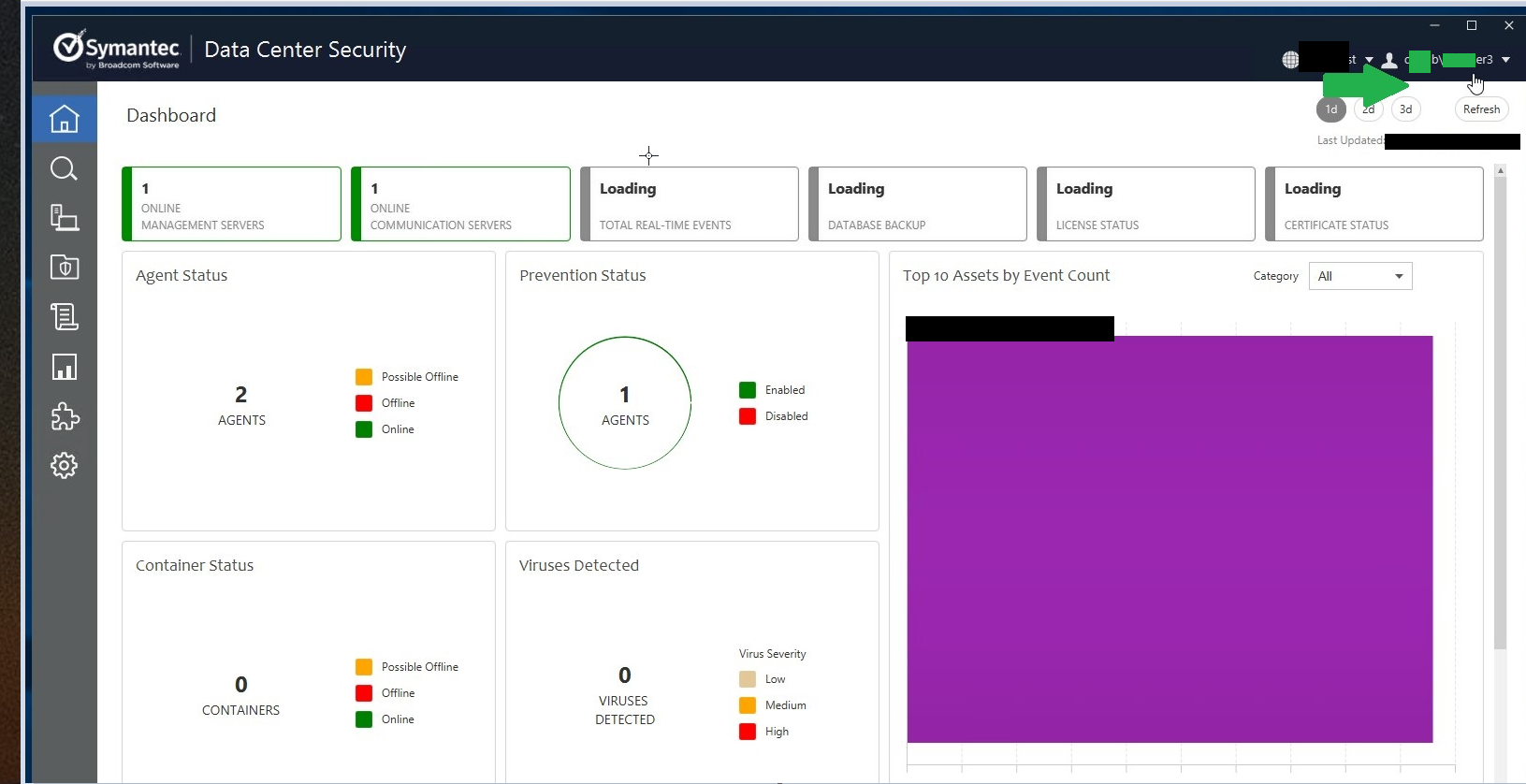

1.Login to DCS console using 'symadmin' account.

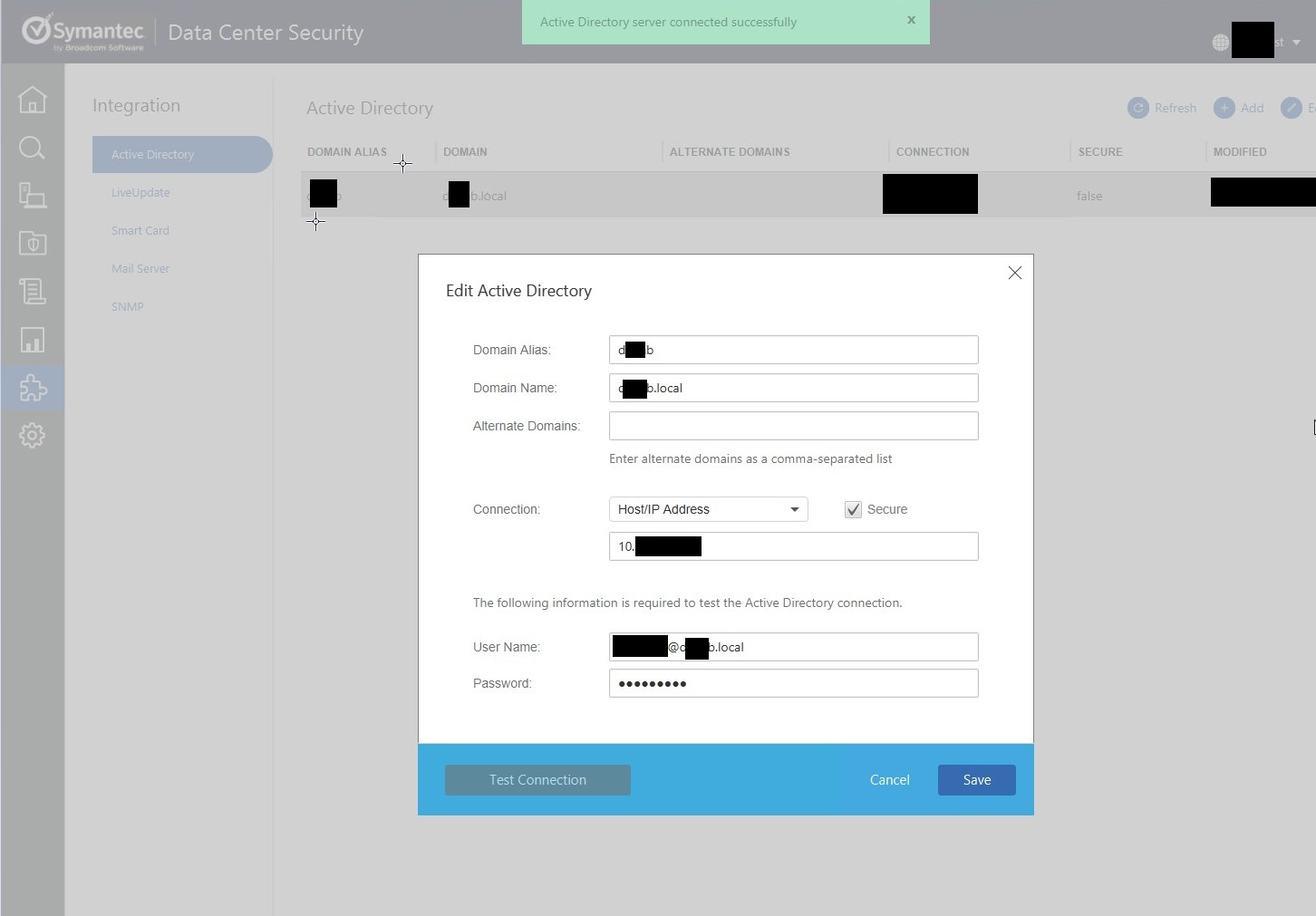

2. DCS Console > Integration > Active Directory and use below configuration as per your environment.

3. Click on 'Test Connection' to validate settings.

Note - You can also configure "non-secure" connection if the Active Directory is configured to serve on non secure port.

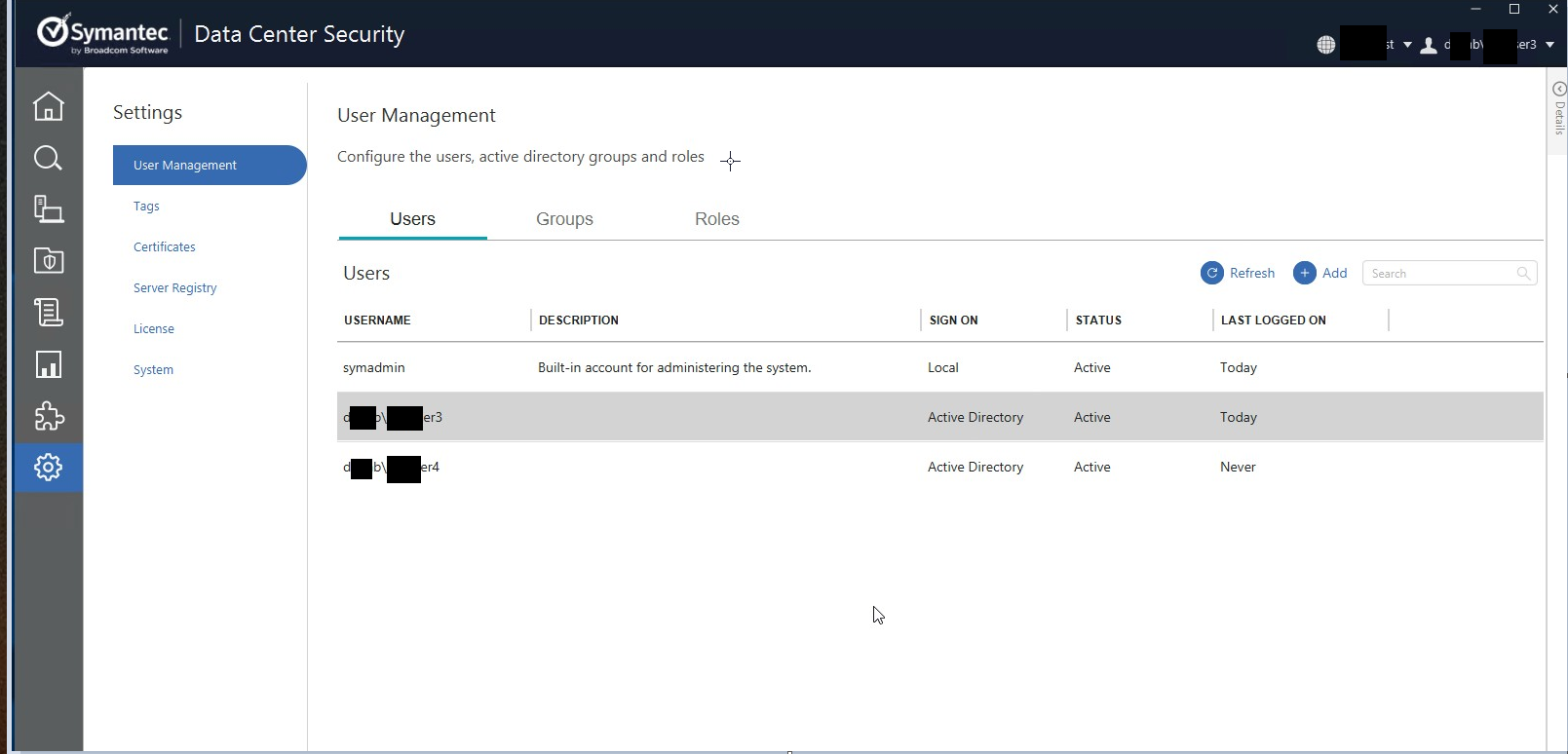

4. Go to DCS Console > Settings > User Management

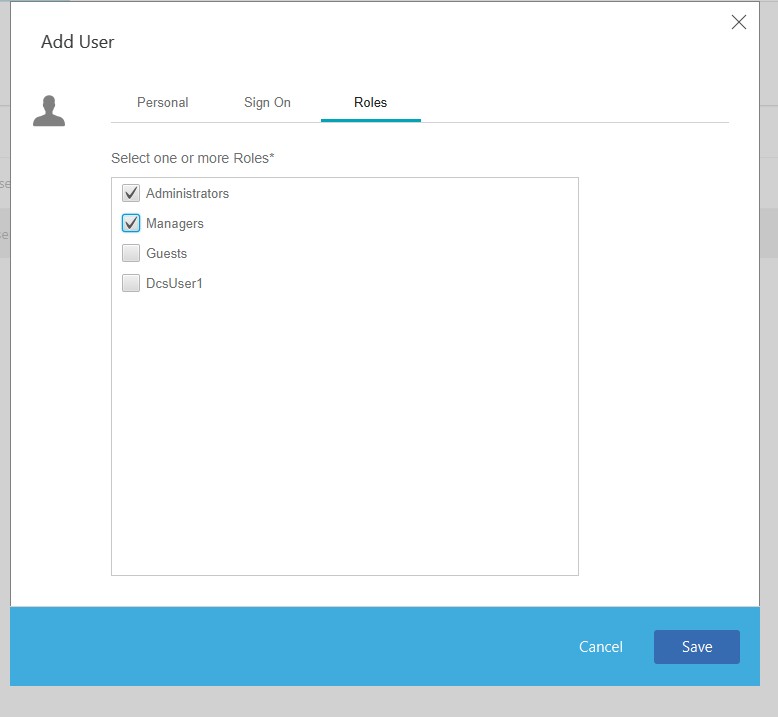

Note- Select the 'Roles' as needed.

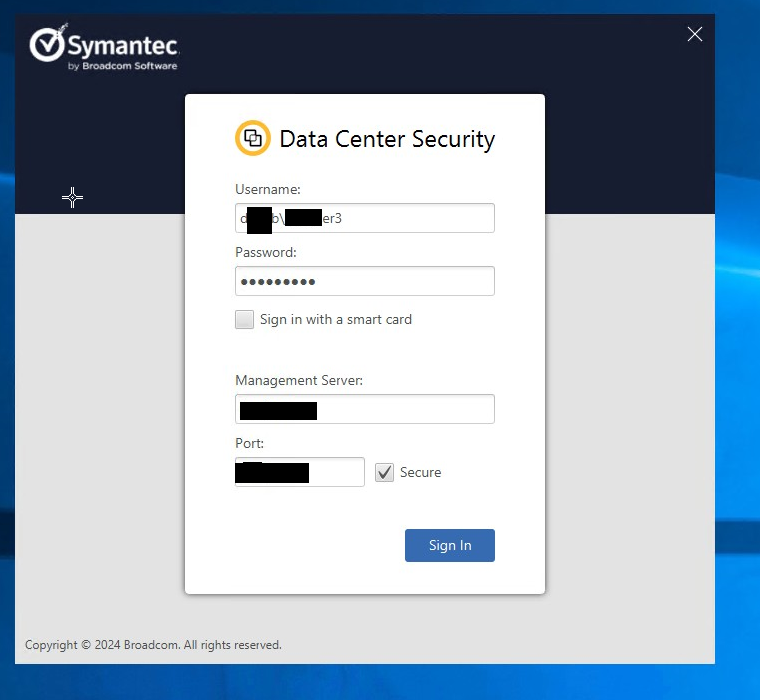

4. Test the configuration by logging to DSC console in below format -
