Error - "Unable to retrieve pairs from extension server at https://xxxxxx:8043. Permission to perform this operation was denied" on launching Site Recovery UI.

book

Article ID: 400352

calendar_today

Updated On:

Products

VMware Live Recovery

Issue/Introduction

Symptoms:

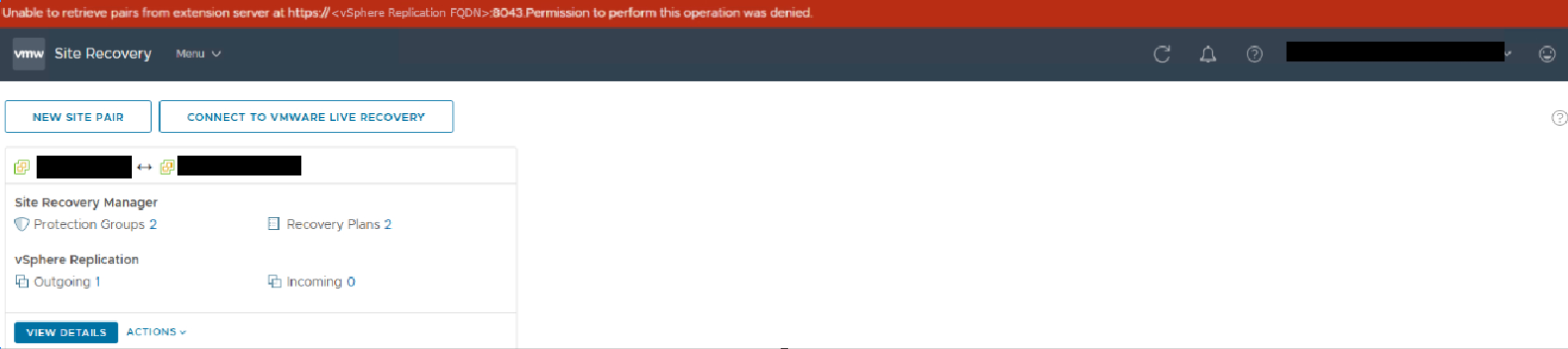

  • On launching the Site Recovery UI, following error is observed:

    "Unable to retrieve pairs from extension server at https://<vsphere-replication-FQDN:8043. Permission to perform this operation was denied."

  • This issue is not observed when using the local vCenter administrator account.

  • The issue is only observed for users assigned with a new/old (modified) role which was supposed to give access to Site Recovery UI to perform DR operations.

Environment

  • vSphere Replication 9.0.2

  • VMware Live Recovery 9.0.5

Cause

  • In /opt/vmware/support/logs/dr-client/dr.log of the VR/VLR appliance, the below entries can be observed which suggests that the user doesn't have enough permissions to access the Site Recovery UI:

    2026-01-20 16:54:30,993 [srm-reactive-thread-830] WARN  com.vmware.srm.client.infrastructure.requestHandlers.navigation.SitePairHelper 5701817940452108613 fe728847-####-####-####-############ getRoboPairs - Fail to get HMS sitePairData for HmsServerImpl {
    _guid = d05dc9b3-####-####-####-############
    _url = https://<VR FQDN>:8043
    }:
    com.vmware.srm.client.topology.client.view.availability.ExtensionServer$GetPairFailedException: Unable to retrieve pairs from extension server at https://<VR FQDN>:8043.Permission to perform this operation was denied.
            at com.vmware.srm.client.topology.impl.view.availability.ExtensionServerImpl.complete(ExtensionServerImpl.java:51)
            at com.vmware.srm.client.topology.impl.core.mxn.nodes.HmsNode.lambda$discoverNeighbours$1(HmsNode.java:69)
            at com.vmware.dr.ui.tools.reactive.impl.PromiseImpl$ErrorCompletion.complete(PromiseImpl.java:172)
            at com.vmware.dr.ui.tools.reactive.impl.PromiseImpl$Result.complete(PromiseImpl.java:43)
            at com.vmware.dr.ui.tools.reactive.impl.PromiseImpl$Completion.lambda$setResult$0(PromiseImpl.java:63)
            at com.vmware.dr.ui.tools.utilities.ThreadContext.lambda$wrap$1(ThreadContext.java:55)
            at com.vmware.dr.ui.tools.utilities.ThreadContext.execute(ThreadContext.java:209)
            at com.vmware.dr.ui.tools.utilities.ThreadContext.execute(ThreadContext.java:185)
            at com.vmware.dr.ui.tools.utilities.ThreadContext.setupContext(ThreadContext.java:76)
            at com.vmware.dr.ui.tools.utilities.ThreadContext.setupContext(ThreadContext.java:105)
            at com.vmware.dr.ui.tools.reactive.impl.PromiseImpl$Completion.lambda$setResult$1(PromiseImpl.java:63)
            at com.vmware.dr.ui.tools.utilities.AsyncConsumer$Worker.run(AsyncConsumer.java:38)
            at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
            at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
            at java.base/java.lang.Thread.run(Unknown Source)
    Caused by: (vim.fault.NoPermission) {
       faultCause = null,
       faultMessage = null,
       object = ManagedObjectReference: type = HmsRemoteSiteManager, value = site-manager, serverGuid = d05dc9b3-####-####-####-############,
       privilegeId = HmsRemote.com.vmware.vcHms.Hms.View,
       missingPrivileges = (vim.fault.EntityPrivileges) [
          (vim.fault.EntityPrivileges) {
             dynamicType = null,
             dynamicProperty = null,
             entity = ManagedObjectReference: type = HmsRemoteSiteManager, value = site-manager, serverGuid = d05dc9b3-####-####-####-############,
             privilegeIds = (STRING) [
                HmsRemote.com.vmware.vcHms.Hms.View
             ]
          }
       ]
    }

  • The privileges assigned to the user via a role on the vCenter can be validated from the vCenter's /var/run/log/vmware/vsphere-ui/logs/vsphere_client_virgo.log by searching for the role's name. Example:

    Info (com.vmware.cis.authz.role.info) => {
        id = 1101,
        name = <role_name>,
        description = <role_description>,
        privilegeId = [VcDr.RecoveryProfile.com.vmware.vcDr.Create, HmsReplication.com.vmware.vcHms.Replication.View, System.Anonymous, Resource.com.vmware.vcDr.RecoveryUse, Sessions.TerminateSession, VcDr.RecoveryProfile.com.vmware.vcDr.Run, Datastore.Replication.com.vmware.vcDr.Protect, VcDr.ProtectionProfile.com.vmware.vcDr.Edit, System.Read, VcDr.Internal.com.vmware.vcDr.InternalAccess, HmsDiagnostics.com.vmware.vcHms.Diagnostics.Manage, VcDr.RecoveryProfile.com.vmware.vcDr.Reprotect, VcDr.RecoveryHistoryManager.com.vmware.vcDr.Delete, VcDr.RecoveryProfile.com.vmware.vcDr.ConfigureServerCommands, HmsSession.com.vmware.vcHms.Session.Terminate, HmsDatastoreMapper.com.vmware.vcHms.Mappings.Manage, VcDr.Storage.com.vmware.vcDr.Configure, VcDr.RecoveryProfile.com.vmware.vcDr.Edit, VcDr.ProtectionProfile.com.vmware.vcDr.AssignToRecoveryPlan, VcDr.Diagnostics.com.vmware.vcDr.SystemLogs, StorageProfile.View, VcDr.InventoryMapper.com.vmware.vcDr.Edit, VcDr.ProtectionProfile.com.vmware.vcDr.Delete, VcDr.Backup.com.vmware.vcDr.Manage, VcDr.RemoteSite.com.vmware.vcDr.Edit, HmsDatastoreMapper.com.vmware.vcHms.Mappings.View, System.View, HmsDpx.com.vmware.vcHms.Subscription.Manage, VcDr.RecoveryProfile.com.vmware.vcDr.Restore, VcDr.RecoveryHistoryManager.com.vmware.vcDr.ViewDeleted, VcDr.RecoveryProfile.com.vmware.vcDr.Delete, HmsRemote.com.vmware.vcHms.Hbr.View, VcDr.ProtectionProfile.com.vmware.vcDr.Create, VcDr.RecoveryProfile.com.vmware.vcDr.Failover, HmsRemote.com.vmware.vcHms.Hbr.Manage, Datastore.Replication.com.vmware.vcDr.Unprotect, VirtualMachine.Replication.com.vmware.vcDr.Protect],
        tenant = <null>,
        system = false

Resolution

To resolve this issue:

  1. Modify Role assigned to AD user by adding required permissions for vSphere Replication (VRM).

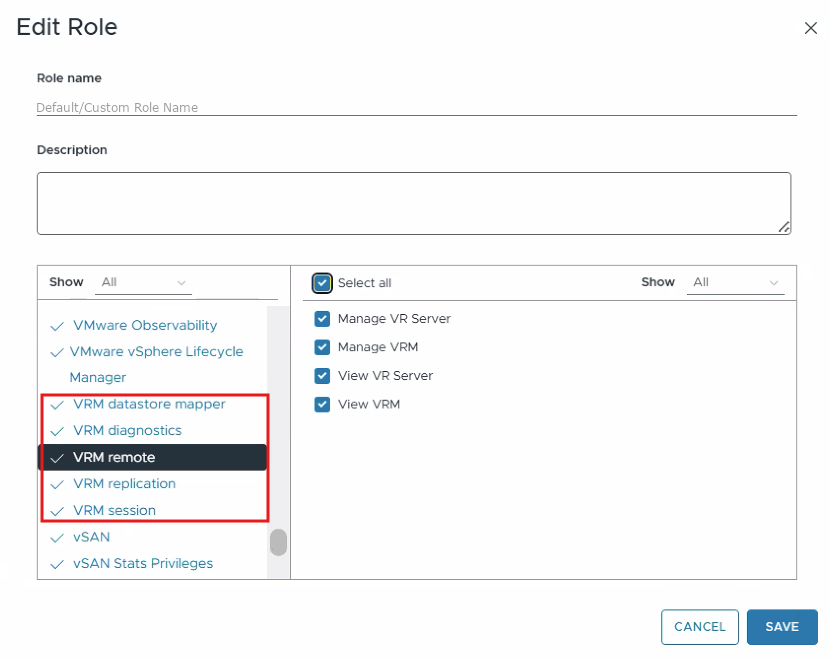

    1. In vSphere Client > Click on Menu > Administration > Roles > Select the 'Role' assigned to AD user > Click on 'Edit'.

    2. Add following privileges to the role:

      1. VRM datastore mapper

        Manage

        View

      2. VRM diagnostics

        Manage

      3. VRM replication

        View replications

      4. VRM session

        Terminate

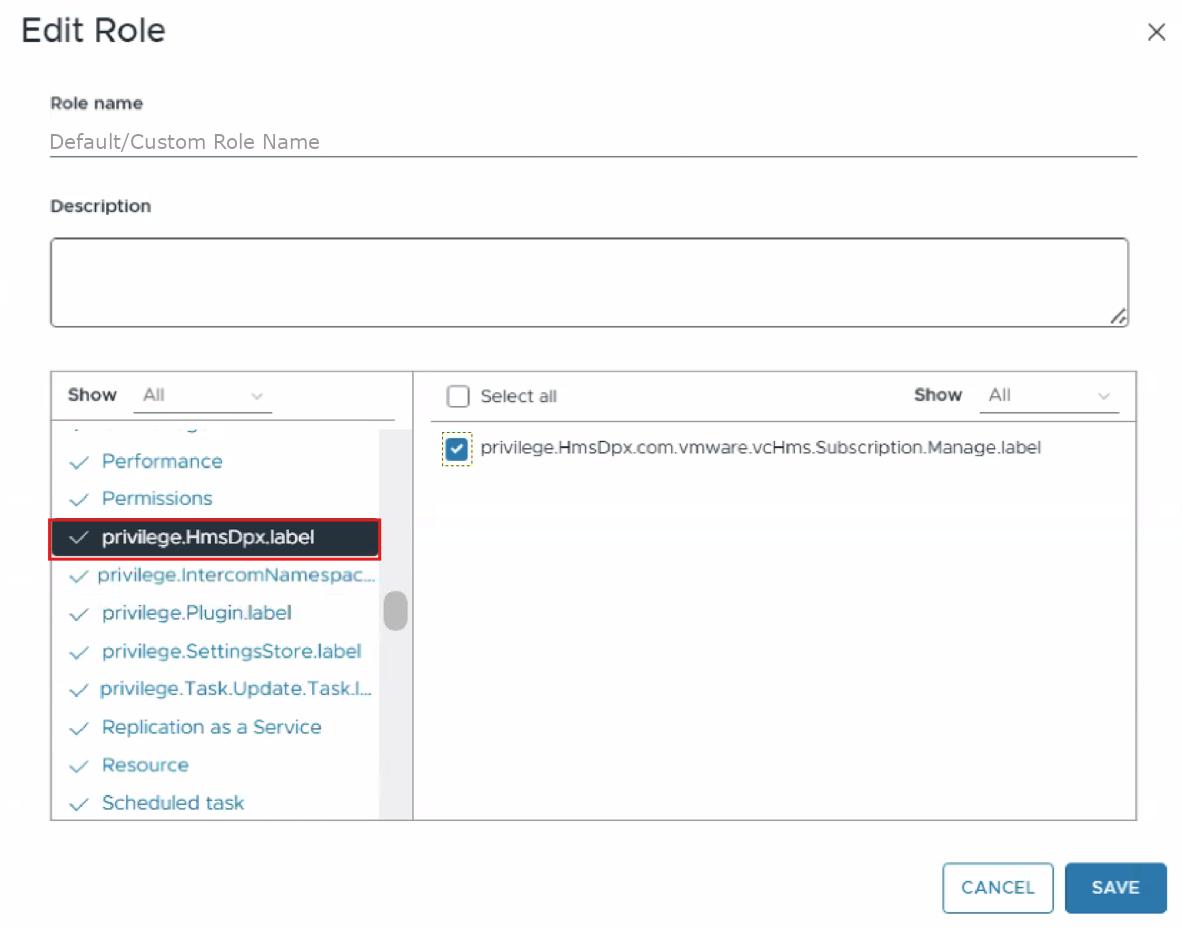

      5. privilege.HmsDpx.label

        privileage.HmsDpx.com.vmware.vcHms.Subscription.Manage.label

      6. VRM remote

        Manage VR server

        Manage VRM

        View VR Server

        View VRM


        Example:

  2. Relaunch Site Recovery UI by clicking on 'Open Site Recovery' to validate resolution of issue.

  3. If the issue persists, reboot the VLR/VR appliance which is serving the Site Recovery client.
