Metric viewer Graph is not showing as a line graph when using raw aggregation
Article ID: 397879
Updated On:
Products
DX Unified Infrastructure Management (Nimsoft / UIM)
Issue/Introduction

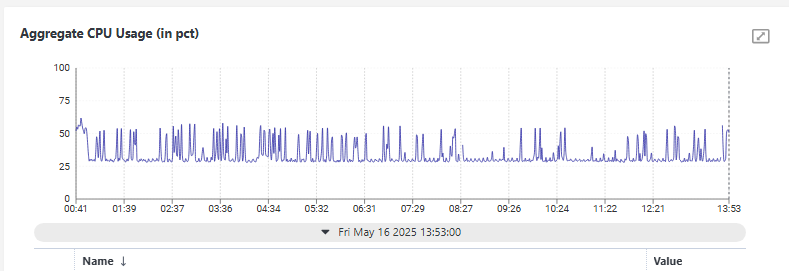

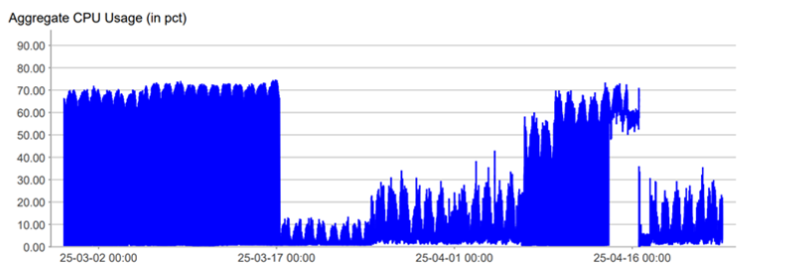

We are building some Metric Viewer graphs and when showing raw data (Aggregation Interval equals to Raw) the graph does not shows a line, but it shows like in the screenshots below:
Environment
DX UIM 23.4.3
Cause
The "Raw" data option in the graph literally shows every datapoint for a particular metric object.
If the QOS interval is very low (Example 1 minute) the graph will show every data point, and for higher time ranges it shows and connect all the datapoints and the graph tries to fit them all in the graph, so it can become hard to read.
Resolution
Use different aggregation intervals for showing a cleaner line
Additional Information
