vSAN datastore total size is not correct

Products

• VMware vSAN

Issue/Introduction

Symptom:

• vSAN clusters with the same size and number of disks are having different available space.





Validation:

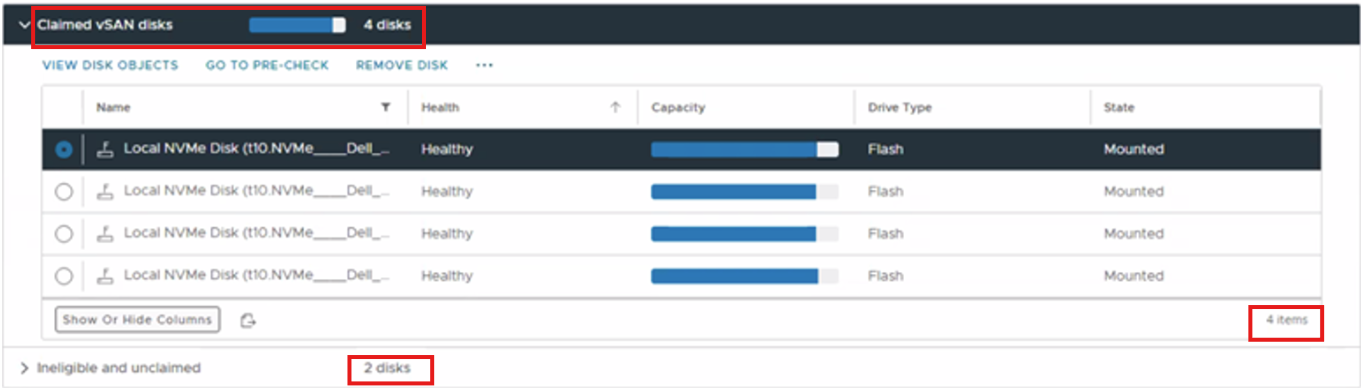

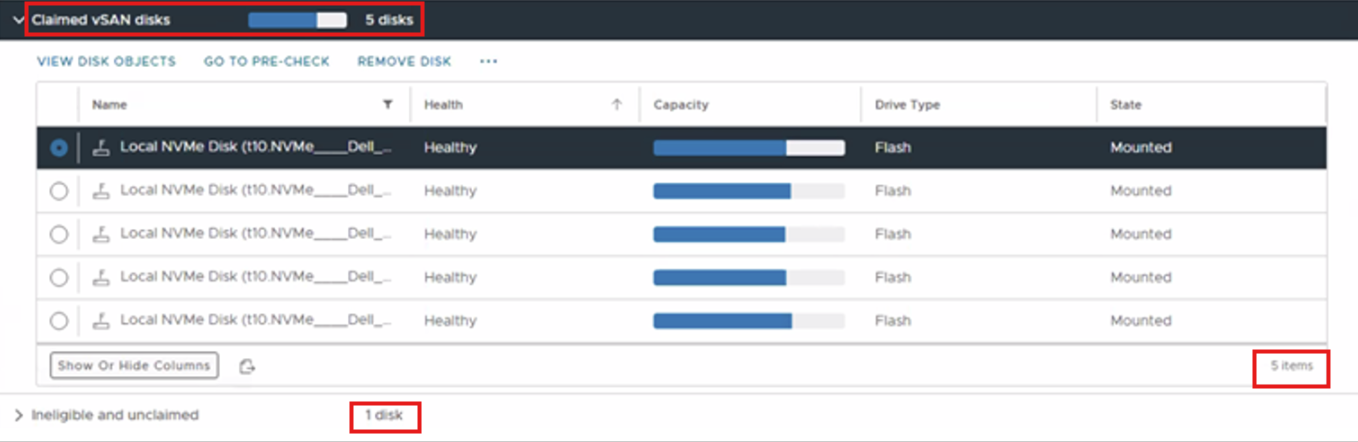

• Cluster with larger size has more disks added to the disk group. Select the vSAN cluster > Configure > Disk Management > Select vSAN node > View Disks > Expand the disk group.

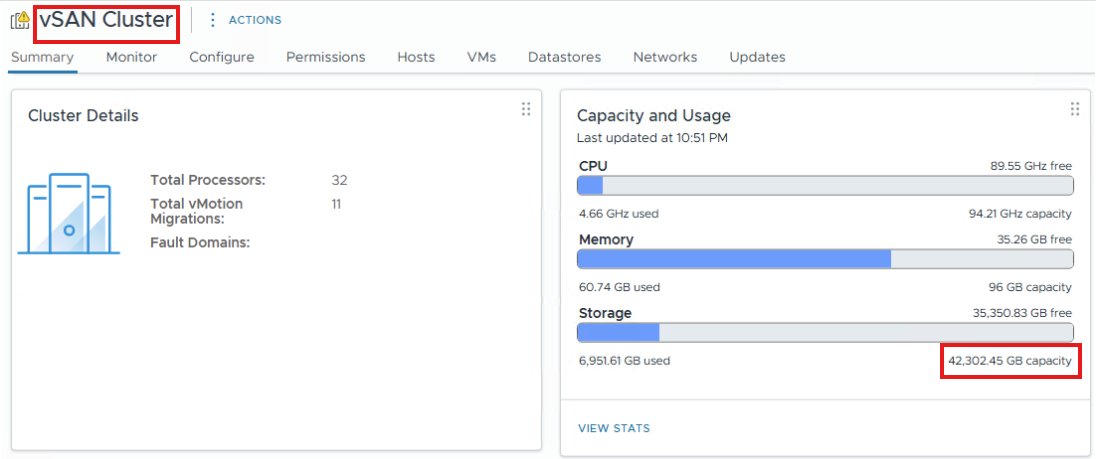

  vSAN Cluster

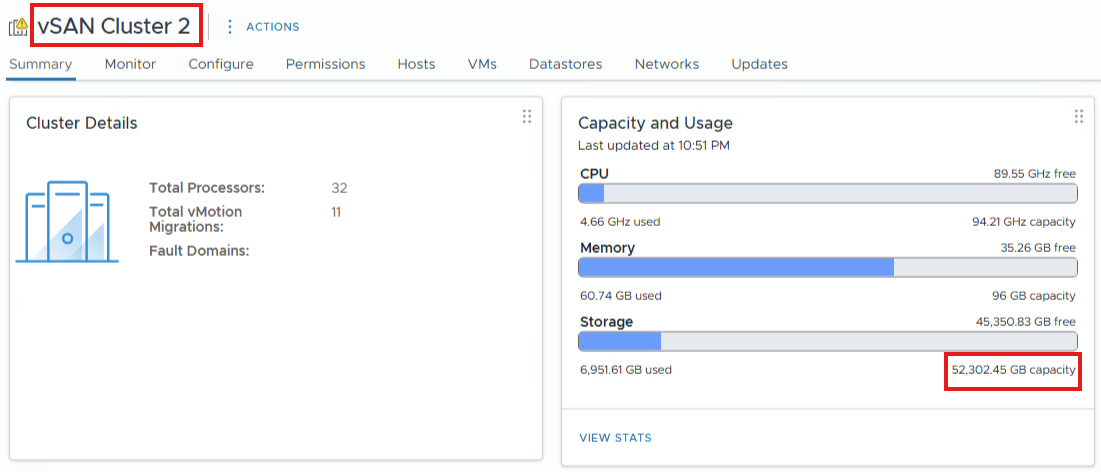

  vSAN Cluster 2



Environment

VMware vSphere vSAN 7.x

VMware vSphere vSAN 8.x

Cause

• Adding the disks physically to the vSAN node doesn't add the disk to the disk group automatically.

Resolution

• Manually add disks to the disk group. Follow Add Devices to the Disk Group in vSAN Cluster.


• In case there are any critical skyline health alerts like "vSAN cluster configuration consistency" on the vSAN cluster, then please fix them first.


• If a partition is present on the unclaimed disk, remove the partition before adding it to the vSAN cluster. For detailed instructions on removing partitions, Remove Partition From Devices.

Additional Information

vSAN Cluster Configuration Consistency
